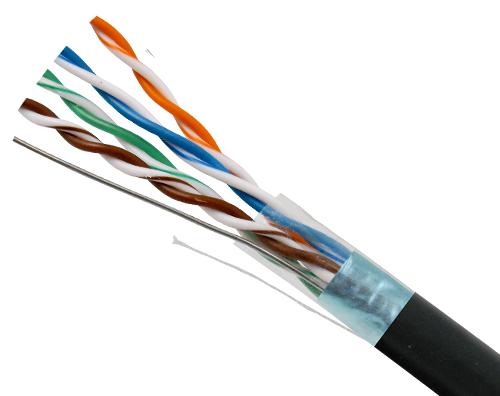

It is suitable for 18-30 AWG insulated core wire pair twist for Lan Cat5 / Cat6 / Cat5e / Cat6e.
1. Traverse: Bearing-type cable, row pitch and width are adjustable
2. Quality: Stable performance, regular update of production process
3. Components: Adopt high-quality well-known brand components to ensure overall performance
|

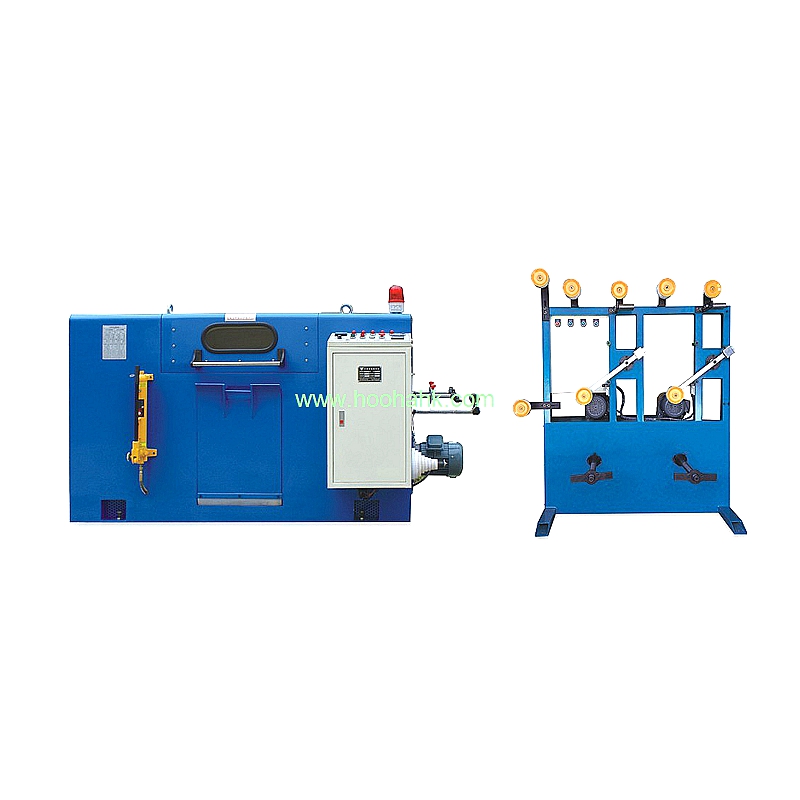

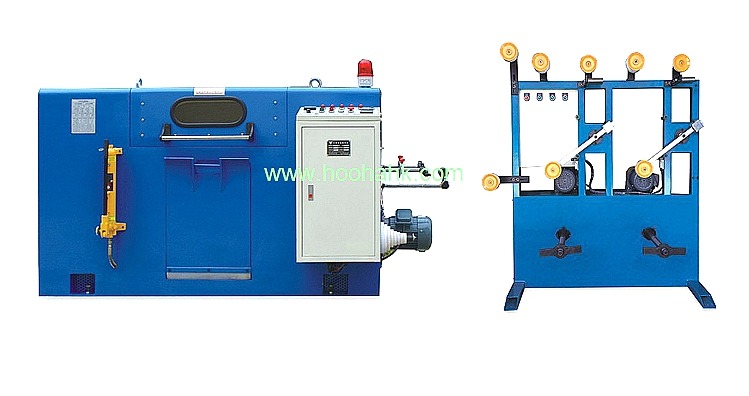

No. |
Items |
Quantity |
Picture |
|
1 |

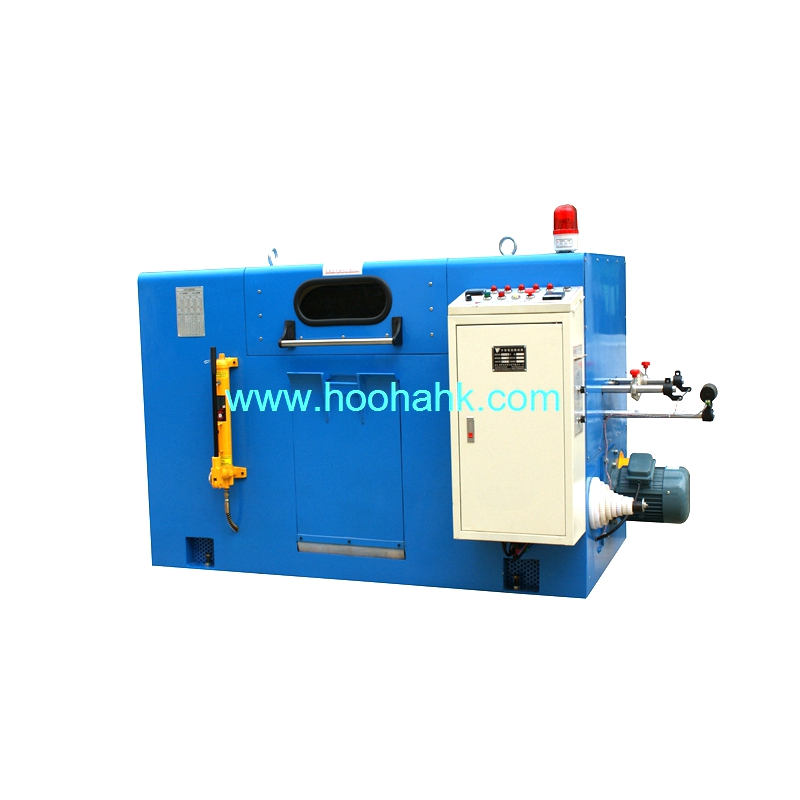

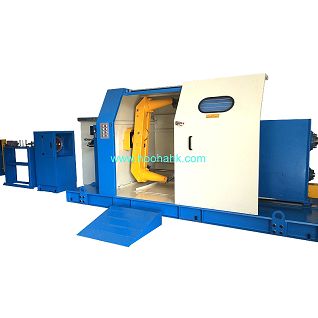

500 Pair Twisting Machine |
1 set |
|
|
2 |

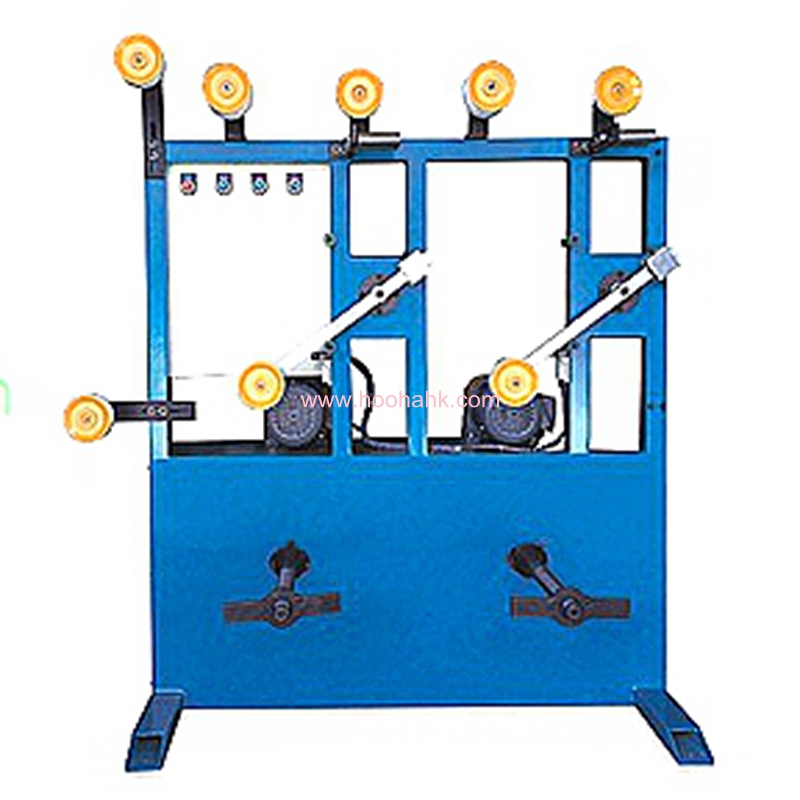

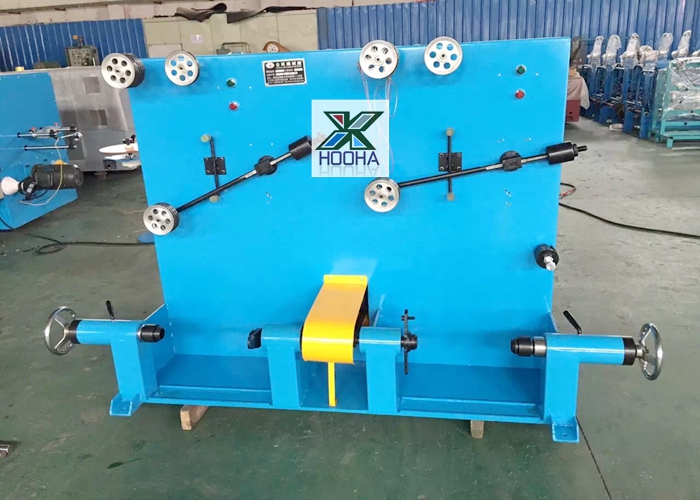

Motorized Pay Off Stand |
1 set |
|
|
No. |
Items |
Features |
|
1 |
Inlet insulated wire Diameter |
Φ0.75mm—Φ1.5mm |
|
2 |
Finished diameter |
Max 3mm |
|
3 |
Twisting pitch |
6-60mm |
|
4 |
Rotation |
Stepless speed control 2500 rpm |
|
5 |
Pay-Off |
Passive pay off stand |
|
6 |
Core Wire Diameter |
Max Φ 1.5mm |
|
7 |
Take-up Bobbin |
Φ500mmxΦ300mmx56mm |
|
8 |
Drive Motor |
3 phase AC 7.5 HP , Inverter 7.5 HP |
|
9 |
Noise |
About 75db |
|
10 |
Weight |
About 2850kg |
Our engineer team has over 5-year experience working overseas for customer on-site service. Therefore, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.
