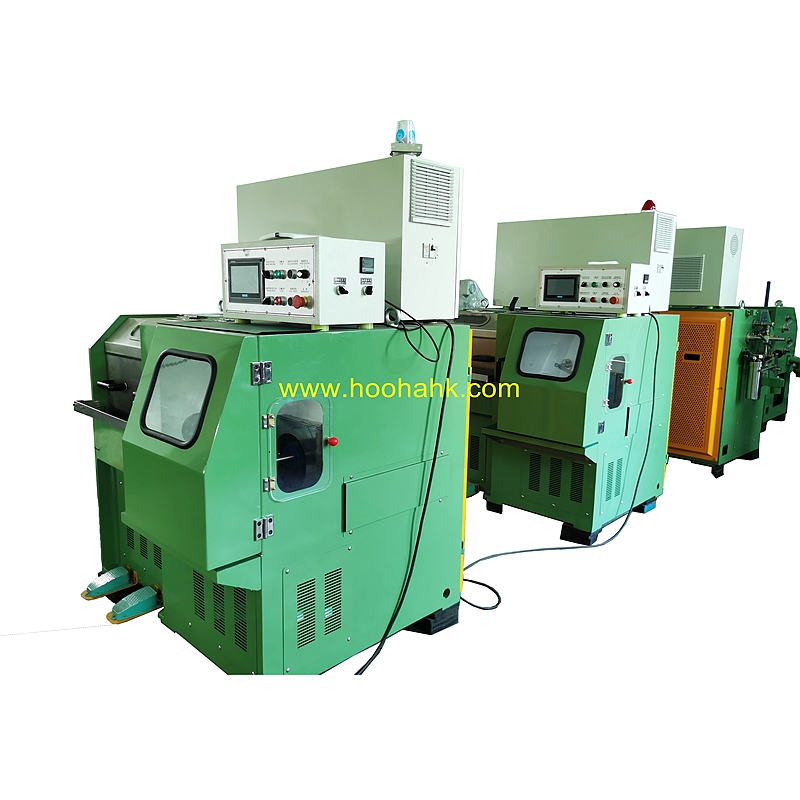

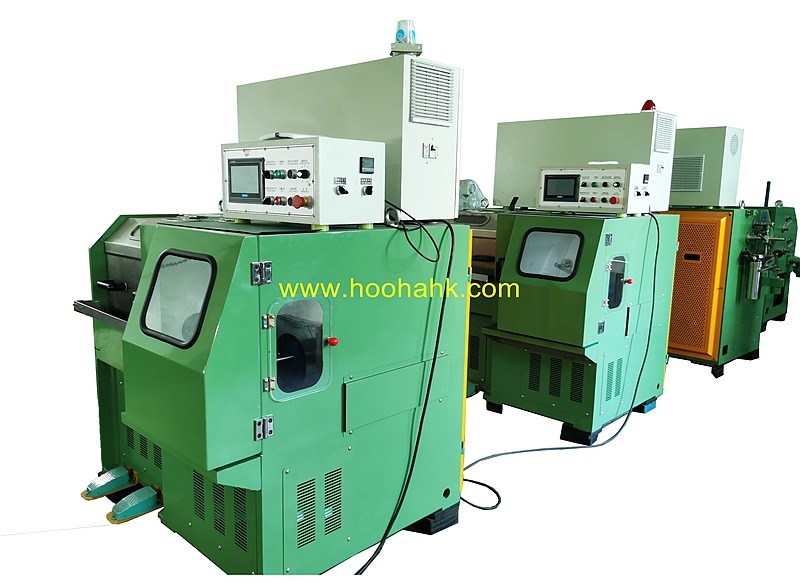

This production line is used to draw 0.08-0.2mm copper wire to 0.025-0.06mm wire.
此套生产设备用于将0.08-0.2mm的铜或铝合金线拉制成0.025-0.06mm的导线。
|
No. |
Name |
Qty. |
|
1 |
Pay-off Stand 放线 |
1 set |
|
2 |

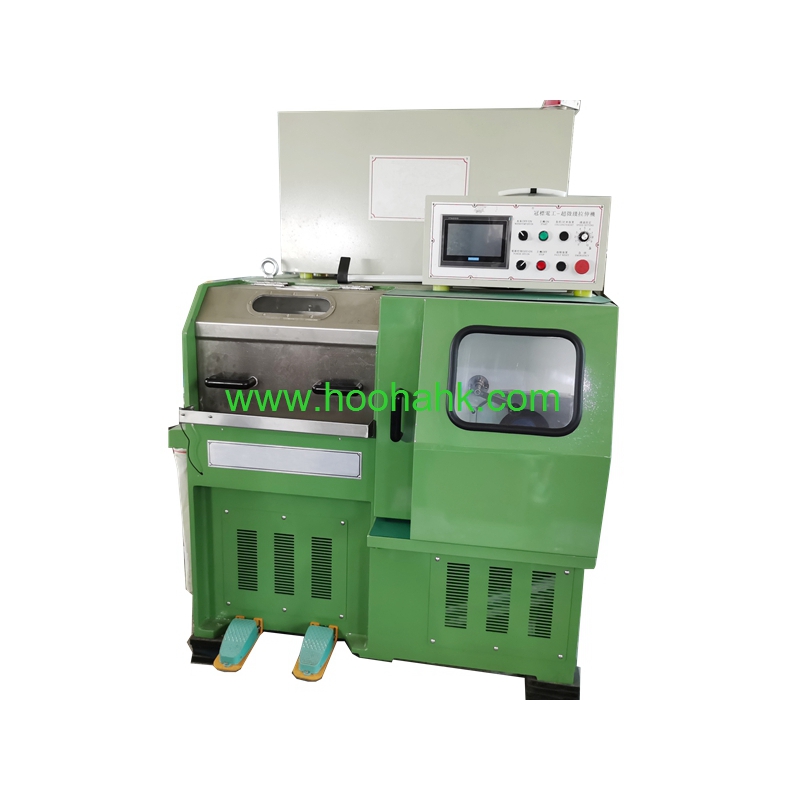

Host Drawing Machine 拉丝主机 |
1 set |
|
3 |
Take-up Machine 收线 |
1 set |
|
4 |
Accessories supplied with the machine 附件 |
|
|
4.1 |
Rotary pay-off stand |
1 set |
|
4.2 |
Mounting rubber pad |
8 pieces |
|
No. |
Items |
Features |
|
1 |
Power control 电源控制 |
Dual inverter 双变频系统 |
|
2 |
Wire Inlet Diameter 进线直径 |
0.08～0.2 MM |
|
3 |
Wire Outlet Diameter 出线直径 |
0.025～0.06 MM |
|
4 |
Number of Dies 拉丝模数 |
24 |
|
5 |
Power Consumption 功率 |
AC 6-8 KW |
|
6 |
Production Speed 生产速度 |
Max 2000 M/Min |
|
7 |
Voltage 电压 |
380V, can be customized |
|
8 |
Weight 重量 |
1500 KG |
|
9 |
Measurement (L*W*H) 尺寸 |
2.5*1*1.7 M |
