| No. | Items | Quantity |
Reference Picture |
|
1 |

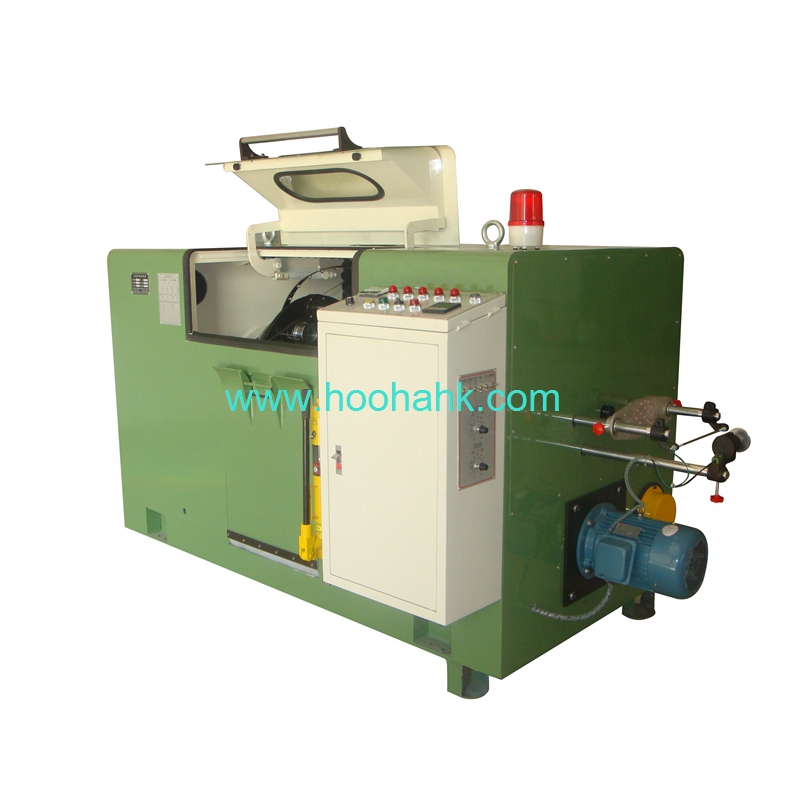

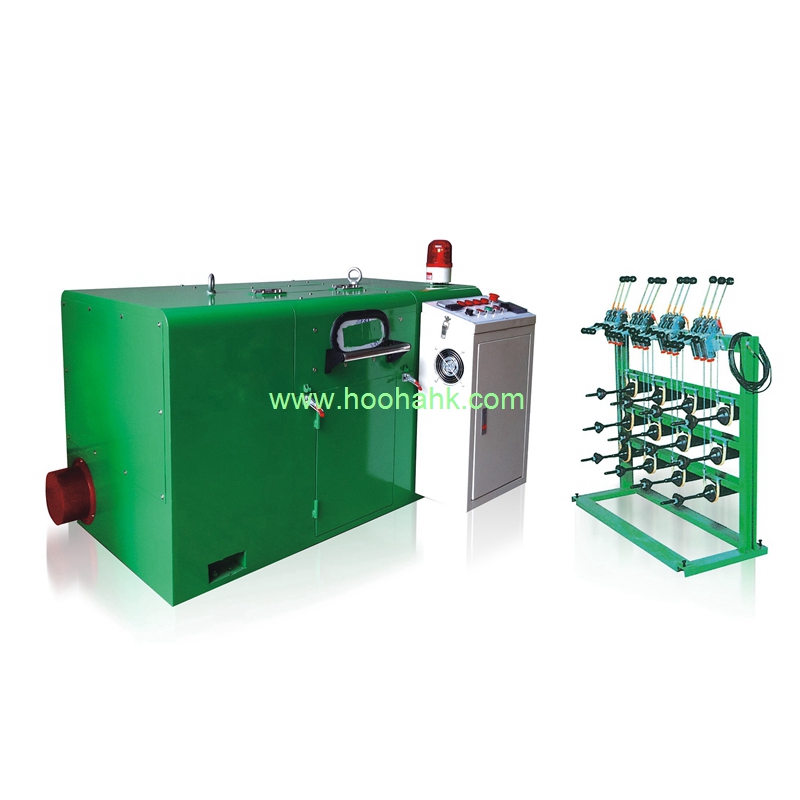

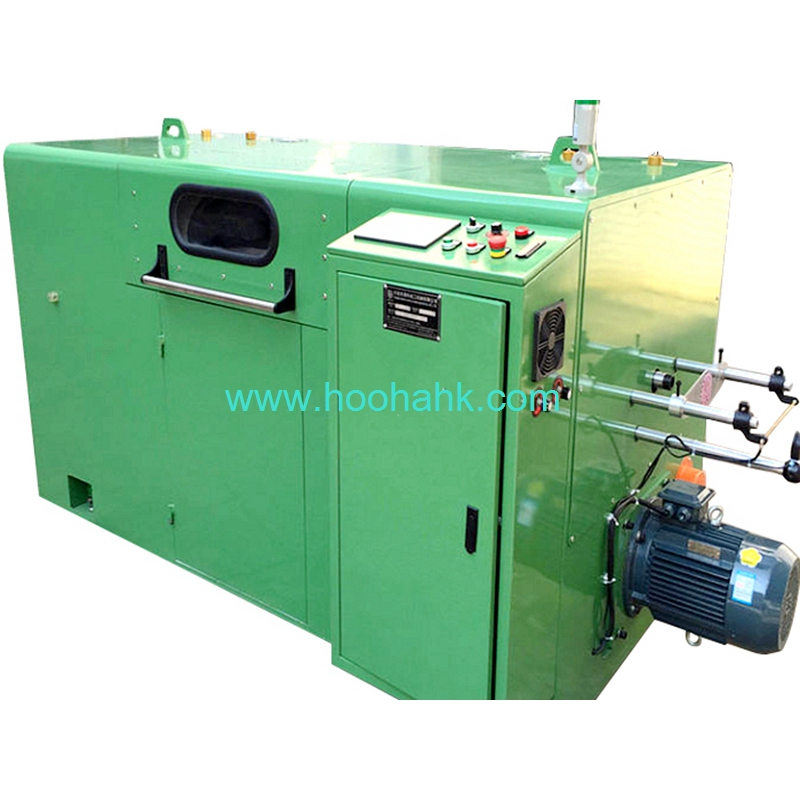

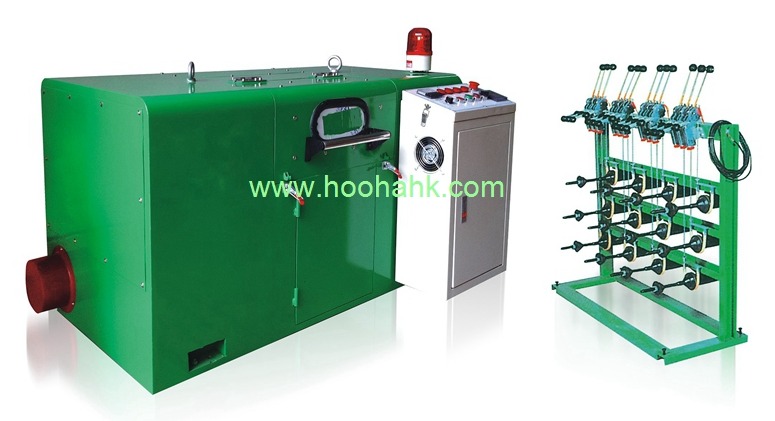

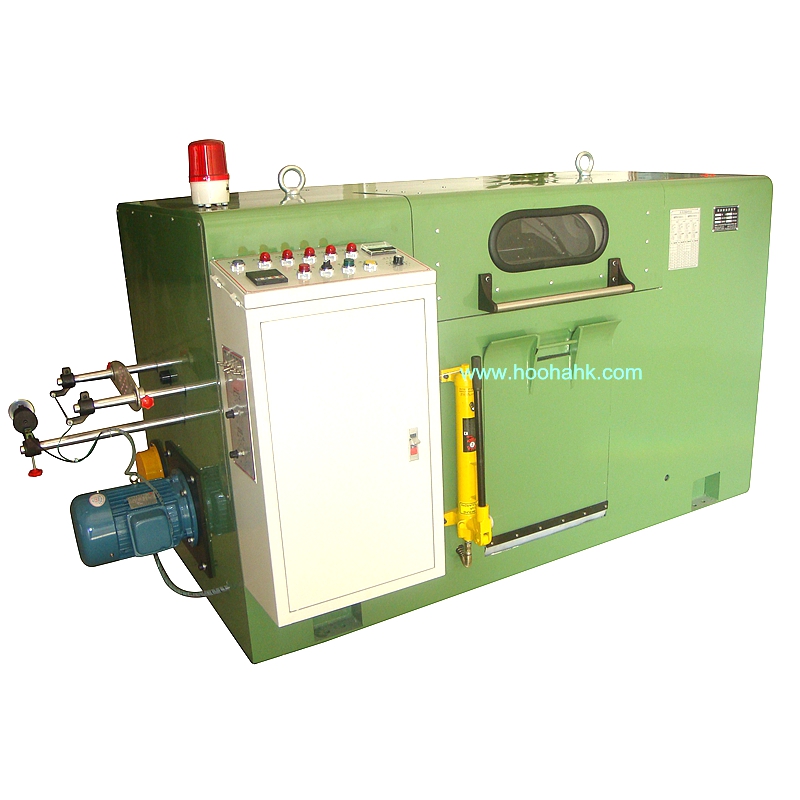

300 Bunching machine 300束丝主机 |
1 unit |
 |
|
2 |

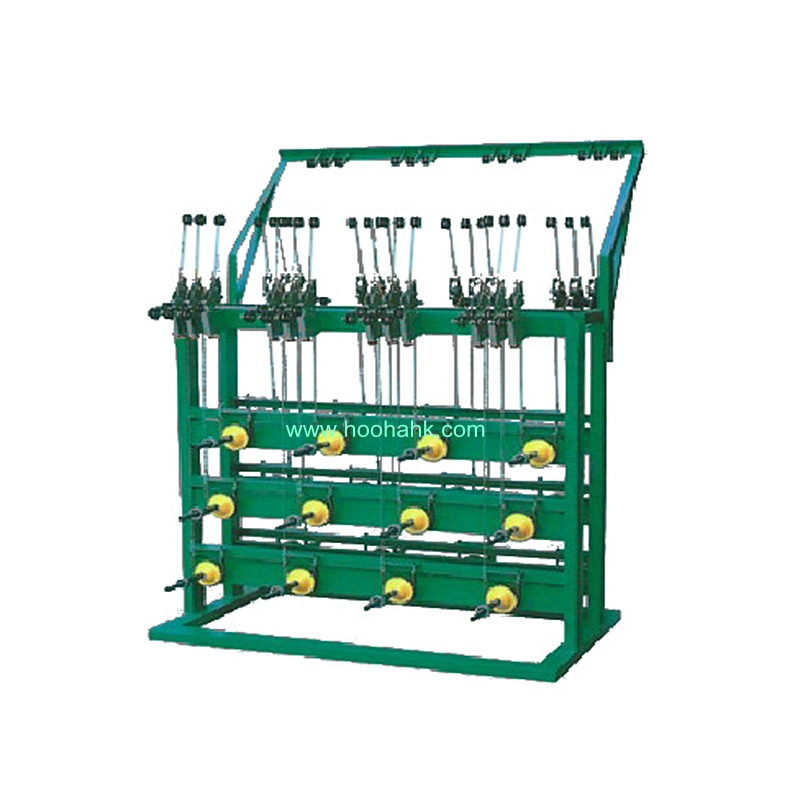

Pay off stand for multi-core copper wire 多头放线架 |
1 unit |
 |
|
No. |
Items |
Features |
|
1 |
Machine Frame 机器主架 |
A3 welded structure, processed by annealing milling room A3焊接结构，在铣削室进行退火处理 |
|
2 |
Twisting direction 绞线方向 |
S or Z |
|
3 |
Take-up Bobbin 收线盘 |
300mm |
|
4 |
Traverse 排线 |
Bearing flatting , adjustable row distance and row breadth 轴承扁平化，行距和行宽可调 |
|
5 |
Drive motor 主机功率 |
2.2 KW, 3 phase AC |
|
6 |
Inverter 变频器 |
2.2 KW |
|
7 |
Main shaft height 主轴高度 |
700mm |
|
8 |
Lifting 升降 |
well-known brand hydraulic lifting shaft 液压升降轴 |
|
9 |
Weight 重量 |
About 750 kg |
|
10 |
Measurement (L*W*H) 尺寸 |
1800mm x 750mm x 850 mm |
