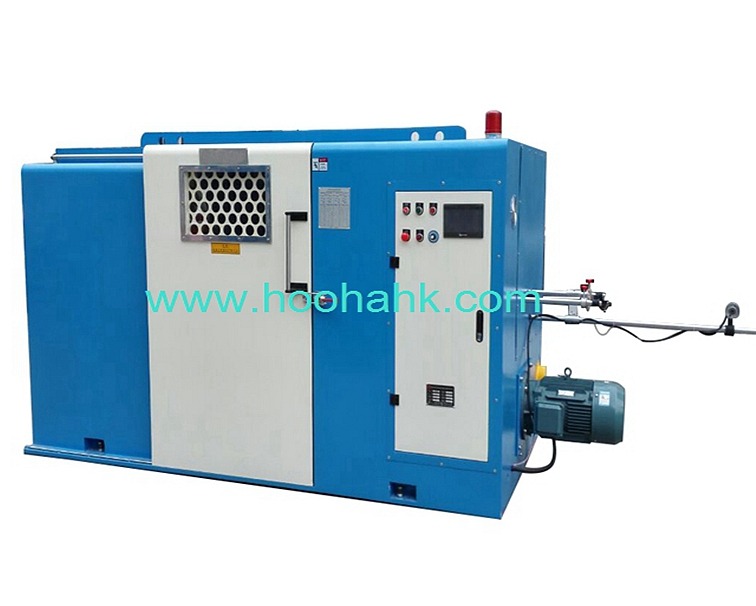

HH-B-1000 高速绞线机

No.

Items

Features

1

Model 模式

 Right-hand model 右手机或左手机均可

2

Rotation speed of arched band 转速

Max: 800 RPM

3

Twisting pitch 节距

22.51-200.32mm

4

Stranded wire length calculation 绞线长度计算

How many meters per minute = twisting distance *2/1000* twisting bow speed per minute 每分生产米数=扭转距离* 2/1000 *每分钟扭转弓速度

5

Twisting direction 绞线方向

Arbitrary(left or right)

6

Single wire diameter单线直径

Ø0.40mm-Ø1.7mm

7

Stranding area 绞合横截面

4mm2-16mm2

8

Traverse 排线

German-style bearing polished rod Traverse, the Traverse range and Traverse distance can be adjusted 德式轴承抛光杆导线架，导线架范围和导线架距离可调节

9

Warning light 报警灯

Red: shutdown due to failure

10

Measurement (L*W*H) 尺寸

4500*2200*2300MM
