Application：
Local Communication Cable, Coaxial Cable,LAN Cable

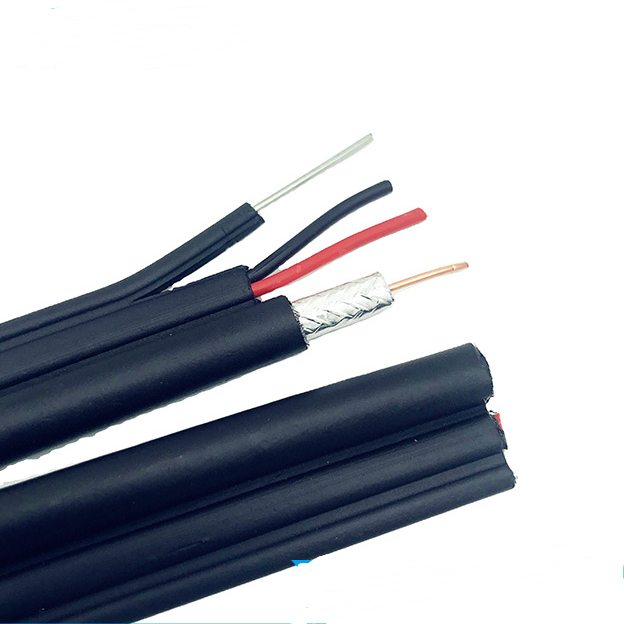

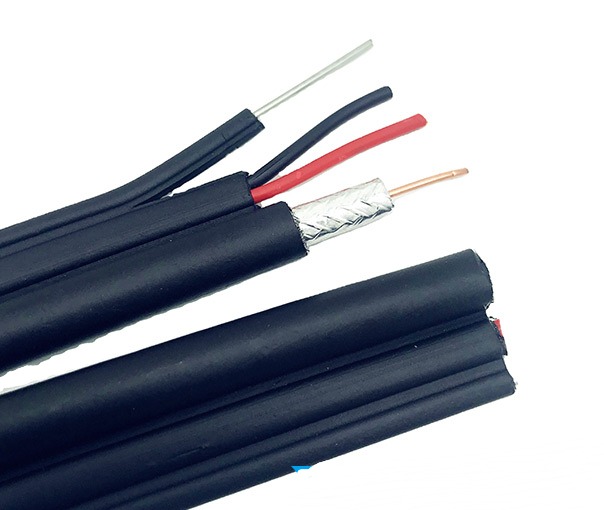

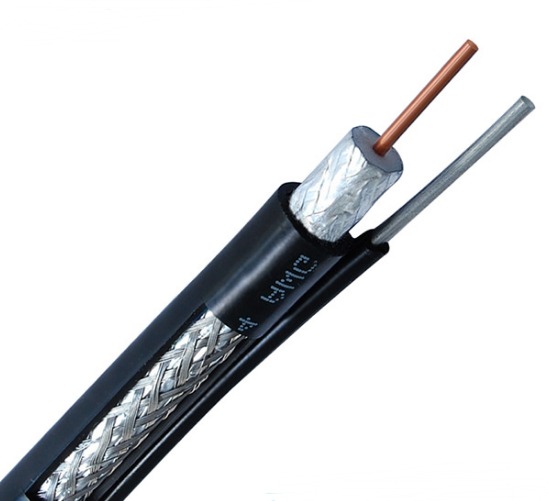

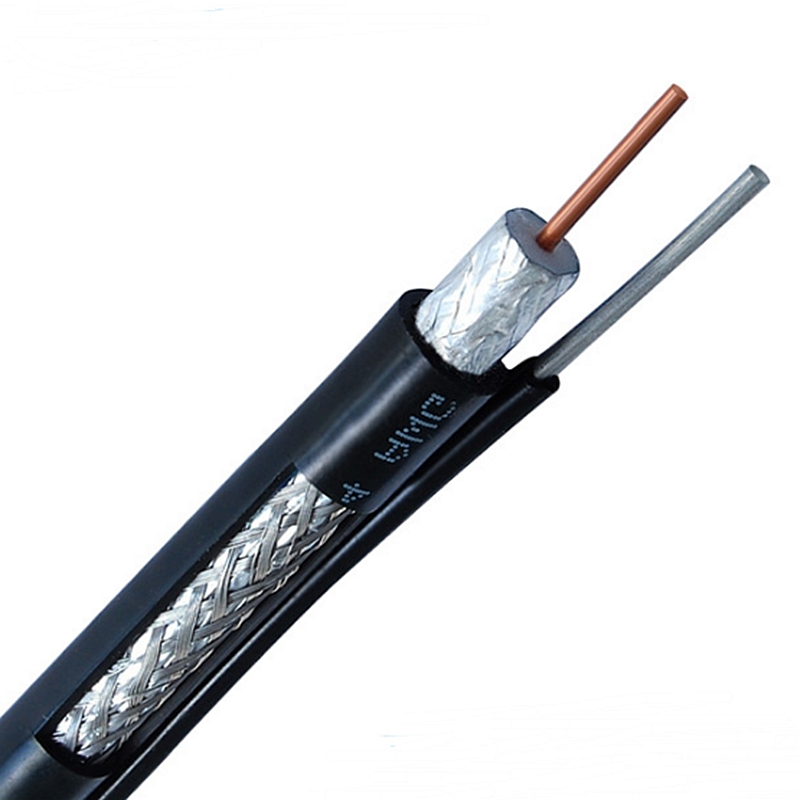

Construction：
(1)Center Conductor:1.02±0.01mm BC
(2)Dielectric: 4.57±0.10mm FPE
(3)Braid: Al Foil + 64*0.12mm Al/Mg
(4)Jacket: 6.80±0.20mm PVC
(5)Power cable: 15*0.23CCA 1.70PE
Tips：
| BC: Bare Copper |
| CCS: Copper Clad Steel |
| CCA: Copper Clad Aluminum |
| TC : Tinning Copper |
| SC: Silver-Plated Copper |
| Inner Conductor: | BC/CCS/CCA/TC/SC Available |
| Dielectric: | Foam PE/Solid PE |
| First Shield: | Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored ) |
| Second Shield: | Al,CCA,BC,TC CCS Available |
| Wire Diameter:0.11,0.12,0.15,0.16mm Available | |
| Braiding Net:32#,48#,64#,80#,96#,112#,128#,144# | |
| Jacket: | PVC/PE (black,white,color) |
| Impedance: | 75+3 Ohm |
| Capacitance: | 53+3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300MHz) |
Attenuation
| Frequency (MHz) | Maximum (dB/100 m) |
| 5 | 1.9 |
| 55 | 5.25 |
| 187 | 9.35 |
| 350 | 12.63 |
| 550 | 16.08 |
| 750 | 18.54 |
| 865 | 20.01 |
| 1000 | 21.49 |
| 1450 | 26.37 |
| 1800 | 30.34 |
| 2000 | 31.82 |
| Our Packing |
| (1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m) |
| (2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box |
| (3)Outer Packing: Carton box, pully box, pallet available |
| Any packing available according to your request. |
