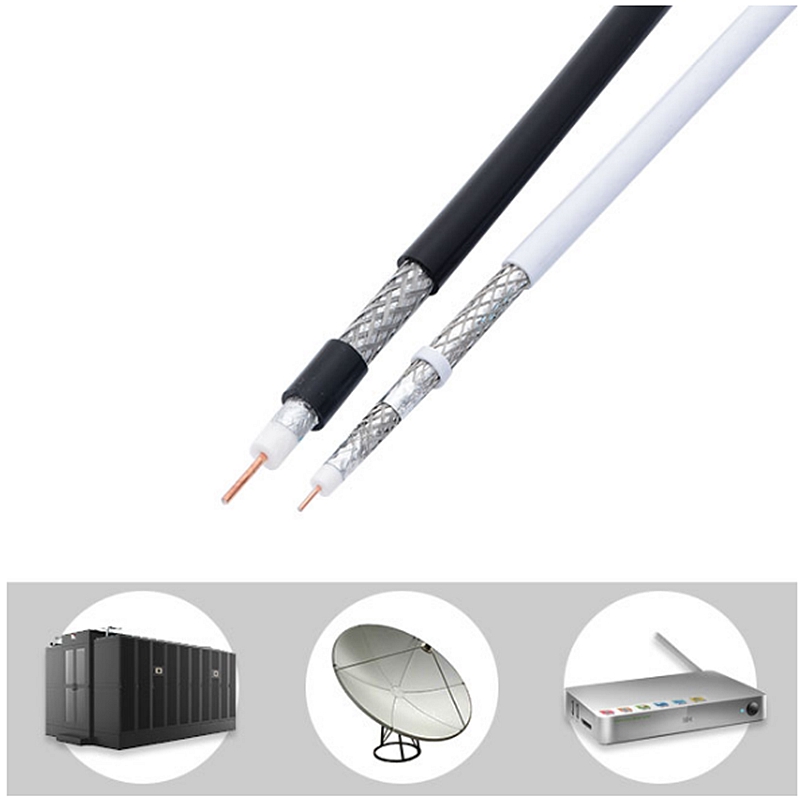

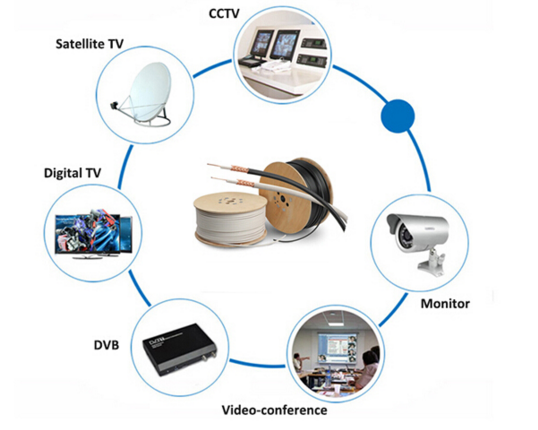

Application：
RG11 cable is a special kind of coaxial cable.
It's built for longer runs, and in general you'll find that you can run 50-100 feet longer with RG11 and still keep an acceptable signal level.
RG11 cable is made for special purposes like burial or very long runs.
It's so thick that it needs special connectors and is very hard to bend.
Product details:
Model Number : RG11
Number of Conductors : 1
Type :Trunk Cable
Model : RG11 Trunk Cable
Certification : CE/RoHS
Inner Conductor : 1.63+/-0.02 Bare Copper / CCS
Dielectric:FPE
Out Conductor : Al Foil +70%, 90%, 95% Braid
Braid Material : Al-Mg, CCA, BC, TC
Out Jacket : 10.0+3.1mm PVC/PE
Color : White, Black or Customized
Steel:1.83mm

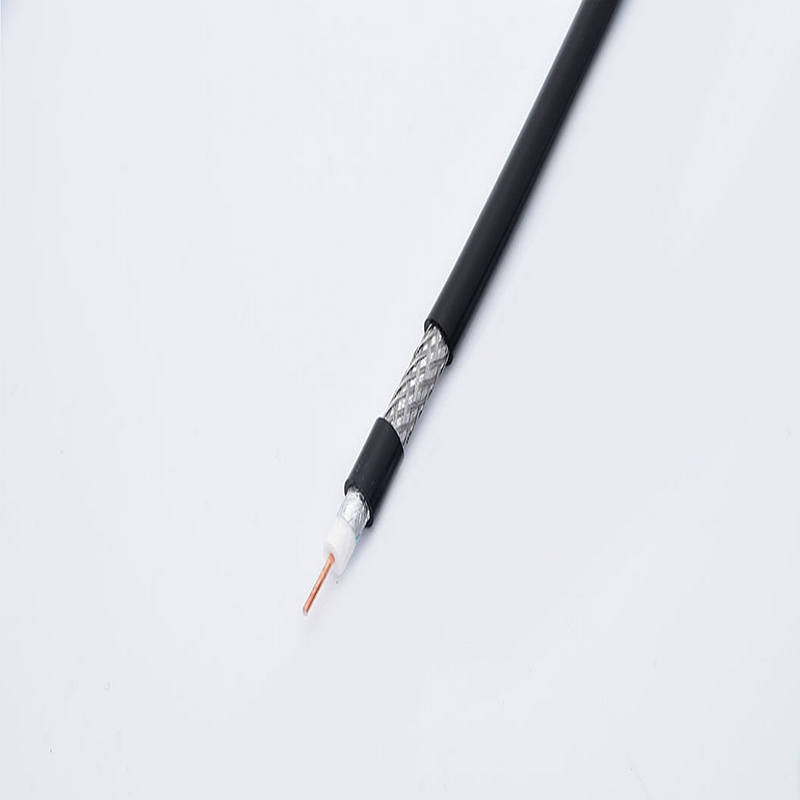

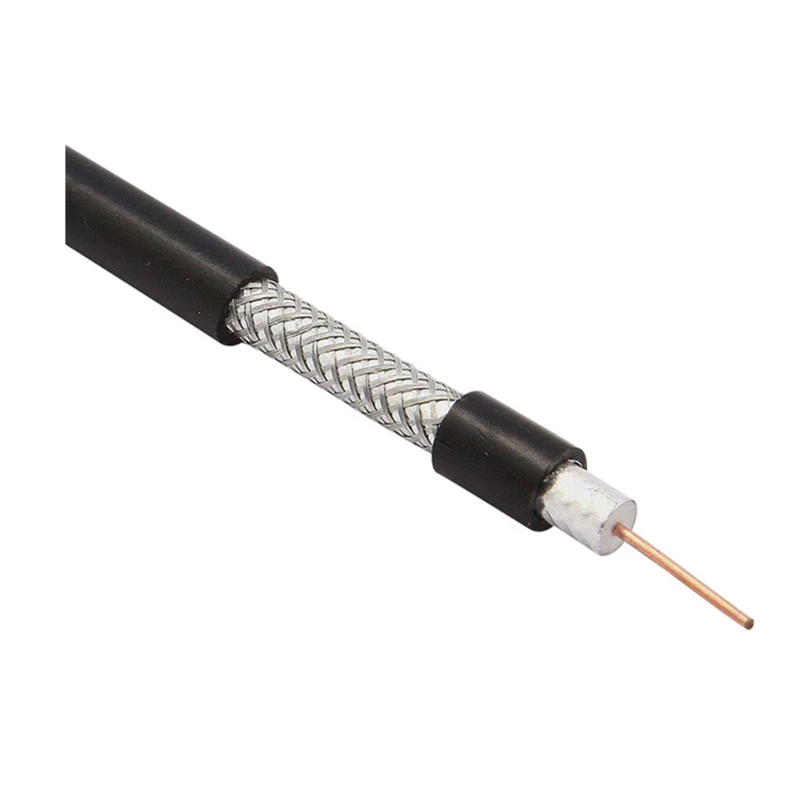

| Construction | Conductor | Material | Copper Clad Steel |
| Diameter(mm) | 1.63±0.02 | ||
| Insulation | Material | Foaming PE | |
| Diameter(mm) | 7.11±0.10 | ||
| Outer Shield | Material | AL foil+AL/mg wire braiding | |
| Density | 61% | ||
| Diameter(mm) | 10.00+3.10 | ||
| Performance | Minimum Bending Radius | mm | 34(indoor) |
| Minimum Bending Temperature | ℃ | -20 | |
| Storage Temperature | ℃ | -20~＋70 | |
| Installation Temperature | ℃ | -20~＋50 | |
| Operating Temperature | ℃ | -20~＋75 |
Electrical Properties
| Capacitance | pF/m | 53±2 |
| Velocity | % | 86 |
| Insulation Resistance | MΩ·km | >5000 |
| Cut-off Frequency | GHz | 3 |
| Insulation withstand Voltage | KV | 1 |
| Jacket Spark Voltage | KV | 2 |
| Attenuation (dB/100m) | 50MHz | ≤9.0 |
| 100MHz | ≤10.8 | |
| 200MHz | ≤11.8 | |
| 800MHz | ≤19.00 | |
| 1000MHz | ≤20.0 | |
| Shielding Effectiveness (dB) | 55MHz | ≥55 |
| 300MHz | ≥60 | |
| 1000MHz | ≥65 | |
| Return Loss (dB) | 5~470MHz | ≥20 |
| 470~862MHz | ≥20 | |
| 862~2200MHz | ≥18 |

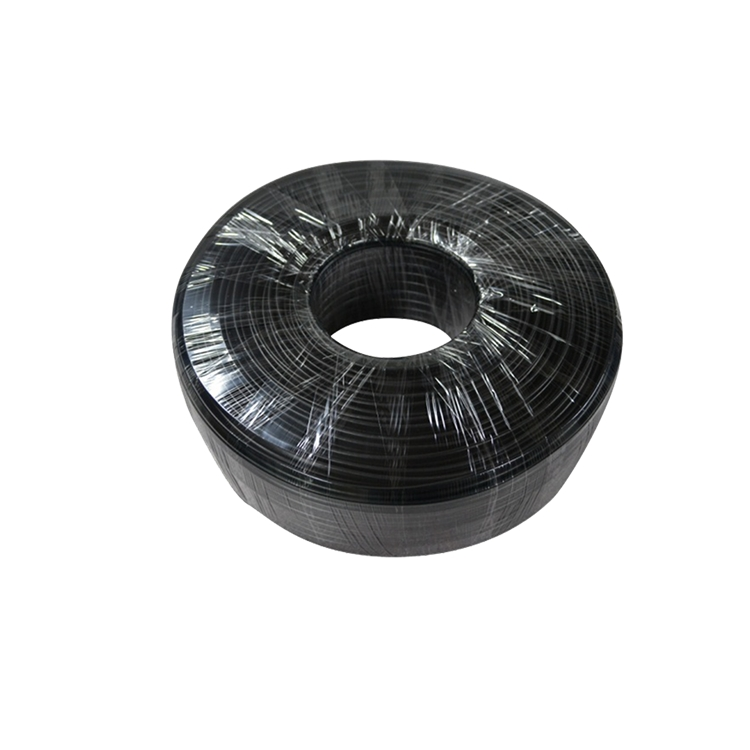

Packaging Details ：Can be packed in clarity film, several rolls into one carton. Packaging Details:White, Black or Customized. Can be packed in clarity film, several rolls into one carton
