硅胶电缆的介绍和使用

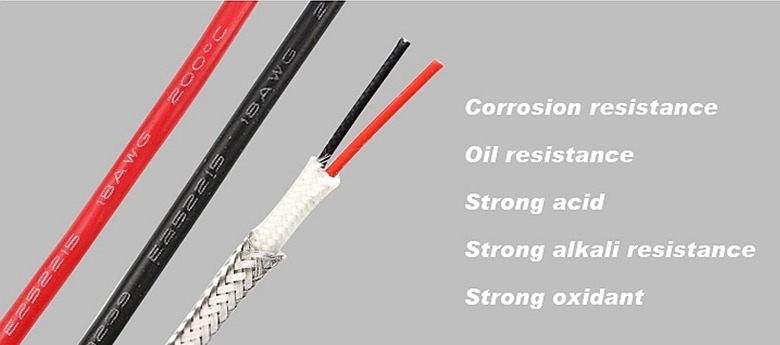

硅酮高温线具有优异的耐高温和低温性能，优异的耐高压性，耐老化性，耐高温性，耐酸碱性，并且使用寿命长。 硅橡胶用于绝缘，颜色有：白色，红色，黑色，蓝色，绿色，黄色，半透明等。使用寿命长，易于柔软且易于安装。
特性：

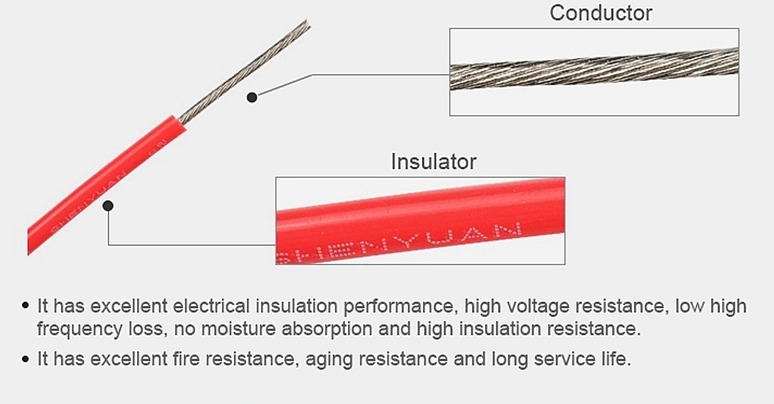

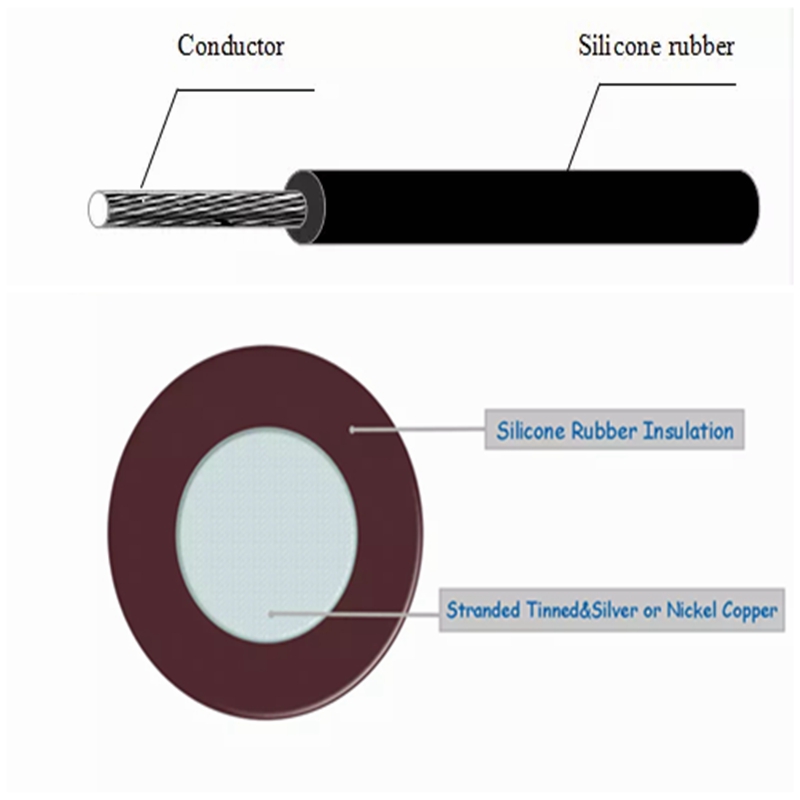

绝缘：硅橡胶
单股或多股裸铜线或镀锡铜线（镀锡铜线为0.08mm-0.4mm）
可燃性UL：VW-1，电器安全法：-F-
应用 :
它广泛用于高温电线环境中，例如照明灯，家用电器，电热器具，仪器仪表，电动机导线和电子设备，灯具和染色工具。
生产过程及相关机器
1. 导体绞合 →
HH-B-500 高速绞线机
2. 硅胶绝缘→
HH-E-65 硅胶线缆押出机
组件和参数

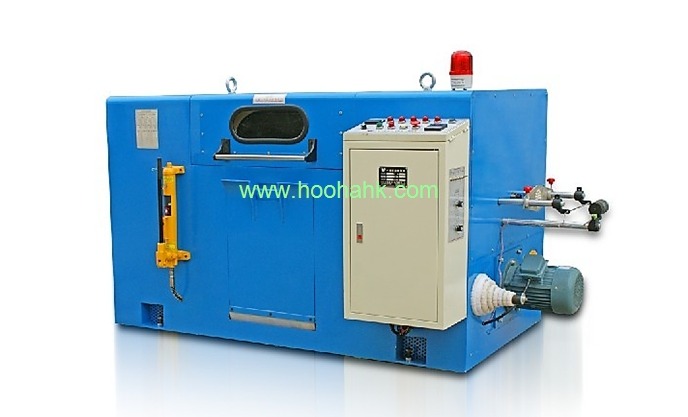

1. HH-B-500 高速绞线机
Application:
It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.
Components:
|
No. |
Items |
Quantity |
|
1 |
500 Bunching machine |
1 set |
|
2 |
Pay off stand multi-core copper wire |
1 set |
Parameters:
|
No. |
Items |
Value |
|
1 |
Single wire diameter |
Ø0.08mm-Ø0.30mm |
|
2 |
Stranding area |
0.3mm2-2.5 mm2 |
|
3 |
Stranded wire length calculation |
How many meters per minute = twisting distance *2/1000* twisting bow speed per minute |
|
4 |
Twisting pitch |
5.66 - 39.37mm |
|
5 |
Rotation speed of arched band |
Max: 2200RPM. |
|
6 |
Spindle lubrication |
Use manual grease gun to inject oil |

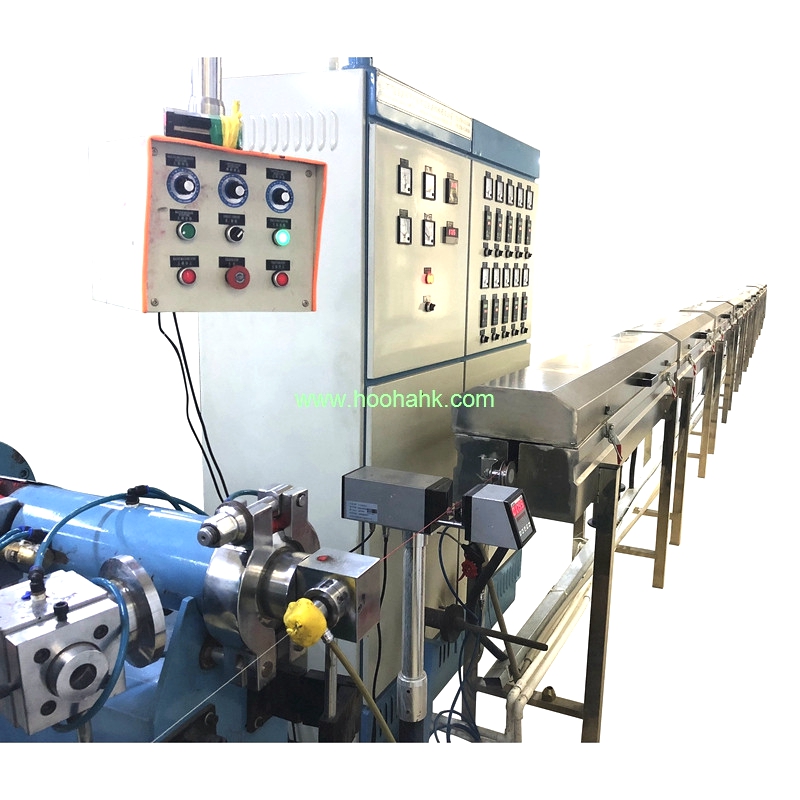

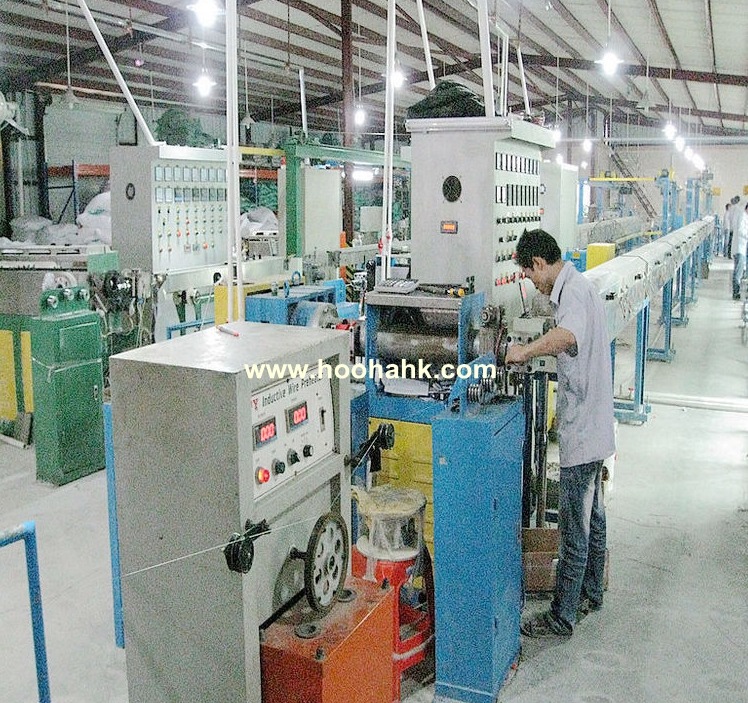

2. HH-E-65 硅胶线缆押出机
Application:
This silicone cable extrusion line is applicable for insulation and sheathing extruding for single, 2 cores, 3 cores silicone cables such as power cables, medical cables, control cables etc.
Components:
| No. | Items | Features |
| 1 |
400-630 active pay-off stand |
1 set |
| 2 |
5-wheel Straightening device |
1 set |
| 3 |
Copper wire preheating machine |
1 set |
| 4 |
65 Silicone extrusion machine with vacuum pump |
1 set |
| 5 |
PLC electric control box |
1 set |
| 6 |
Diameter tester |
1 set |
| 7 |
20m Electric heating curing chamber |
1 set |
| 8 |
High speed printing machine |
1 set |
| 9 |
9 meters accumulator stand |
1 set |
| 10 |
Dual wheels Capstan |
1 set |
| 11 |
Meter counter |
1 set |
| 12 |
High frequency spark tester |
1 set |
| 13 |
Powder machine |
1 set |
| 14 |
Double shaft take-up machine |
1 set |
| 15 |
Display board |
1 set |
| 16 |
Accessories |
Parameters:
|
No. |
Items |
Features |
|
1 |
Inlet Wire Diameter |
0.3-5.0mm |
|
2 |
Finished Wire Diameter |
1.8-8.0mm |
|
4 |
Extrusion Speed |
Max 80 m/min |
|
5 |
Extrusion Capacity |
60 kg/h |
|
6 |
Installed Capacity |
65 kva |
|
7 |
Voltage |
380KV, can be customized |
|
8 |
Weight |
3500 kg |
|
9 |
Measurement (L*W*H) |
18*2*2 m |
|
10 |
Workers recommendation |
3 workers |
