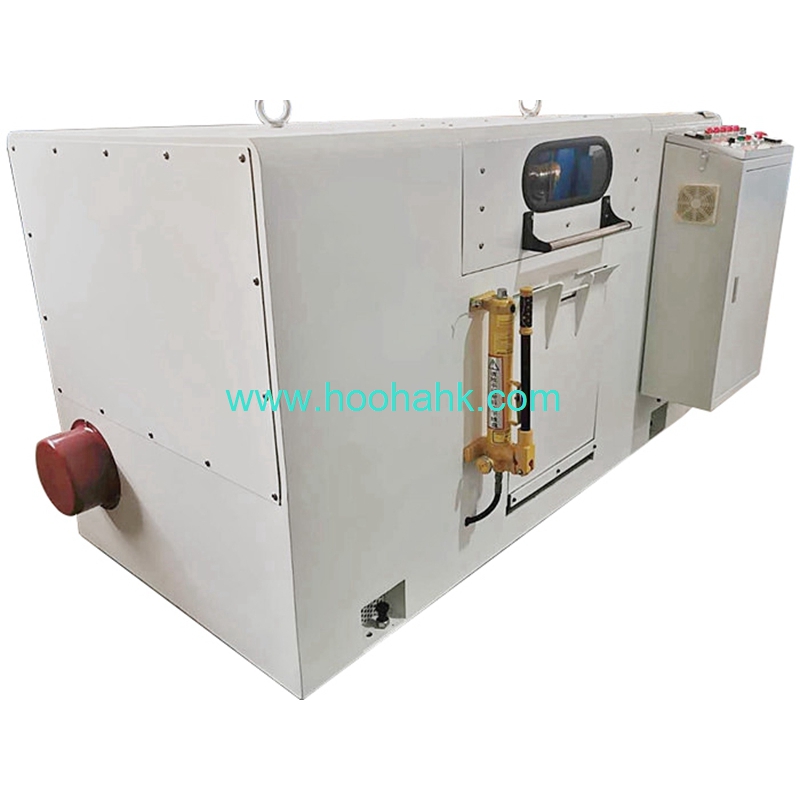

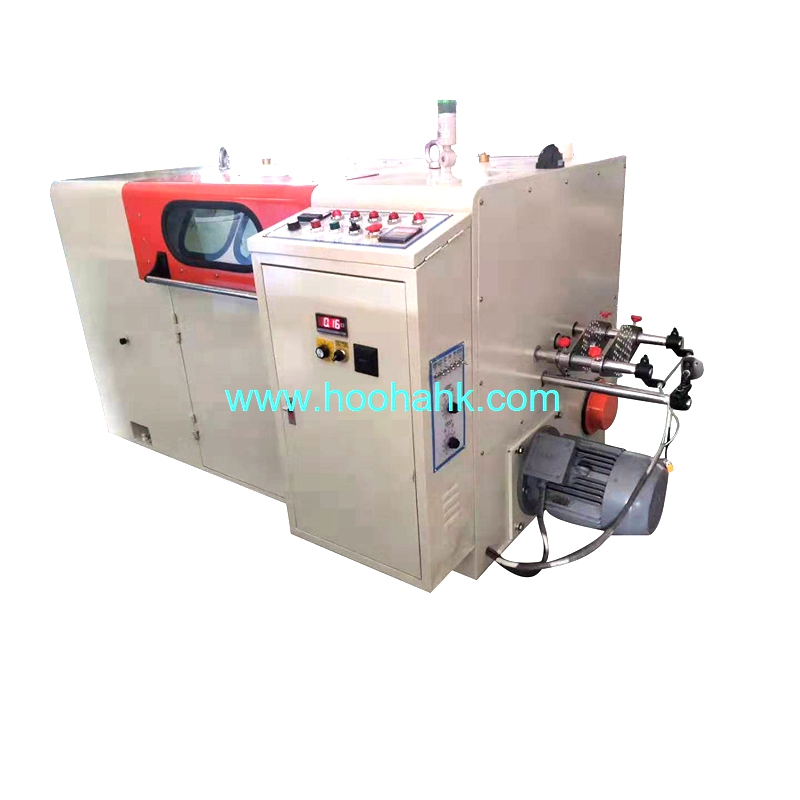

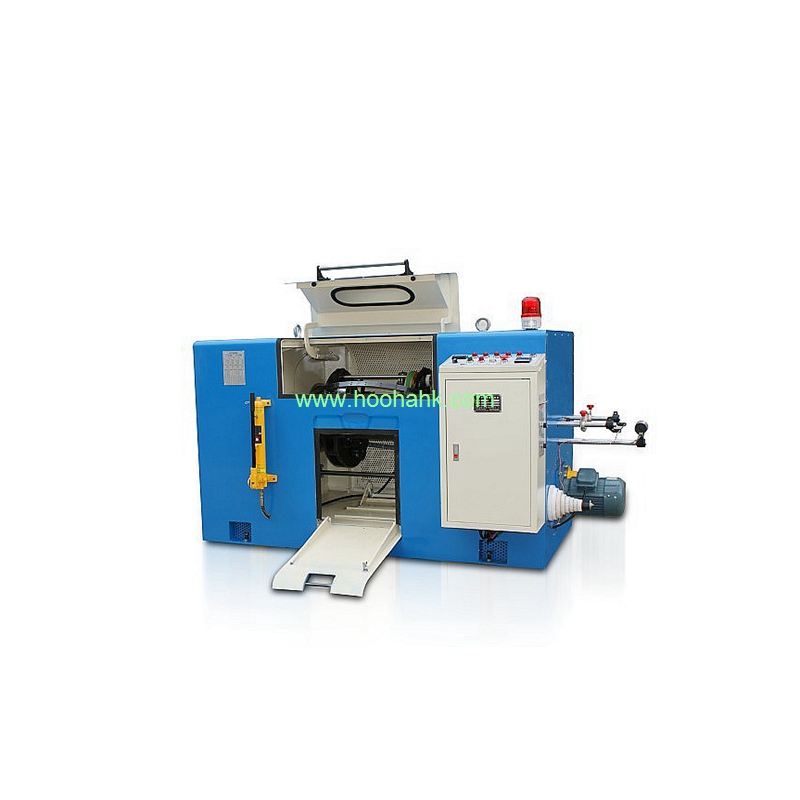

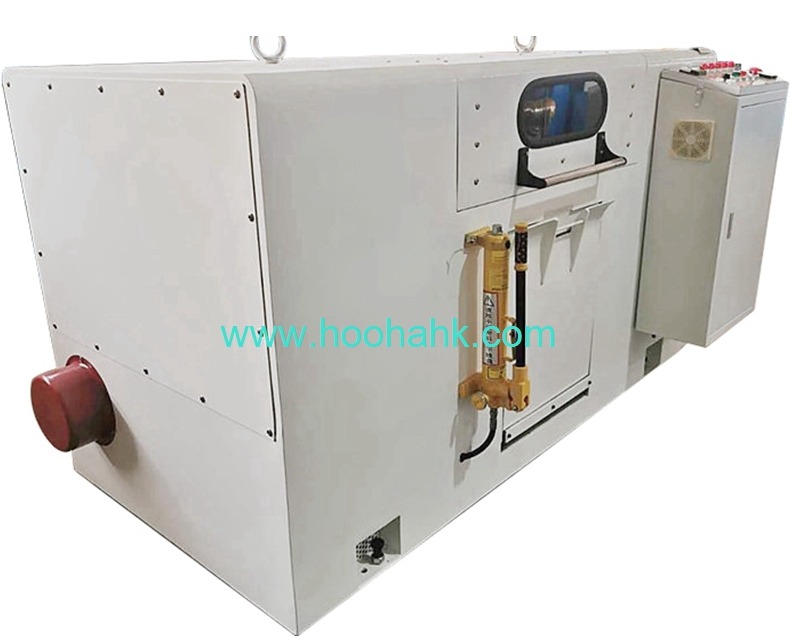

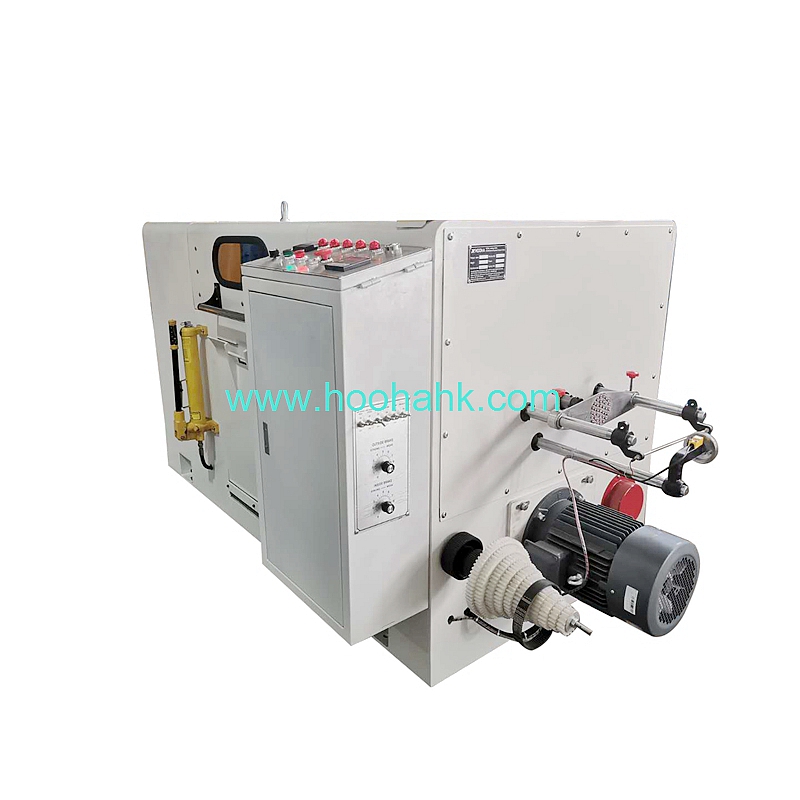

HH-B-630 高绞机

No.

Items

Features

1

Model 模式

 Right-hand model 右手机或左手机均可

2

Rotation speed of arched band  转速

Max: 1800RPM

3

Twisting pitch 节距

15-60.24mm

4

Stranded wire length calculation 绞线长度计算

How many meters per minute = twisting distance *2/1000* twisting bow speed per minute 每分生产米数=扭转距离* 2/1000 *每分钟扭转弓速度

5

Twisting direction 绞线方向

Arbitrary(left or right)

6

Single wire diameter 单线直径

Ø0.16mm-Ø1.0mm

7

Stranding area 绞合横截面

0.4 mm2-5.5 mm2

8

Traverse 排线

German-style bearing polished rod Traverse, the Traverse range and Traverse distance can be adjusted 德式轴承抛光杆导线架，导线架范围和导线架距离可调节

9

Meter counter 主轴润滑

Six-digit electronic meter counter 用手动注油枪注油

10

Measurement (L*W*H) 尺寸

3100*1500*1600MM
