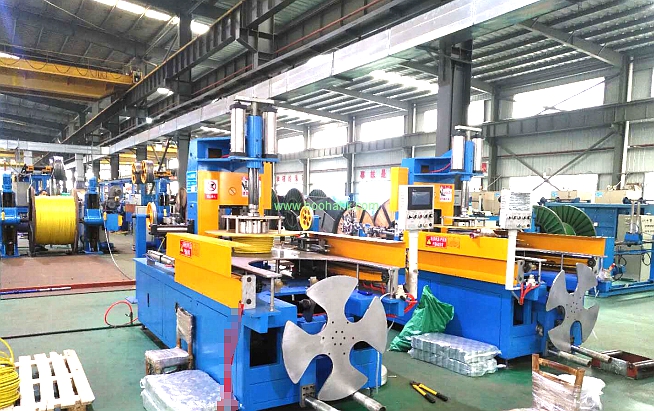

This equipment is suitable for cable automatic coiling and wrapping, which would be packaged into a coil and can be connected to the cable extrusion machine for linkage use.
|
1 |

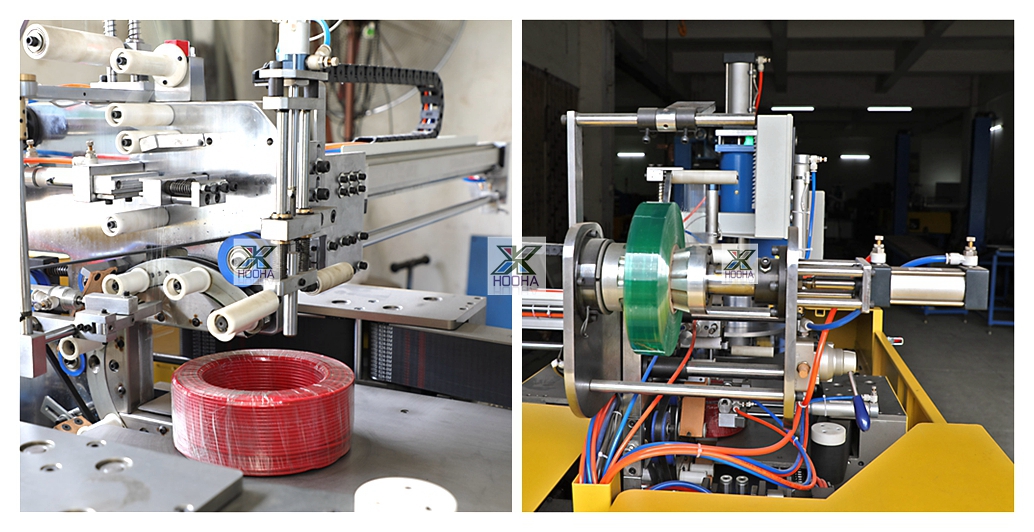

Automatic packaging, wrapping and labeling |
|
2 |
Packing label capacity 7 times more than manual |
|
3 |
200m per coil and coiling speed 4 times more than manual |
|
4 |
Can be directly connected to the extrusion machine |
|
5 |

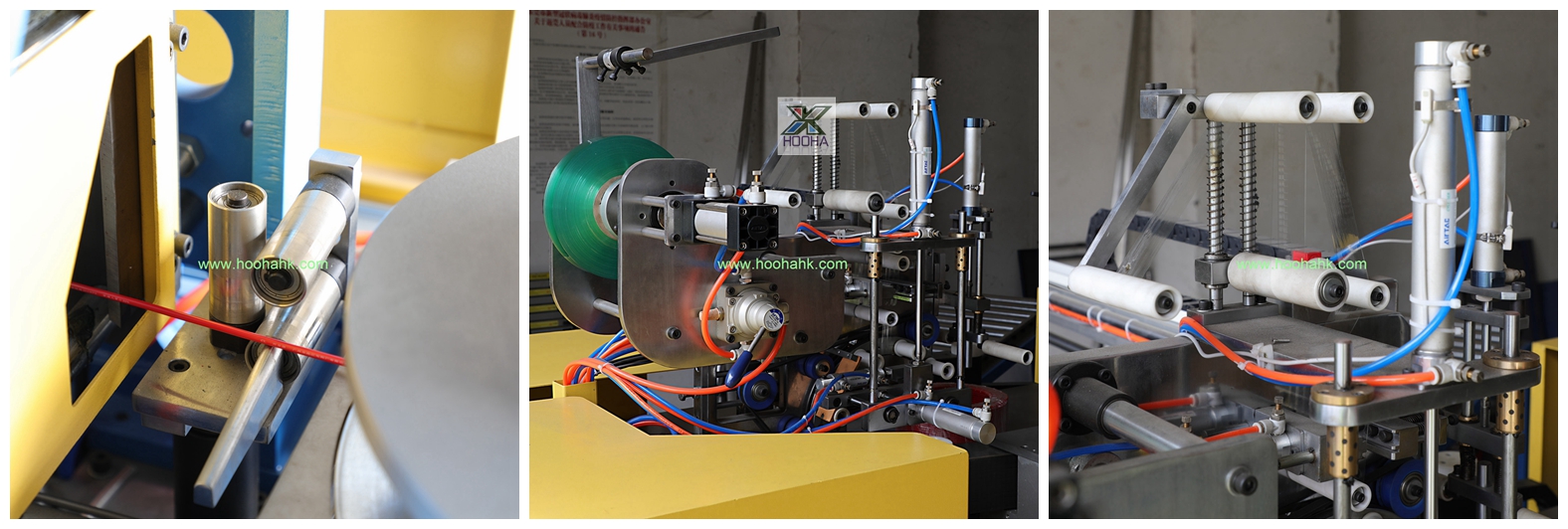

Servo motor flat cable system, perfect packing |
|
6 |
Touch screen man-machine interface operation, all circuit control adopt microcomputer programmable controller |
|
7 |
99 types of the coiling storage and can change as you like |
|
No. |
Items |
Quantity |
Reference Picture |
|
1 |
800-1600 End Shaft Pay-off Stand |
1 Set |
|
|
2 |

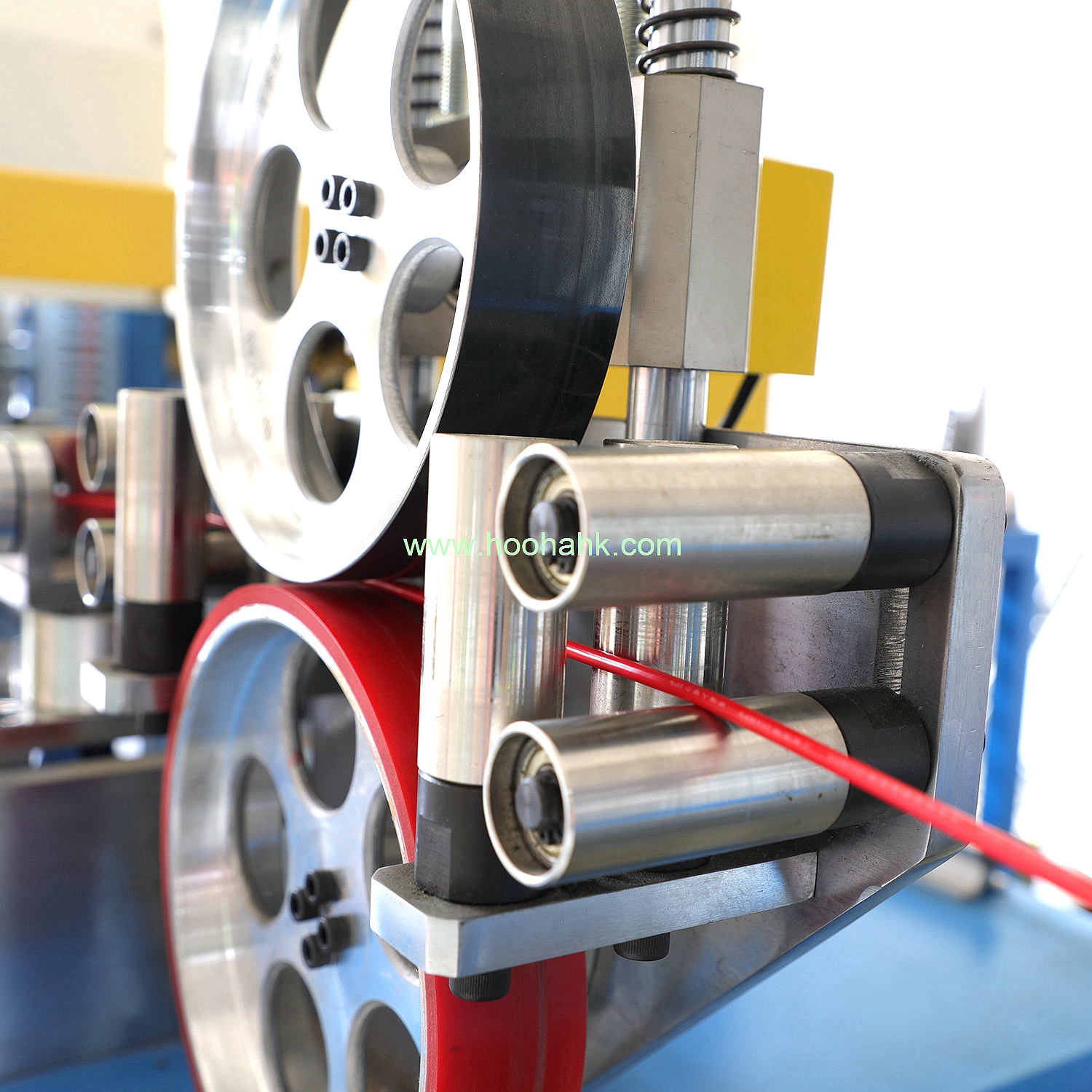

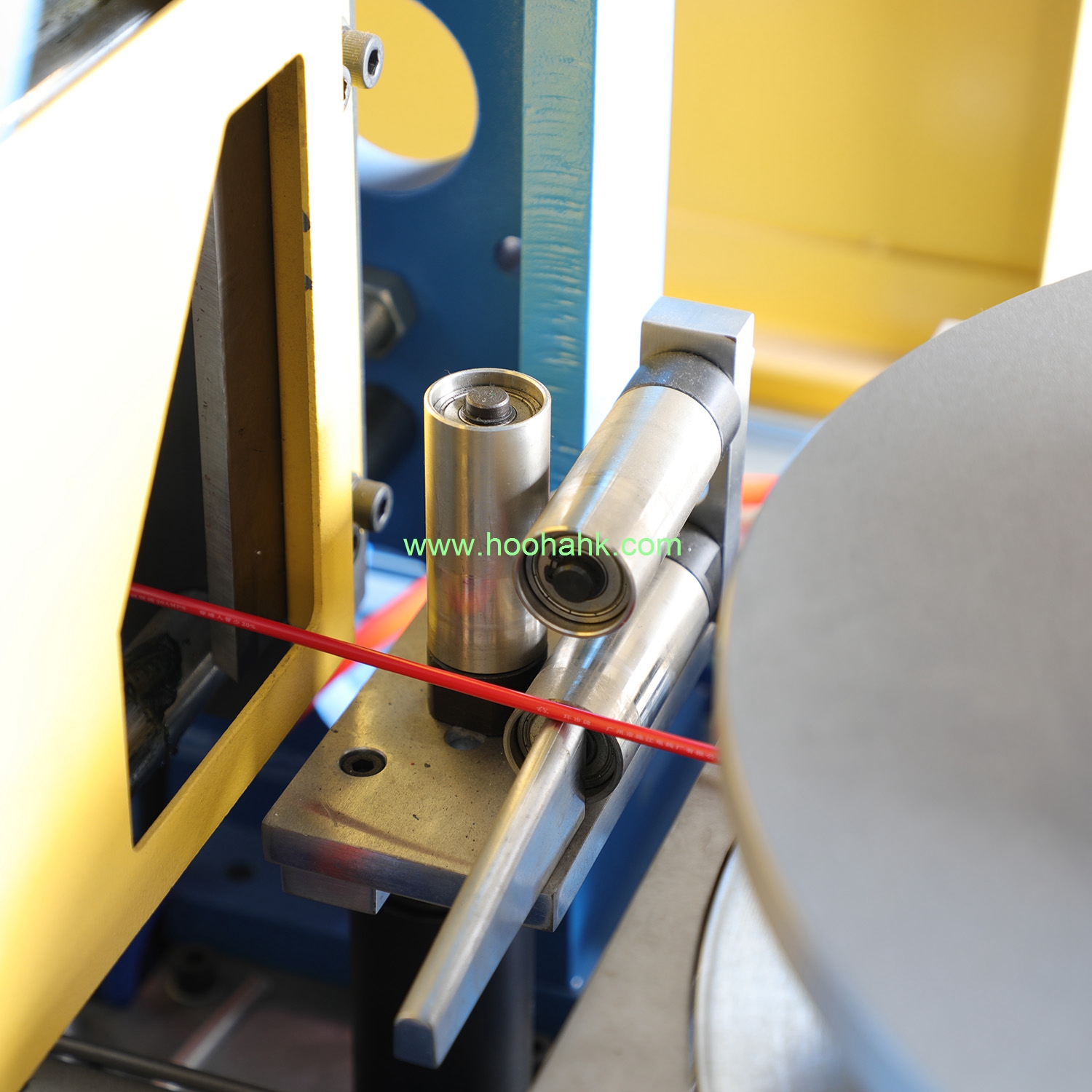

Wire Straightening Device |
1 Set |
|
|
3 |

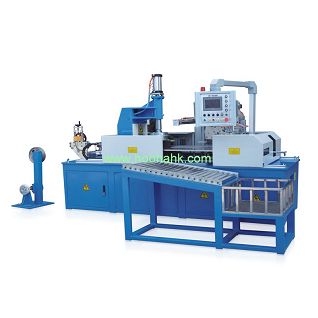

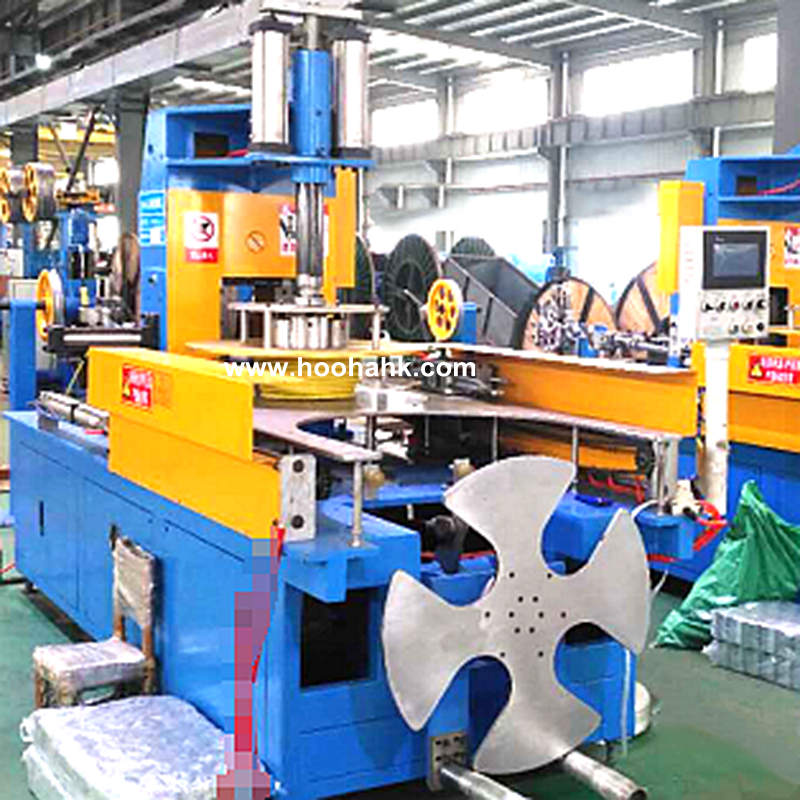

PLC Automatic 2480 Coiling And Wrapping Main Machine |
1 Set |
|
Main parameters:
|
Coiling Speed |
Around 100 m/min |
|

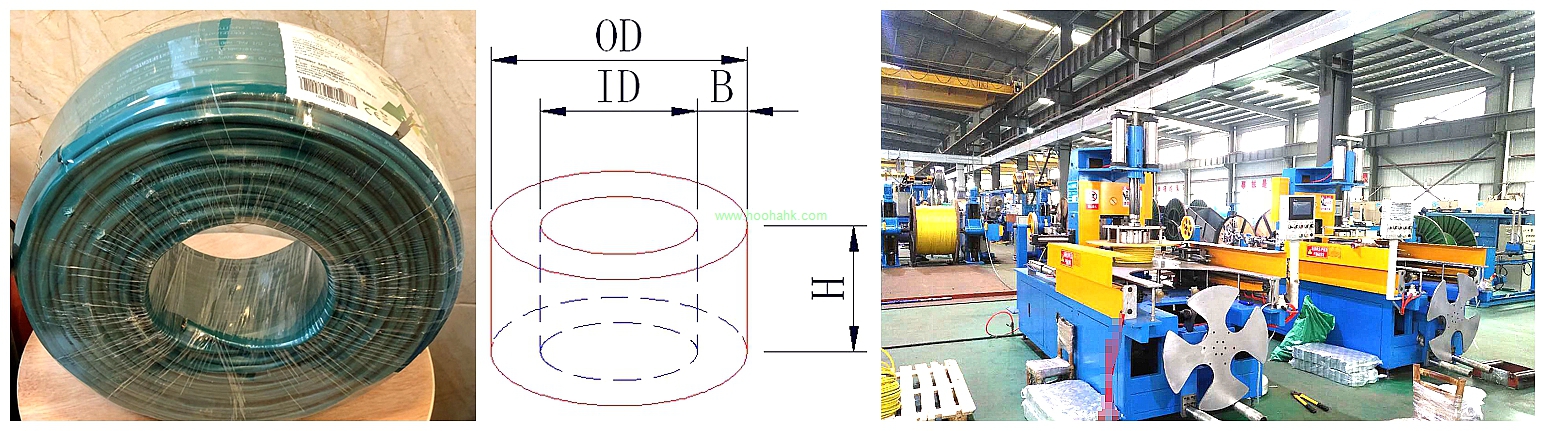

Coiling Size |
Outside diameter is 300-800mm, height is 80-240mm, Inner diameter is 250-320mm |
|
Applicable Wire Range |
10-25mm |
|
Power Supply |
AC 380 V, three-phase, 50 HZ or customized |
|
Operation Direction |
Left or right side（Can be customized） |
Technical Specification:
| 800-1600 End Shaft Pay-off Stand |
1. Bobbin diameter：800-1600 mm 2. Bobbin width：600-1180 mm 3. Loading：Max 5000 KG 4. Pay-off speed ：300 m/min 5. Post slide motor：0.75 kw 6. Lift motor：1.1 kw *2 |
|
Wire Straightening Device |
1. Wheels：Four grooves on each 2. Treatment：Anodized for long-term usage |
|

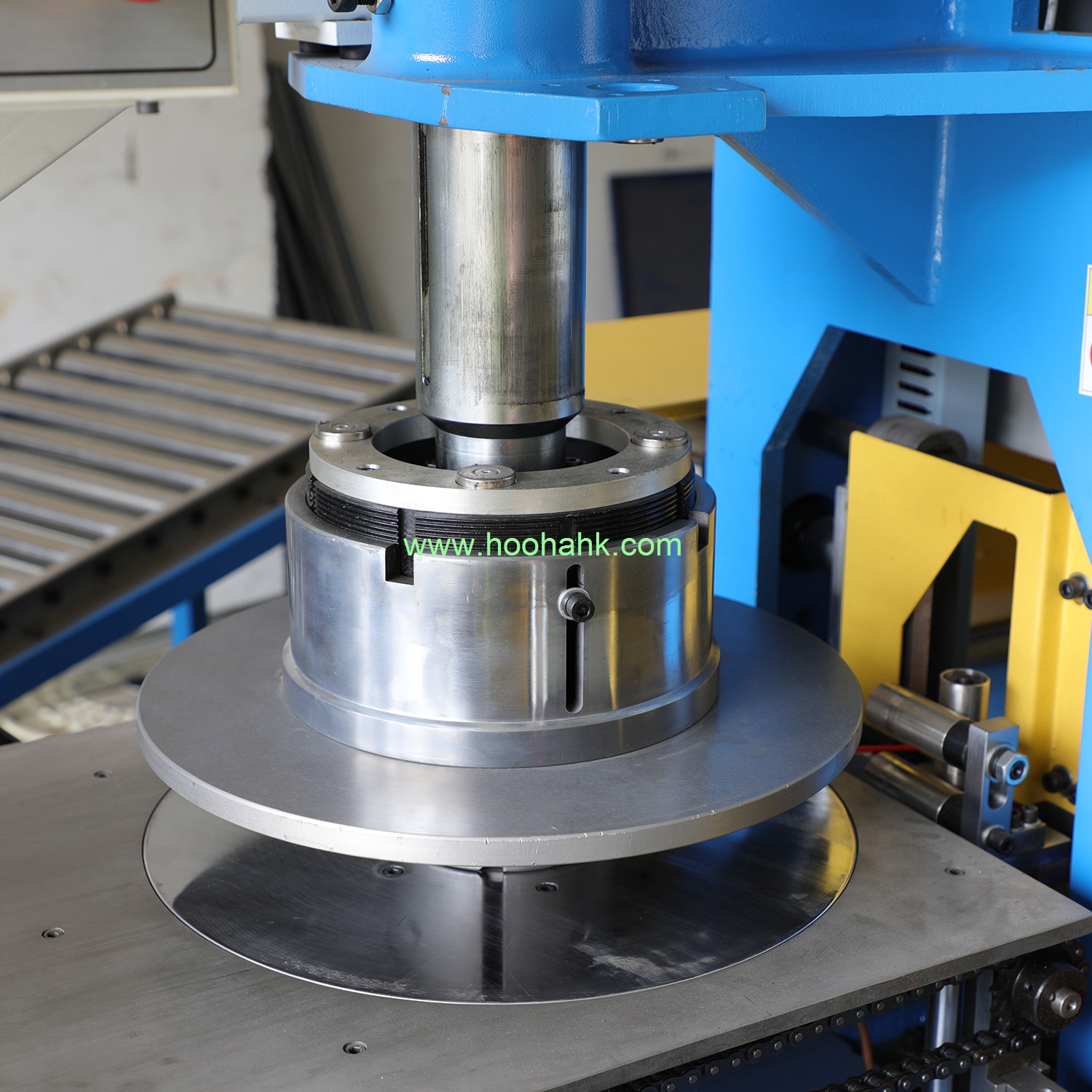

PLC Automatic 2480 Coiling And Wrapping Main Machine |
1. Use PVC/PE film, high-speed coiling and wrapping 2. The film roll loading method is pneumatic clamping 3. Adopt touch screen interface (man-machine interface) operation is simple and convenient 4. Wire arm type, driven by AC motor, rotating reel smoothly 5. Drive motor + Winding system：7.5HP x 4P AC motor + vector control inverter+reducer |
2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.
3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.
4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
