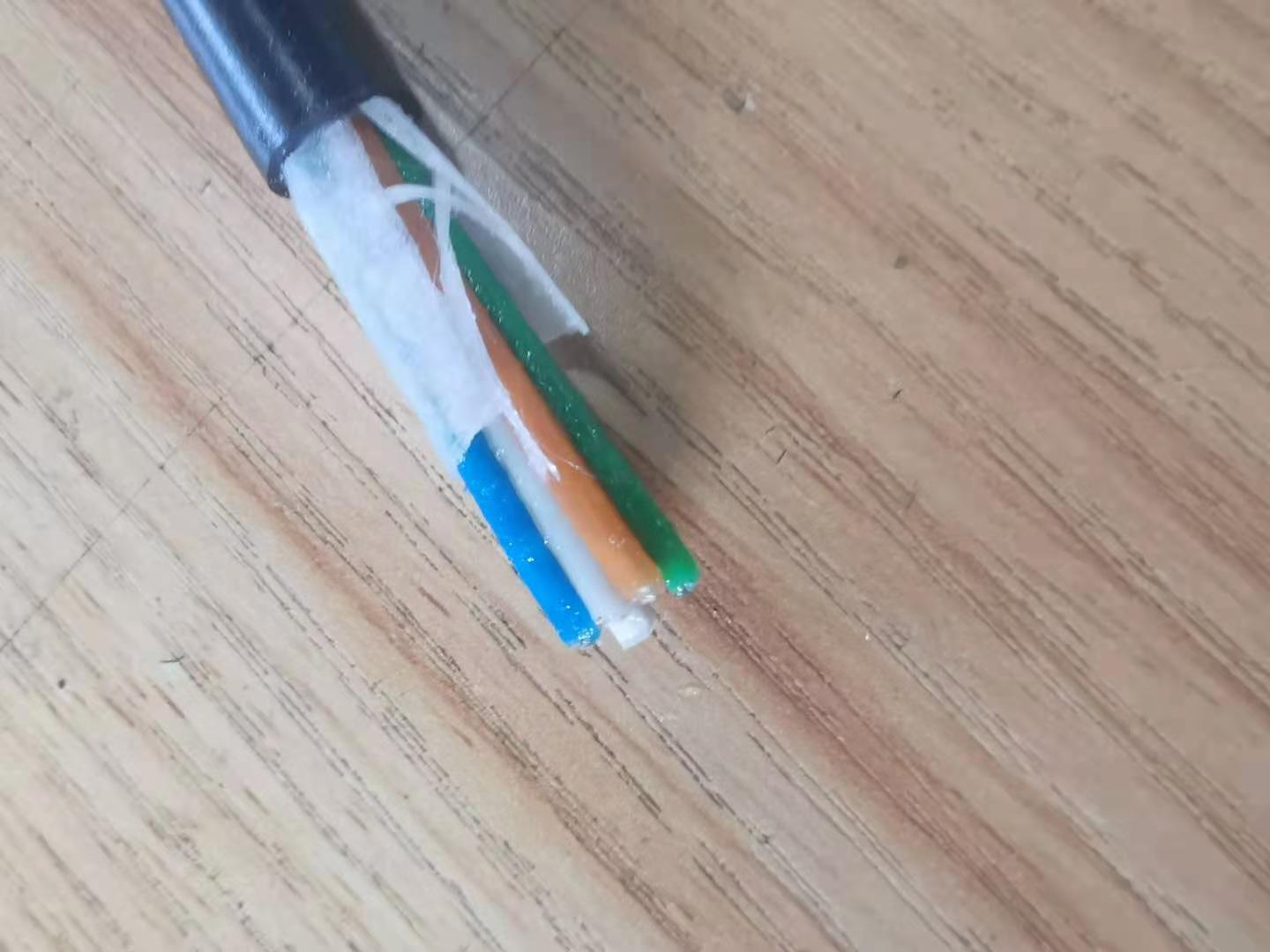

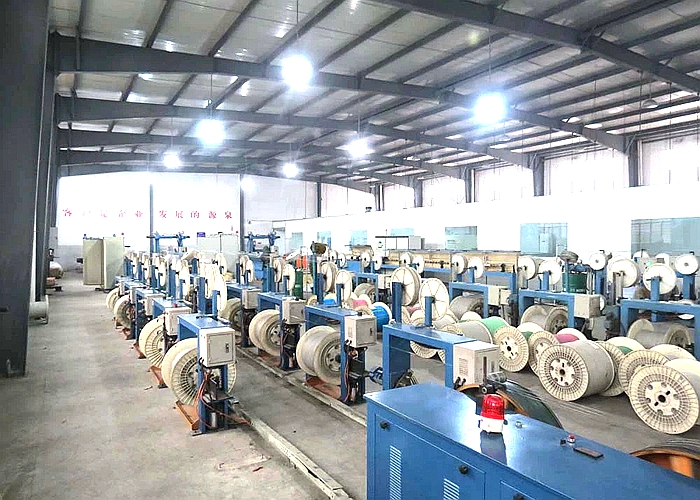

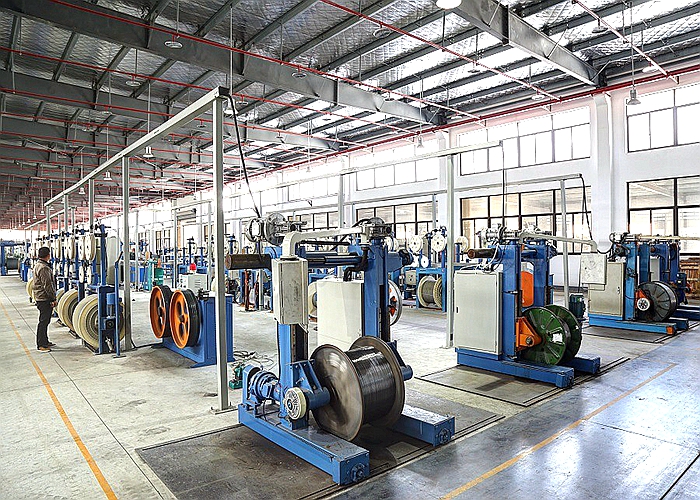

The production line is suitable for SZ stranding optical-fiber cable, and used for the production of the SZ stranding optical-fiber cable of optical-fiber tube outside diameter Φ1.0-Φ3.5mm.
1. The whole machine adopts the control technology that combines industrial computer and programmable logic controller, namely PC + PLC mode, to realize the synchronous operation of the entire production line and the independent operation of a single machine; the operation of the production line, parameter setting and display, etc. The production control process of industrial computer, motor start, stop, given signal, motor speed and other production status is realized by PLC; data transmission between industrial computer and PLC through communication port; it can realize production line operation, alarm display, production line Emergency stop and other functions.
2.. The production line has the characteristics of uniform extrusion outer diameter, smooth appearance, fast production speed, high production efficiency, precise take-up and unwinding tension, and easy operation of the production line.
|

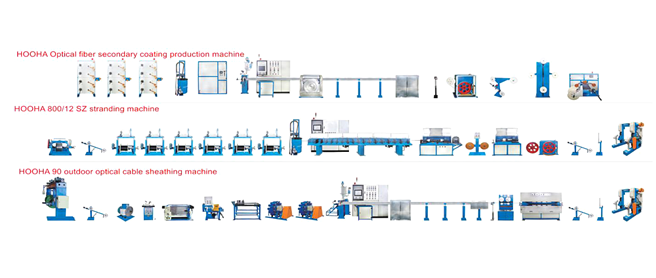

Products |
Qty |
|
1. 800-1250mm single-head steel wire reinforcing core magnetic powder pay-off |
1 set |
|
2.Φ800mm double wheeled magnetic powder tension device |
1 unit |
|
3. Φ800mm loose tube motorized pay off |
12 units |
|
4. Compounder filling device |
1 unit |
|
5. SZ oscillator |
1 unit |
|
6.Double heads binder |
1 unit |
|
7. Double heads water blocking tape pay off |
1 set |
|
8.Single head binder |
1 set |
|
9.800mm double wheel capstan |
1 unit |
|
10.Swing type take-up tension dance wheel device and guide-wheel fixed frame |
1 set |
|
11.Traversing unit |
1 unit |
|

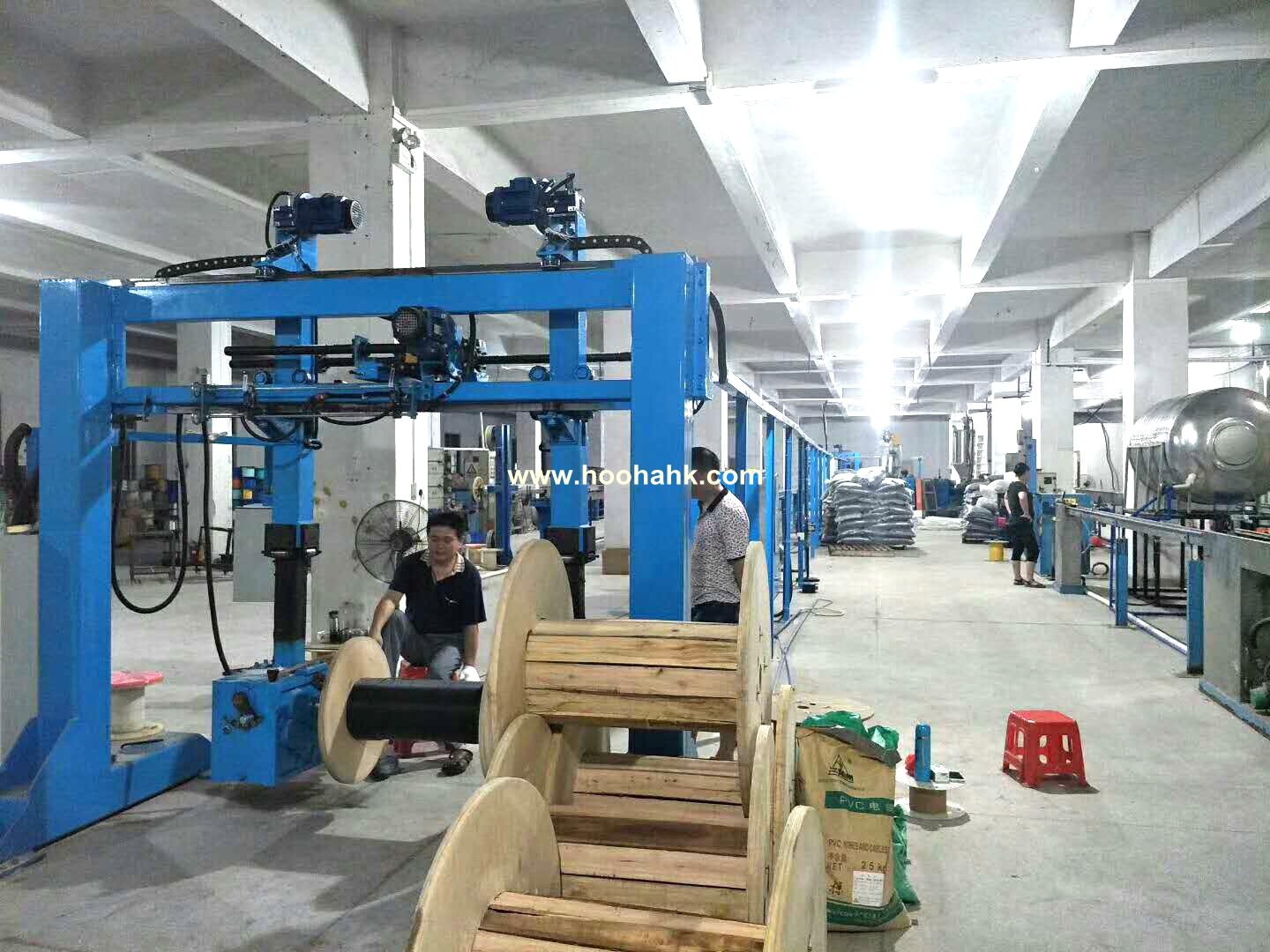

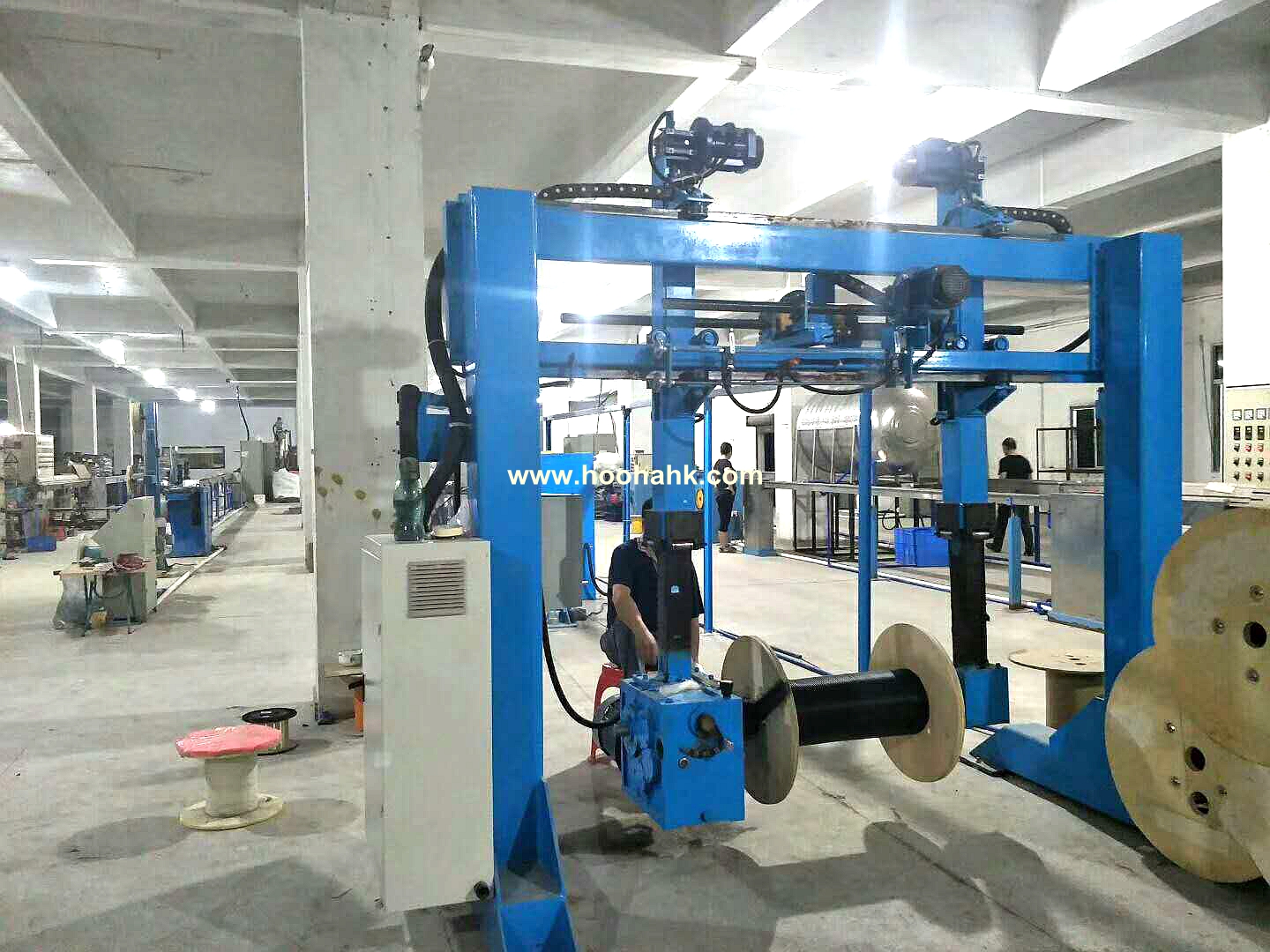

12.Φ800~1600mm shaft less take up machine |
1 set |
|
13.Main control cabinet(IPC+PLC control) |
1 set |
|
14..meters counting device |
1 unit |
|
15.630-800 dual take up machine |
1 set |
|
16.spare parts |
1 set |
|
1 |
Strength member |
Φ1mm～Φ10.0mm |
|
2 |
Maximum diameter after SZ |
Φ20mm |
|
3 |
No. and diameter of loose tube |
(Φ1.5mm～Φ3.5mm)/12 |
|
4 |
Structure speed |
100m/min |
|
5 |
Production speed(binder pitch:25mm, cabling pitch:65mm) |
80m/min |
|
6 |
Cabling pitch |
(50~250)mm |
|
7 |
SZ stranding angle |
±(4～18)π |
|
8 |
SZ rotation speed |
Max 2000 rpm |
|
9 |
Binder rotation speed |
Max 4000 rpm |
|
10 |
Binder pitch |
15~50mm |
|
11 |
Precision of meter-counter |
≤0.2％ |
|
12 |
Additional loose after production |
≤0.02dB/km |
|
13 |
Machine color and direction |
It’s up to customer |
|
14 |
Machine power source |
380V 50HZ three phase five wire |
|
15 |
Machine power |
48KVA |
|
16 |
Line length |
42m |
|
17 |
Weight |
14 ton |

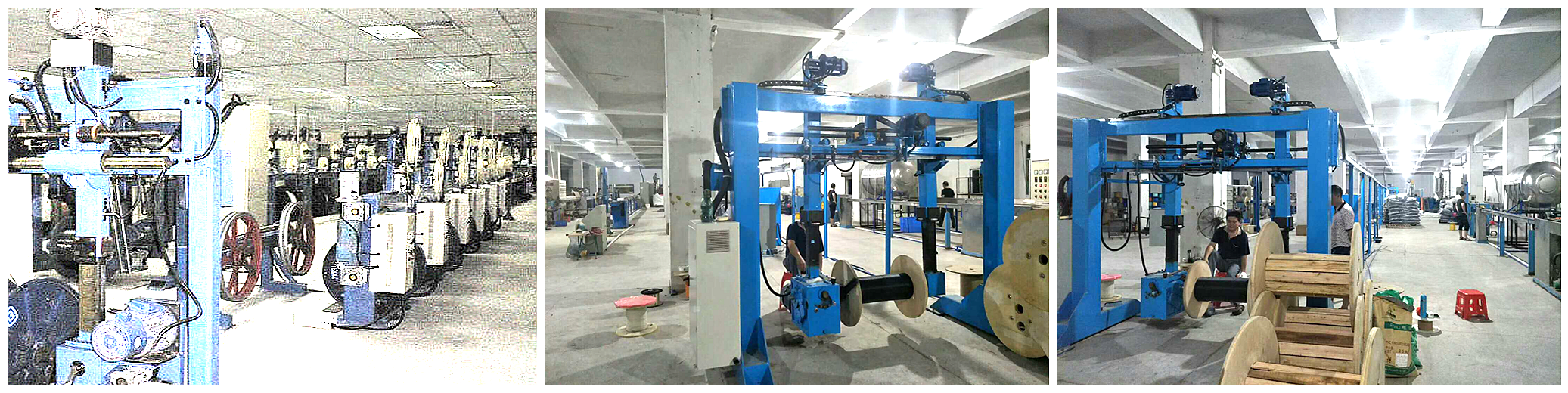

Our engineer team has over 5-year experience working overseas for customer on-site service. Therefore, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.
