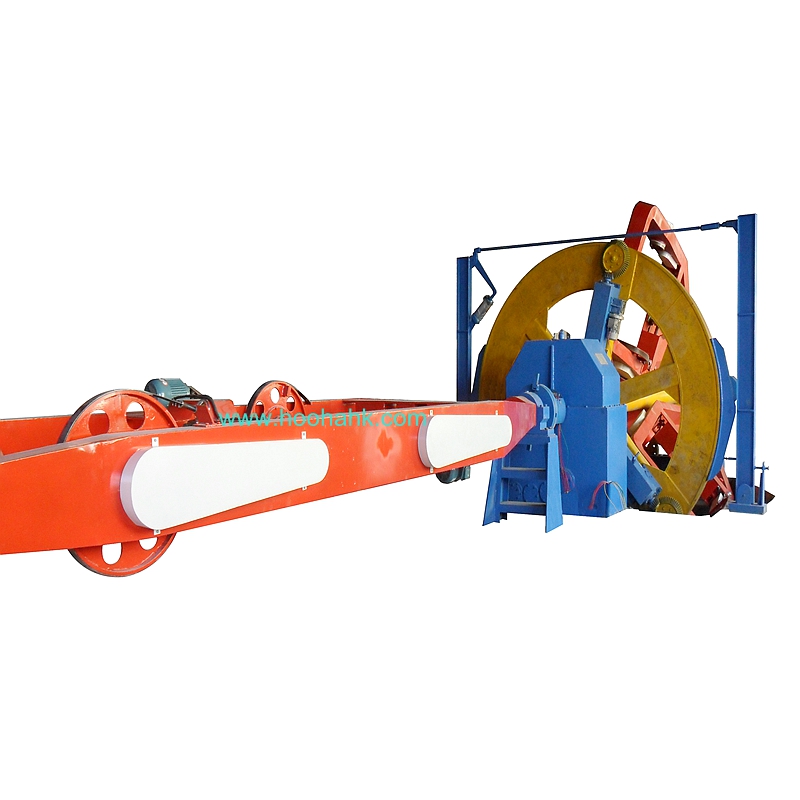

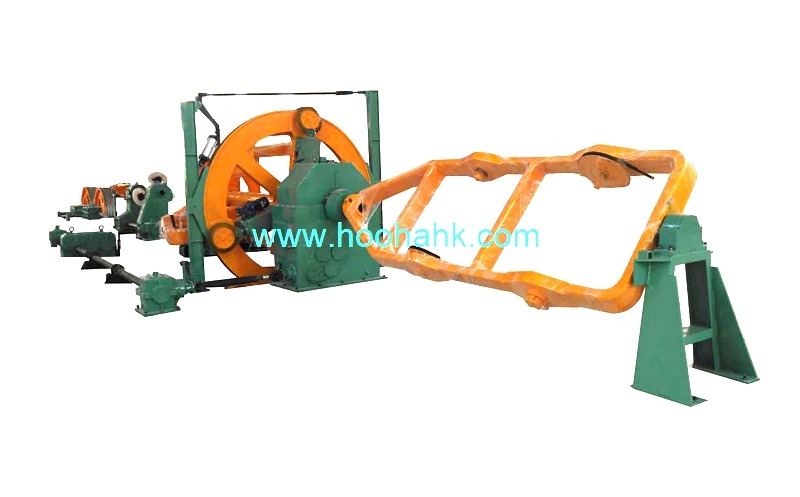

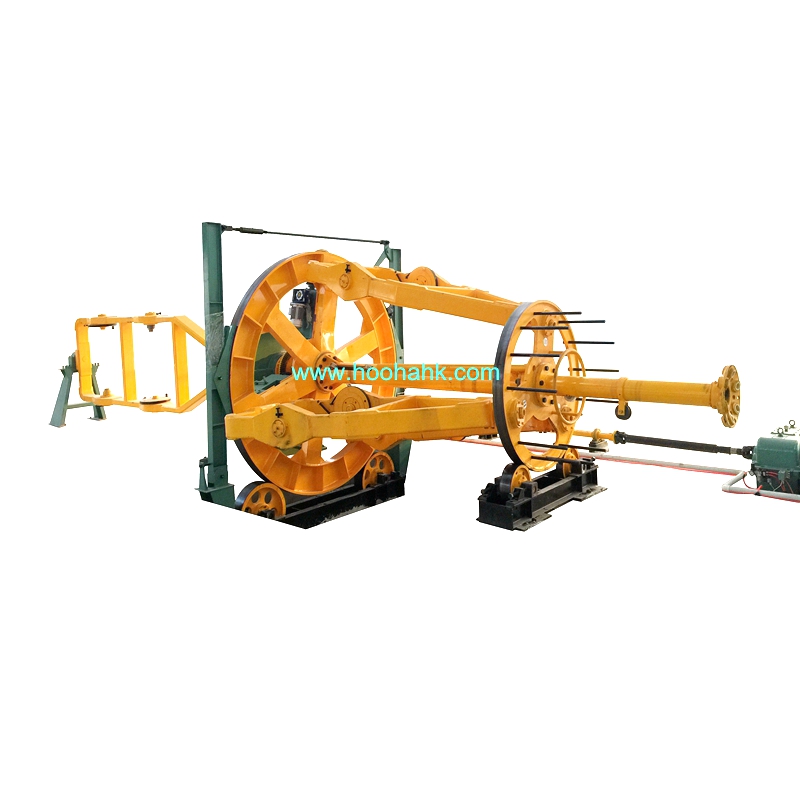

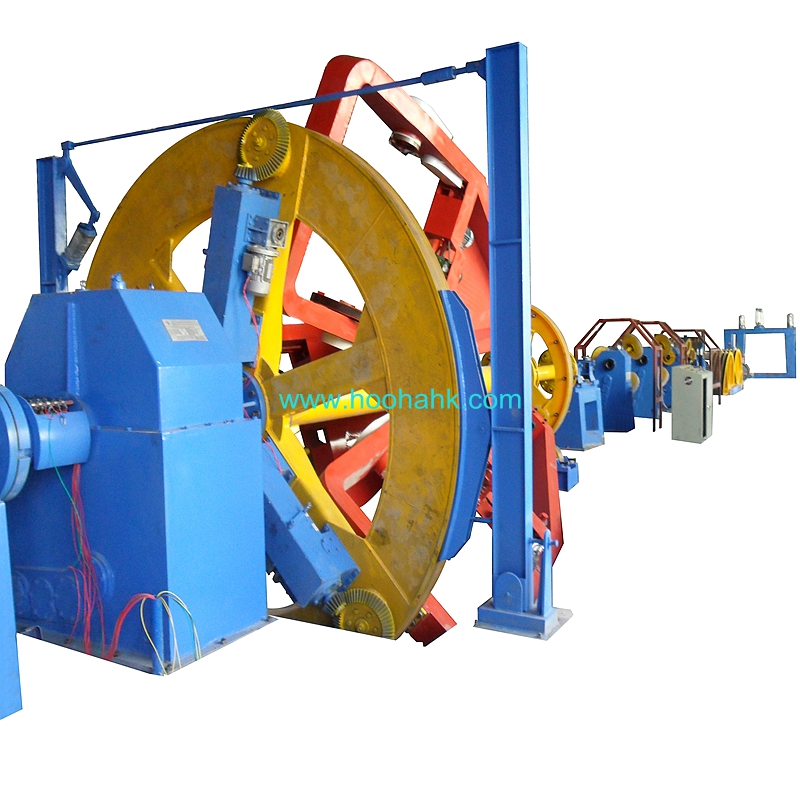

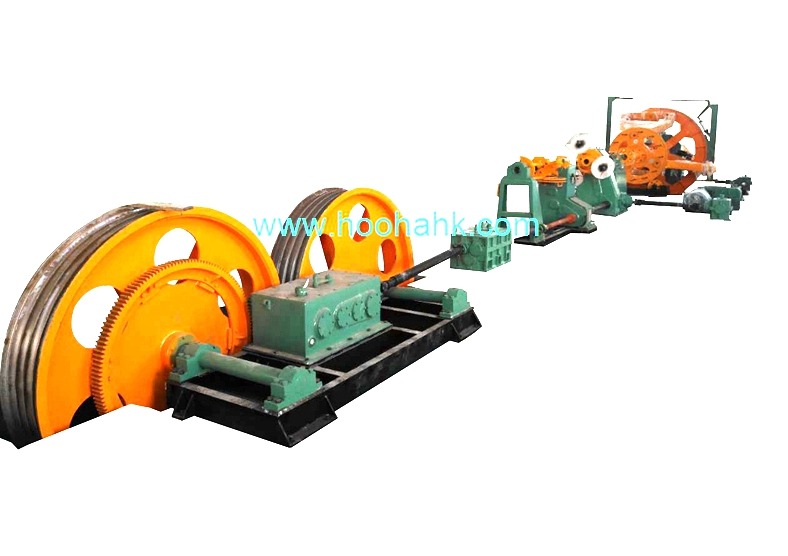

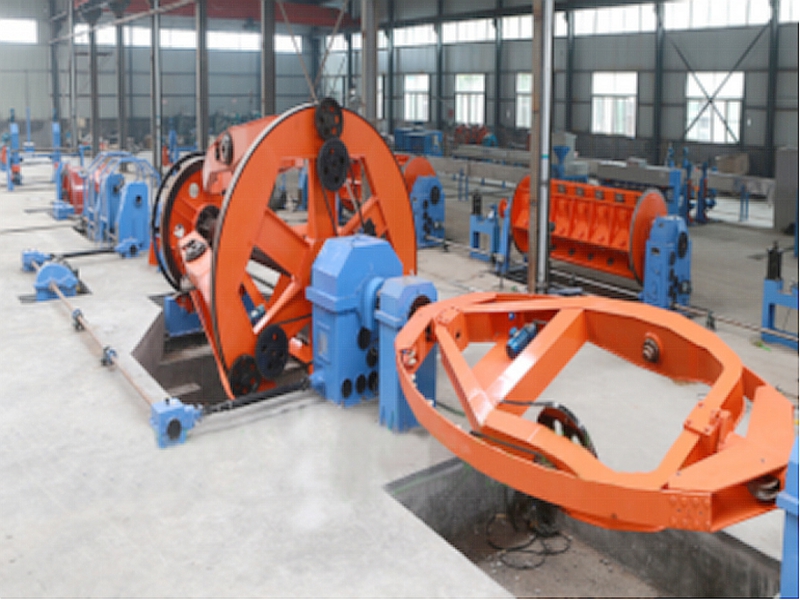

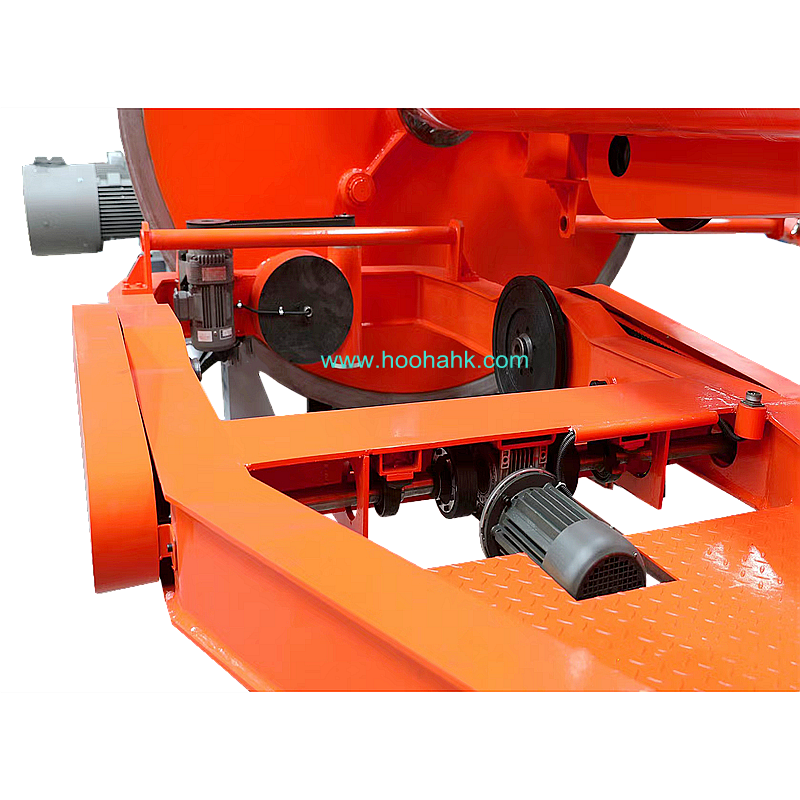

The machine is suitable for stranding and lay-up various sizes and various specifications of 3-7 cores. This is mainly used for power cables,insulated cores, which can be round or sector.
1. The size of the winding drum of the roller twister is 2000mm to 4200mm, which can meet the requirements of manufacturing cables of different diameters and lengths.
2. Use programmable controller and touch screen to control operation status.
3. All motors are AC variable frequency motors and are controlled by inverters. These motors have stable performance, low failure rate and easy maintenance.
4. The running distance can be set, modified and displayed through the touch screen. Through the touch screen, you can set to move left or right. Slightly moving and fast moving can also be adjusted
5. The production line uses a centralized lofting rack to shorten the total length of the production line and reduce the customer's factory investment.
6. Excellent production technology ensures the high-speed rotation of the twisting head.
7. The cable manufacturing machine is driven by a separate motor. It has a high degree of automation.
|
No. |
Items |
Quantity |
|
1 |
2/1000 Center Pay-Off Frame |
1 Set |
|
2 |

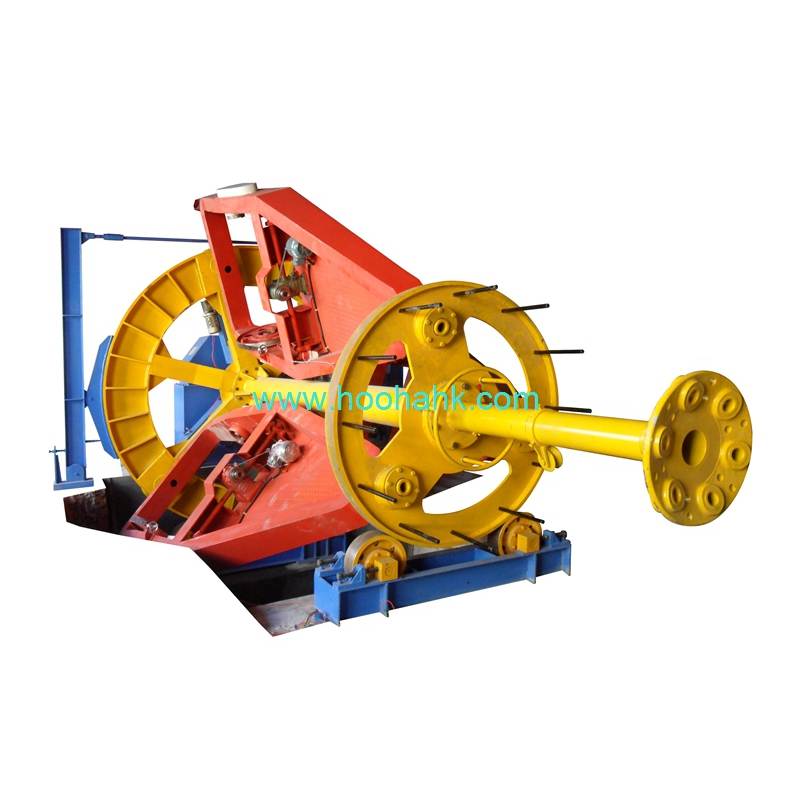

3/1000 Bobbin strand cage |
1 Set |
|
3 |
Double row mold base |
1 Set |
|
4 |
400/3 Taping head |
1 Set |
|
5 |
630 Armour machine |
1 Set |
|
6 |
Transmission system |
1 Set |
|
7 |
Mechanical meter counter |
1 Set |
|
8 |
1600 Traction system |
1 Set |
|
9 |
2500 Shaftless take-up frame |
1 Set |
|
10 |
Traverse device |
1 Set |
|
11 |
Electric control system |
1 Set |
|
12 |
Safety protection device |
1 Set |
|
No. |
Items |
Features |
|
1 |
Single cross section |
10~150 mm |
|
2 |
Strand cage rotation speed |
17~42 rpm |
|
3 |
Max lay-up diameter |
60mm |
|
4 |
Lay-up pitch |
102~1830 mm |
|
5 |
Taping head rotation speed |
188~419 rpm |
|
6 |
Armour speed |
188~419 rpm |
|
7 |
Outlet wire speed |
4.327~32 m/min |
|
8 |
Traction wheel diameter |
φ1600 mm |
|
9 |
Main motor power |
30kw(AC) |
|
10 |
Pay-off frame in cage |
PN1000 |
|
11 |
Take-up frame |
PN2500 |
|
12 |
Take up motor |
6kg.m |
|
13 |
Torque motor |
6kg. M |
2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.
3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.
4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
