This machine is used for making 6 cores round soft cable.
1. The machine is highly automated, using PLC + IPC control, and the machine is easy to operate.
2. The operation of the production line, production parameters and management information are transmitted through the computer and PLC interface. IPC receives and displays the signal. The operator can set the parameters according to the displayed information.
3. The machine has a long service life.
4. When any failure occurs, the production line stops automatically.
5. The stranded wire has a long life.
6. The main bearings and electrical appliances are imported brands.
|
No. |
Items |
Quantity |
|
1 |
Φ 1600mm Manual pay-off stand |
1 Set |
|
2 |

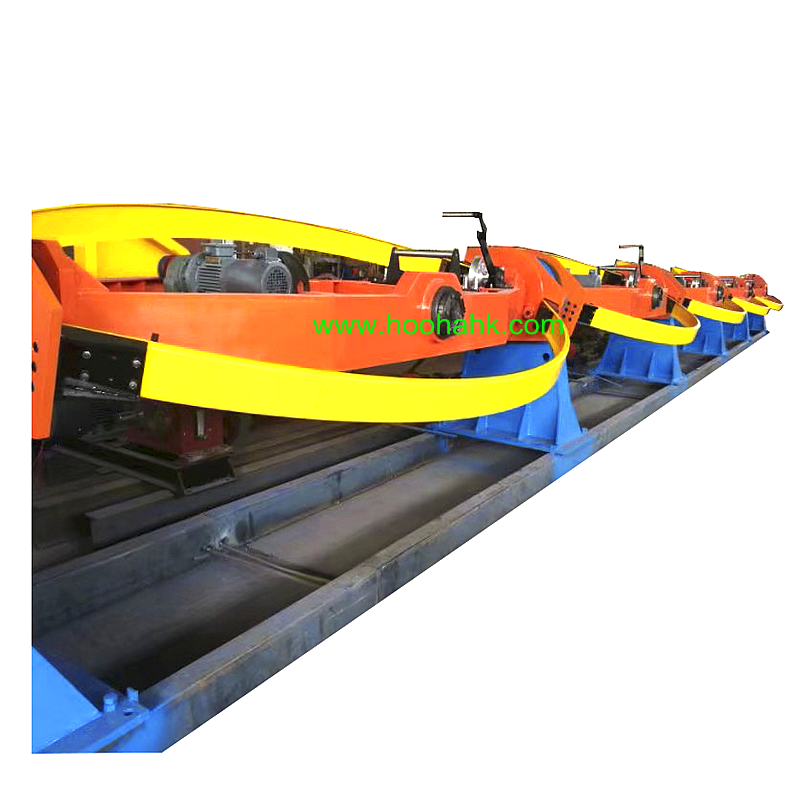

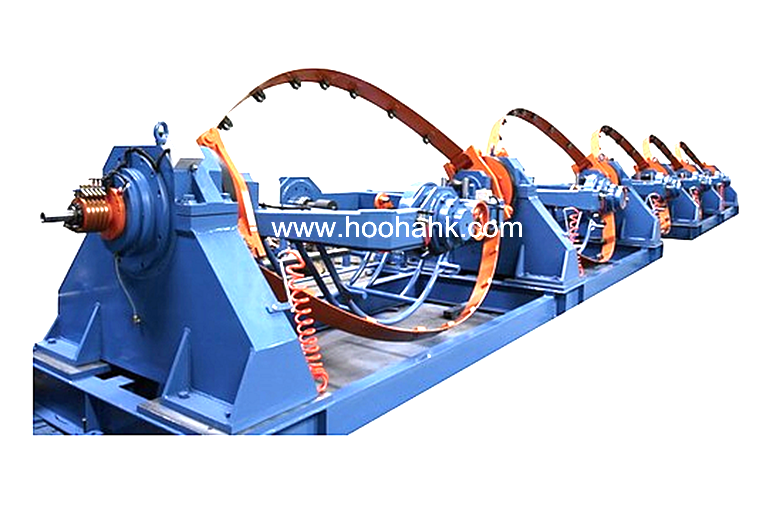

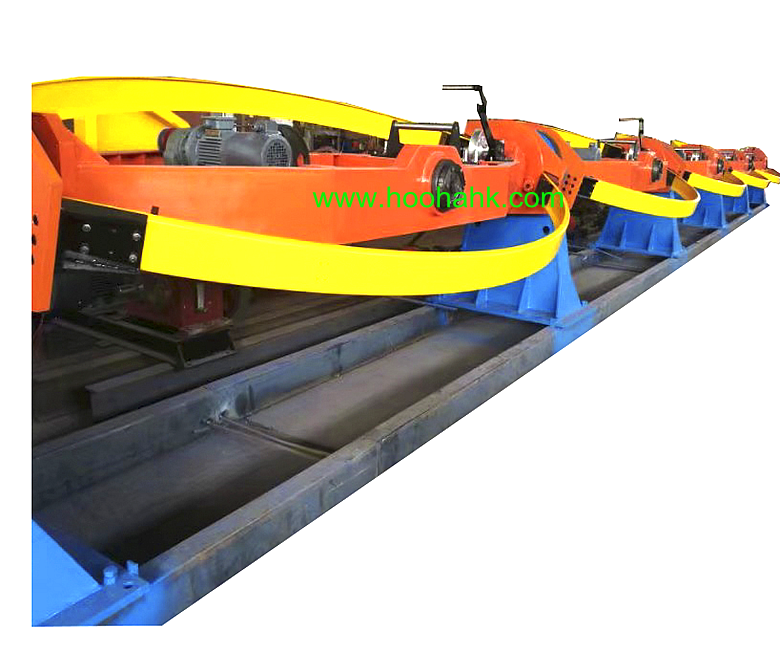

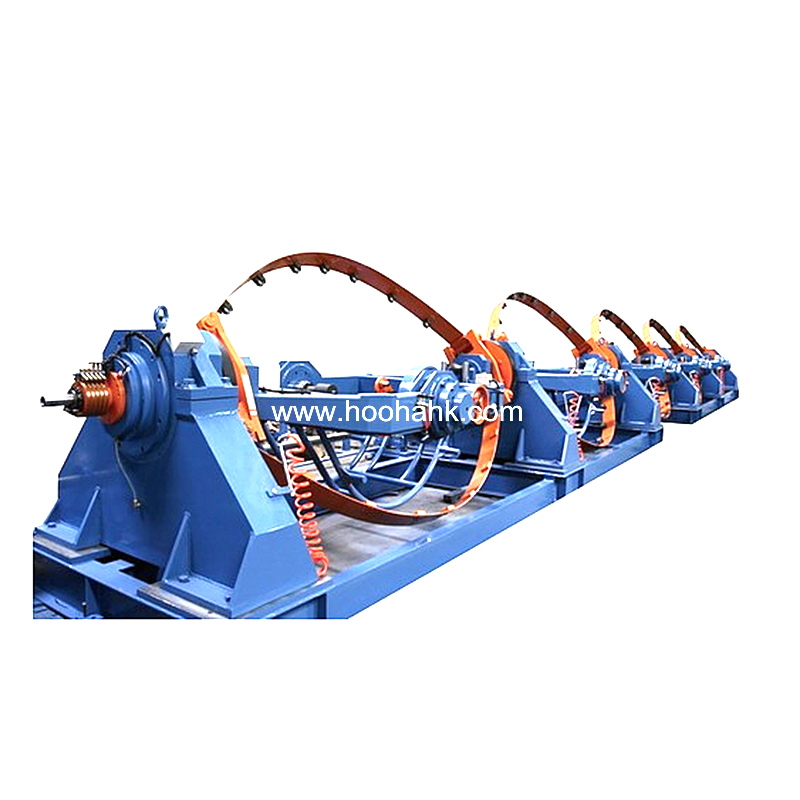

Φ 1600/5 bow-shaped twister |
1 Set |
|
3 |

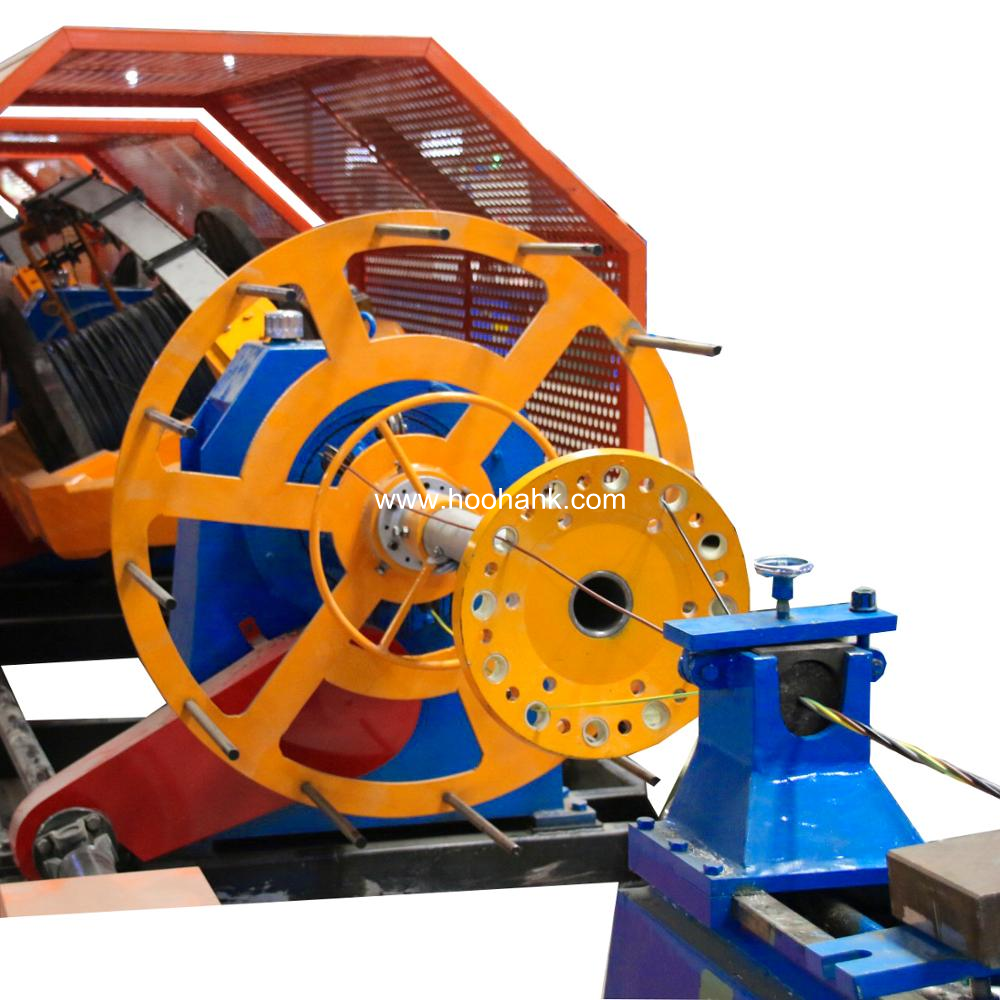

Wire-stranded mould stand |
1 Set |
|
4 |
Meter counter |
1 Set |
|
5 |
Φ 2000mm Double capstan wheels |
1 Set |
|
6 |
Φ 2500mm Column type take-up with traverse |
1 Set |
|
7 |
Transmission system |
1 Set |
|
8 |
Electric control system |
1 Set |
|
9 |
Safe cover |
1 Set |
|
10 |
Φ 400mm x 2 Taping machine |
1 Set |
|
No. |
Items |
Features |
|
1 |
Single wire diameter |
Φ8-Φ18mm |
|
2 |
Max stranded Diameter |
Φ 55mm |
|
3 |
Max bow rotate speed |
100r/min |
|
4 |
Capstan wheel diameter |
Φ2000mm |
|
5 |
Central pay-off bobbin |
Φ 1600mm |
|
6 |
Pay-off bobbin in cage |
Φ 1600mm |
|
7 |
Take-up bobbin |
Φ 1250mm - Φ 2500mm |
|
8 |
Main motor power |
45KW,AC motor |
2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.
3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.
4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
