Applied in the extrusion of 2-12 cores oil-filled fiber.Extrusion material should be suitable for PBT, extruding shape, uniform diameter and smooth diameter.
1. The production line has the characteristics of accurate tension, easy operation, fast production speed and stable performance.
2. The whole machine adopts the control technology that combines industrial computer and programmable logic controller, namely PC + PLC mode, to realize the synchronous operation of the entire production line and the independent operation of a single machine; the operation of the production line, parameter setting and display, etc. The production control process of industrial computer, motor start, stop, given signal, motor speed and other production status is realized by PLC; data transmission between industrial computer and PLC through communication port; it can realize production line operation, alarm display, production line Emergency stop and other functions.
|
Products |
Qty |
|

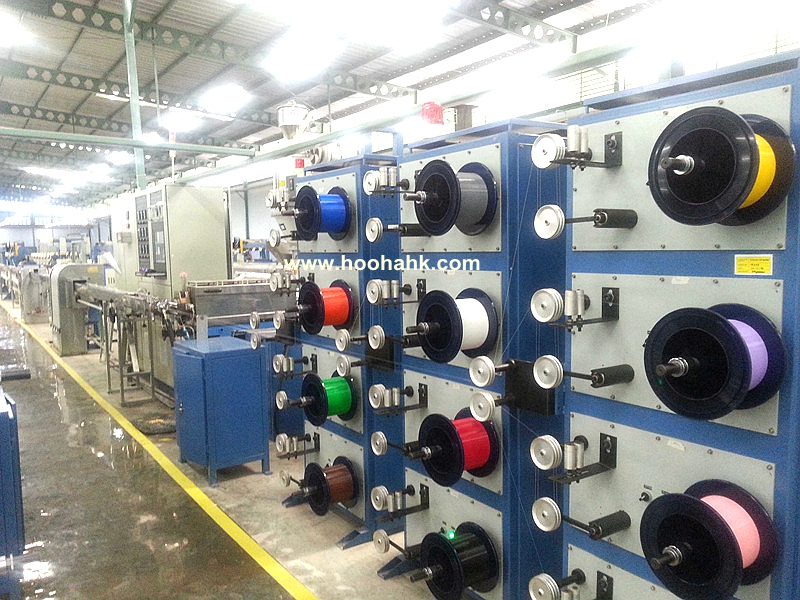

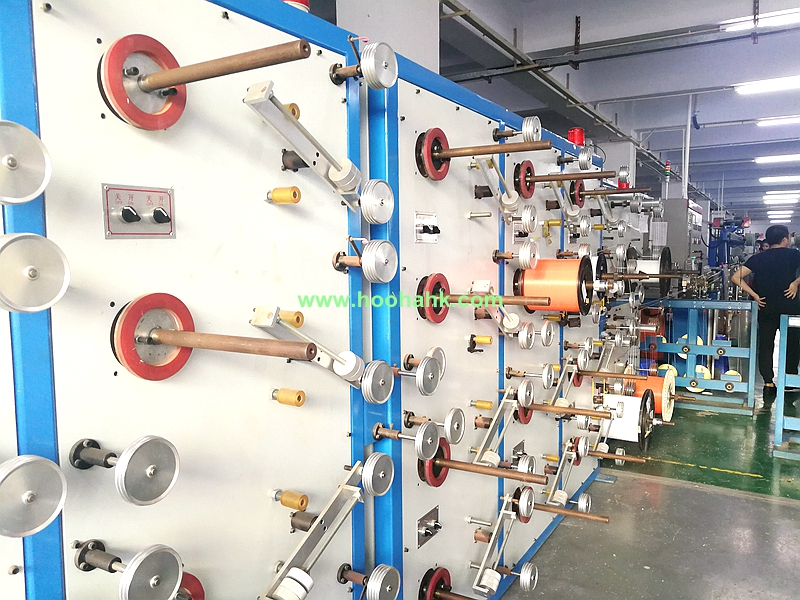

1. 12 heads 250mm motorized pay off stand |
1 set |
|
2.Oil-Cream Device with Air bubble remover +vacuum-pumping (oil filler) |
1 unit |
|
3. Optic fiber straighter device |
1 unit |
|
4. Φ50mm Extruder Machine (PBT) |
1 unit |
|
5. 25KG Hopper dryer and auto suction machine |
1 unit |
|
6.PLC electrical control box |
1 unit |
|
7. 2 Meters movable cooling water tank |
1 set |
|
8.8 meters fixed water tank |
1 set |
|
9.Refrigeration water tank and auxiliary traction |
1 unit |
|
10.Single direction laser diameter measurement |
1 set |
|
11.Dancer |
1 unit |
|
12.9 meters accumulator stand |
1 set |
|
13.600mm belt type capstan |
1 set |
|
14..meters counting device |
1 unit |
|

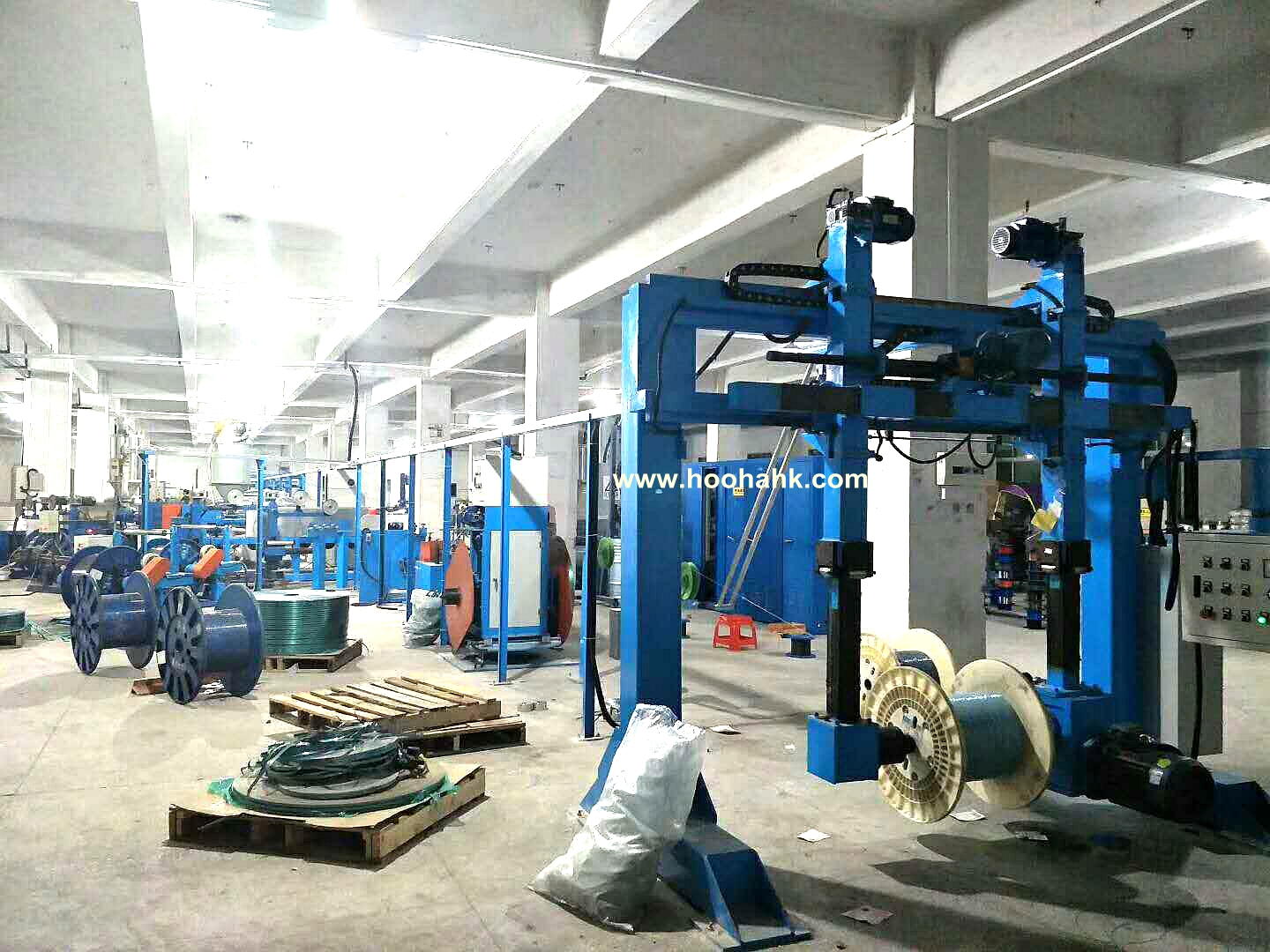

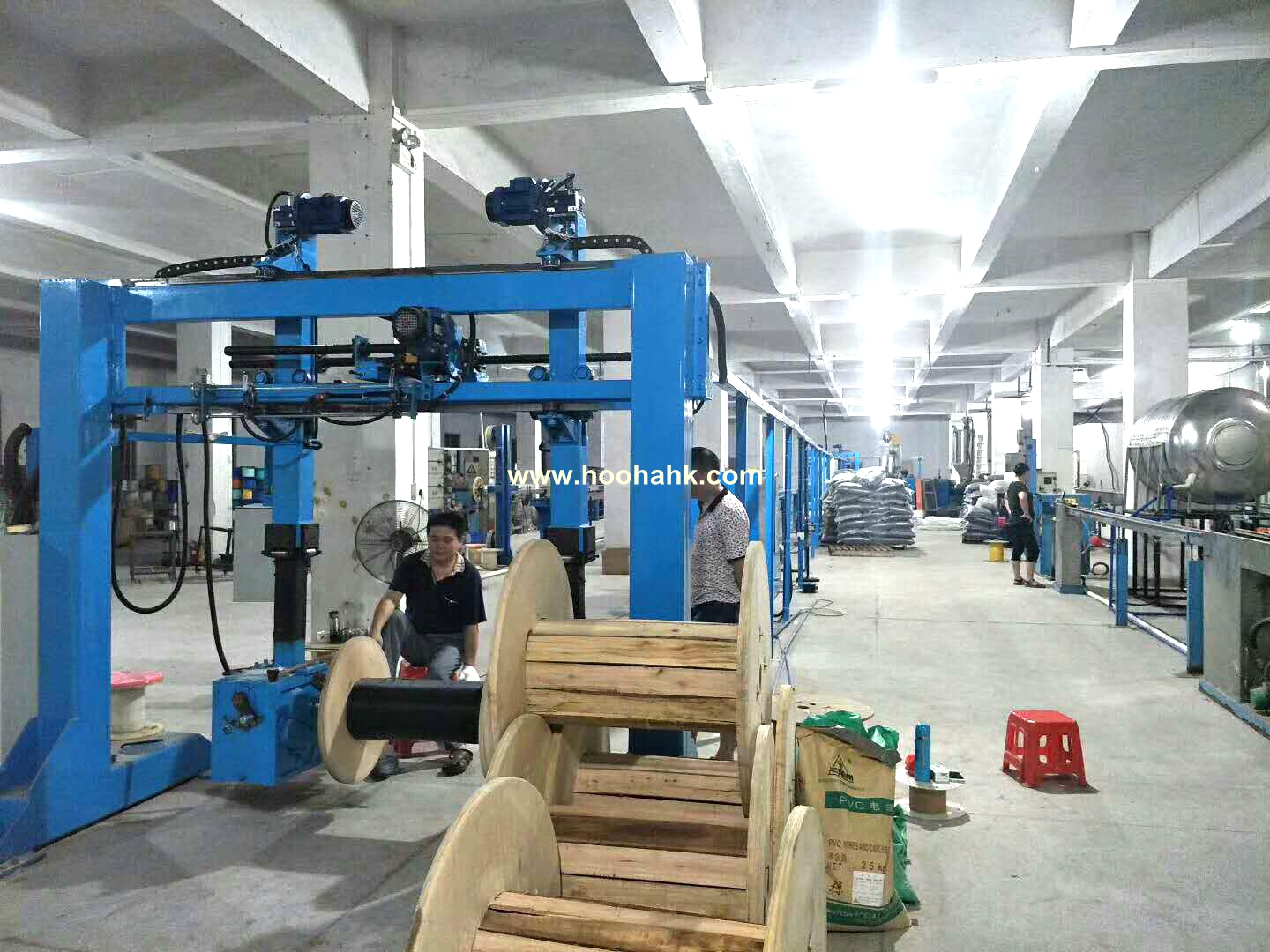

15.630-800 dual take up machine |
1 set |
|
16.spare parts |
1 set |
|
No. |
Items |
Features |
|
1 |
Material insulation |
PBT |
|
2 |
Plasticfy performance |
100% |
|
3 |
Fiber reel |
25 KM/50KM |
|
4 |
Extruding capacity |
60 Kg/Hr |
|
5 |
Speed |
150-180 m/min |
|
6 |
Power |
380 V , 30 KW in total |
|
7 |
Central height |
1000 mm |
Our engineer team has over 5-year experience working overseas for customer on-site service. Therefore, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.
