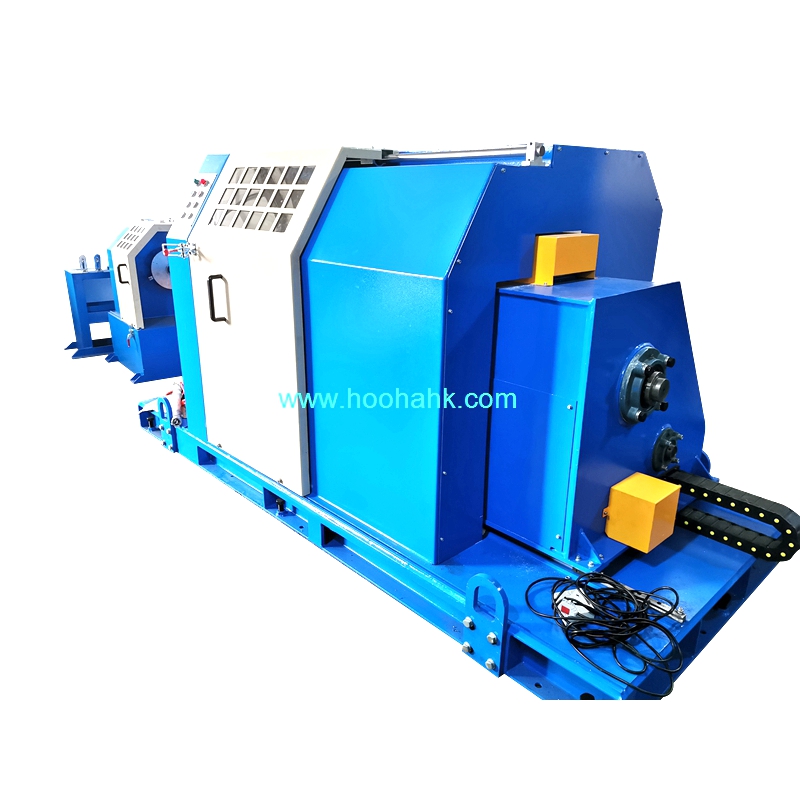

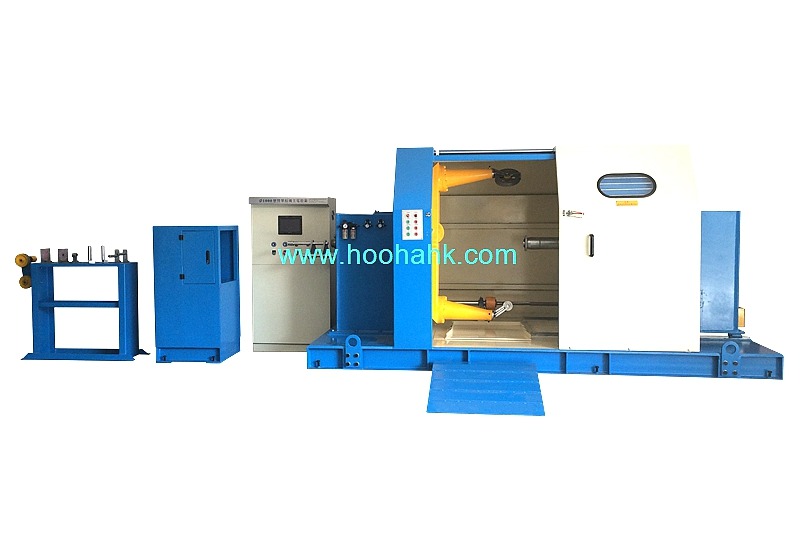

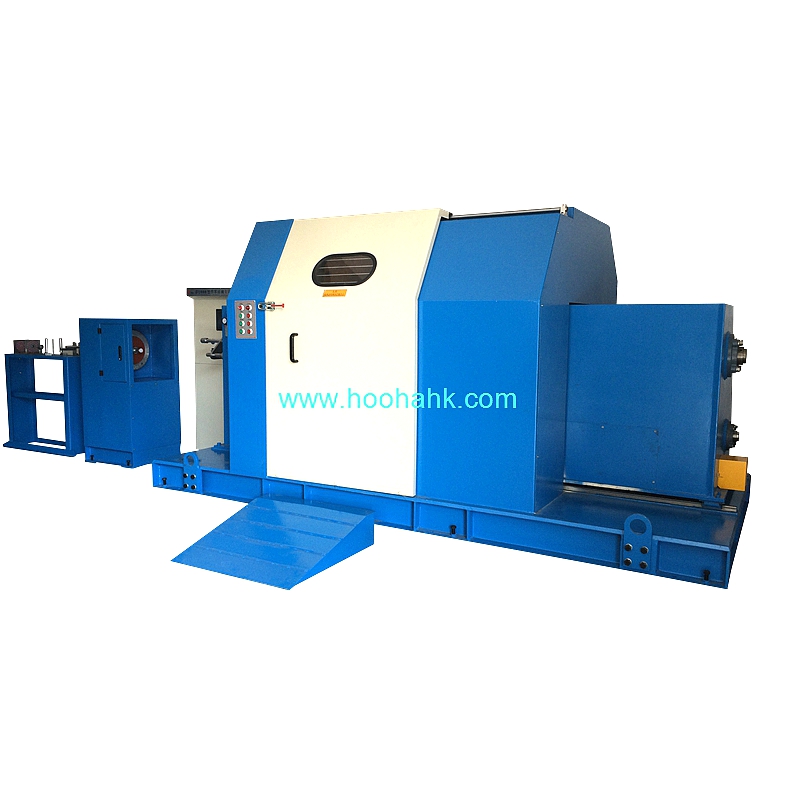

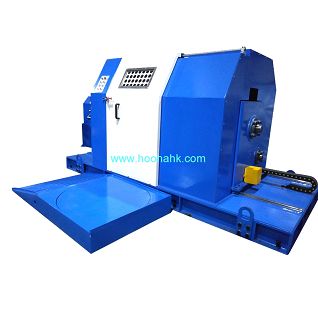

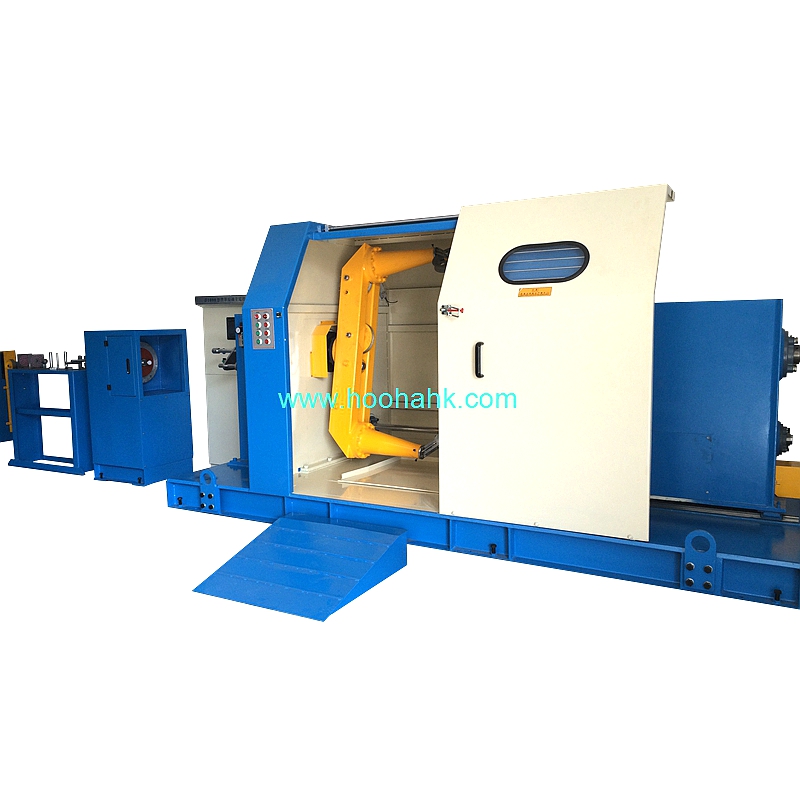

HH-ST- PLC 630 Cantilever Single Twisting Machine

Product Attributes :

FOB Price: 50,000 ~ 62,000 USD

Payment Terms: T/T, L/C

Delivery Time: 30 working days

Power：10 HP motor+10 HP inverter

Max twisted diameter: φ 15mm

Rotation speed：Max 1000 rpm

Warranty: 12 months

Product Description

It is suitable for the twisting and synchronous winding of insulated core wires such as USB cable, electrical cable, communication cable and data cable etc. This single twisting machine is widely used in various types of wires and cables production process.

1. High-speed rotation, the efficiency is 2 times that of the traditional frame

2. Reduce wires through pulleys, reduce bending and damage to wire materials

3. The bobbin traverses, adjustable traverse spacing setting

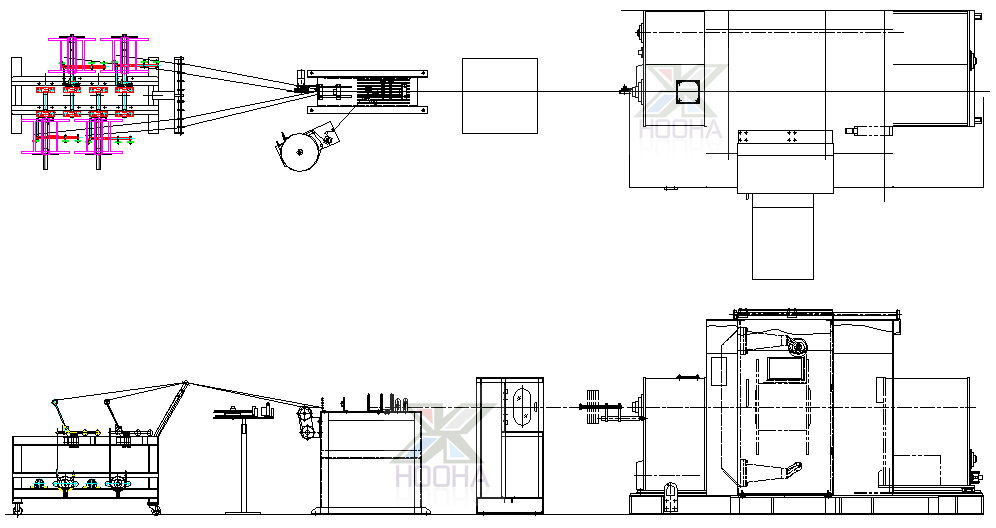

No.	Items	Quantity	Reference Picture

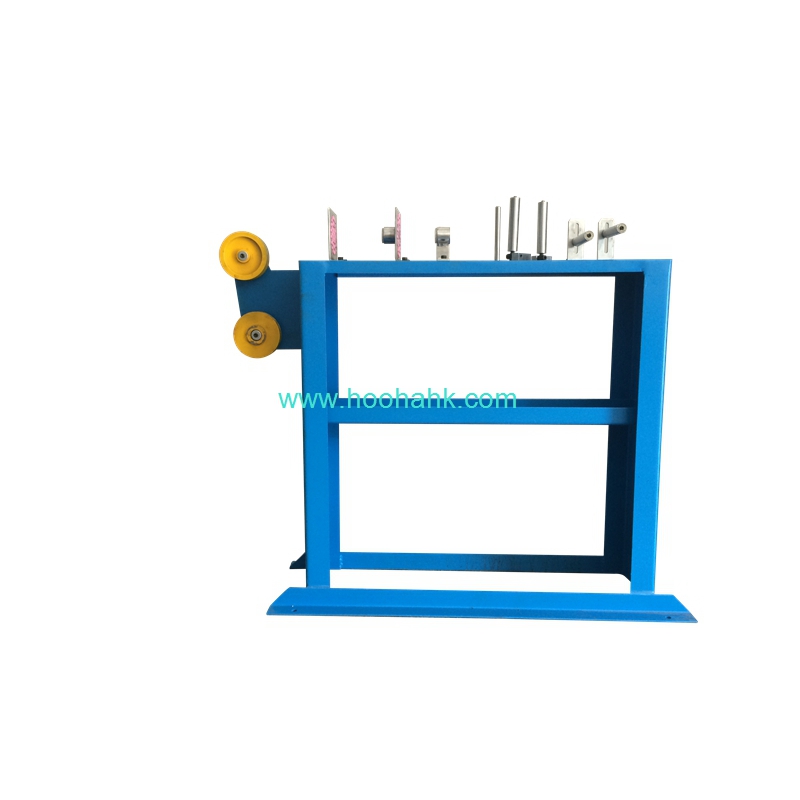

1	8 Heads Horizontal tension pay off stand	1 set

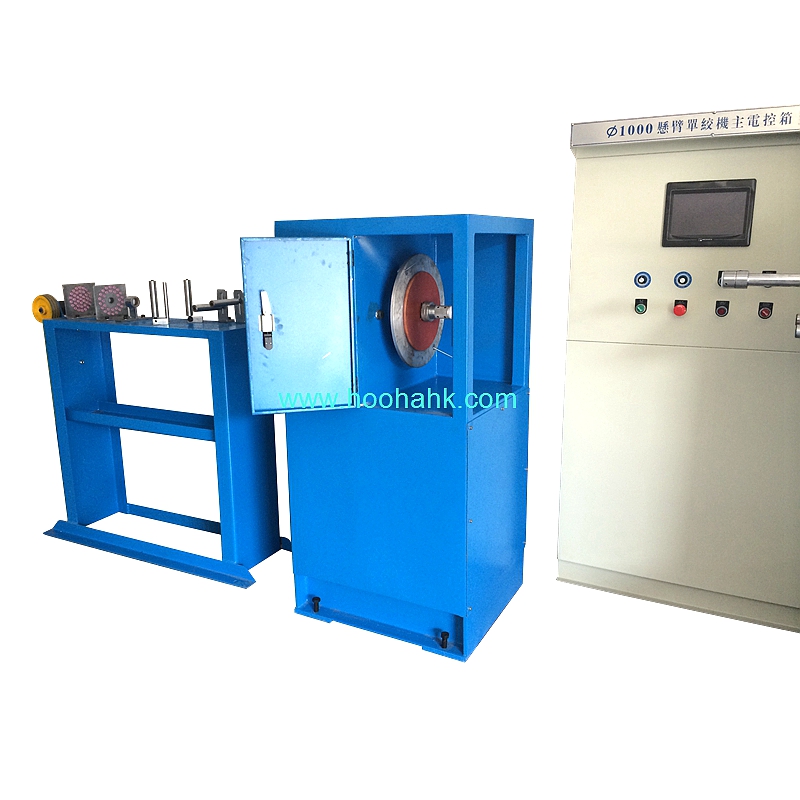

2	PLC Siemens electric control box	1 set
3	Wire collection device	1 set
4	Wrapping machine	1 set
5	630 Cantilever single twisting main machine	1 set

No.	Items	Features
1	Motor	1. Drive (Main machine) motor： AC 380V 10 HP 2. Capstan motor： AC 380V 5 HP 3. Linkage wrapping machine motor： AC 380V 2 HP
2	Inverter	1. Drive (Main machine)：10 HP 2. Capstan： 5 HP 3. Linkage wrapping machine：2 HP
3	Electric control box	1. PLC Systems： SIEMENS brand, Man-machine interface complete computer control 2. Tickle touch screen： Easy to operate 3. Human Interface： SIEMENS

1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
