ABC (Aerial Bundled) Cable Project In Tazania

 1.Overview

Bundled insulated conductors for overhead power systems with a rated voltage of 0.6/1kV (referred to as low voltage ABC cables) are a completely new concept for overhead distribution. Compared to overhead bare conductor distribution systems, ABC cables offer higher safety and reliability, lower power losses and ultimately system economy through reduced installation, maintenance and operating costs.ABC distribution systems are suitable for rural, urban, hilly, forested and coastal areas.

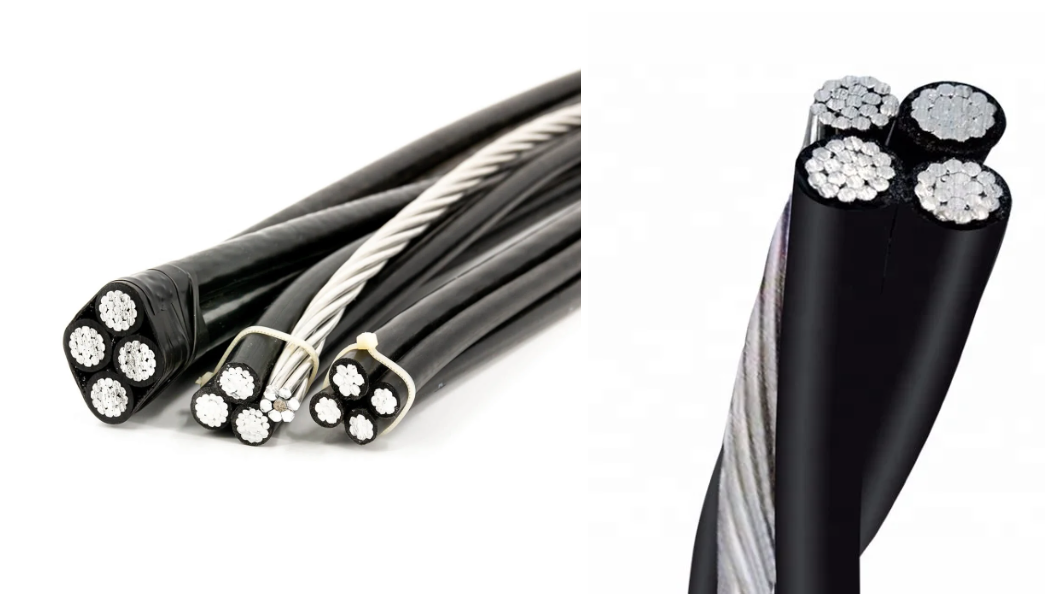

Among the ABC cable turnkey projects we have completed in the past, the types of products involved are

(1) conductor bundles without a sling centre;

(2) conductor bundles with a sling centre. The conductor cross-section is mainly 150m2 and below; the number of insulation cores is mainly (2 to 6) cores; the product standards involved are mainly NF C33-209.

2.Production Process

3. Turnkey Project

(1) Cable product information

1) Reference standard: NF C33-209

2) Conductor: Aluminium/aluminium alloy (class 2)

(3) Insulation: XLPE

4) Cable construction

2*16mm², 2*25mm², 4*16mm², 4*25mm², 3*35+54.6+2*16mm², 3*70+54.6+2*16mm², 3*150+70+2*16mm², 95mm2,150mm2 etc.

(2) Production equipment we provided

1) Drawing: 13-dies aluminium/aluminium alloy large drawing

2) Ageing treatment: 40-station single door single trolley ageing furnace

3) Conductor stranding: 630/1+6 tube stranding machine, 630/1+6+12 frame stranding machine,630/1+6+12+18 frame stranding machine

4) Insulation extrusion: PLC 90 extrusion line

5) Cable formation: 1600/1+5 bow- skip stranding

6) Rewinding:  rewinding line (630-1250) (1250-2500)

(3) Testing equipment we provided

1) Vernier calipers

2) Micrometer

3) Cable diameter ruler

4) Wall thickness projector

5) Digital bridge + bridge fixture

6) Handheld resistance tester

7) AC withstand voltage tester (50kVA/5.0kV)

8) Insulation resistance tester

9) Constant temperature water tank

10) Natural air exchange aging test chamber

11) Specimen slicer and dumbbell knife mould

12) Slicing machine for specimen

13) Double-headed grinding machine

14) Tension testing machine (5kN)

15) Heat extension test device

(4) Auxiliary equipment we provided

1) Air compressor (37kW, 0.8MPa)

2) DST-200L cooling tower (100m3/h)

3) Tie head threading machine

4) Water pump, oil pump

5) Plate type heat exchanger (22m2)

6) LT-100 aluminium powder separator

7) UN-2 butt welding machine (aluminum/aluminum alloy wire: 1.0mm-4.0mm)

8) UN-45 butt welder (aluminium/aluminium alloy wire: 5.0mm-13.0mm)

9) Die: wire drawing die, stranding die, extrusion die

10) Wire reels (630 double layer high speed wire reels, 1250 corrugated wire reels, 1600 corrugated wire reels, 2000/2500 corrugated wire reels) etc.

In addition to providing the above equipment, we can also provide technical services, including project schedules, production processes, equipment installation and commissioning, operational training, advice on the use of materials and the whole turnkey project. In other words, from the raw material to the finished product, the customer saves a lot of time, energy and financial resources to choose the equipment and understand the process.
