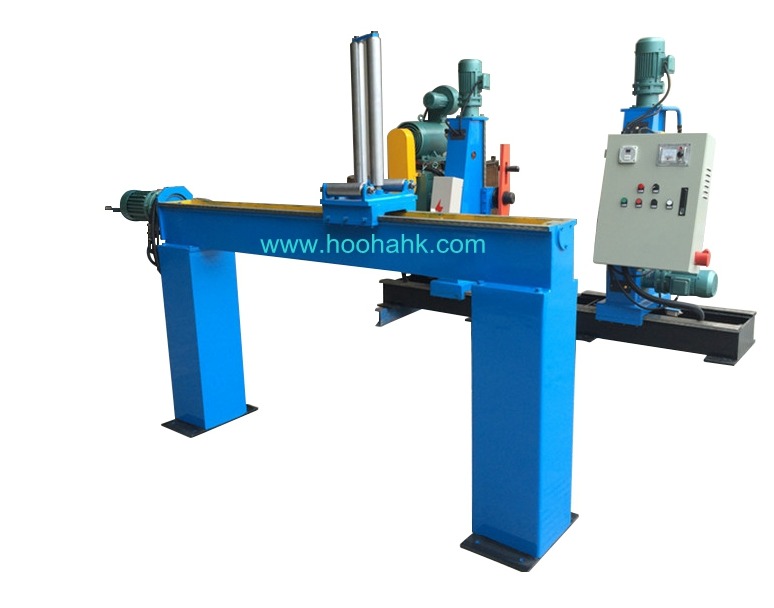

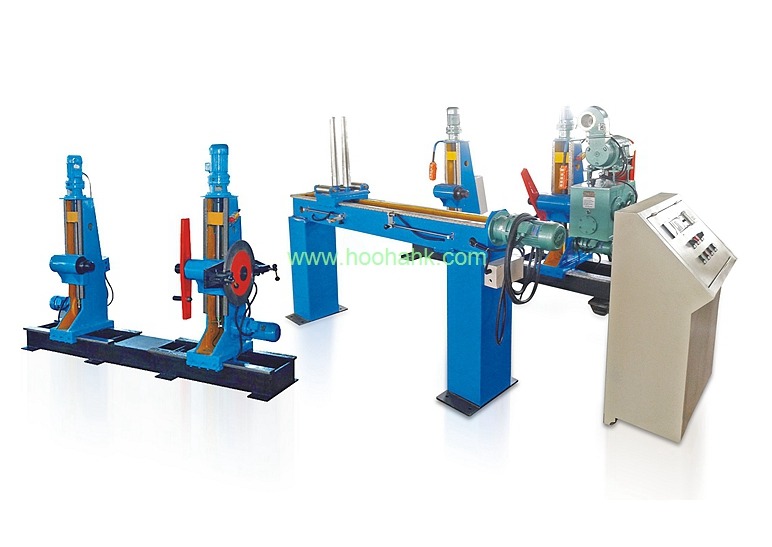

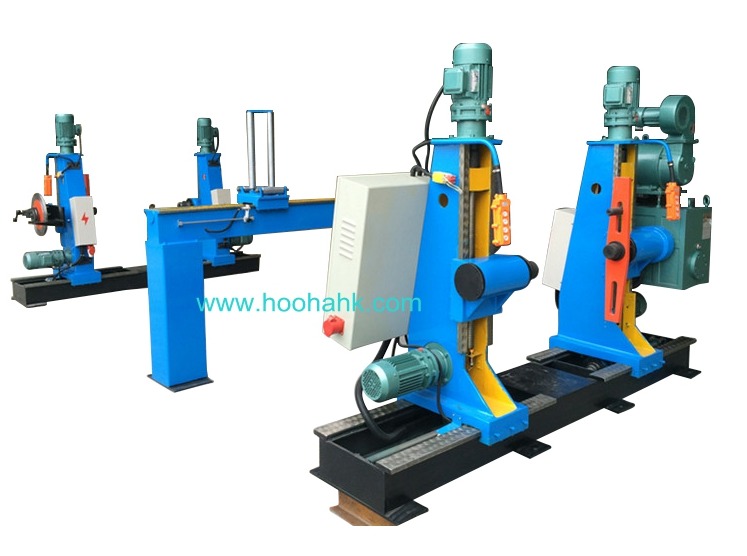

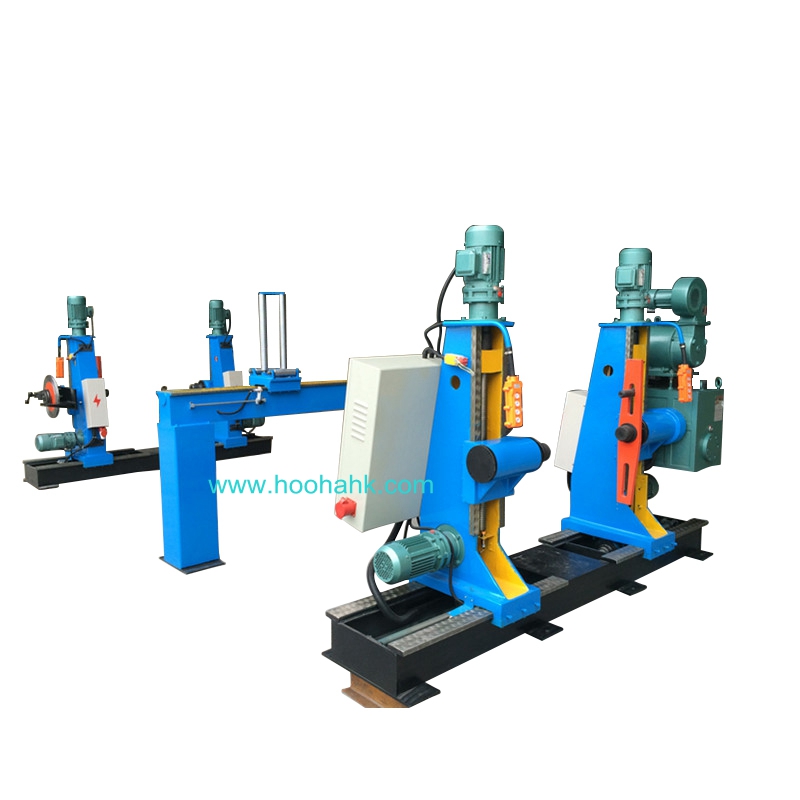

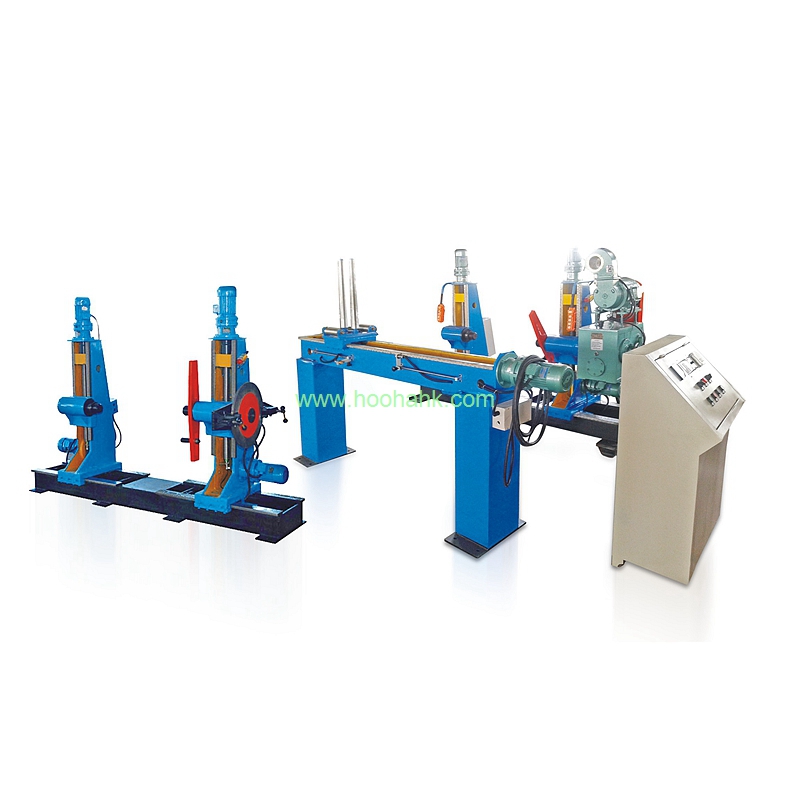

HH-R-2500mm Pay Off--1600mm Take Up with Traverse

The take-up and pay-off device is divided into two types.One is portal walking take-up and pay-off. The other is shaft end take-up and pay-off. They are all for cable take-up and pay-off. Shaft end type take-up and pay-off is characterized by low manufacturing cost,convenient handing of the tool axis, and other advantages

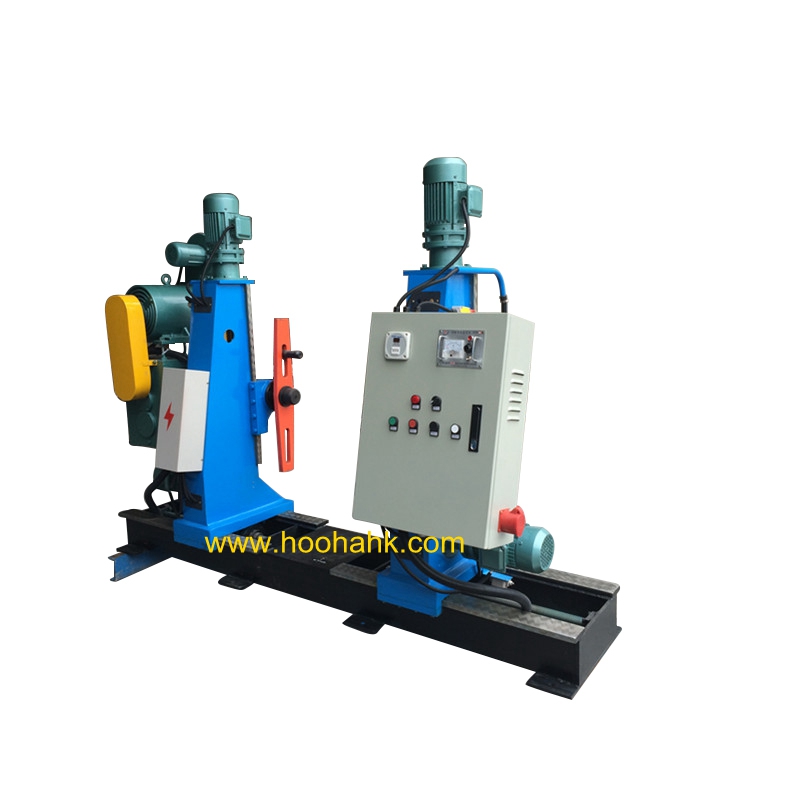

2500mm Column Type Pay Off	1. Suitable drum：Ф1250-2500mm 2. Max loading capacity：8000kg 3. Type：Shaftless structure and column type
Meter Counter	1. Counting wheel perimeter：1m 2. Error of counting meter：±0.3% 3. Max counting length：9999m

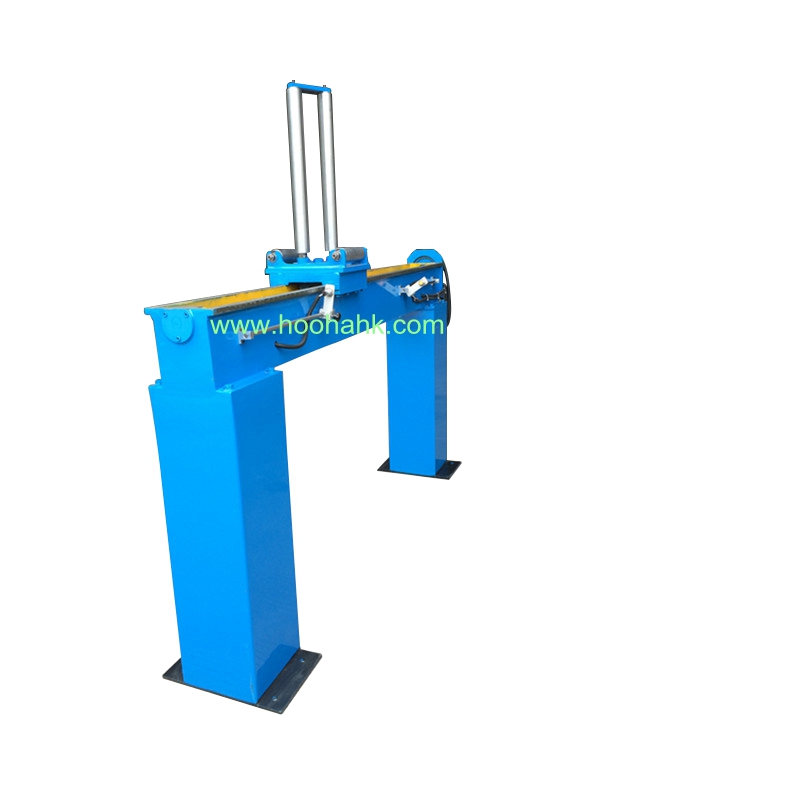

1600mm Column Type Take Up With Traverse	1. Suitable drum：Ф800-1600mm 2. Max loading capacity：4000kg 3. Max traverse pitch：Ф40mm 4. Take up motor：40NM Torque motor





1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
