HH-WC-144 or 288 Cores Fiber Optic Cable

Product Attributes :

FOB Price: 10 USD/m

Payment Terms: T/T, L/C

Delivery Time: 10-15 working days

Number of Conductors：144/288

Certificate：CE/RoHS/ISO9001/Anatel

Jacket：PE

Product Description

Place of Origin:Guangdong, China
Model Number:air blown cable
Number of Conductors:≥ 10
Type:air blown cable
Jacket: Black Polyethylene (PE)
Cores: 144 or 288
Certification: CE/ROHS/ISO9001/ANATEL
Strength Member: Fiber Reinforce Plastic
Application: Duct, aerial installation
Central strength member: FRP

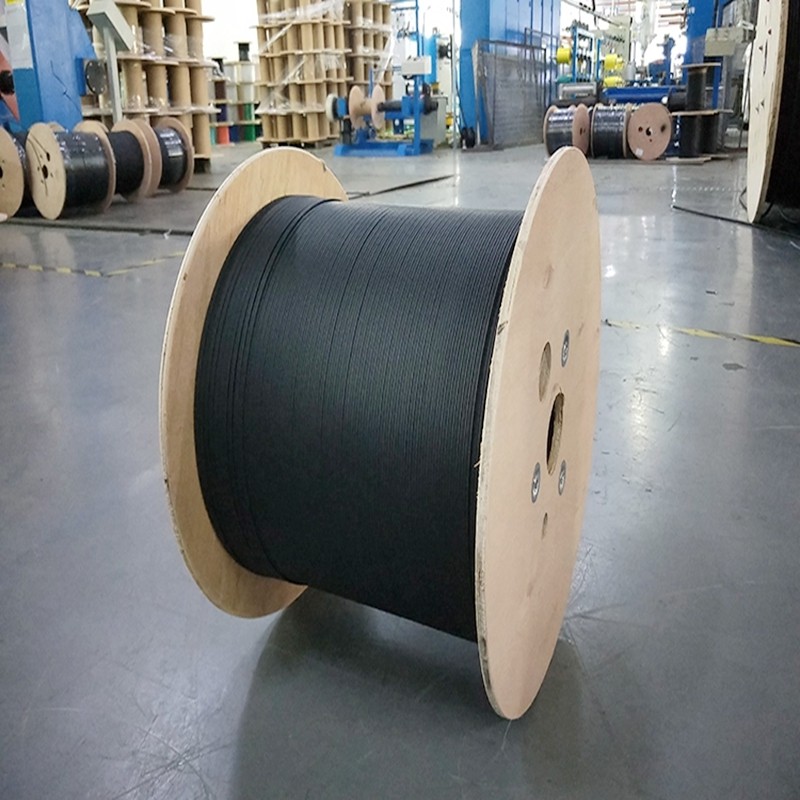

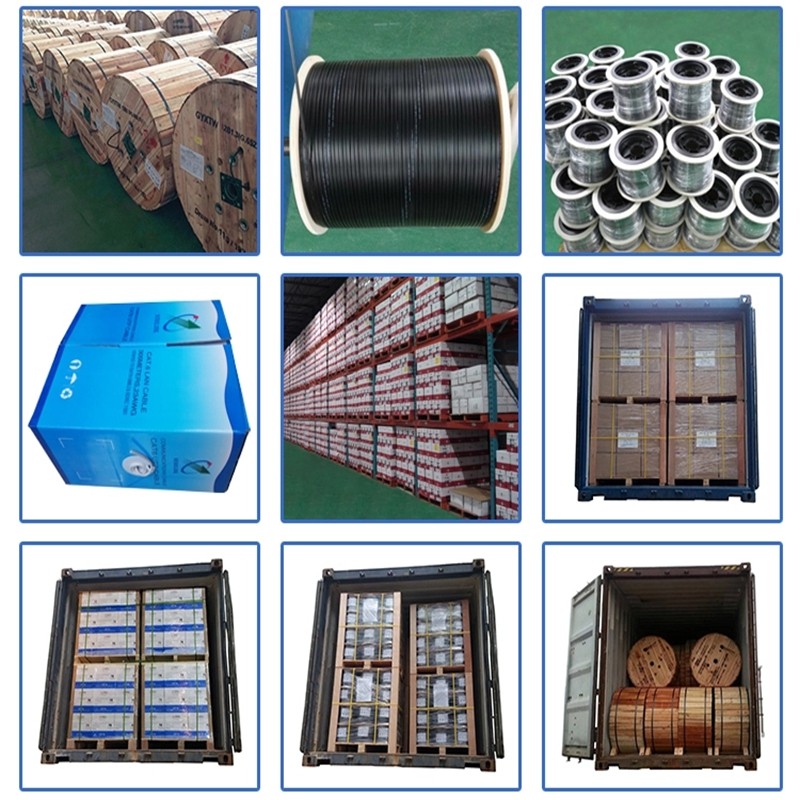

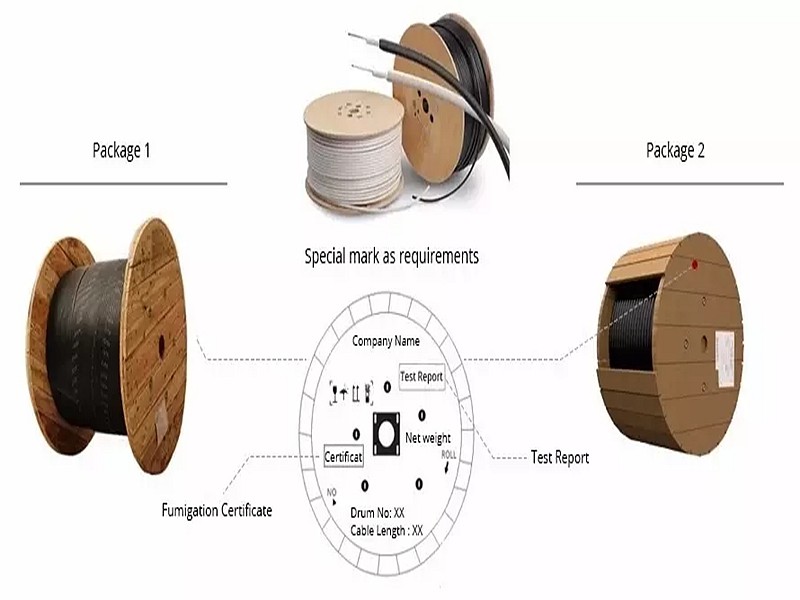

Package: plywood drums with
OEM order: yes

Characteristics

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility

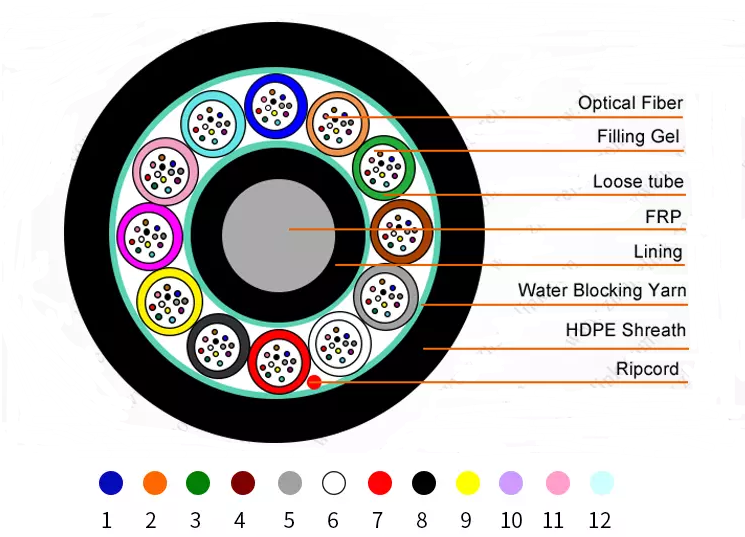

Structure

Air blown cable 144 core consists of :
1.Optical Fiber
2.Filling Gel
3.Loose tube
4.FRP strength member
5.Lining
6.Water Blocking Yarn
7.HDPE Shreath
8.Ripcord

Standards and Certificate

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS

Water blocking method	FRP or PE Lining	Water Blocking yarn
	Cable Core	Water Blocking Kevlar
Thickness of HDPE sheath		Nominal:0.45mm, Average:0.40mm, Minimum:0.35mm
Overall Diameter		5.6±0.1mm	6.4±0.1mm	8.2±0.1mm	8.0±0.1mm
Weight		27 kg/km	40 kg/km	65 kg/km	55 kg/km
Max.Tensile Strength		500N	1000N	1200N	1000N
Max.Crushing Resistance		8000N/100mm
Min. Bending radius-Static		12 outer Φ
Min. Bending radius-Dynamic		20 outer Φ
Cable Fiber Attenuation(G.652D)		0.35dB/km max @ 1310nm 0.22dB/km max@1550nm
Temperature range		Storage -40~+70℃; Installation -10~+40℃; Operation -40~+70℃
