HH-WC-RG59 Coaxial Cable

HH-WC-RG59 Coaxial Cable
HH-WC-RG59 Coaxial Cable HH-WC-RG59 Coaxial Cable HH-WC-RG59 Coaxial Cable HH-WC-RG59 Coaxial Cable HH-WC-RG59 Coaxial Cable
Product Attributes :

FOB Price: 0.4 USD/m

Payment Terms: T/T, L/C

Delivery Time: 10-15 working days

     Conductor Material:BC/CCS/CCA/TC/CU/CCAG

Category: RG59

Out Jacket : PVC/PE

Product Description

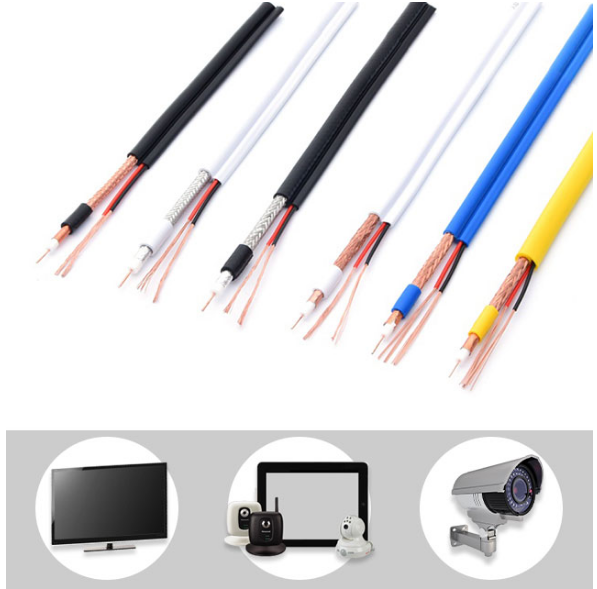

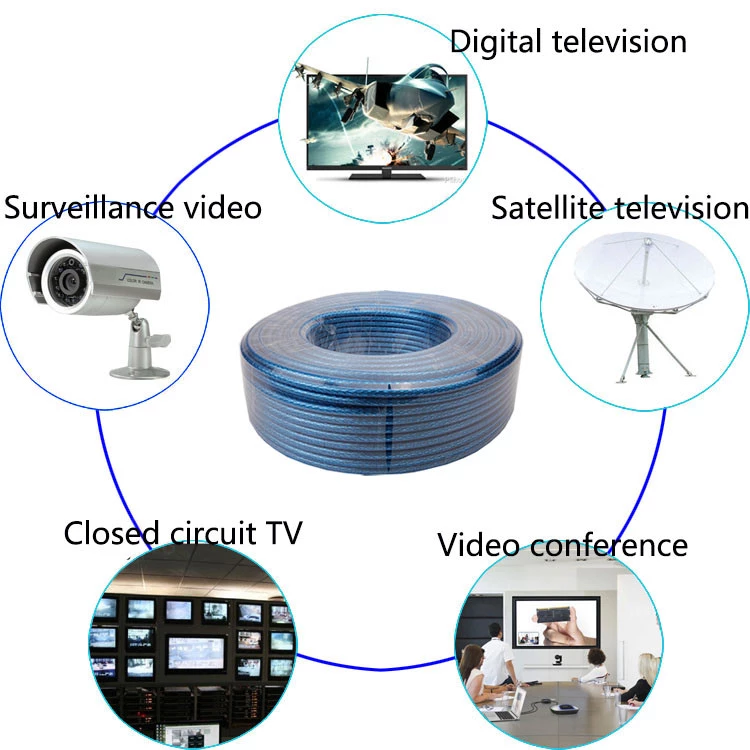

Application:

Local Communication Cable, Coaxial Cable, LAN Cable,etc.





Details:

Conductor Material:BC/CCS/CCA/TC/CU/CCAG

Cover Material:PE/PVC

Material Shape:Round Wire

Conductor Type:Solid

Wire Core Material:Bare Copper Wire

Certification:CE, ISO, RoHS, CPR

Model:Rg59

Inner Conductor:CCS, Cu ,CCA,Tc,etc

Insulation:PE,Foaming PE

Shiled:Al Foil,Copper Foil

Braiding Material:Al, CCA,Cu, Tcu etc.

Braiding Coverage:30%, 45%, 60%, 80%, 90% etc.

Jacket:PVC, PE

Color:White, Black, Yellow,Green etc.

Trademark:OEM

Transport Package:Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box

Specification:Copper or Copper Clad Steel

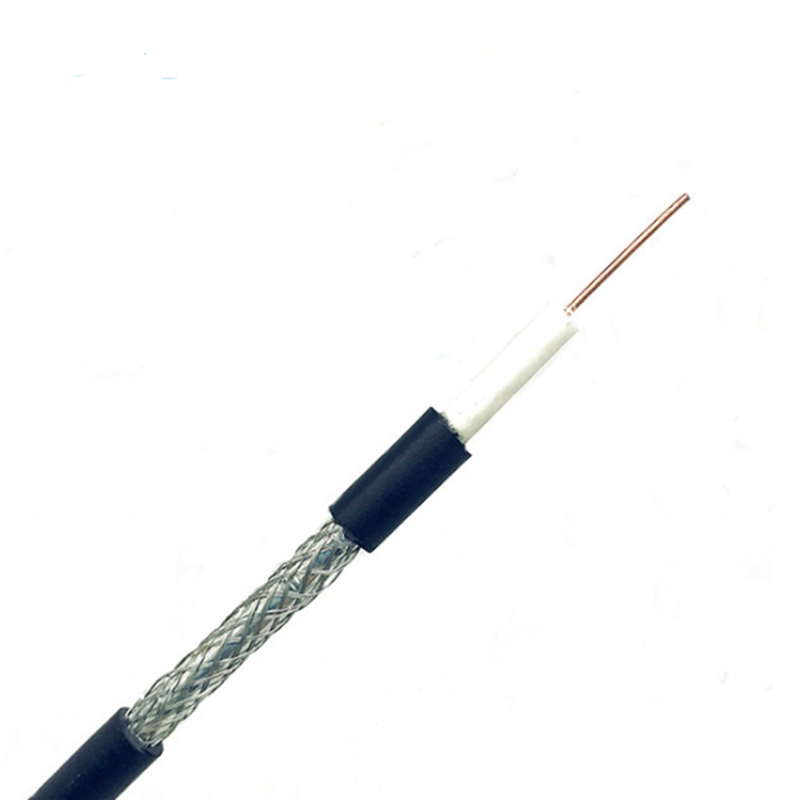

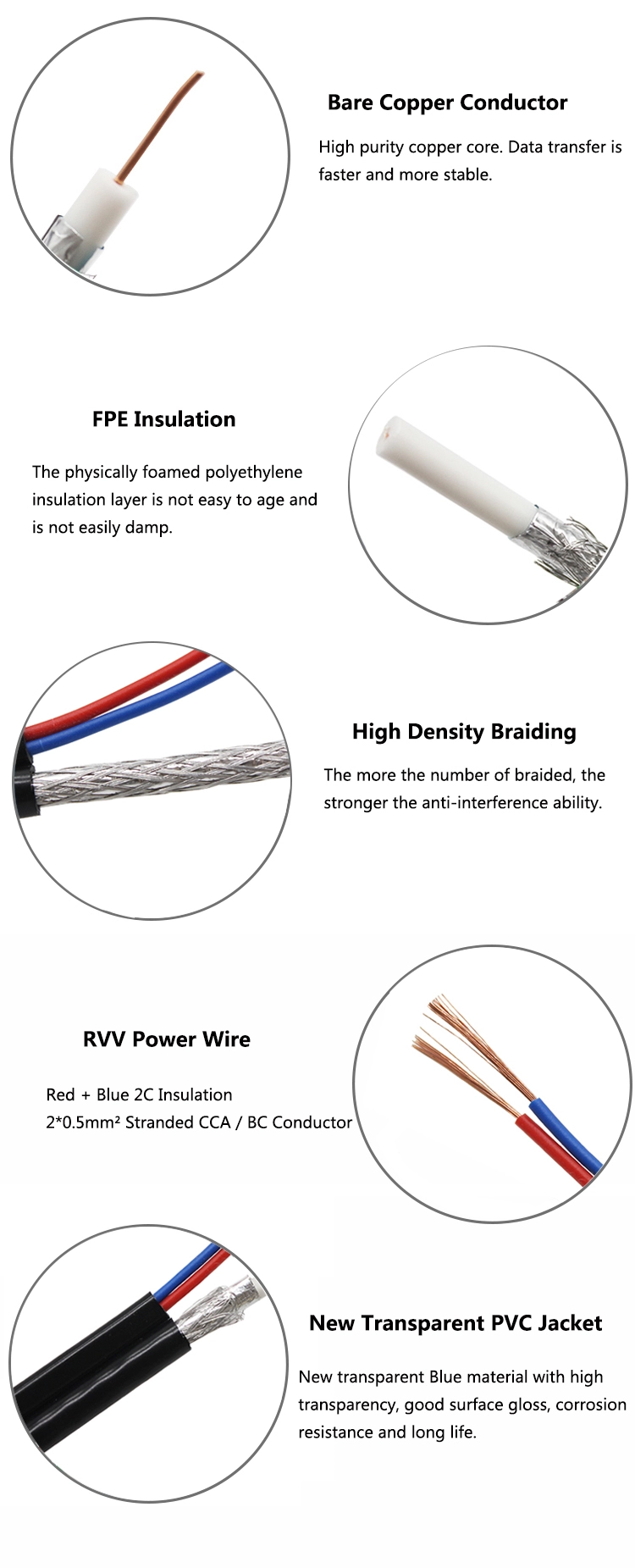

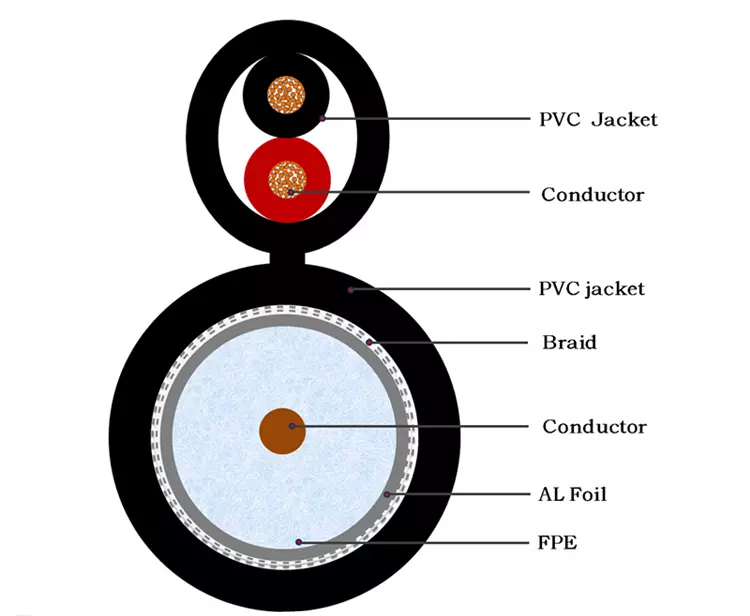

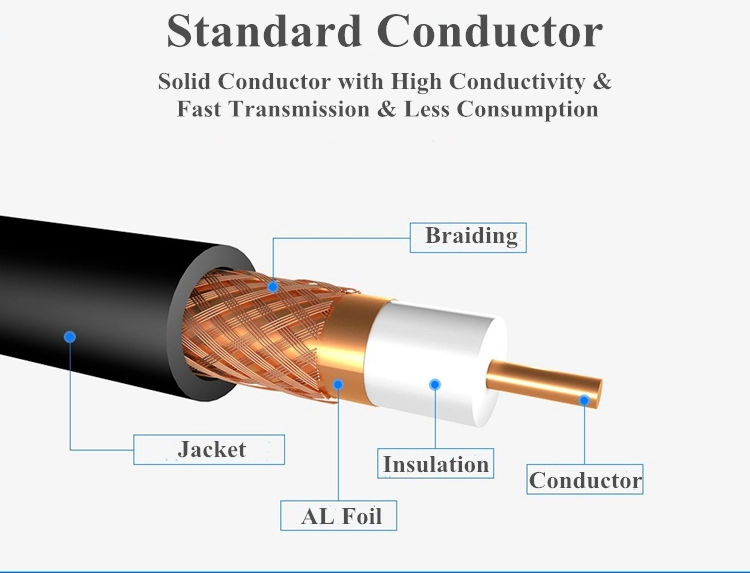

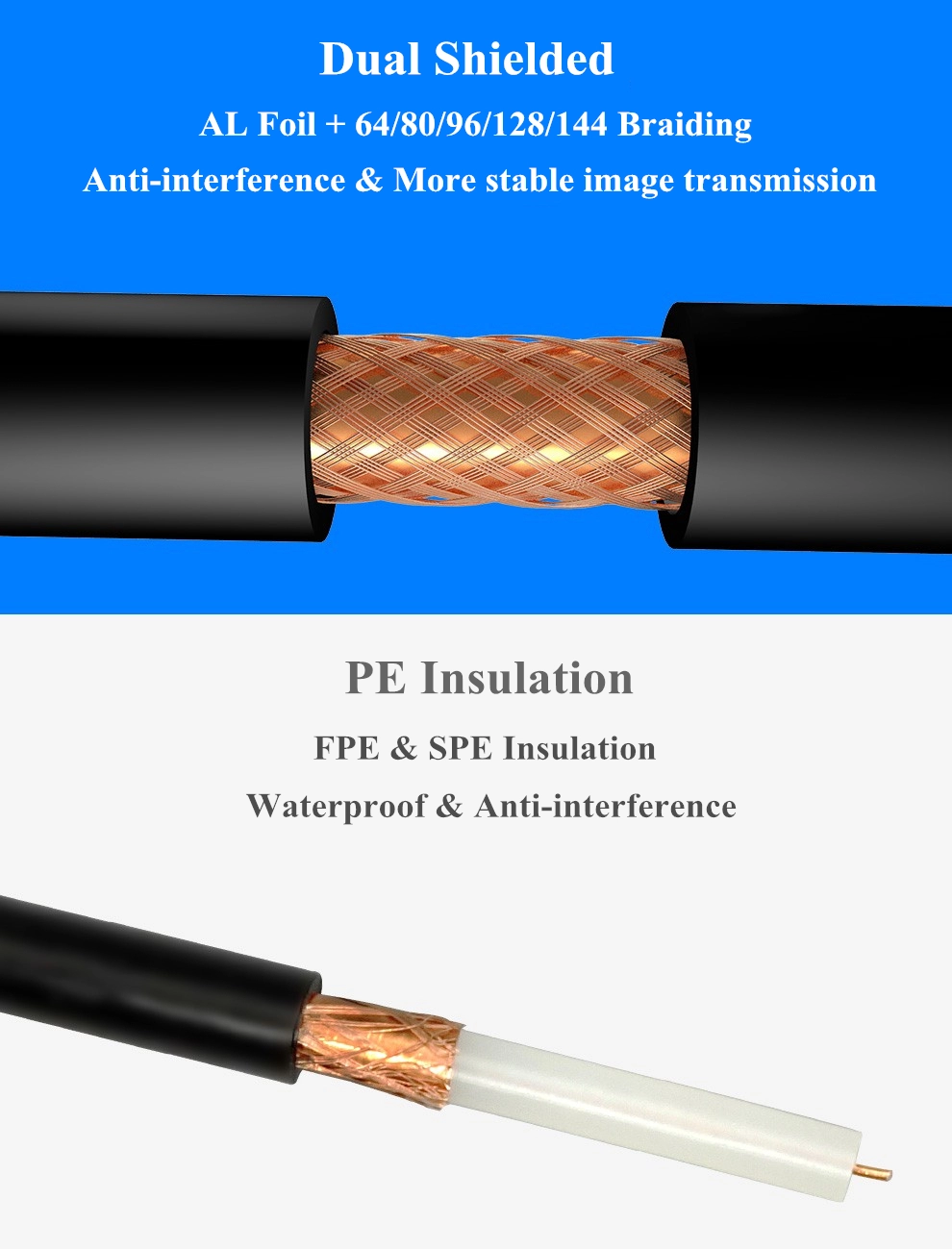

Construction:

(1)Center Conductor: 0.81±0.02mm BC

(2)Dielectric: 3.66±0.10mm FPE

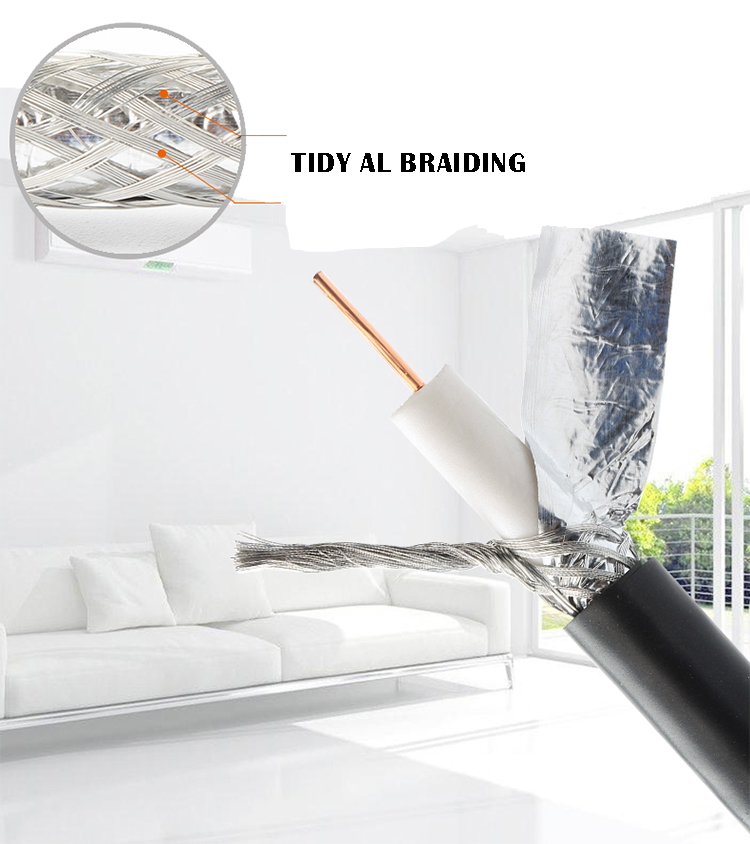

(3)Braid: Al Foil + 80*0.16mm Al/Mg

(4)Jacket: 6.10±0.20mm PVC








Options:


Inner Conductor: BC/CCS/CCA/TC/SC Available
Dielectric: Foam PE/Solid PE
First Shield: Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored )
Second Shield: Al,CCA,BC,TC CCS Available
Wire Diameter:0.11,0.12,0.15,0.16mm Available
Braiding Net:32#,48#,64#,80#,96#,112#,128#,144#
Jacket: PVC/PE (black,white,color)




Characteristics

Impedance: 75+3 Ohm
Capacitance: 53+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)





Attenuation:



Frequency (MHz) Maximum (dB/100 m)
5 2.82
55 6.73
187 11.81
350 15.75
550 19.52
750 22.87
865 24.67
1000 26.64
1450 32.05
1800 35.59
2000 39.04













Packaging Details :

Can be packed in clarity film, several rolls into one carton. Any specification can be designed according to your requirement.

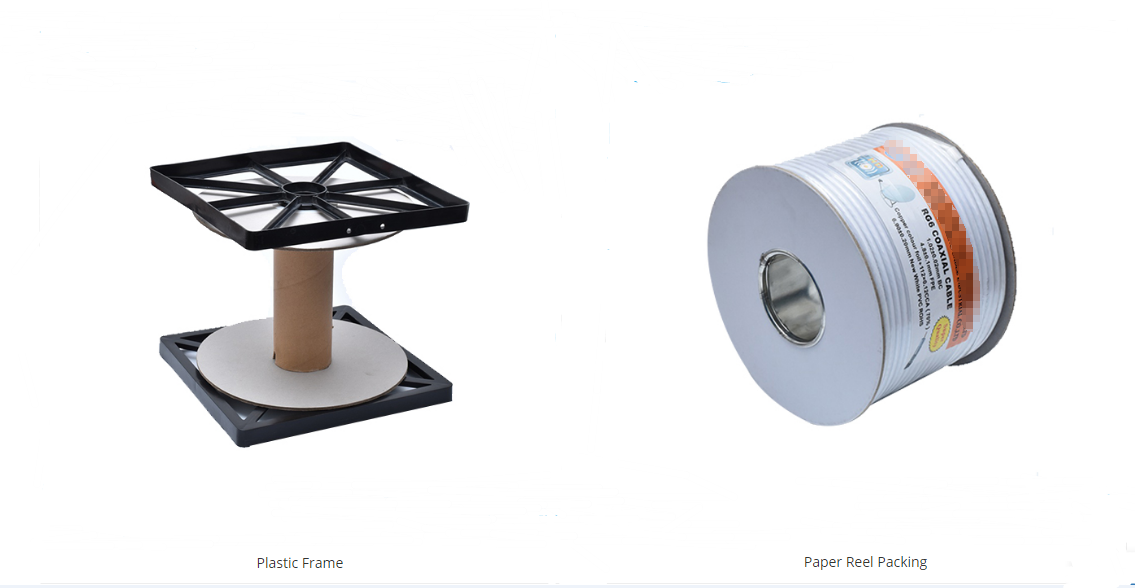

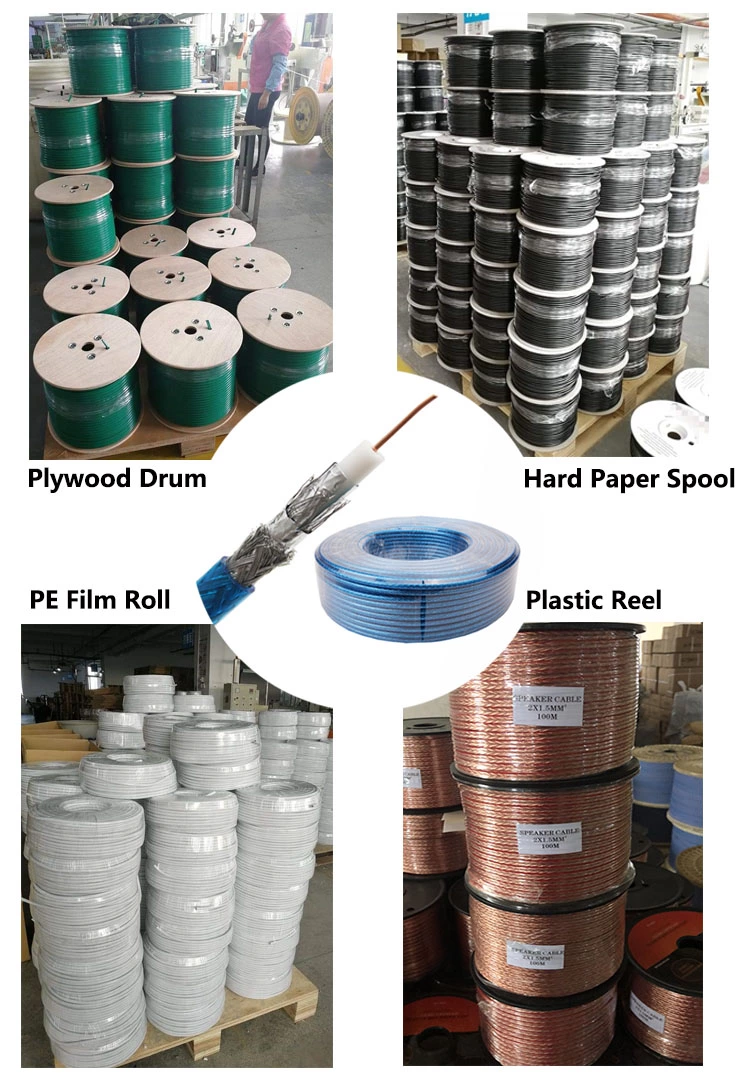

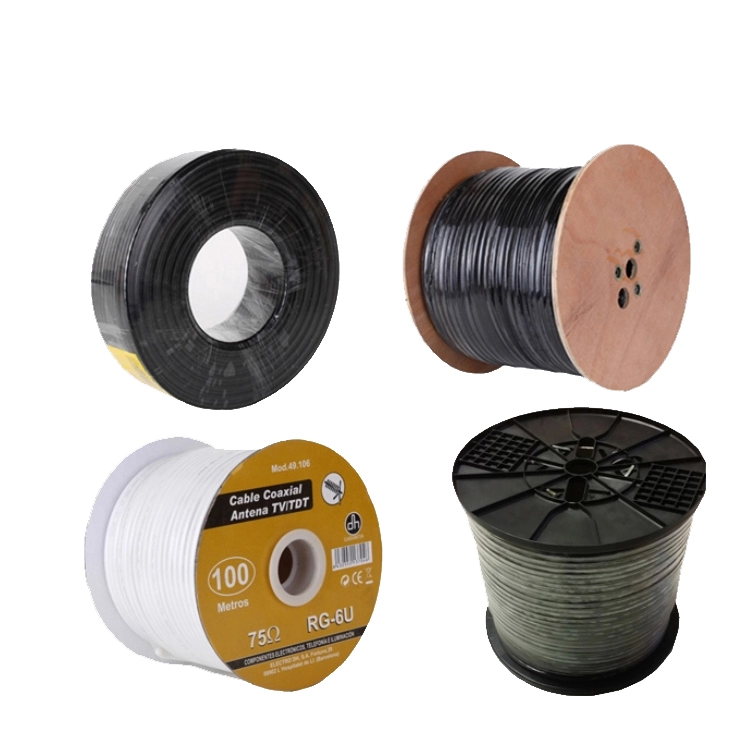

Our Packing:

(1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m)
(2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box
(3)Outer Packing: Carton box, pully box, pallet available

Any packing available according to your request.

Note:

BC:Bare Copper  CCS:Copper Clad Steel  CCA:Copper Clad Aluminum  TC :Tinning Copper  // SC:Silver-Plated Copper



FAQ:

(1)Q: Can you print our logo or company name in cable?
 A: Yes,we can print your logo or company name on products.
(2)Q:Can you accept customize or design for us?
 A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.
(3)Q:Is it possible to get a free sample ?
 A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
(4)Q:What is your MOQ ?
 A:Usually,our coaxial cable MOQ is 100 thousand meters.
(5)Q:If I want to purchase,how to pay?
 A:Usually, we do T/T in 40% deposit before production,60% balance against copy of B/L.Also payment terms are negotiable depending on customer's request.
