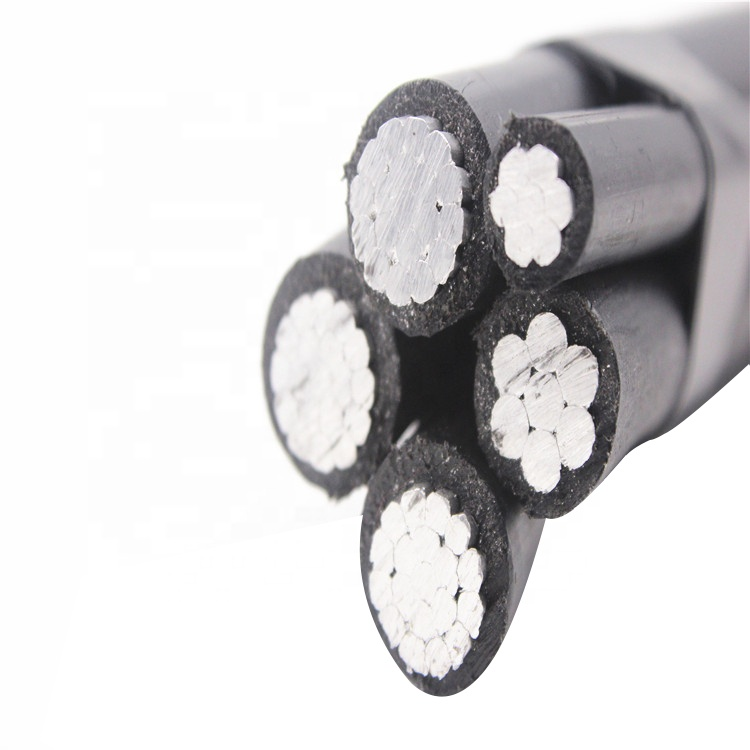

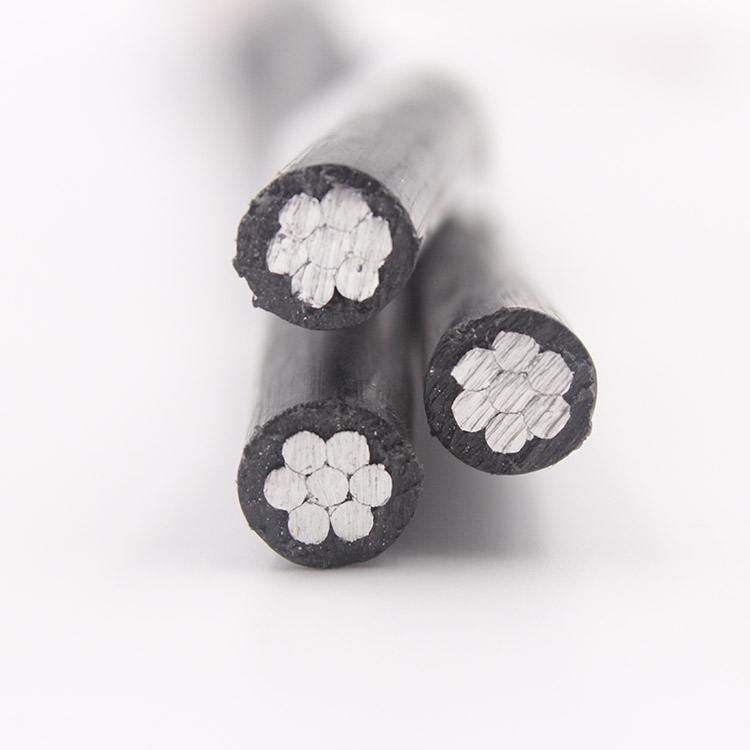

Overhead ABC cables are mainly used for 600V overhead auxiliary power distribution lines. It is not an electrically insulated conductor and is usually regarded as a bare conductor during installation. The conductor is 1350-H19 aluminum wire, 6201-T81 aluminum alloy or ACSR conductor, concentric stranded wire and polyethylene, high density polyethylene (HDPE) or cross-linked Covered with polyethylene (XLPE) to protect against wind and rain.
Insulation Material:PE /XLPE /PVC
Type:LOW VOLTAGE
Application:Power Transportation, Overhead Transmission
Conductor Material:Al, Al Alloy, ACSR, Alu & Alloy&ACSR
Jacket:N/A, XLPE/PE/PVC
key words:abc cable
Standard:ASTM, AS, BS, DIN, IEC, NFC,
Package:wooden and steel-wooden drum
Voltage:0.6/1kv
Number of Cores:6
| Rated voltage | 0.6/1kv | Specification | ABC | ||||||
| AWG or kcmi | Carrying wire core(acsr) | Phase conductor | Insulation | ||||||
| Steel | Aluminium | Aluminium | xlpe | ||||||
| No. | Dia. | No. | Dia | Dia | No. | Dia | Dia | ||
| 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 1 | 4.11 | 4.11 | 1.14 |
| 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 7 | 1.55 | 1.55 | 1.14 |
| 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 1 | 5.19 | 5.19 | 1.14 |
| 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 7 | 1.96 | 5.88 | 1.14 |
| 3*2AWG+1*2AWG | 1 | 2.67 | 6 | 2.67 | 8.02 | 7 | 2.47 | 7.42 | 1.14 |
| 3*1/0AWG+1*1/0AWG | 1 | 3.37 | 6 | 3.37 | 10.11 | 19 | 1.89 | 9.47 | 1.52 |
| 3*2/0AWG+1*2/0AWG | 1 | 3.78 | 6 | 3.78 | 11.35 | 19 | 2.13 | 10.63 | 1.52 |
| 3*3/0AWG+1*3/0AWG | 1 | 4.25 | 6 | 4.25 | 12.74 | 19 | 2.39 | 11.94 | 1.52 |
| 3*4/0AWG+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 2.68 | 13.4 | 1.52 |
| 3*336.4+1*336.4 | 1 | 3.47 | 18 | 3.47 | 17.36 | 19 | 3.38 | 16.9 | 2.03 |
| 3*336.4+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 3.38 | 16.9 | 2.03 |
Lead time
|
Quantity(Meters) |
1 - 50000 |
>50000 |
|
Est. Time(days) |
5 |
To be negotiated |
Packaging Details
1 packing in roll
2 packing in wooden drum:
700*300*600*700
1100*400*700*800
1100*400*1000*1100
1200*500*1000*1100
3 Packing in Steel wooden drum:
1800*900*950*1100
2000*1000*950*1100
2200*1100*950*1100
