HH-E-65+35+30 Physical Foaming Three Layer Co-extrusion Machine

HH-E-65+35+30 Physical Foaming Three Layer Co-extrusion Machine
HH-E-65+35+30 Physical Foaming Three Layer Co-extrusion Machine HH-E-65+35+30 Physical Foaming Three Layer Co-extrusion Machine HH-E-65+35+30 Physical Foaming Three Layer Co-extrusion Machine HH-E-65+35+30 Physical Foaming Three Layer Co-extrusion Machine HH-E-65+35+30 Physical Foaming Three Layer Co-extrusion Machine
Product Attributes :

FOB Price: 150,000 ~ 200,000 USD

Payment Terms: T/T, L/C

Delivery Time: 45 working days

Measurment(L*W*H): 25*2.5*2.5 m

Production Speed: Max 500 m/min

Foaming degree: 82%

Warranty: 12 months

Product Description




Three layer high pressure physical foaming production is used for high quality signal cable ,data cable (skin-foam-skin) insulated core wire , adopt high pressure nitrogen inject to foaming in three layer co-extrusion production line.





1. Quality control: outer diameter test $ capacitance detector, control diameter and foaming in the whole process

2. Cross head: special physical foaming head

3. Quality standards: very high industrial standards

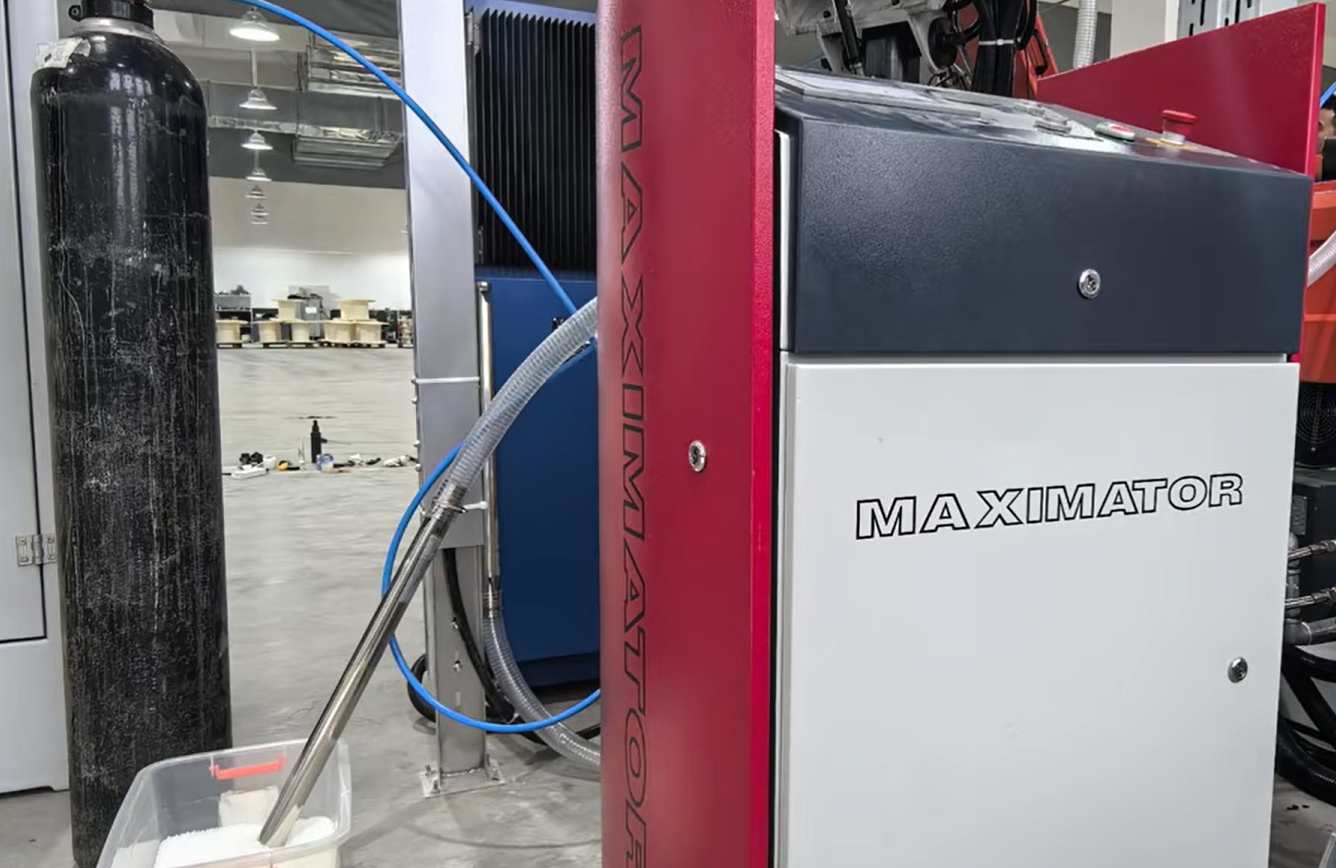

4. Foaming rate: imported high-pressure nitrogen injection system; (maximum): 82%; low-pressure nitrogen injection system; (maximum): 75%

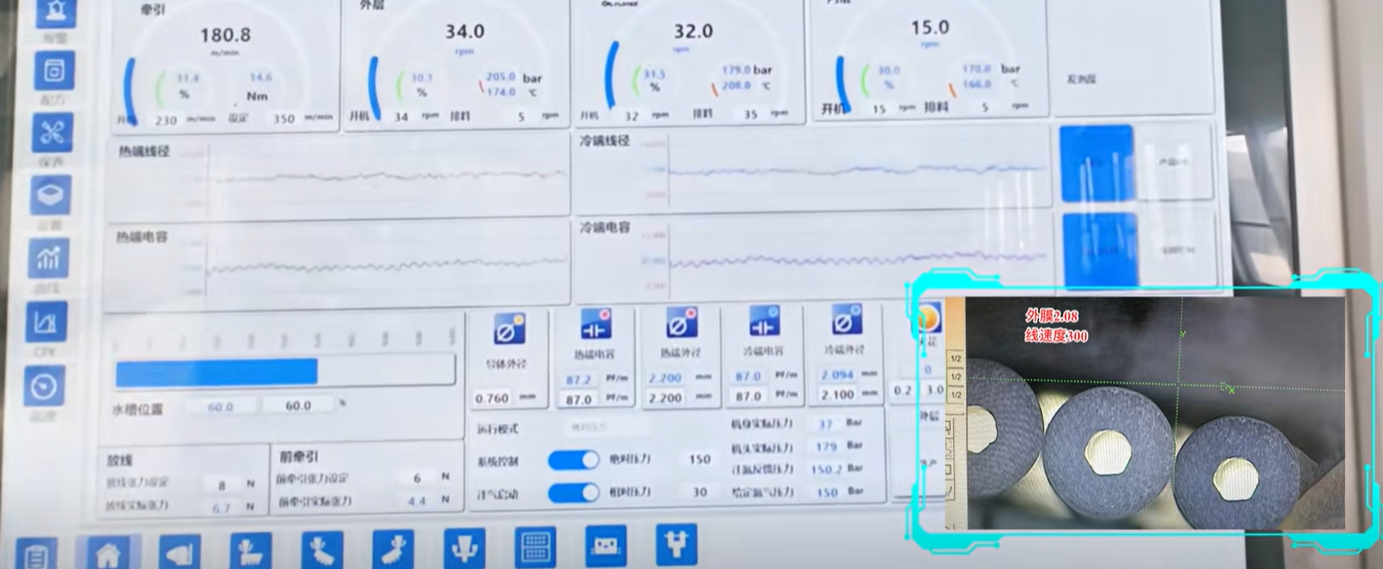

5. Electrical control: inverter with touch screen

6. Optional: high pressure nitrogen injection system or low pressure nitrogen injection system

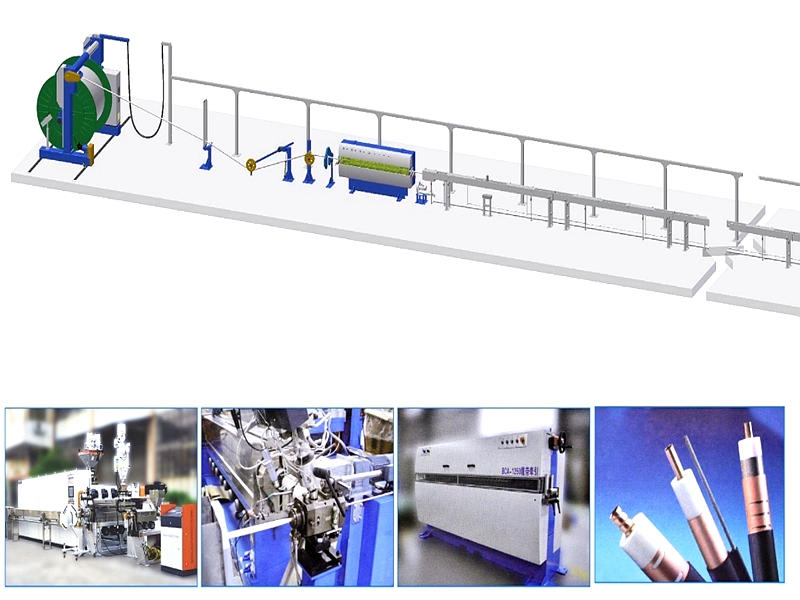

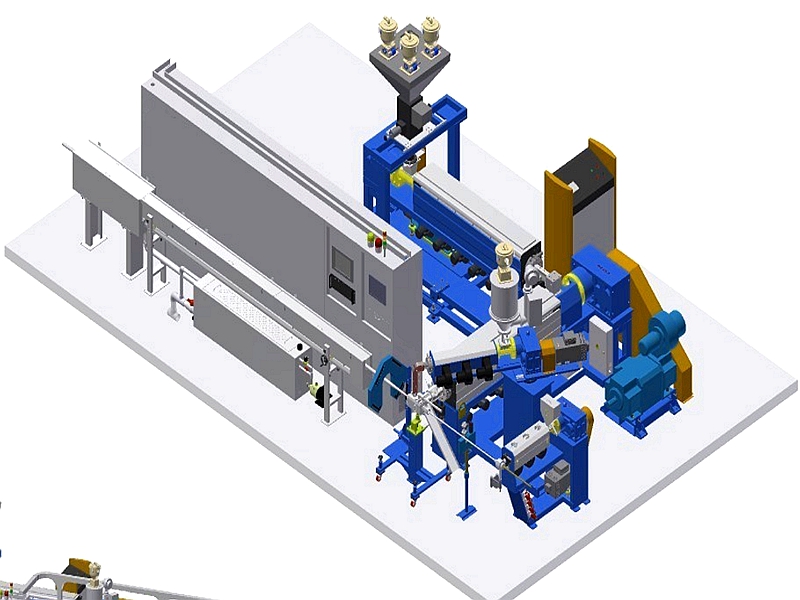

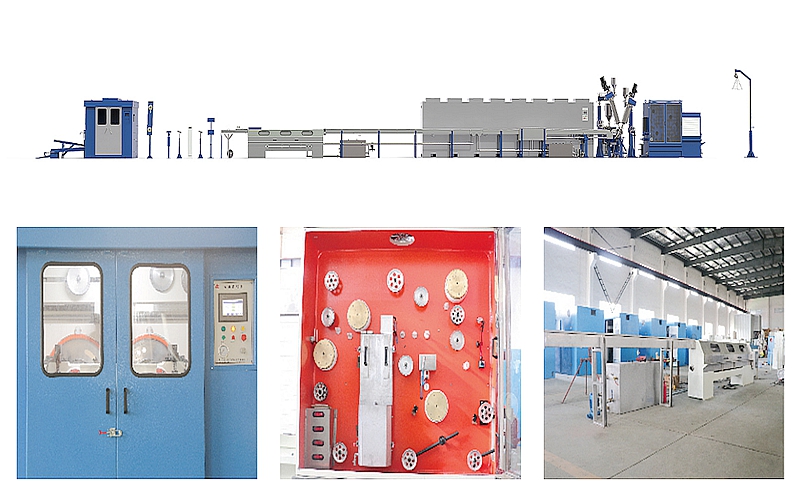

NO. Description Quantity Picture
1

400-630 active pay-off stand

1 set
2

Copper Wire preposition tension stand

1 set
3

65 physical foaming host extruder

1 set
4

65 physical foaming host extruder

1 set
5

Automatic drying and feeding machine

1 set
6

30 inner skinning extruder

1 set
7

35 outer skinning extruder

1 set
8

Siemens PLC electric control box

1 set
9

1.5m Movable water tank with cover

1 set
10

Diameter tester

1 set
11

8m Fixed water tank with cover and leak-proof

1 set
12

Underwater static capacitance tester

1 set
13

12 m Slide rail type + anode guide wheel storage rack

1 set
14

410mm tractor

1 set
15

Meter counter

1 set
16

High frequency spark tester

1 set
17

400-630 Double-head shaftless take-up stand

1 set
18

Display board

1 set
19

Accessories

1 set




No.

Items

Features

1

Inlet Wire Diameter

0.5-2.5 mm

2

Finished Wire Diameter

3-14 mm

3

Cross Sectional Area

0.5-10 square mm

4

Extrusion Speed

Max 500 m/min

5

Extrusion Capacity

80 kg/h

6

Installed Capacity

75 kva

7

Voltage

380V, can be customized

8

Weight

8000 kg

9

Measurement (L*W*H)

25*2.5*2.5 m

10

Foaming degree

82%

11

Workers recommendation

3 workers







Our engineer team has over 5-year experience working overseas for customer on-site service. Therefor, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.
