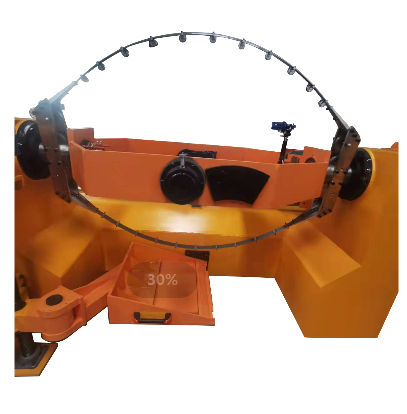

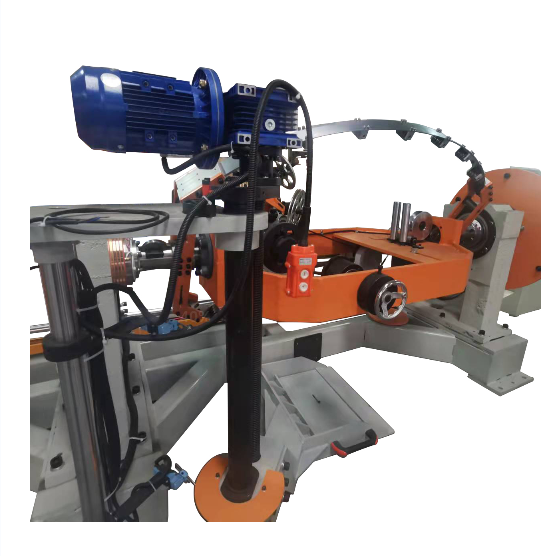

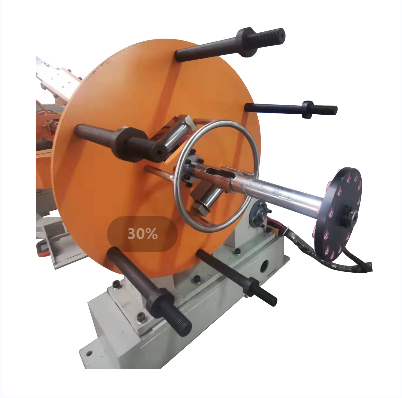

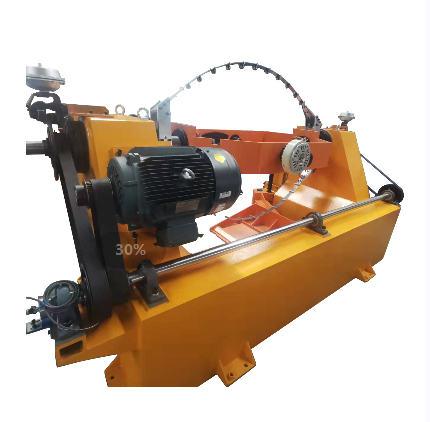

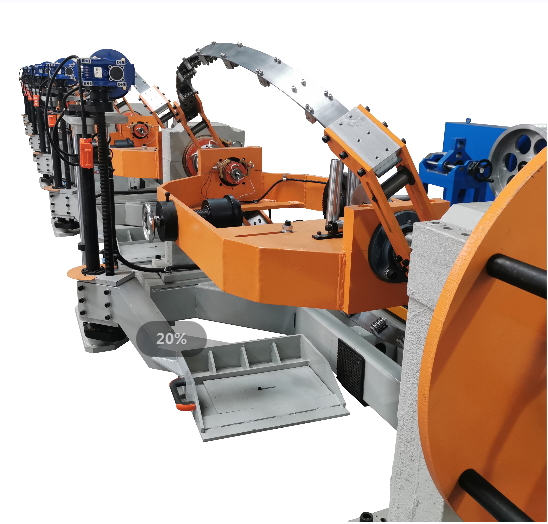

6+1 Bow Type Stranding Machine [Φ630 type] Equipment:
Picture and Video
Description
Suitable for twisted wire, power line, control line, special line wire core and copper wire stranding.
| 1.Adopt 100% back-twist mode and suitable for stranding 2-6 cores ABC overhead cable, control cable or power cable; |
| 2.The main motor, traction capstan (or caterpillar) and take-up device are independently driven by AC induction servo motor;
Pitch automatic adjusted; |
| 3.The whole machine adopts HMI+PLC control |
|
4.Equipped with manual adjustment tape tension system regulation and electromagnetic tensioner, automatically control and ensure the tension always constant from full to empty bobbin |
| 5.Optional: max 24 filling devices |

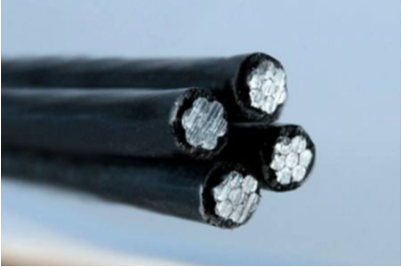

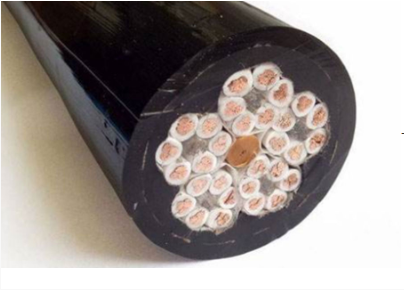

Sample Picture
Specification
|
Stranding distance |
30mm-500mm |
|
Main body speed |
Max 400RPM |
|
Stranding speed |
Max 80m/min |
|
Equipment direction |
left release and right collection |
|
Equipment colo |
sky blue (national standard 5015) |
| bobbin type |
single head shaftless top cone type |
|
spool rotation mod |
Japan NSK bearing rotation |
|
maximum total load |
1000KG |
|
Shaft diameter |
PD400-630mm |
|
Host motor |
22kw |

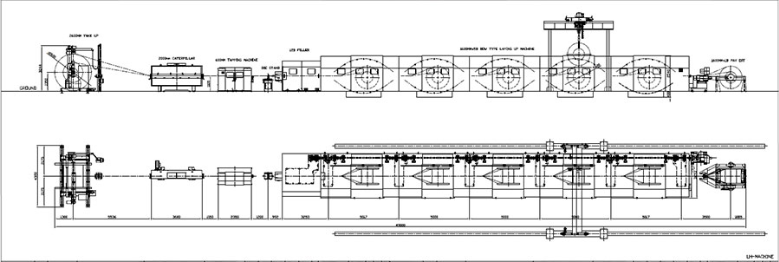

Layout of Equipment
