Product Description

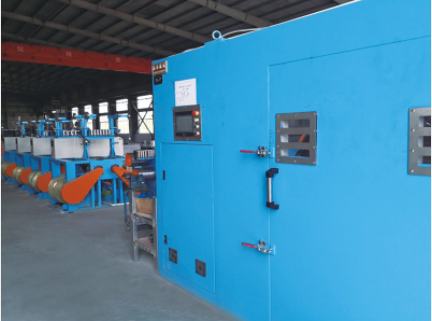

HH-1000 Double Twist Stranding Machine
Application: Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Copper Conductor Diameter
|
BV Conductor
|
7*0.85mm
|
7*1.04mm
|
7*1.34mm
|
7*1.69mm
|
7*2.12mm
|
|
BVR Conductor
|
19*0.52mm
|
19*0.63mm
|
49*0.51mm
|
49*0.64mm
|
98*0.57mm
|
|
RV Conductor
|
56*0.29mm
|
84*0.29mm
|
77*0.40mm
|
119*0.40mm
|
189*0.40mm
|
Feature Descriptions
1 High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.
2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.
3. With FC-100 active back-twist pay-off machine to achieve bunching instead of twisting.
4. Especially for twisting small cross-section area.
5. Use synchronous belt drive,
6. Change guide wheel to change lay distance, easy to operate.

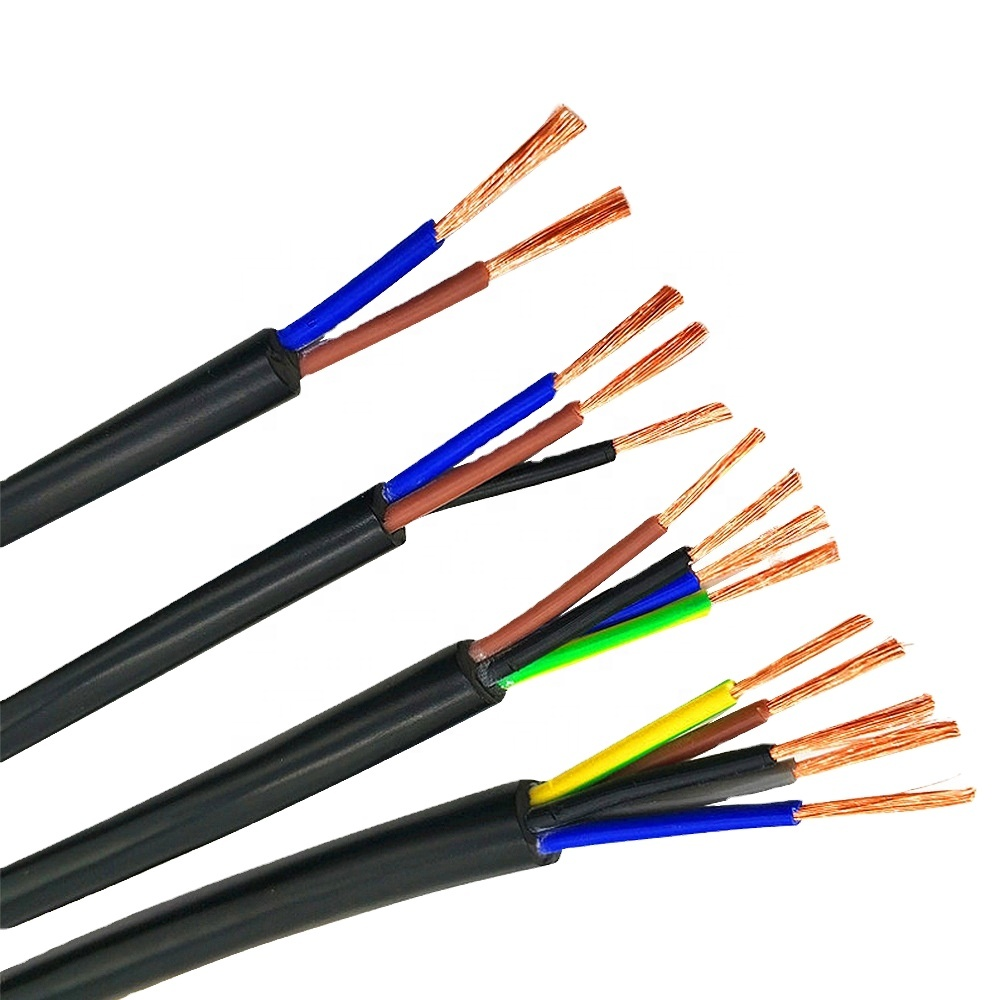

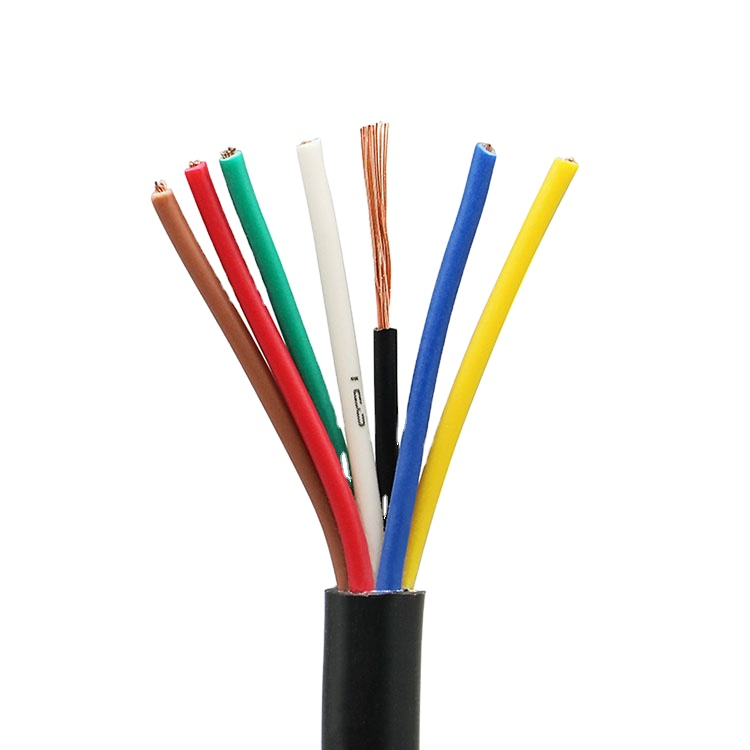

Samples
Specification
|
Equipment models
|
HH-1000
|
|
Twisting usage
|
Apply for the twisting of above seven pcs of bare copper wires, tinned wires,
silver jacketed wires ,enameled wires, and double twisting for core wires. |
|
Single wire diameter(mm)
|
φ0.30-φ1.7
|
|
Stranding section area(mm²)
|
6.0-35.0
|
|
Core wire single wire diameter
|
φ2.0-φ5.0
|
|
Core wire stranding outer diameter
|
φ4.0-φ10
|
|
Pitch(mm)
|
35-200(12zones)
|
|
Direction of lay
|
Optional for right or left
|
|
Take up bobbin Outer diameter*bore*outer width
|
φ1000*φ80*750
|
|
Max rotating speed
|
1000(2000twist)
|
|
Main motor power
|
18.5KW
|
|
Inverter power
|
18.5KW
|
|
Tension control method
|
Touch screen+ PLC+ magnetic powder clutch,
it may ensure the constant tension from empty bobbin to full bobbin |
|
Magnetic powder clutch
|
20kgf
|
|
Protection
|
Machine will automatically brake when wire inside and outside is broken,
the machine will automatically stop when the preset length is arrived. |
|
Brake mode
|
Electromagnetic brake
|
|
Traversing method
|
Rolling ring drive units, winding pitch and breadth are adjustable
|
|
Operation mode
|
Touch screen operation
|
|
Dimension(mm)
|
4000L*2200W*2100H
|
