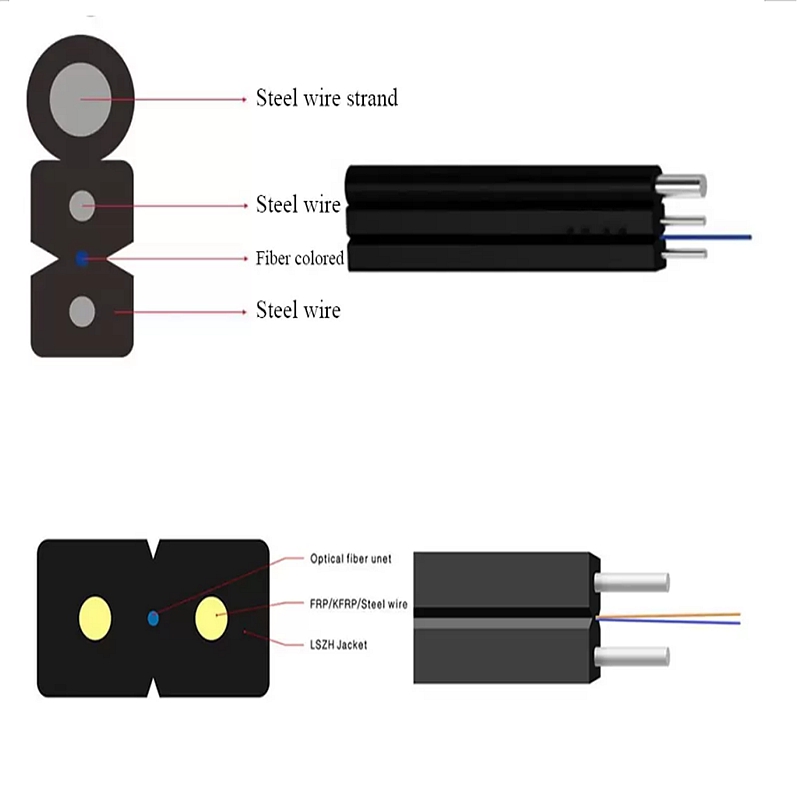

What's The FTTH Drop Cable?

How To Produce The FTTH Drop Cable?

So It Is Done By The Following Line:

50 IPC+PLC Control FTTH Drop Cable Production Line Can Finish The Steel Wire/Messenger Wire And LSZH Jacket Both In One Time

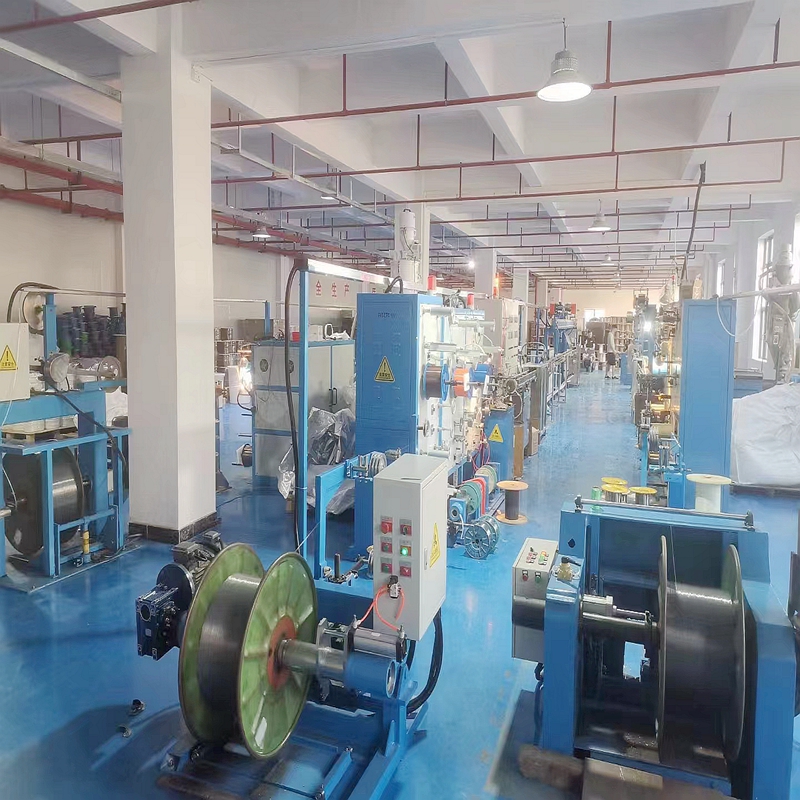

50 IPC+PLC CONTROL FTTH DROP CABLE PRODUCTION LINE

· Steel Wire Pay Off: Put On 1.0/1.2mm Reinforcement Wire.

· Straightening Platform: Straighten The Reinforcement Wire Before Extruder.

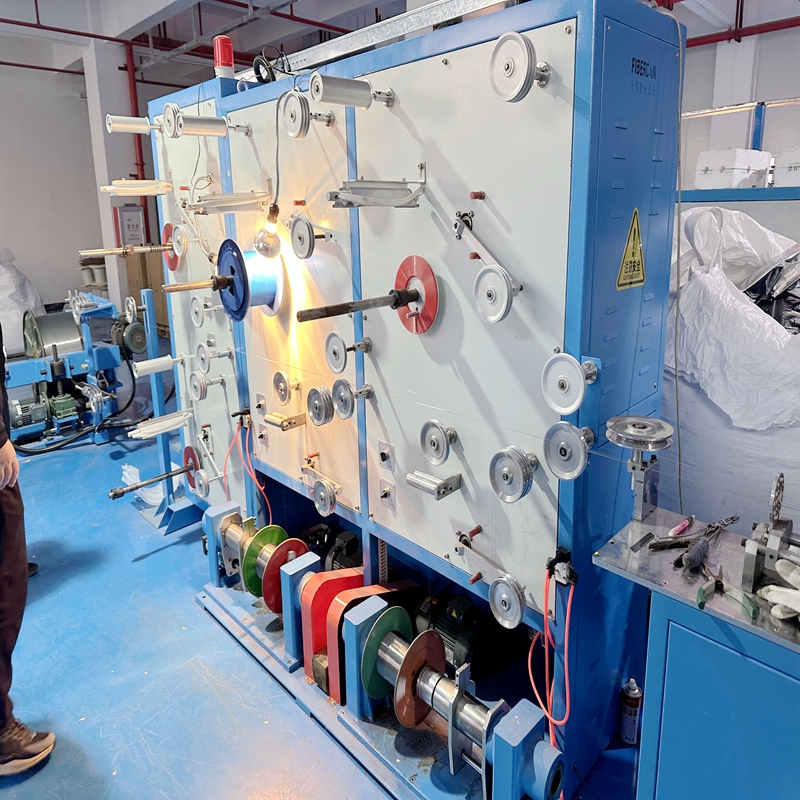

· 1-4 Heads Fiber Pay Off: Put On 1-4 Cores Fiber Or 2 Cores 0.45mm Steel Wire.

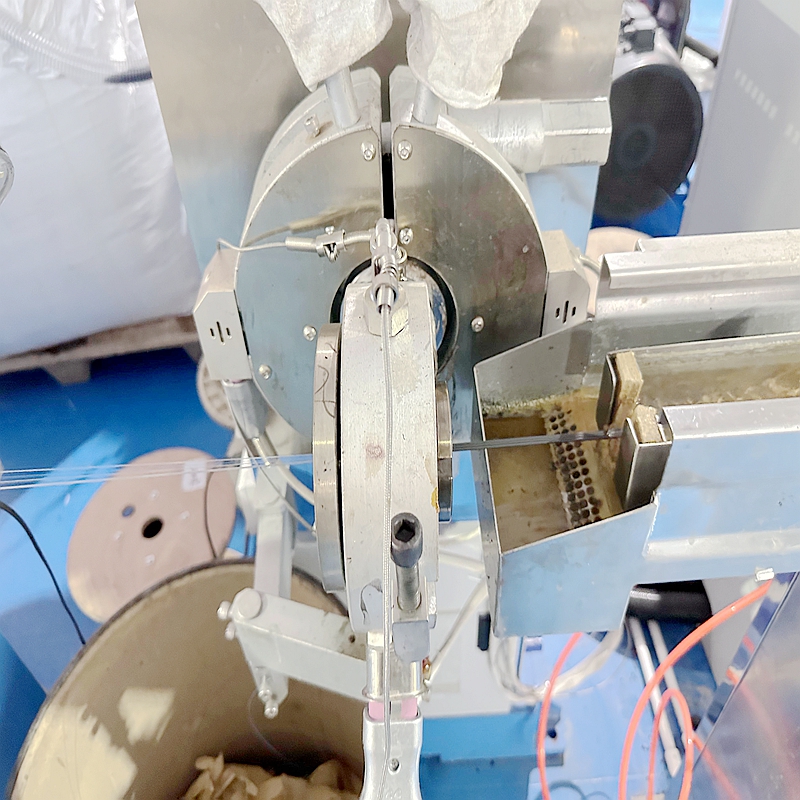

· Mobile Positioning Mold Support: Bunding The Wire Before The Extruder.

· Dryer And Automatic Hopper Machine: Will Hopper And Dryer The Raw Material By Automatic.

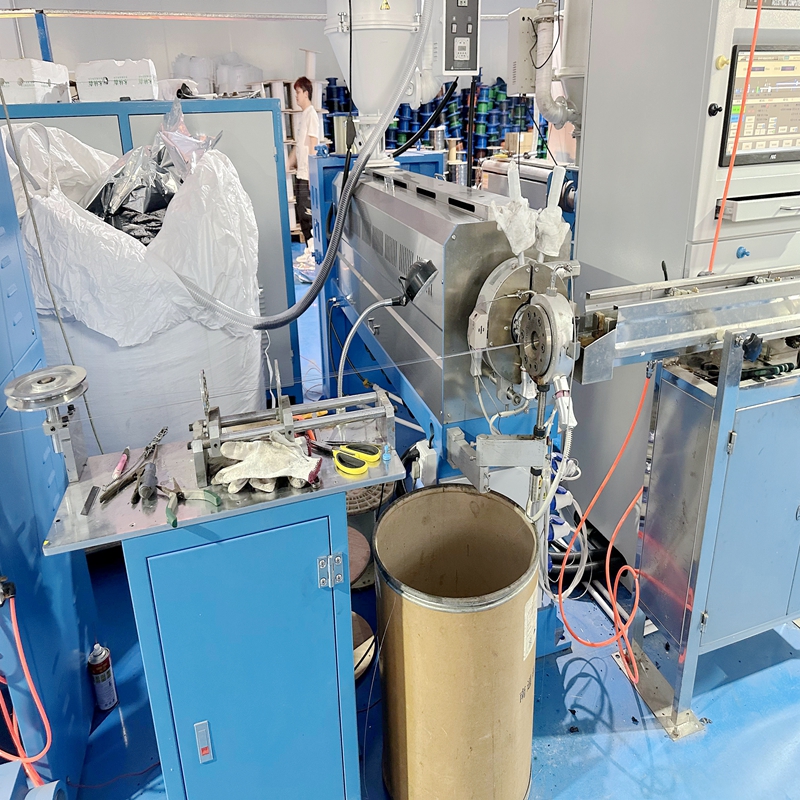

· Main Extruder: Using The Best Quality Screw From China, Extrusion The PE/PVC/LSZH Material. And The Motor Using Siemens.

· Control Cabinet: PLC+IPC Control, More Easy Operation For The Worker, The Transducer Using American Emerson, Other Electric Parts Using Schneider.

· Warm And Cooling Water Trough: Cooling The Wire Down Slowly.

· Wire Accumulator: Accumulates The Wire When The Operator Changes The Wire Coil.

· Diameter Gauge: Display The Actual Diameter Of The Cable To The Operator.

· Capstan: Automatic Change The Line Speed By Panasonic Servo.

· Take Up: Motor Using Siemens, Traversing By Servo And There Also Have A Display Screen For The Operator Speed Up/Down.
