1. Application:
1.1.This line is applicable for automatic packing building wire of size 1.5~6mm² , packing process including automatic coiling , side tying , labeling , heat shrinking
1.2.This line could be equipped with pay-off , tension rack and storage rack to self-operate , or linked with self-prepared extrusion machine .
2.Purpose of the machine
2.1. Labor saving, automatic coiling in the whole section, including cylinder feeding, automatic coiling of products, film sealing, heat shrinkage and labeling
2.2 The products are consistent in volume

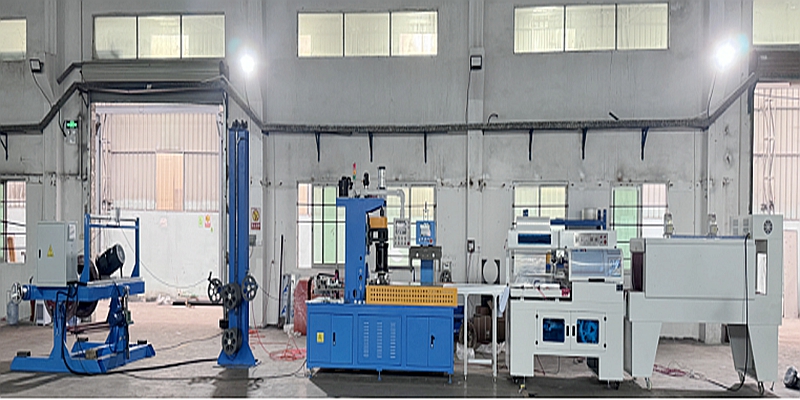

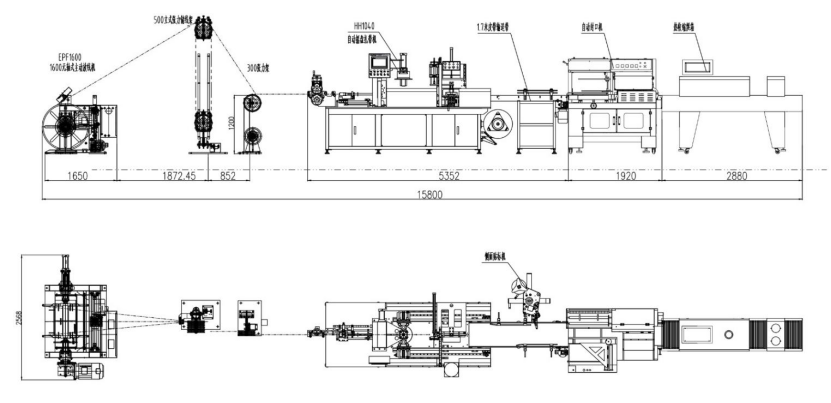

1. Components
|
No. |
Description |
Qty |
|
1 |
630-1000 motorize pay off |
1 |
|
2 |
Vertical tension rack |
1 |
|
3 |
Tension buffer frame |
1 |
|
4 |
Automatic coiling and tie |
1 |
|
5 |
ZB-5B bag packing machine |
1 |
|
6 |
Constant temperature shrink wrapping machine |
1 |
1. Application:
2.1.This line is applicable for automatic packing building wire of size 1.5~6mm² , packing process including automatic coiling , side tying , labeling , heat shrinking
2.2.This line could be equipped with pay-off , tension rack and storage rack to self-operate , or linked with self-prepared extrusion machine .
3.Purpose of the machine
1. Labor saving, automatic coiling in the whole section, including cylinder feeding, automatic coiling of products, film sealing, heat shrinkage and labeling
2. The products are consistent in volume
4.Description of process characteristics
4.1 It can be supplied by the paying off machine or directly connected to the ejector.
4.2.The coil output is about 5 times that of manual winding
4.3.It can be sent out automatically after winding.
4.4.The machine adopts servo motor alignment system,and the coil is neat and beautiful. 4.5.The touch screen human-machine interface operation panel can store 99 different wire coil specifications. When changing the specifications, you only need to read the stored data to produce
4.6.This machine has the function of automatic error detection. It has the contact of power frequency spark machine, which is used for spark detection of BV line. It can automatically detect the spark breakdown point or continue to form a circle after manual marking.(the power frequency spark machine shall be provided by the customer)
4.7.Leave a caliper contact: if the diameter does not meet the standard, the waste line can be automatically eliminated or the function of forming a circle can be continued after manual marking. (diameter measuring instruments are provided by each household)
5.Detailed specification of main components
5.1.Ф630-Ф1000 shaftless motorized pay-off device
|
No. |
Item |
Figure |
|
5.1.1 |
Suitable bobbin size |
Ф630mm-Ф1000mm |
|
5.1.2 |
Suitable wire range |
Φ1.5-6mm2 BV / BVR |
|
5.1.3 |
Loading capacity |
1500kg |
|
5.1.4 |
Wire feeding method |
Motorized feeding |
|
5.1.5 |
Motor power |
5.5 KW + inverter |
|
5.1.6 |
Bobbin lifting |
1kW motorized rod lifting |
5.2.Vertical tension rack
|
No. |
Item |
Figure |
|
1.1.1. |
Storage wheel size |
300mm |
|
1.1.2. |
Tension control |
Pneumatic |
|
1.1.3. |
Positioning voltage signal |
Displacement sensor |
|
1.1.4. |
Storage |
12m |
5.3.Tension buffer frame
|
No. |
Item |
Figure |
|
1 |
Buffering method |
Pneumatic |
|
2 |
Tension control |
2.5kg magnetic powder tension controller |

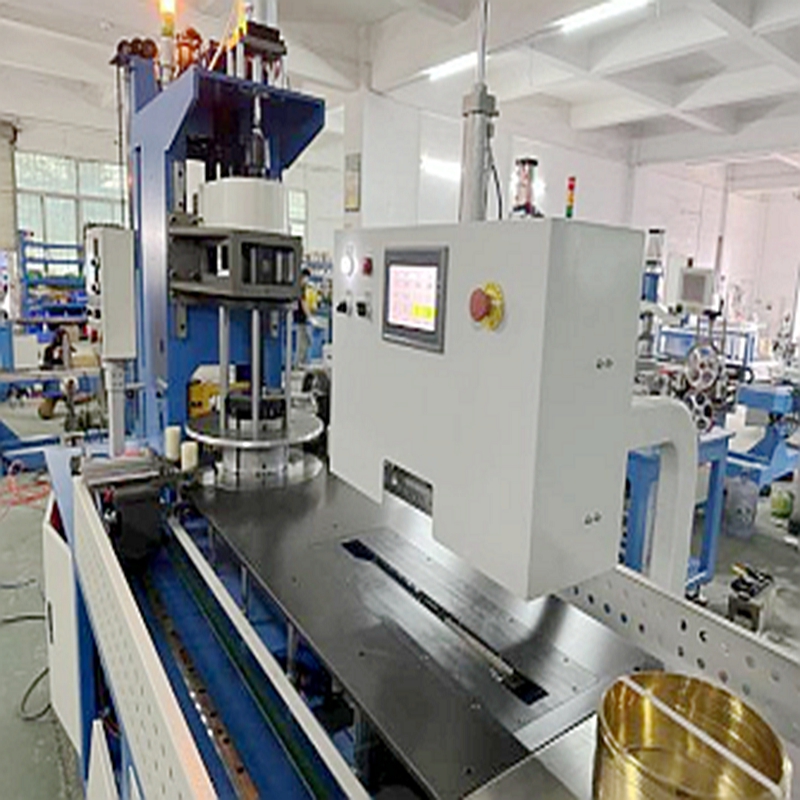

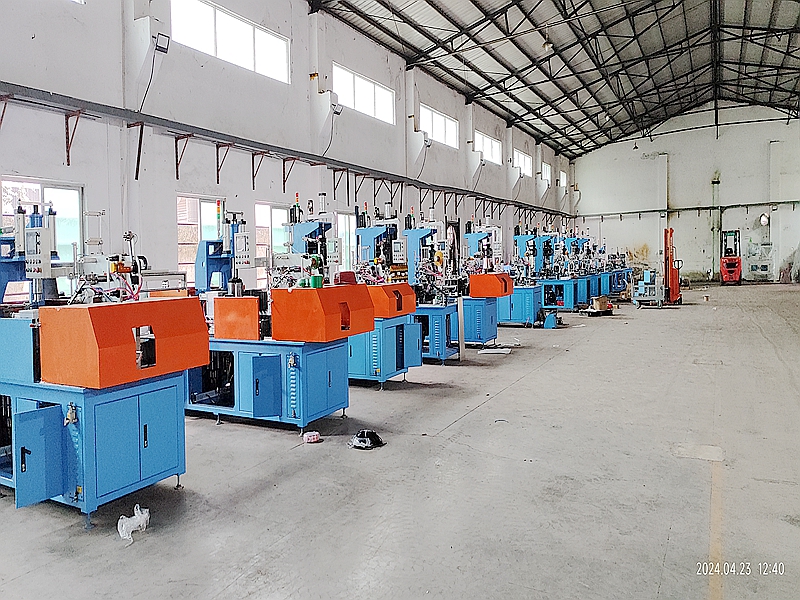

5.4.PLC Automatic coiling and tie
|
Type |
HH-1246 |
|
Overall dimension(L x W x H) |
3295mm x 1363mm x 2400mm |
|
Circle height |
50-100mm |
|
Inner diameter of ring |
Φ130-φ160mm(fixed size) one selected by the customer(can design) |
|
Maximum outer diameter of circle |
φ300mm |
|
Outer diameter range of bound wire coil |
Φ200-300mm(can design) |
|
Winding height of bound wire |
Φ50-100 |
|
Arm holding mode |
Pneumatic arm |
|
Applicable line species |
1.5-6mm² |
|
Power Supply |
AC380V,three-phase,50HZ(China) Or designated by the customer |
|
Gas source |
The compressed air pressure is 5-7kg / cm ³ |
|
Machine weight |
850kg |
5.5.ZB-5B bag packing machine
|
Type |
ZB-5B |
|
Conveying speed |
0~40M/min |
|
Bag packing size |
wide is 55-400mm , height is 2-120mm , length is 80-1000mm, film |
|
material |
PE , POF |
|
Film coiling OD (max ) |
250mm |
|
Film coiling width(max) |
550mm |
|
Height of table : 850 mm |
(adjustable) |
|
Power |
3KW |

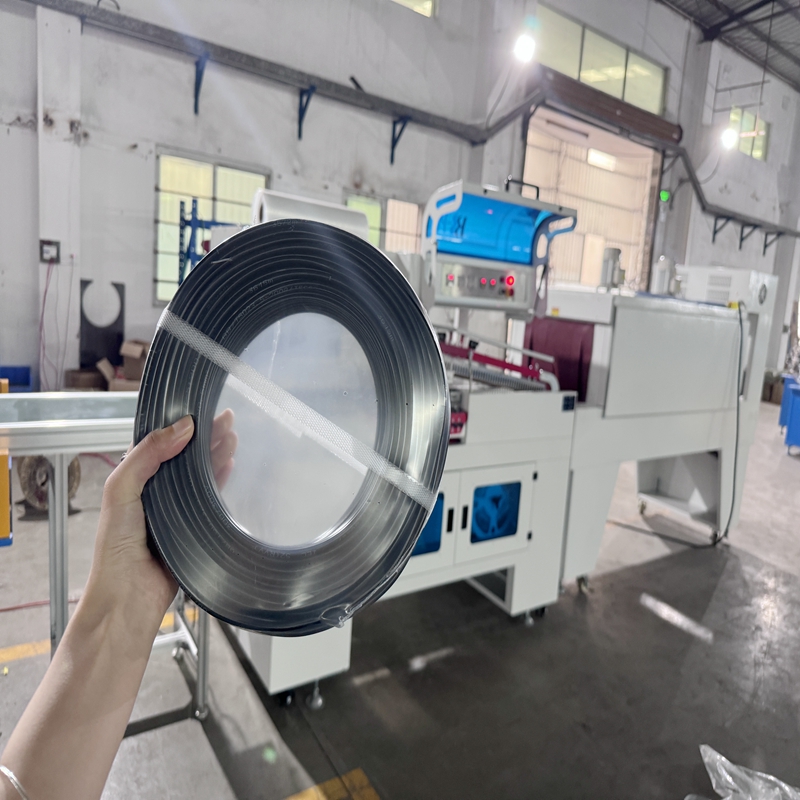

5.6.Constant temperature shrink wrapping machine
|
Type |
HH-SCT-6040(PE) |
|
Feeding belt horizontal height |
850±50mm |
|
Maximum package size |
L (No limited)×W400×H200 |
|
Conveyor speed |
0-12m/min |
|
Power supply |
3ф380V 50/60Hz 18KW |
|
Studio temperature |
0-250℃ |
|
External size |
L2500×W970×H1600 |
|
Net weight |
480 kg |
