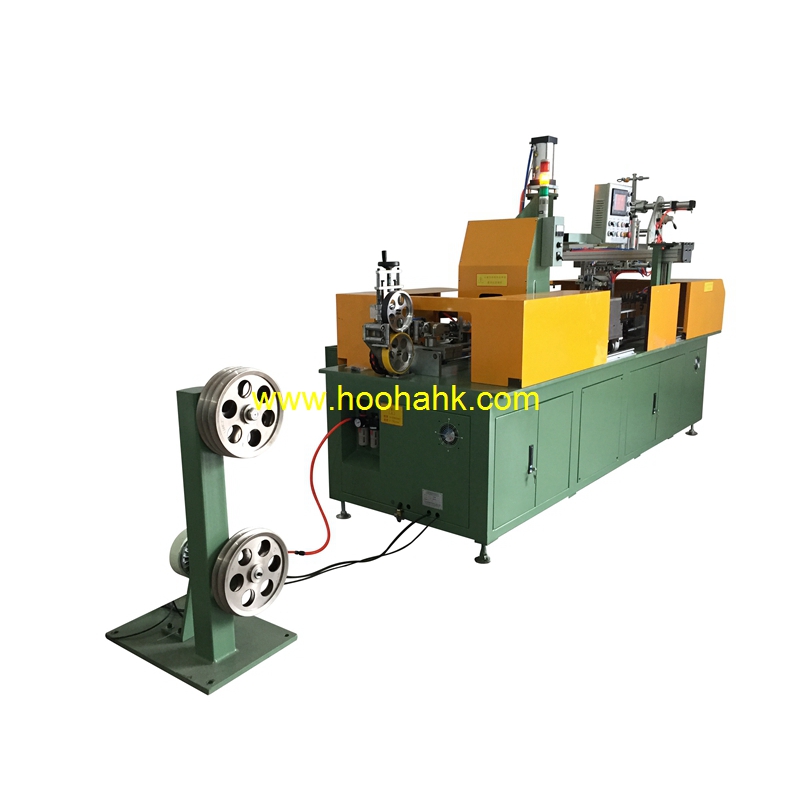

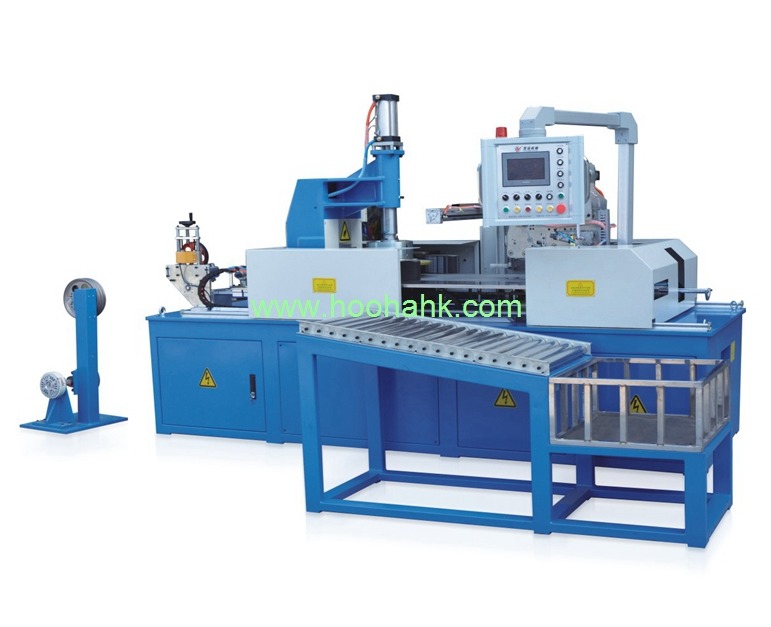

HH-C- PLC 1860 Automatic Coiling And Wrapping Machine

Product Attributes :

FOB Price: 70,000 ~ 78,000 USD

Payment Terms: T/T, L/C

Delivery Time: 30 working days

Power Supply: AC 380 V, three-phase, 50 HZ or customized

Applicable Wire Range: 5-15mm

Coiling Speed: 700 RPM

Warranty: 12 months

Product Description

This equipment is suitable for cable automatic coiling and wrapping, which would be packaged into a coil and can be connected to the cable extrusion machine for linkage use.

1	Automatic packaging, wrapping and labeling
2	Packing label capacity 7 times more than manual
3	200m per coil and coiling speed 4 times more than manual
4	Can be directly connected to the extrusion machine
5	Servo motor flat cable system, perfect packing
6	Automatic warning system, easy control of the operation
7	99 types of the coiling storage and can change as you like

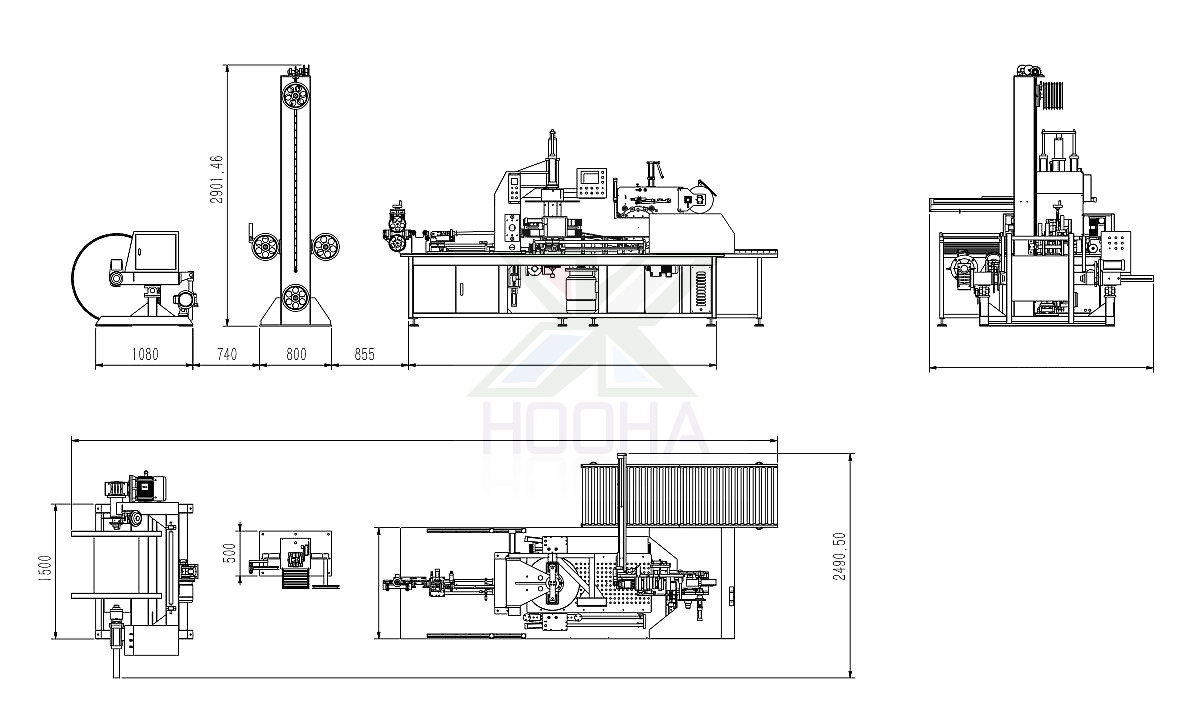

No.	Items	Quantity	Reference Picture
1	600-800 Magnetic Powder Type Payoff Stand	1 Set
2	Wire Straightening Device	1 Set
3	PLC Automatic 1860 Coiling And Wrapping Main Machine	1 Set

Main parameters:

Coiling Speed	700 RPM
Coiling Size	Outside diameter is 220-600mm, height is 60-180mm, Inner diameter is 180-250mm
Applicable Wire Range	5-15mm
Power Supply	AC 380 V, three-phase, 50 HZ or customized
Operation Direction	Left or right side（Can be customized）
Packaged Coil Weight	MAX 50 kg

Technical Specification:

600-800 Magnetic Powder Type Payoff Stand

1. Type：No axis cone

2. Bobbin Lift：1HP Motor + Drive Screw Lift

3. Shaft Diameter：PD 630-800

Wire Straightening Device

1. Wheels：Four grooves on each

2. Treatment：Anodized for long-term usage

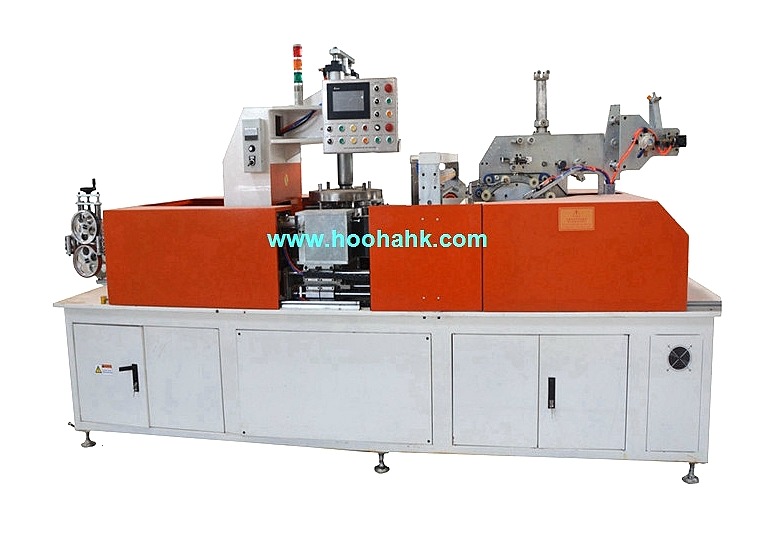

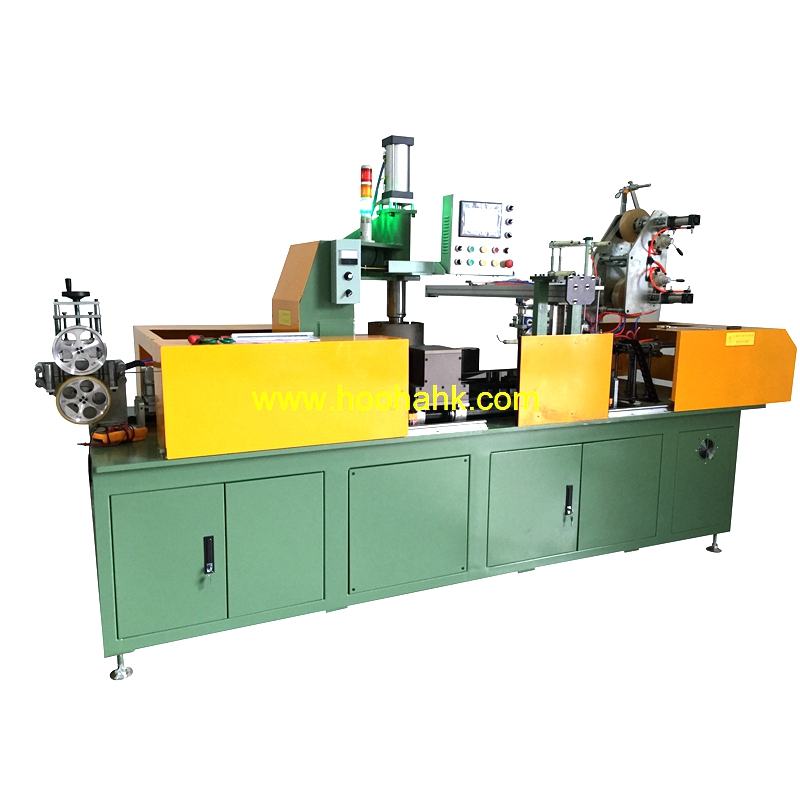

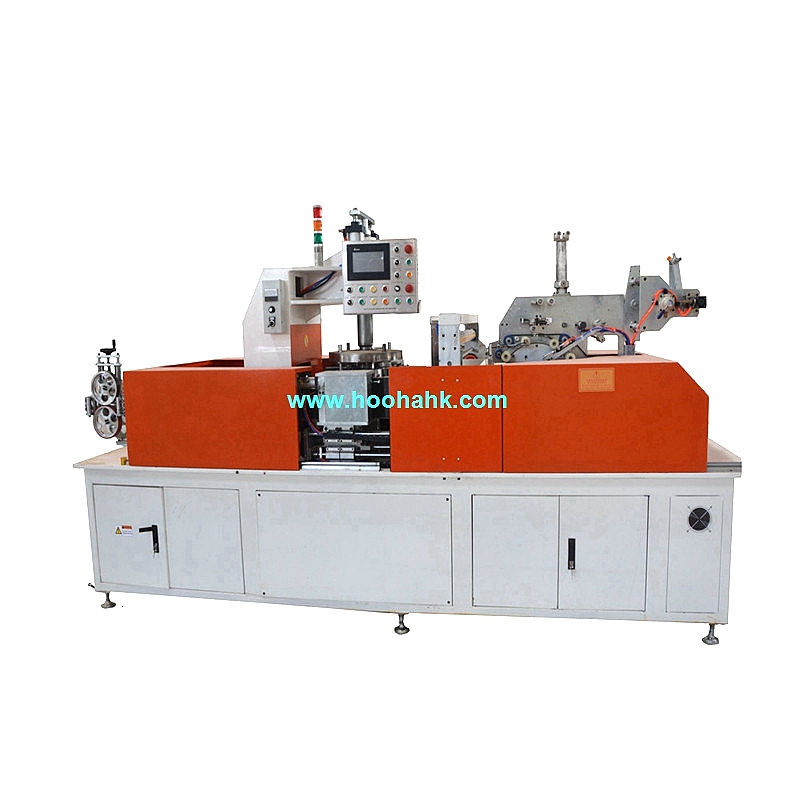

PLC Automatic 1860 Coiling And Wrapping Main Machine

1. Use PVC/PE film, high-speed coiling and wrapping

2. The film roll loading method is pneumatic clamping

3. PVC/PE/PP film size：Thickness 0.05-0.07mm * width 60-70mm

1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
