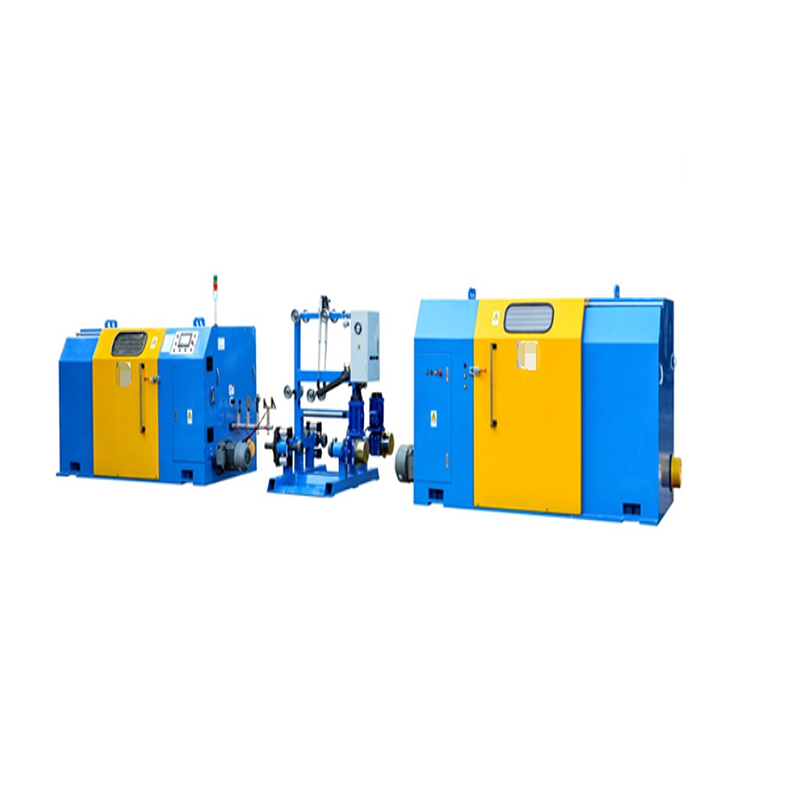

1+6+12 high speed stranding machine

HH-(1+6)+12_630 High speed wire strander

1.Suitable for normal conductor 1+6+12

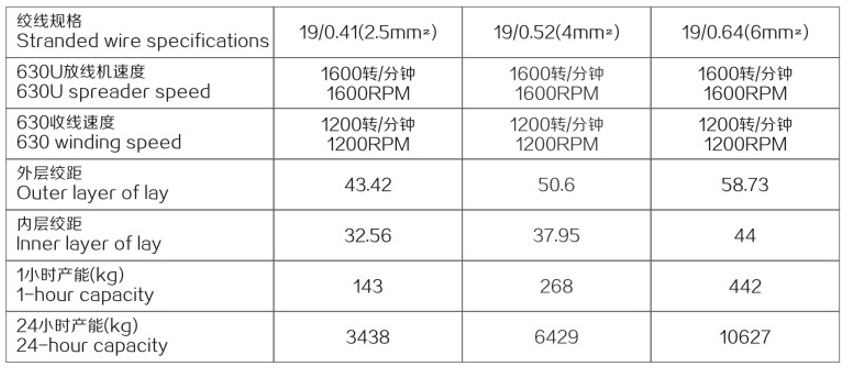

2.Theoretical production capacity,for reference only(change disk time is not counted, according to the actual production of different skein size different output) positive direction of skein.

1.1+6 take-up machine

1.1.Conductor single wire diameter range：Φ0.41~Φ0.64mm

1.2.1+6 stranded outer diameter range: Φ1.23~Φ1.92mm

1.3.Reel size: PND630 High speed disk( Φ630 mmxΦ127 mmxΦ475 mm)

1.4.linear velocity:1600RPM

1.5.Tension:The swing arm type tension storage reel is sent back and forth (via the displacement sensor) to the inverter to control the motor speed, and the main engine is linked to keep the tension of the take-up line stable and uniform.

1.6.1+6 twisted wire pitch: Linkage with the main engine, using stepless speed change to change the strand pitch

1.7.Main motor: 11 KW AC variable frequency motor, Inner discharge motor: 2.2 KW

1.8.Quantity of the plate: About 500Kg per plate

1.9.Twist: Change motor steering to change pitch twist

1.10.Double-axis multi-head wire active pay-off rack

1.11.Threading copper wire diameter range：Φ0.12-Φ0.64mm;

1.12.Core diameter：Φ1.5-Φ5mm;

1.13.Maximum line speed:MA×200m/min;

2.HH-630C

2.1.Stranded copper wire maximum cross section:1.5mm²~6mm²

2.2.Threading copper wire diameter range(mm)：0.23~0.64

2.3.Wire take-up speed(r/min):1600

2.4.Twist:Layered positive or negative stranding or layered twisting
