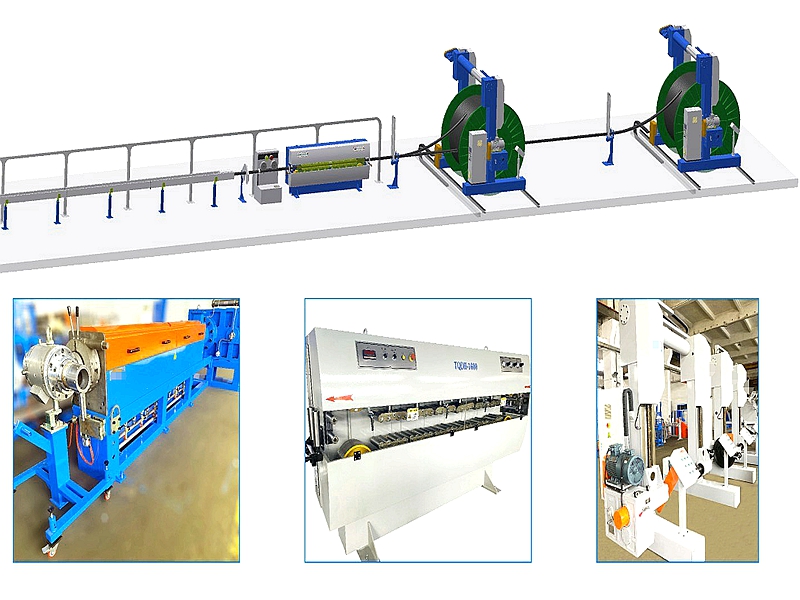

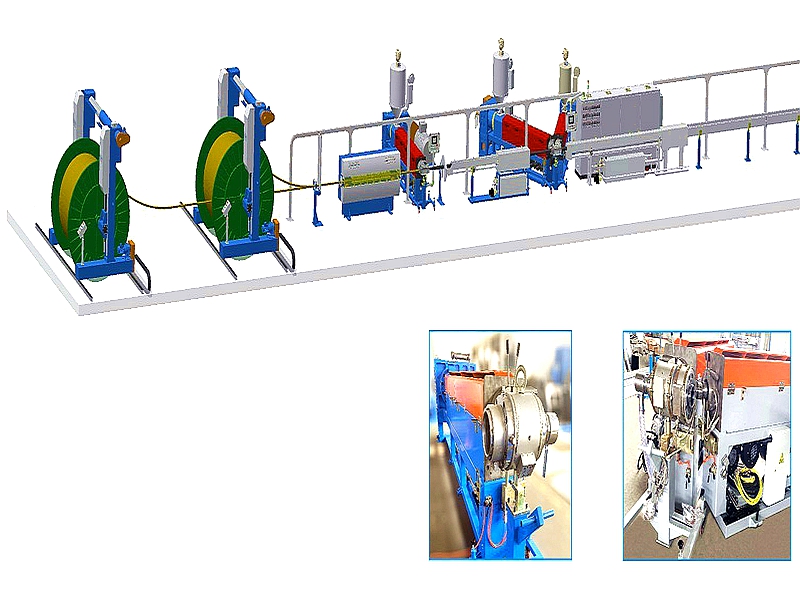

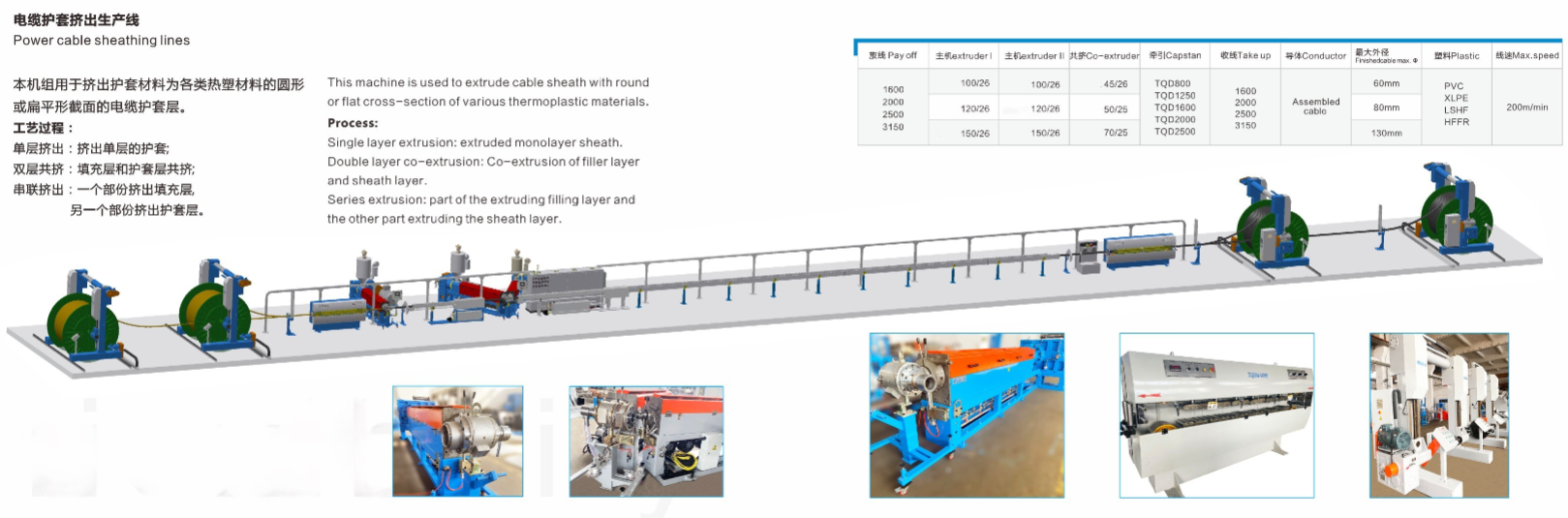

100+100+45 Power cable sheathing lines

100+100+45 Power cable sheathing lines

This machine is used to extrude cable sheath with round or flat cross-section of various thermoplastic materials.

Process:

1.Single layer extrusion:extruded monolayer sheath.

2.Double layer co-extrusion:Co-extrusion of filler layer and sheath layer.

3.Series extrusion:part of the extruding filling layer and the other part extruding the sheath layer.

4. materials : PVC/XLPE/HFFR/LSHF

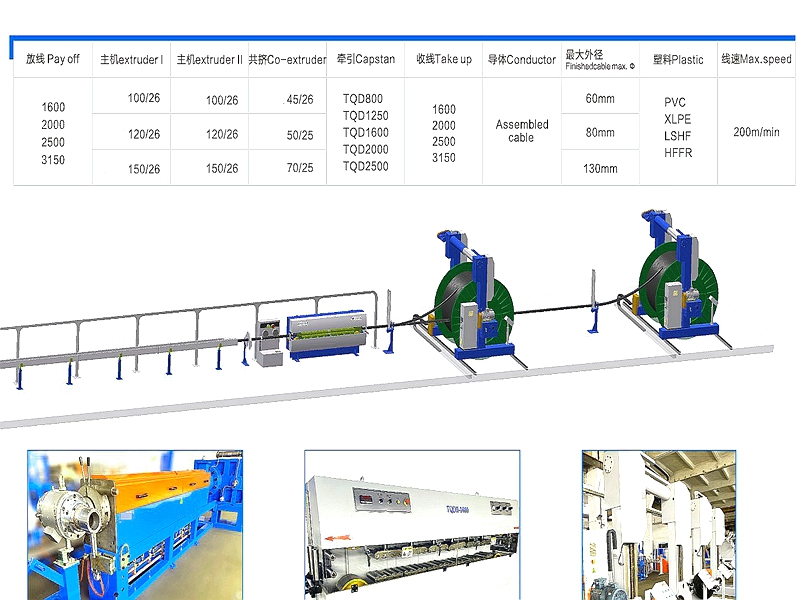

Devices

Pay off : 1600-3150

Extruder : 100+100+45 / 120+120+50 /150+150+70

Caterpilar : 800 kg - 2500 Kg

Take up : 1600-3150
