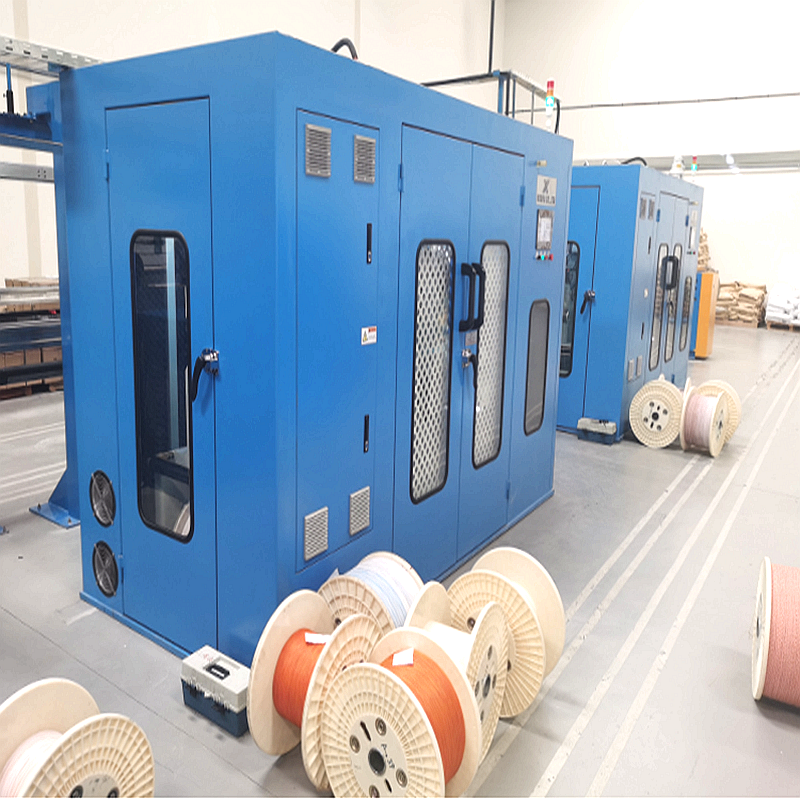

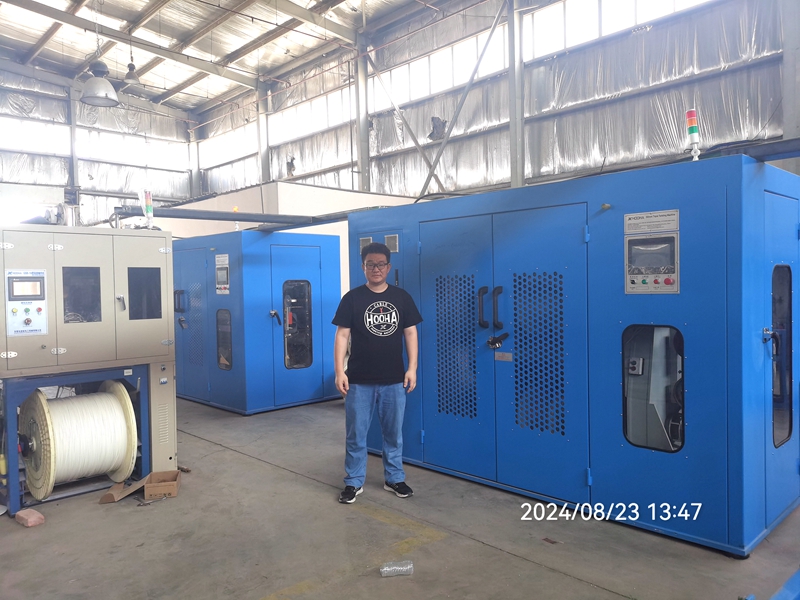

Internet LAN cable pair twisted PLC 500 triple twist machine

No

Name

1

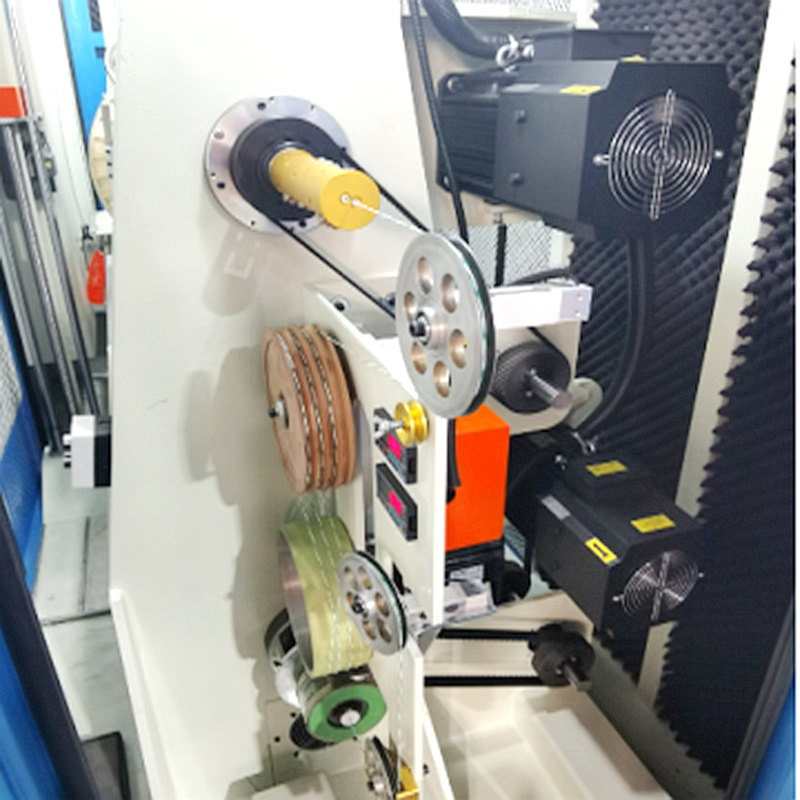

Upper layer: Single back twist machine

2

Down layer: Pair twisting machine

No

Advantages

1

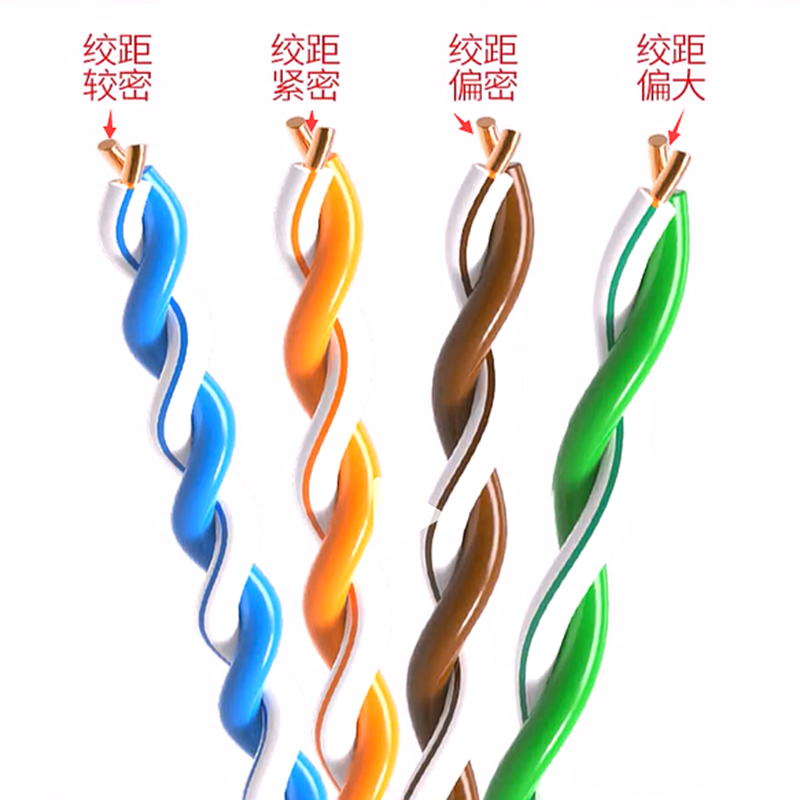

Applicable to the twisting of LAN cable, you can set the back-twist rate according to the requirements of the wire in the range of 0-100%, so that the wire can meet the requirements of CAT6,CAT6A,CAT7 etc

2

Due to the unqualified raw materials, resulting in The ones that can't reach the test standard are not included in this range and the speed is increased by more than 30% compared with the previous back-twisting machine.

3

The back-twisting machine is set to 33%. The traditional twist-back pair twisting speed is assumed to be 1400 rpm, the pitch is 10MM, and the output per minute is 42 meters.

4

The triple twist is assumed to have a rotation speed of 2000 rpm and a twist pitch of 10 mm. And the output is 60 meters per minute.

5

Compared with the traditional model, the output of the triple twist machine is 30% more than the traditional output.

No

Specification

Parameters

1

Applicable drum

Φ500mm*375*Φ56

2

Applicable wire

production of insulated core wire

3

Applicable wire diameter

0.8mm-1.5mm

4

Wire tension when untwisted

0.6-3Kg

5

Max linear speed

56 m/min

6

Braking device

motor and dancing wheel

7

Pay-off tension

0.6-3KG (tension is adjustable)

No

Specification

Parameters

1

Applicable drum

Φ500mm*375*Φ56

2

Applicable wire

production of insulated core wire

3

Wire tension when untwisted

0.6-3Kg

4

rotating speed of rotating object

2000RPM, actual use: 1800RPM

5

Max linear speed

130m / min

6

Power pay-off brake

motor and dance wheel

No

Specification

Parameters

1

Motor

7.5 HP + PG card tracking line speed, to ensure that the wire is within 2% mm of the set range

No

Specification

Parameters

1

type

Horizontal

2

Cable tesnsion

3 Kg

3

Max linear speed

250 m/min

4

Diameter of extraction wheel

Φ237.1

5

Type of extraction wheel

multi-groove

6

Power

750W Vekoda motor + controller

No

Specification

Parameters

1

Application drum

Φ500mm * 375 * Φ56

2

Maximum rotation speed

2000RPM (4000 twist),because the quality of the wire requires the test to pass, and the speed of the work is 1400RPM (4200 twist)

3

Maximum linear speed

130 m/min

4

Pitch

1mm-60mm

5

Maximum row pitch

10 mm

6

Main motor power

7.5 HP

7

Data display

feedback to power pay-off or take-up motor correction

8

back torque rate

maximum 100% (arbitrarily set within 0-100)

9

PLC

Siemens
