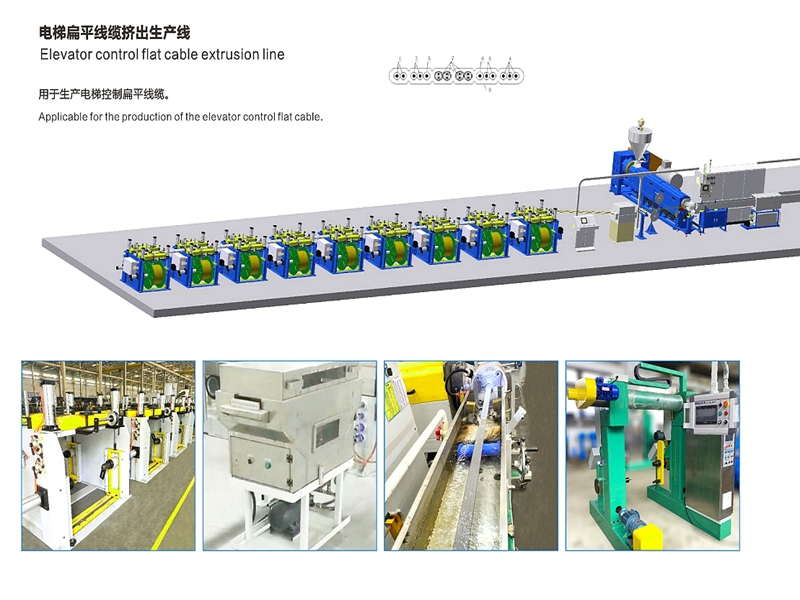

120 Elevator cable extrusion machine

1. Machine application

1.1. This machine line is designed for manufacturing cable sheath with material such as PVC , TPU .

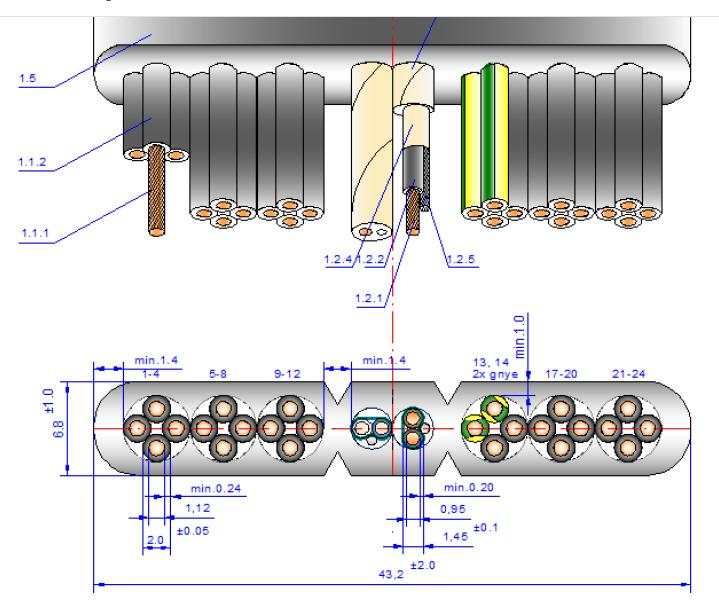

1.2. Suitable for manufacturing sheath with multiple core insulation in parallel structure , such as H05VVH6-F , H05VVD3H6-F etc .

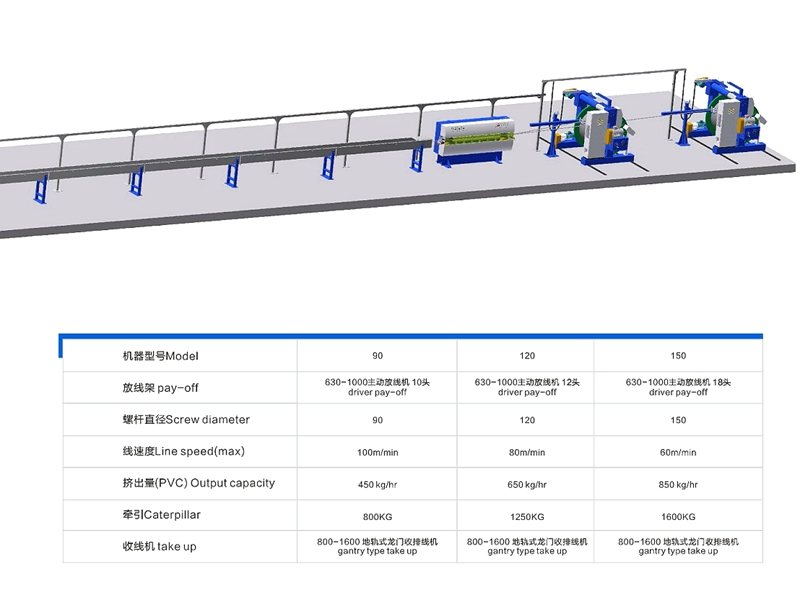

2. Main Specification：

2.1. Wire inlet : Φ1~3mm

2.2. Inlet quantity : Max. 12 , or be specified

2.3. Finished outlet : Max. Width 80/100mm , be specified .

2.4. Extrusion capacity : 280kg/h

2.5. Line speed : 50~140m/min (max.)

2.6. Electric environment : 380V±10% , 50Hz±3% (assisting AC 220V , DC 24V)

2.7. Length : Machine dimension : L45000mm*W6000mm*H5000mm
