1. Humanized design of the whole machine, simple and convenient operation. Adopting frequency conversion control method with touch screen and PLC, automatic control, man-machine interface and servo motor drive. The production status is visible on the touch screen. Using man-machine dialogue to query, adjust and control, the bunching precision is greatly improved and the worker’s operation difficulty is reduced.
2. The advanced technology of quantitative and timed automatic lubrication can automatically supply oil to the equipment at the set time interval, so that the equipment can be well lubricated during high-speed operation.
3. Comprehensive fault and safety alarm warning system. It can realize the stop of broken wire, stop of finished wire and tension detection device, which guarantees the quality of wire bunching.
| No. | Items | Quantity |

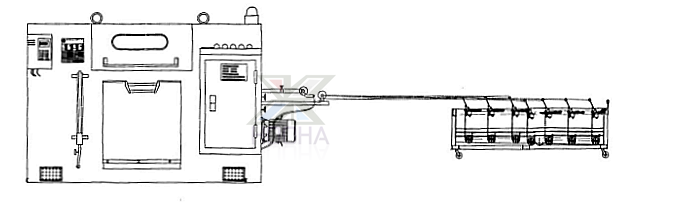

Reference Picture |
|
1 |

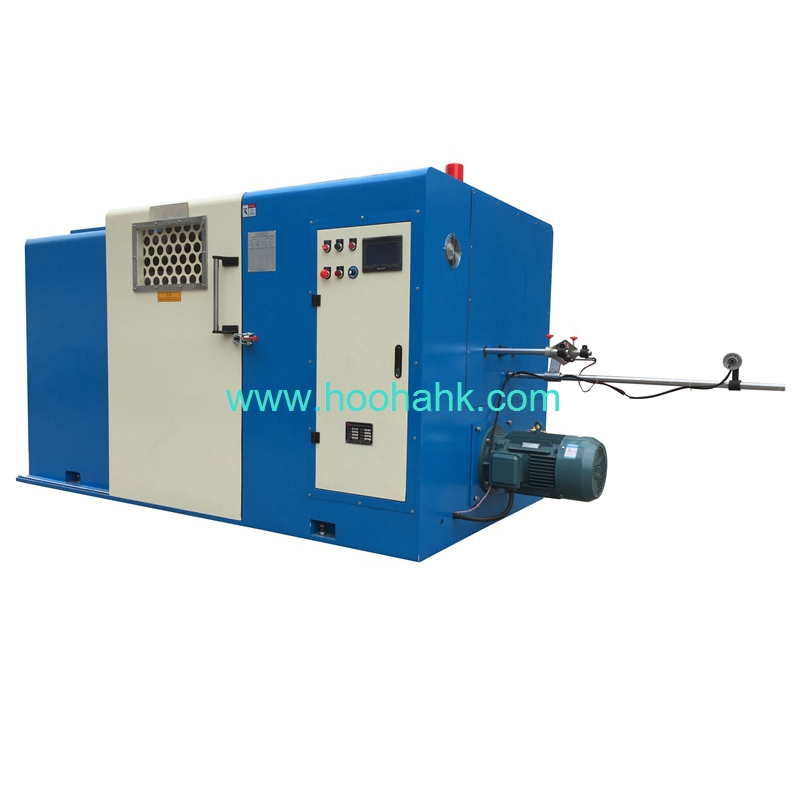

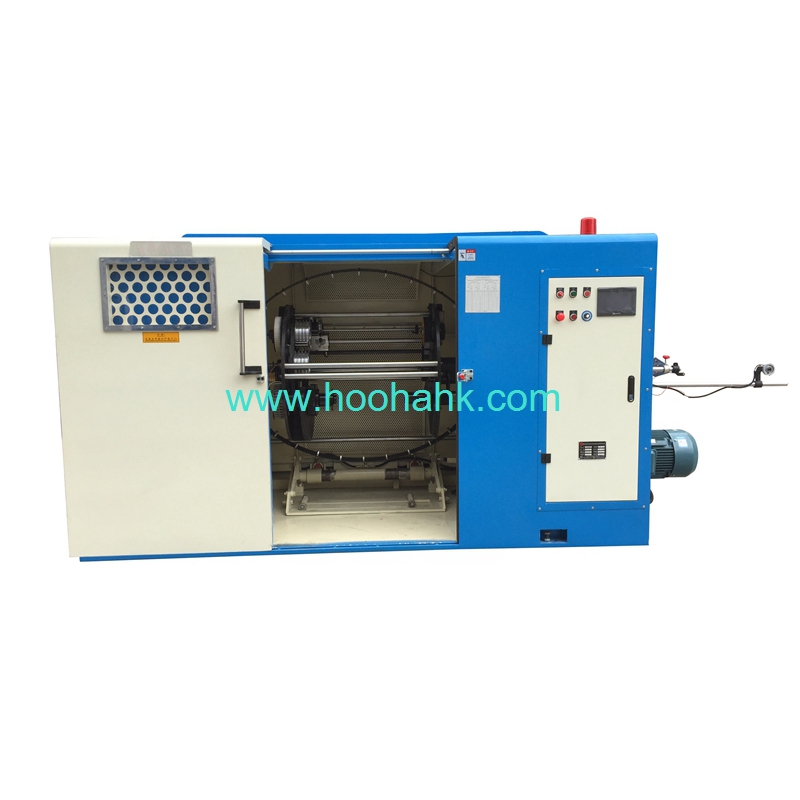

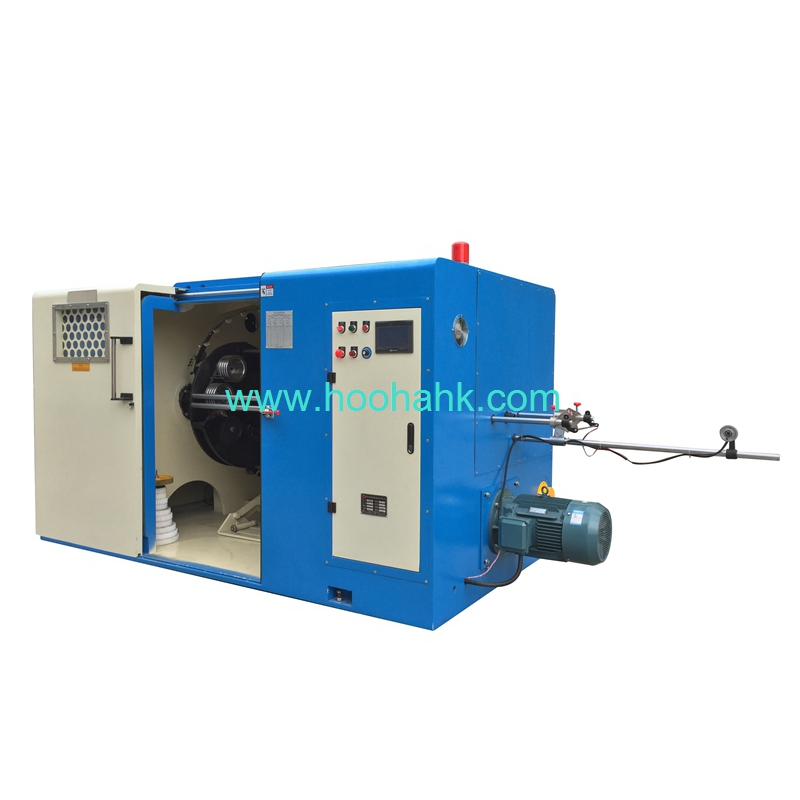

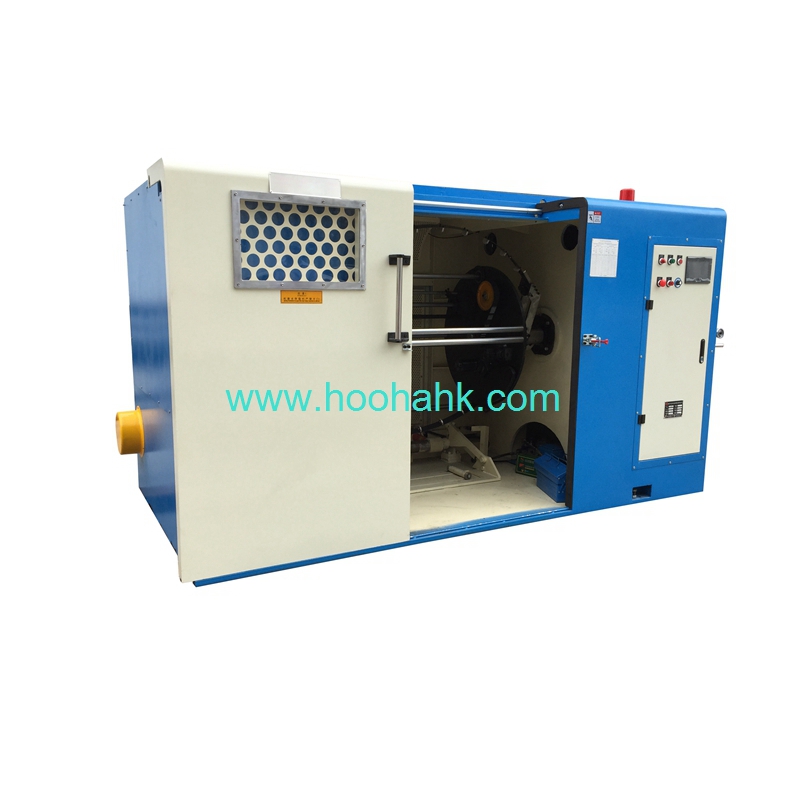

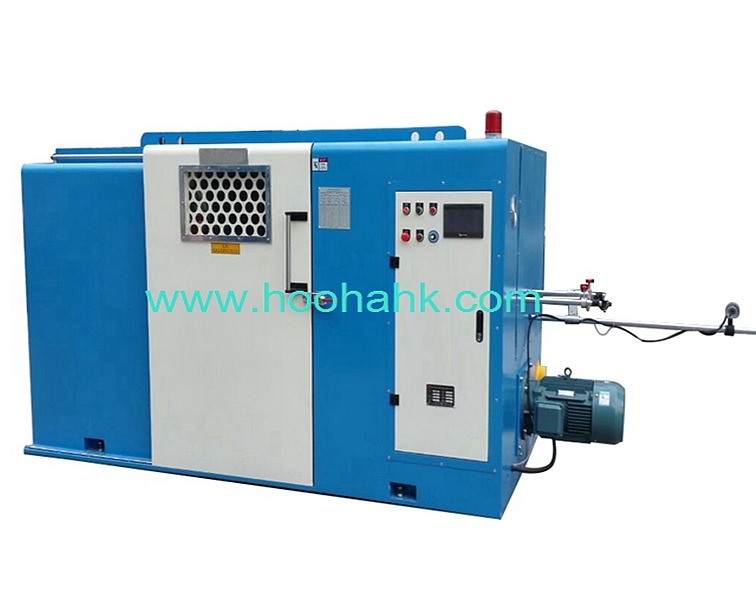

1000 Bunching machine |
1 unit |
 |
|
2 |
Pay off stand for 7 strands copper wire |
1 unit |
 |
|
No. |
Items |
Features |
|
1 |
Model |
Right-hand model |
|
2 |
Rotation speed of arched band |
Max: 800 RPM |
|
3 |
Twisting pitch |
22.51-200.32mm |
|
4 |
Stranded wire length calculation |
How many meters per minute = twisting distance *2/1000* twisting bow speed per minute |
|
5 |
Twisting direction |
Arbitrary(left or right) |
|
6 |
Single wire diameter |
Ø0.40mm-Ø1.7mm |
|
7 |
Stranding area |
4mm2-16mm2 |
|
8 |
Traverse |
German-style bearing polished rod Traverse, the Traverse range and Traverse distance can be adjusted |
|
9 |
Warning light |
Red: shutdown due to failure |
|
10 |
Measurement (L*W*H) |
4500*2200*2300MM |
1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.
2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.
3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.
4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
