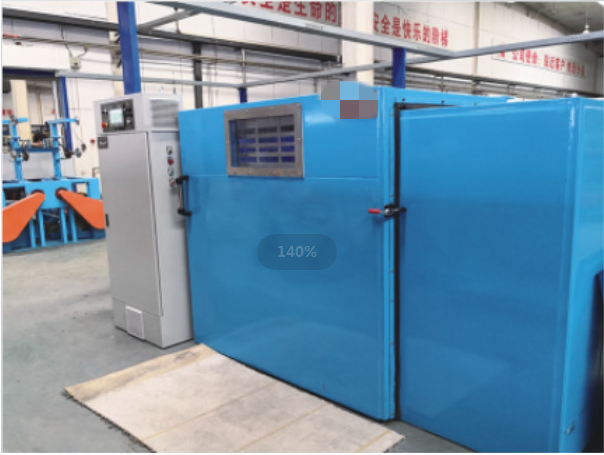

HH-630 High Speed Bunching Machine
Application: Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Copper Wire Diameter
|
BV Conductor
|
7*0.43mm
|
7*0.52mm
|
7*0.68mm
|
7*0.85mm
|
7*1.04mm
|
|
BVR Conductor
|
19*0.4mm
|
19*0.52mm
|
19*0.63mm
|
|
|
|
RV Conductor
|
30*0.24mm
|
49*0.24mm
|
56*0.29mm
|
84*0.29mm
|

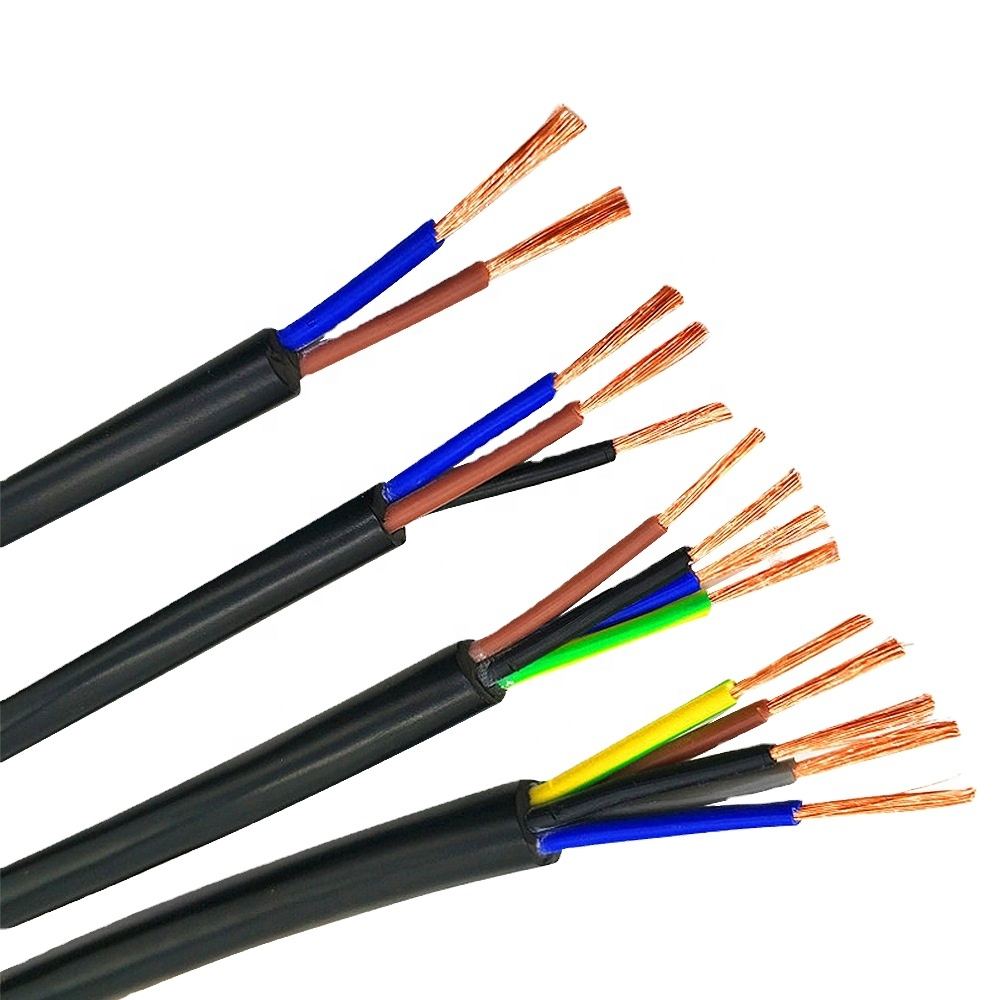

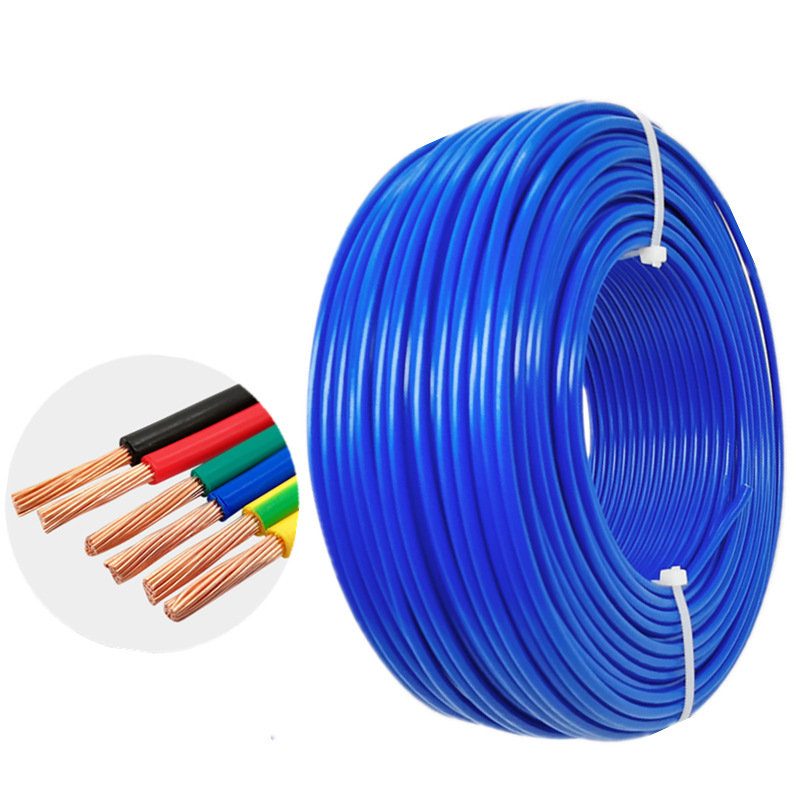

Samples
Specification
|
Diameter of single copper wire
|
φ0.16~φ1.04mm
|
|
Outer diameter of wire
|
φ0.84~φ3.2mm
|
|
Cross section area
|
φ0.40~φ6mm2
|
|
Size of take up spool
|
φ630mm×430mm×φ125mm
|
|
Maximum rotating speed
|
2000rpm(4000twist)
|
|
Standard lay length
|
34 section 11.6~100mm
|
|
Main motor
|
7.5KW AC motor +frequency converter
|
|
Weight of copper load
|
about 400kg
|
|
Direction of strand
|
optional for right or left
|
|
Brake
|
electromagnetic brake for external break, automatic stop when wire reach setting meter
|
|
Tension control
|
take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension
|
|
Whole machine drive bearing
|
main shaft is from Sweden SKF bearing,other is adopted imported Japan NSK bearing
|
|
Synchronization strap
|
with imported from American
|
|
Spool from top to bottom
|
it is adopted manual hydraulic pump lifting
|
|
Way of spindle lubrication
|
butter lubrication
|
|
Index of noise
|
lower than 82dB
|
|
Dimension
|
3300L×1450W×1650H(mm)
|
|
Weight
|
4500Kg
|
|
Color
|
Ral5015sky blue (may according to customer's requirements)
|
|
Package
|
simple waterproof packing
|
|
Spindle housings sealing
|
mechanical block oil ring
|
