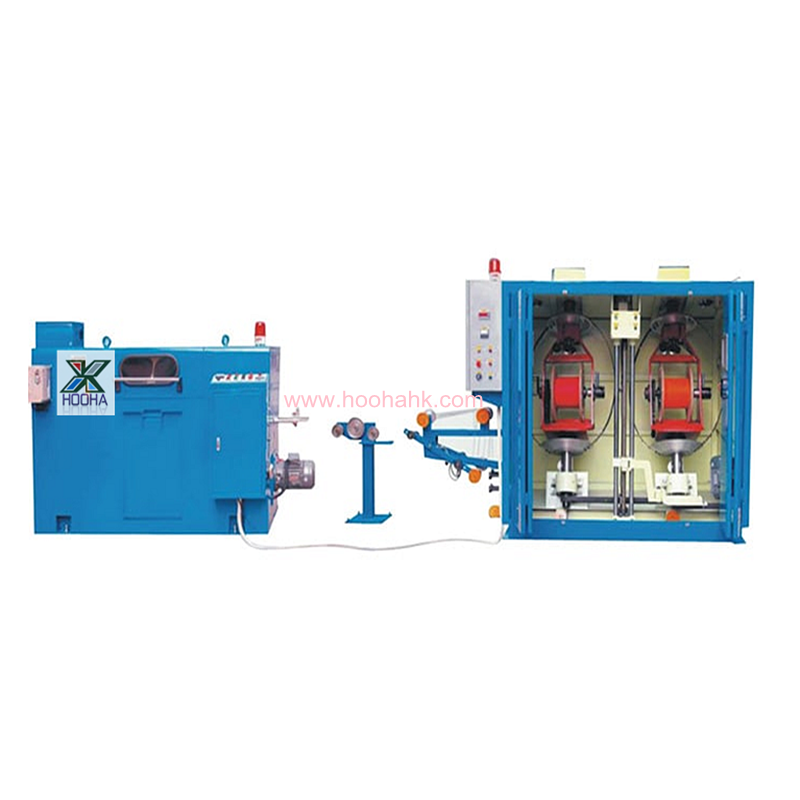

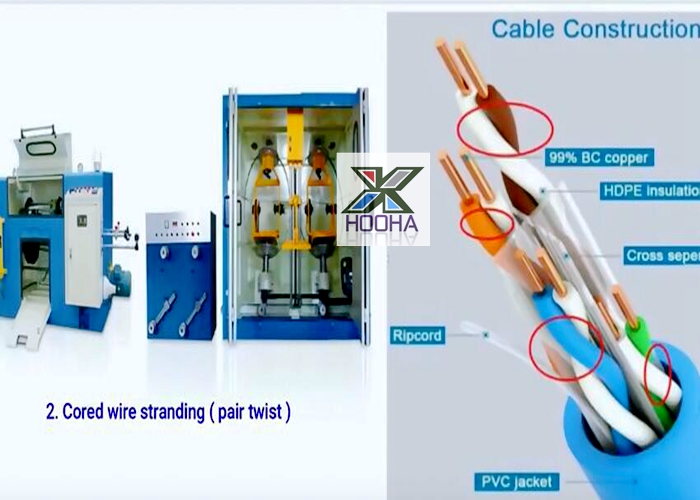

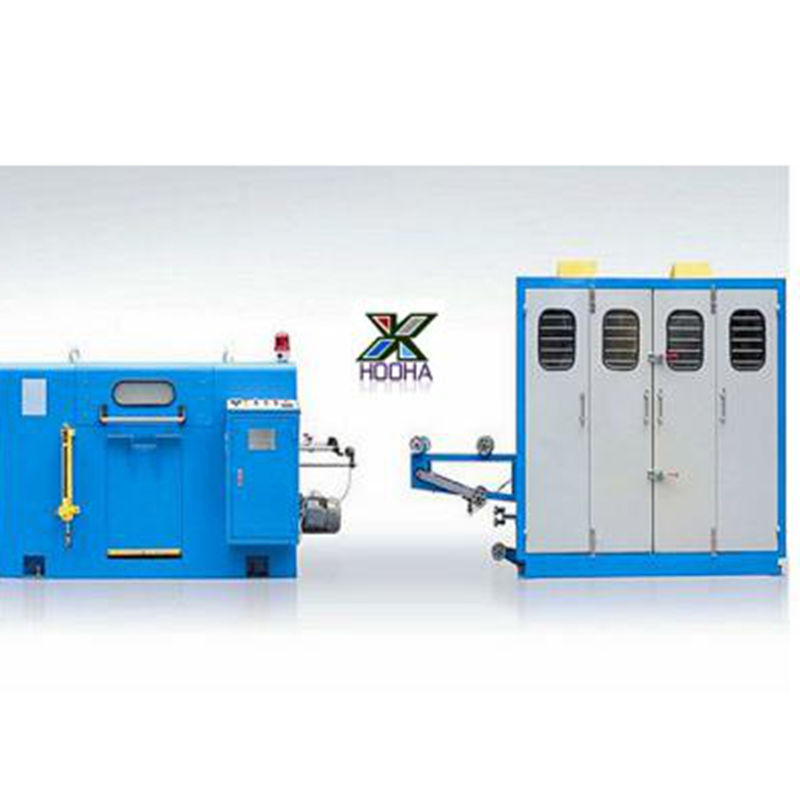

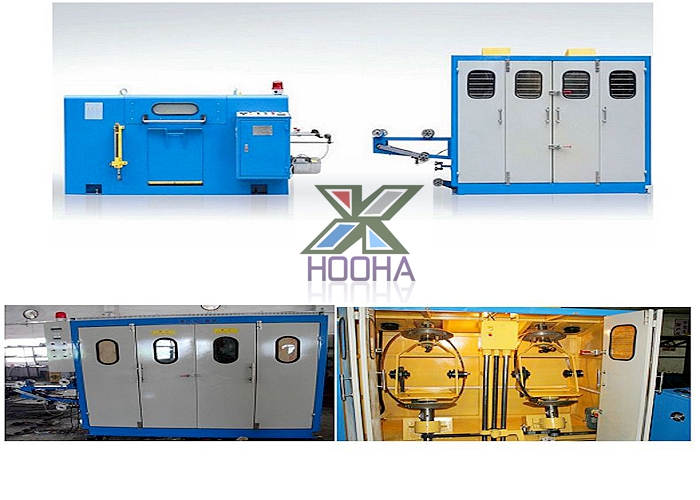

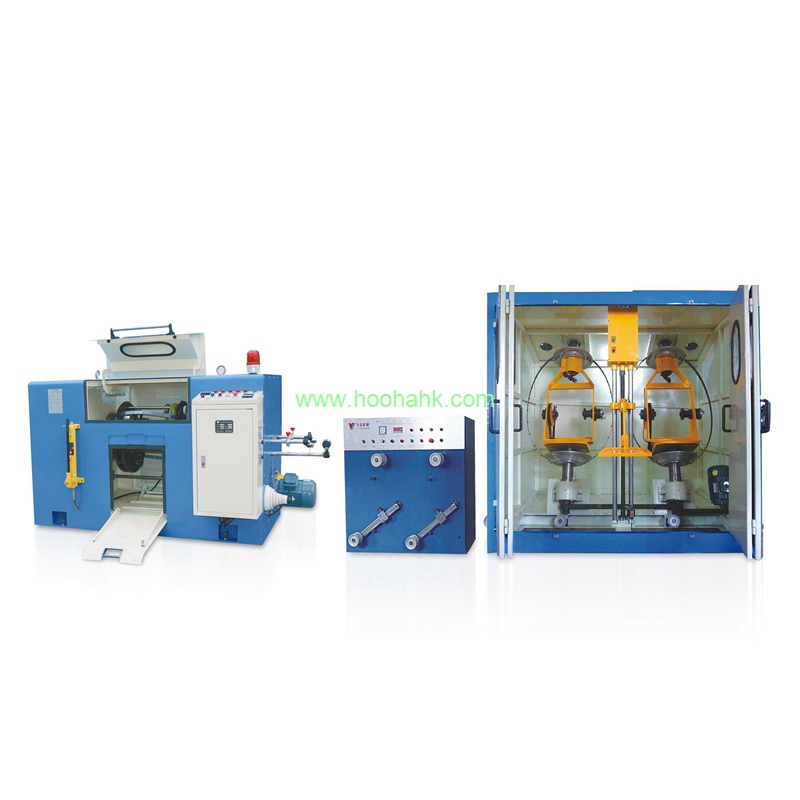

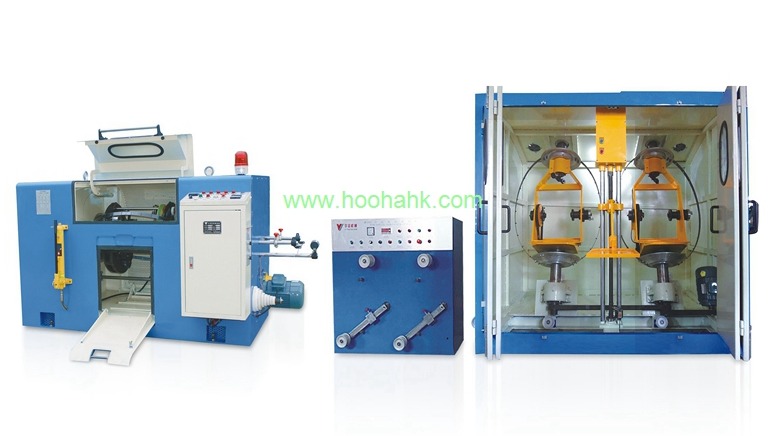

Mainly used for high-frequency data cable Lan Cable pair twisting and back twisting. The position of the twisted insulated core is staggered, to overcome the uneven twisting, to ensure high-speed twisting, uniform quality, uniform pitch, high pitch accuracy, suitable for high Frequency cable pair twisting synchronous reverse twisting.
1. Back-twist before pair twisting and reduce the wire damage during twisting progress,Back -twist and pair twisting machine worked together.
2. Quality: Stable performance, regular update of production process
3. Components: Adopt high-quality well-known brand components to ensure overall performance
|
No. |
Items |
Quantity |
Picture |
|
1 |

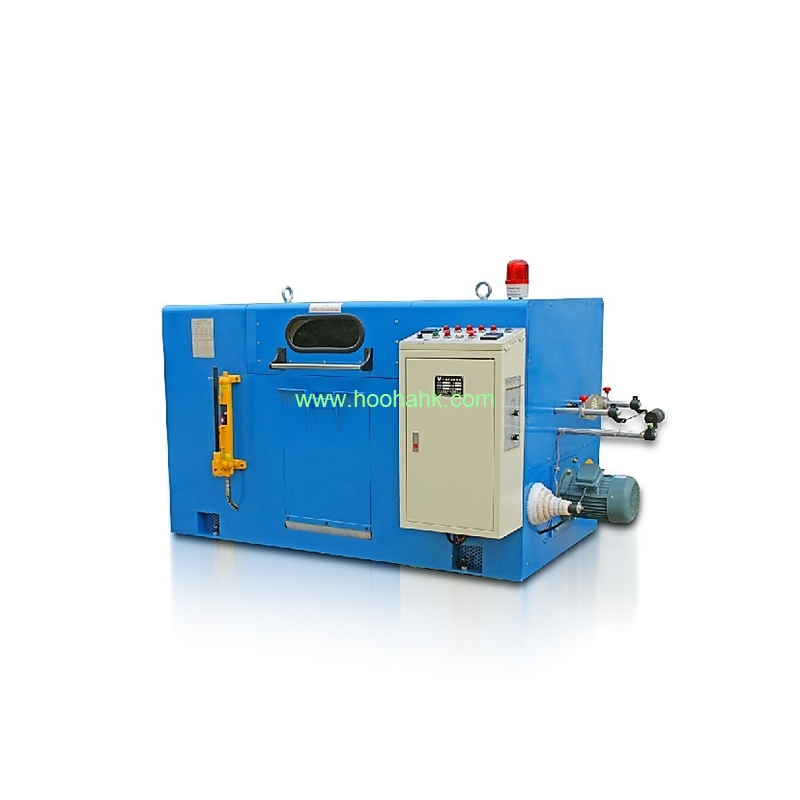

500 Pair Twisting Machine |
1 set |
|
|
2 |

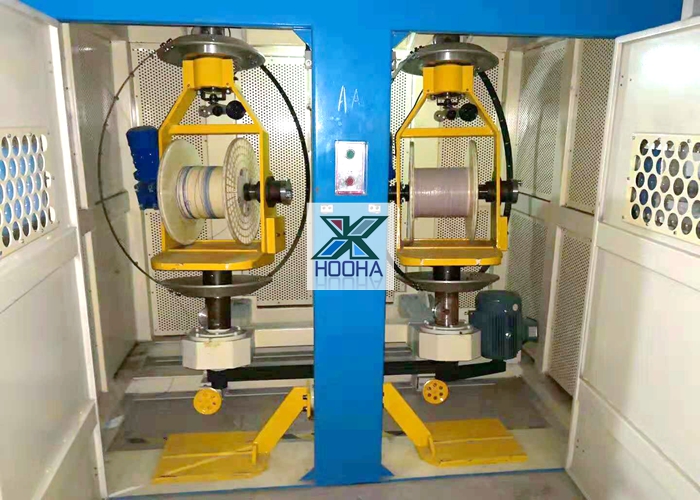

500 Vertical Back Twisting Machine |
1 set |
|
|
No. |
Items |
Features |
|
1 |
Application |
Core wires Pair twisting and Back twisting |
|
2 |
Wire diameter |
Φ0.7-1.5mm |
|
3 |
Maximum capacity |
120m/min |
|
4 |
Center height |
1000mm |
|
5 |
Power supply |
380V 50HZ three-phase,five-wire system |
|
6 |
Operation direction |
S or Z |
|
7 |
Machine color |
Optional |
|
8 |
Total power consumption |
8.25KW.H (at full load) |
|
9 |
Floor area |
Length 6000mm, Width 1400mm, Height 1800mm |
|
10 |
Pitch range |
6-50mm |
|
11 |
Pitch error |
≤1% |
|
12 |
Noise |
≤80DB |
|
13 |
Weight |
Around 4.2T |
Our engineer team has over 5-year experience working overseas for customer on-site service. Therefore, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.
