Application：

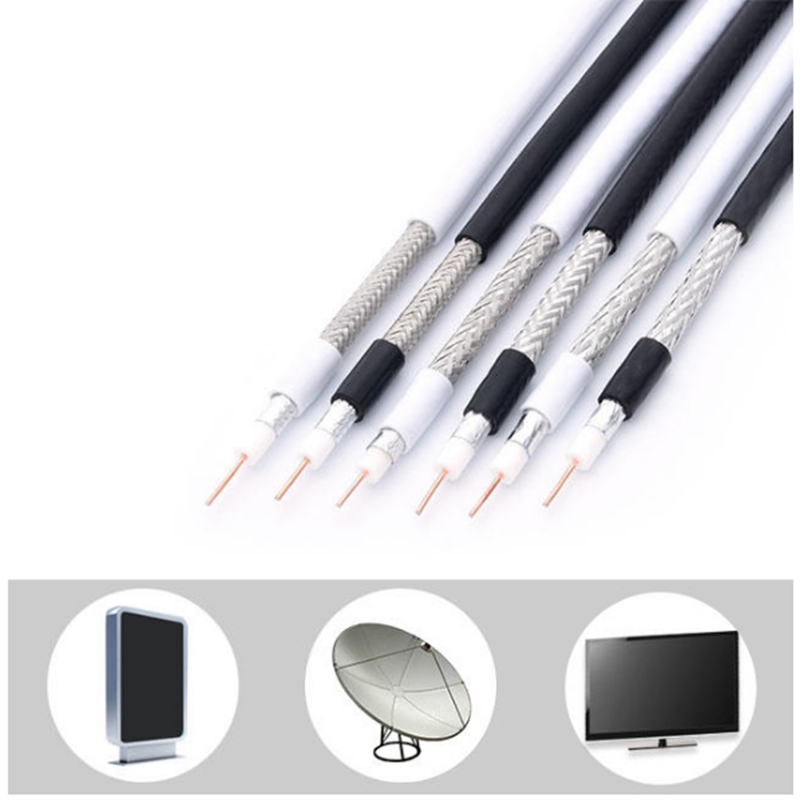

Used as a distribution cable for Outdoor CATV, CCTV systems and as a connection cable for satellite systems.

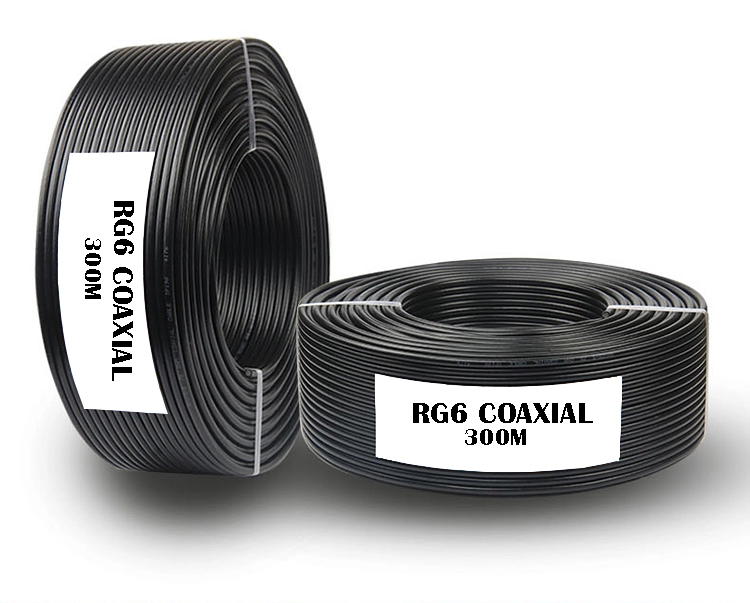

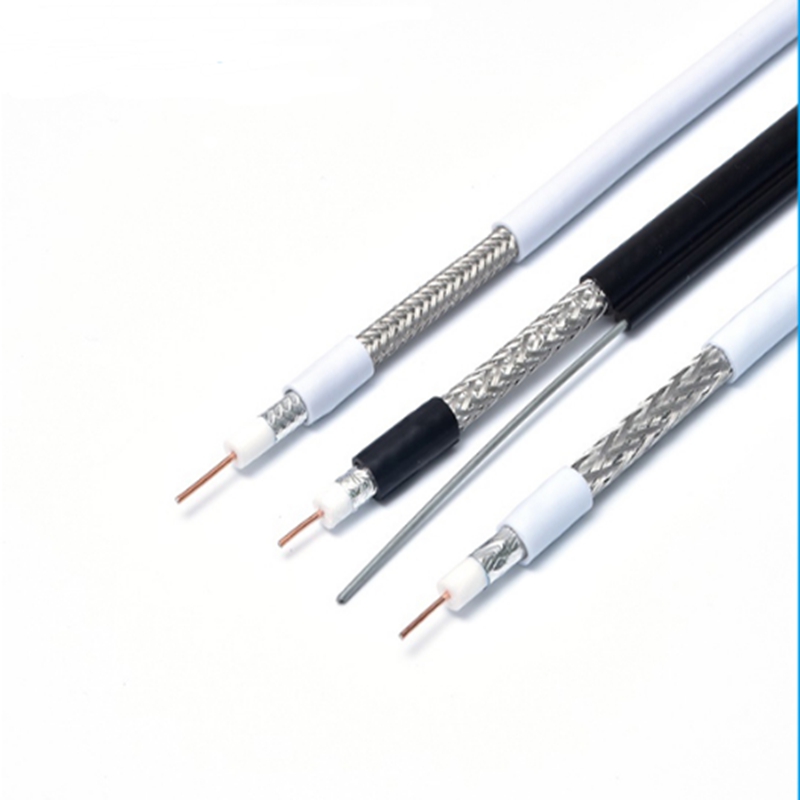

Model Number : RG6 Coaxial Cable
Number of Conductors : 1
Type : Coaxial
Model : RG6
Certification : CE/RoHS
Inner Conductor : 1.02 Bare Copper / CCS
Dielectric : 4.57- 4.80mm FPE
Out Conductor : Al Foil +70%, 90%, 95% Braid
Braid Material : Al-Mg, CCA, BC, TC
Out Jacket : 6.80 - 7.0mm PVC/PE
Color : White, Black or Customized
Connector : F connecor or BNC

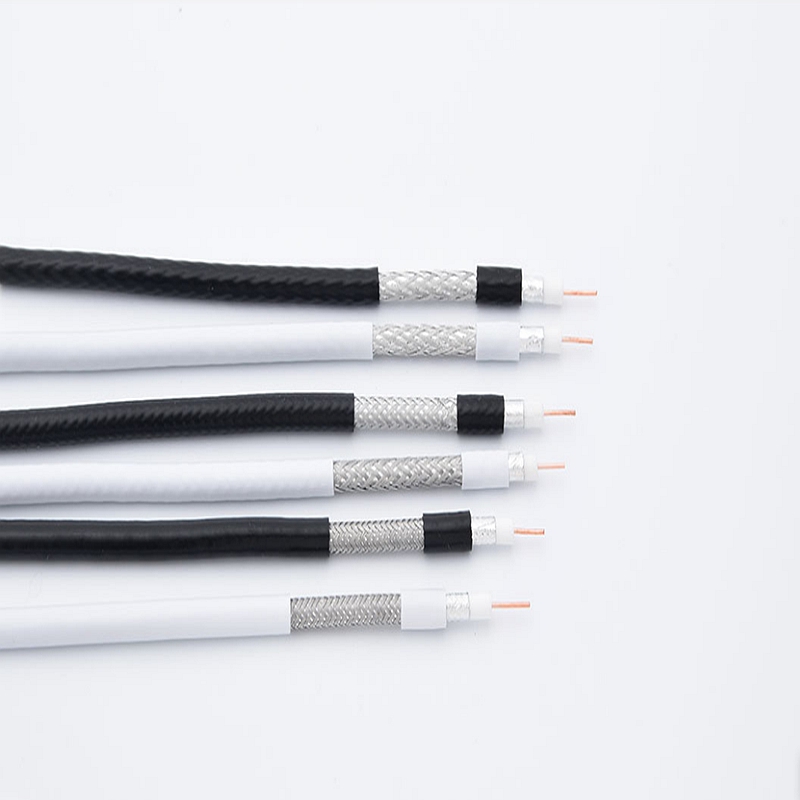

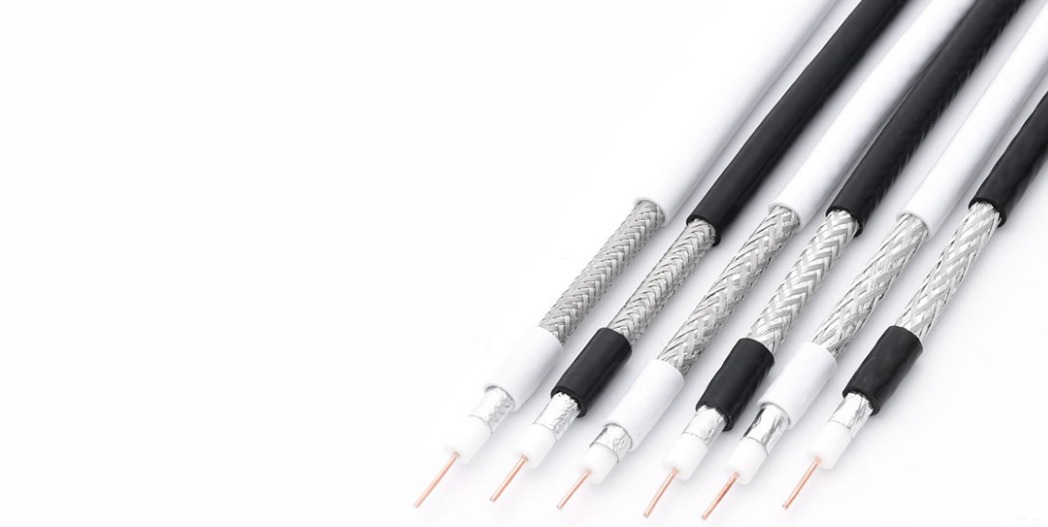

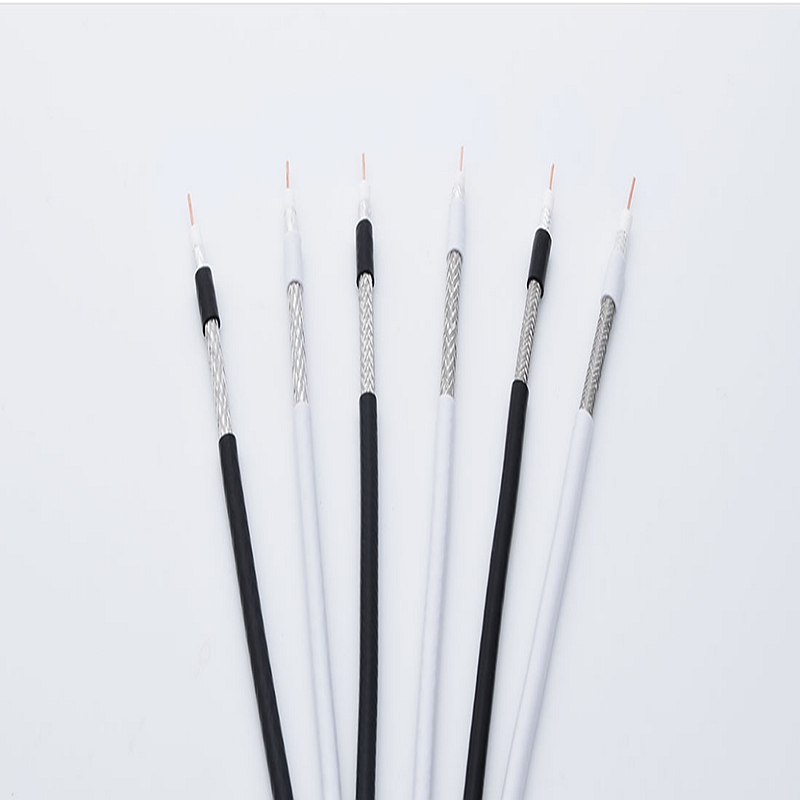

| Construction | Conductor | Material | Copper Clad Steel |
| Diameter(mm) | 1.0±0.02 | ||
| Insulation | Material | Foaming PE | |
| Diameter(mm) | 4.80±0.10 | ||
| Outer Shield | Material | AL foil+AL/mg wire braiding | |
| Density | 61% | ||
| Diameter(mm) | 5.40±0.10 | ||
| Performance | Minimum Bending Radius | mm | 34(indoor) |
| Minimum Bending Temperature | ℃ | -10 | |
| Storage Temperature | ℃ | -10~＋75 | |
| Installation Temperature | ℃ | -10~＋50 | |
| Operating Temperature | ℃ | -10~＋75 |
Electrical Properties
| Capacitance | pF/m | 45±2 |
| Velocity | % | 86 |
| Insulation Resistance | MΩ·km | >5000 |
| Cut-off Frequency | GHz | 3 |
| Insulation withstand Voltage | KV | 1 |
| Jacket Spark Voltage | KV | 2 |
| Attenuation (dB/100m) | 50MHz | ≤9.0 |
| 100MHz | ≤10.8 | |
| 200MHz | ≤11.8 | |
| 800MHz | ≤19.00 | |
| 1000MHz | ≤20.0 | |
| Shielding Effectiveness (dB) | 55MHz | ≥55 |
| 300MHz | ≥60 | |
| 1000MHz | ≥65 | |
| Return Loss (dB) | 5~470MHz | ≥20 |
| 470~862MHz | ≥20 | |
| 862~2200MHz | ≥18 |

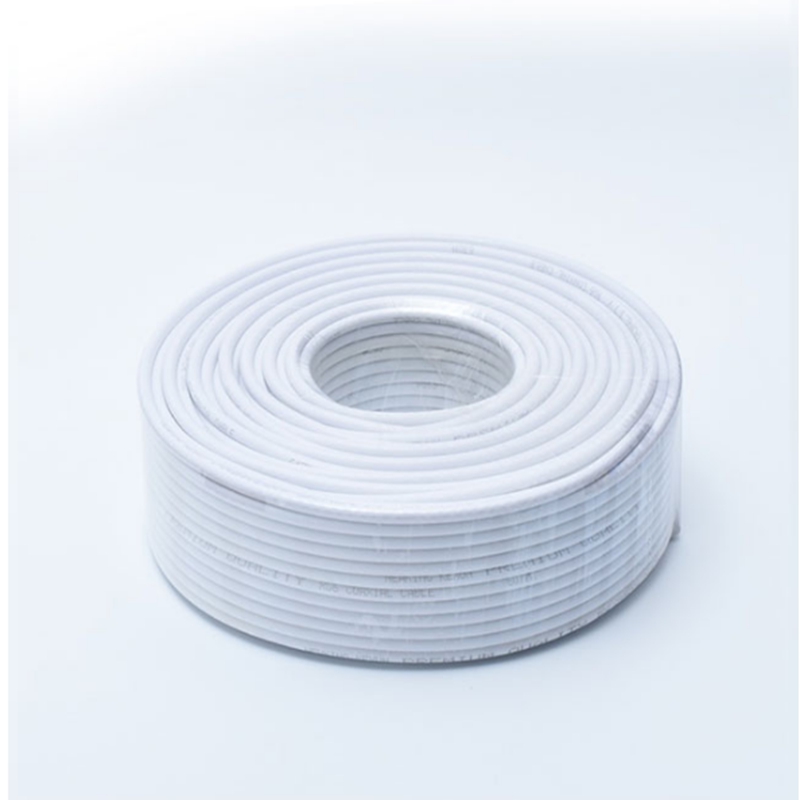

Packaging Details ：Can be packed in clarity film, several rolls into one carton.
