This equipment is mainly used for AC power cord, DC power cord, USB cable, video wire, HDMI wire and other kinds of transport used encapsulates the core twisted into beam,Can also be used for other tied to use plastic bags iron core, such as coat hangers, sanitary hose, etc. The product has high production efficiency and the quality of the cable is at the advanced level of the same type of products at home and abroad.
1.This equipment in the original automatic original winding and tying machine basically, increase the automatic meter, line arrangement, cut off function.
2.Equipped with 4 motor coiling (coiling motor and twisting motor are stepper motor）
3.Using PLC computer program touch screen control meter length, the length of ribbon sent out, automatic cutting ribbon, ribbon kink.
4.The number of coiling can be set arbitrarily and the coiling speed can be adjusted.
| NO. | ITEMS | Quantity | Reference Picture |
| 1 |

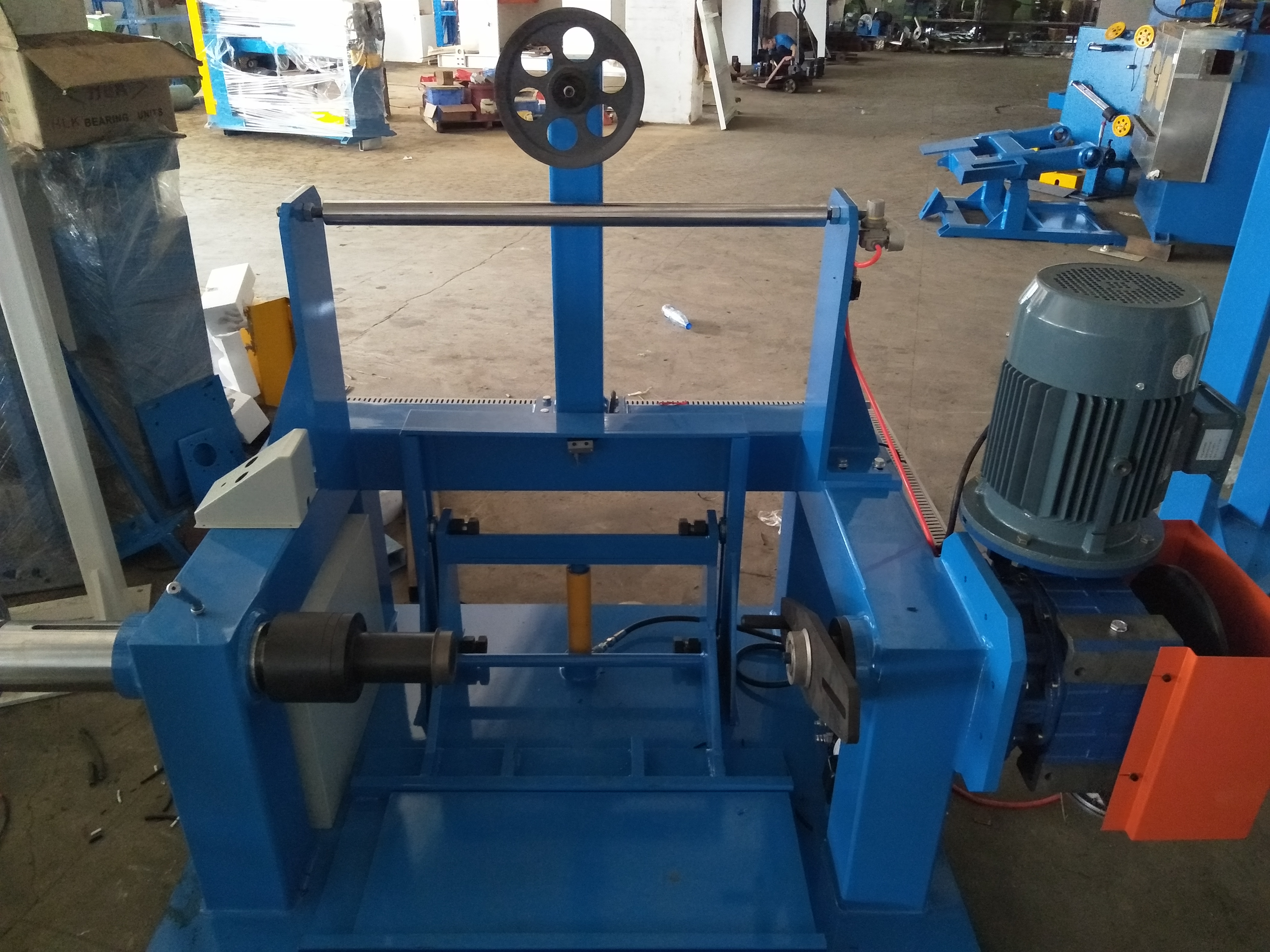

630-750mm non-axle active pay-off
|
1 |  |
| 2 |

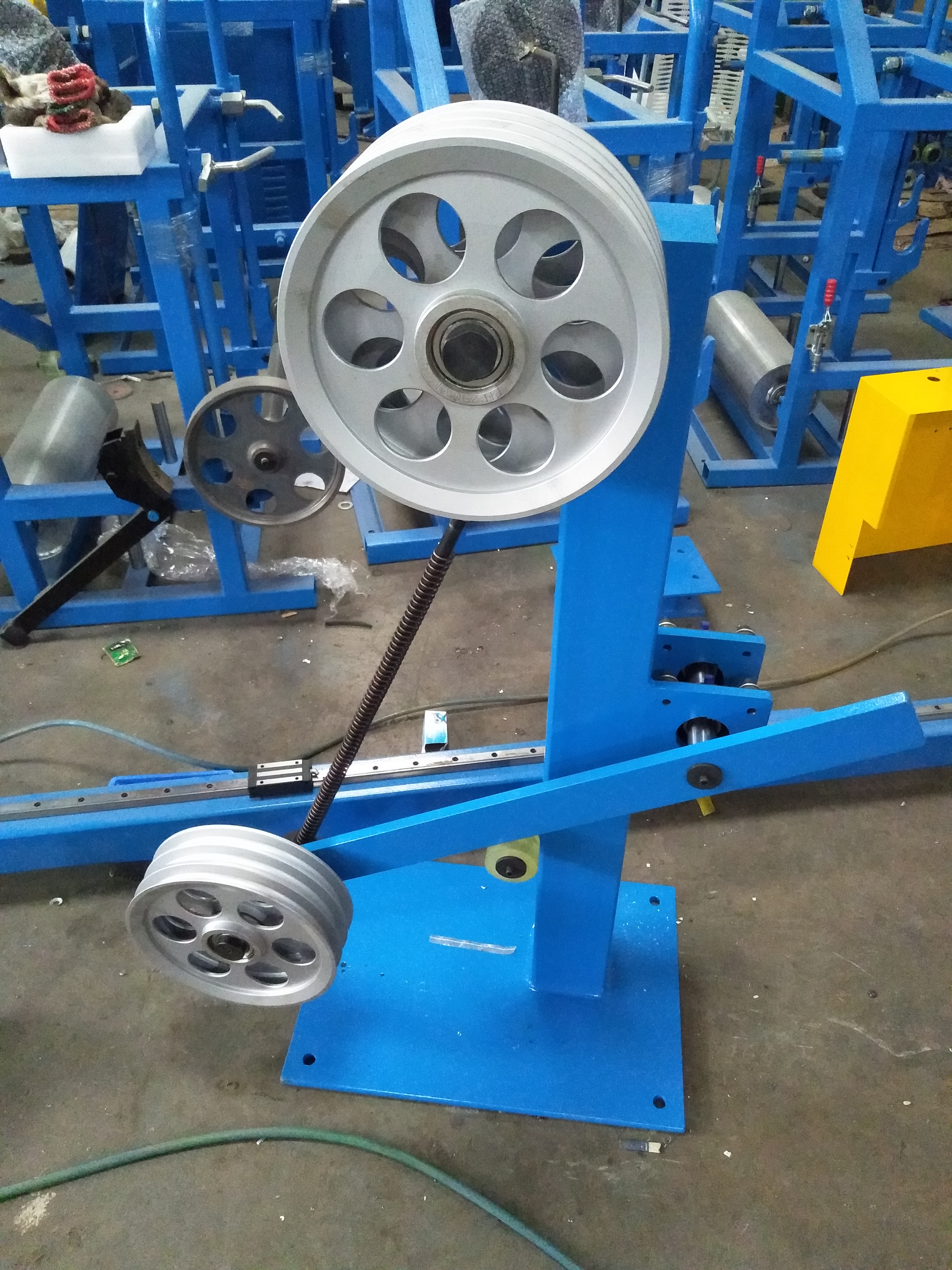

3 sets of wheeled high performance vertical tension frame
|
1 |  |
| 3 |

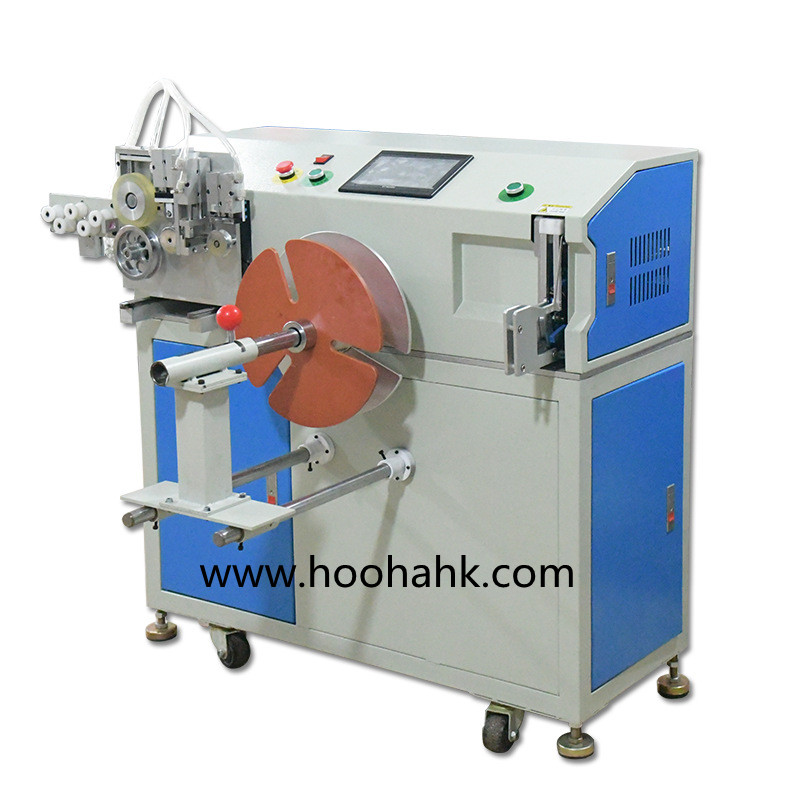

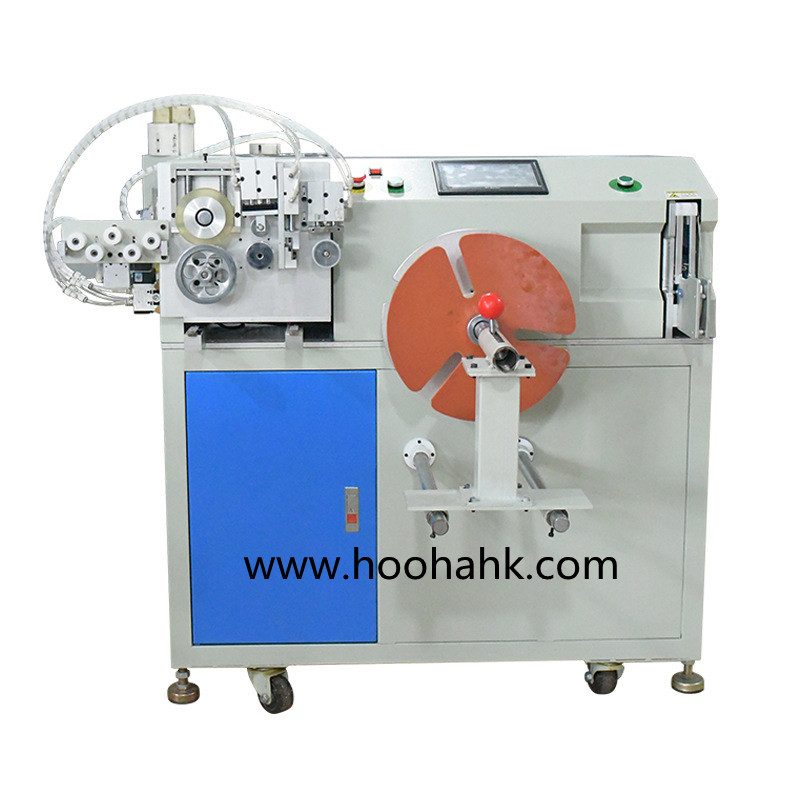

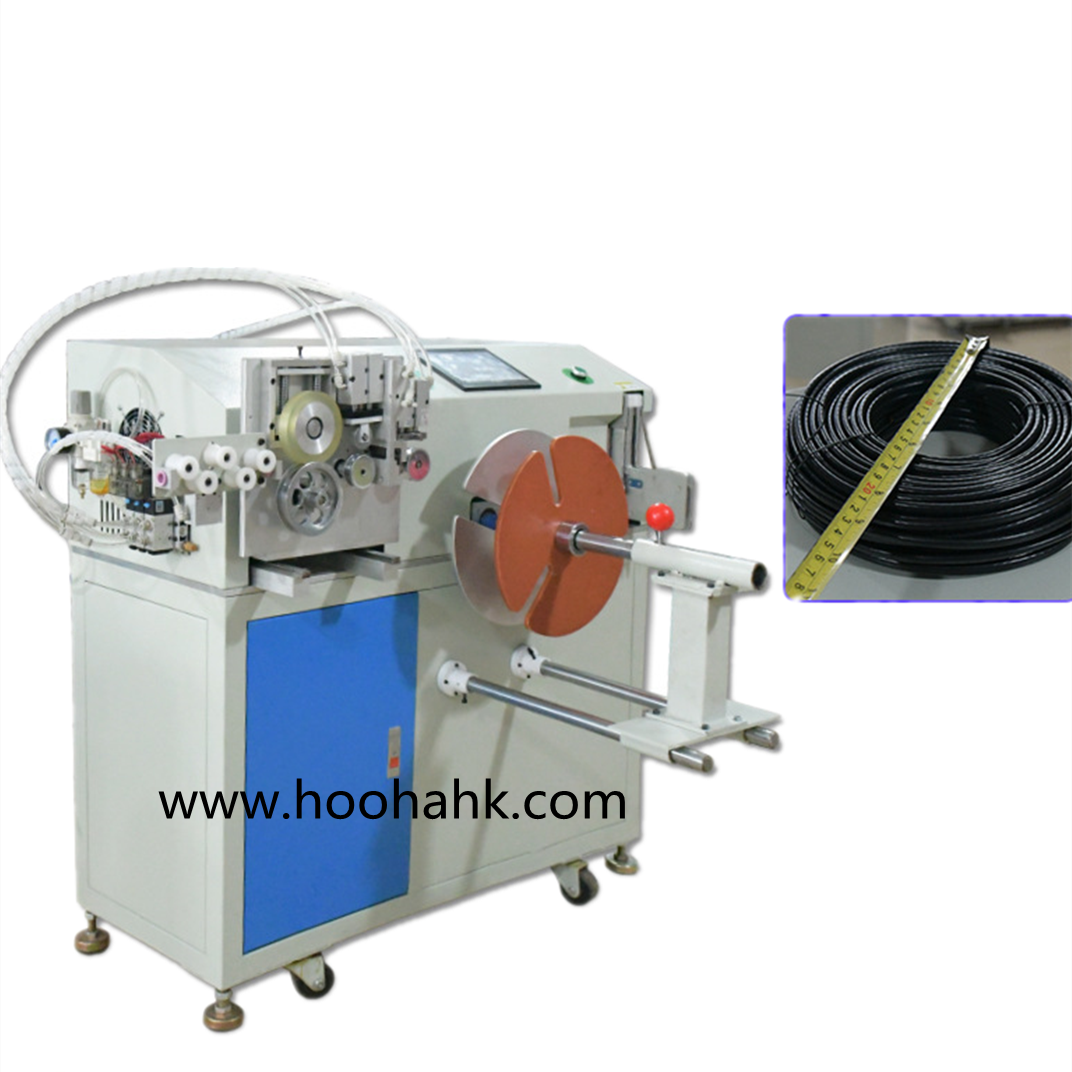

Floor type automatic meter coiling machine
|
1 |  |
Main parameters:
|
coiling inner diameter range：
|
50-300mm
|
|
coiling meter or coiling number:
|
adjustable
|
|
input voltage:
|
AC220V 50HZ/60HZ special voltage can be customized
rated power < 500W load 3 kg
|
|
volume:
|
L800 X W1000 X H1030
|
|
coiling speed :
|
1-8 laps/SEC
|
