1.Bow twister is the important equipment for wire and cable cabling, it is mainly used for control cables, low voltage cables, rubber sheathed cables, mining cables, overhead insulated cables and other products.
2.With the continuous decrease of wire and cable products’ profit, it is imperative to reduce the production cost for the manufacturers. And improving production efficiency is one of the effective ways to reduce production cost. With the unique structure, the production efficiency of bow twister is more than twice as much as the tubular stranding, and more than five times of cage stranding machine. Due to the advantages of high production efficiency, bow twister has been used more and more widely.
Product details:
Place of Origin |
Guangdong,China |
Brand Name |
HOOHA |
Usage |
Stranding |
Pay off |
1250mm |
Model Number |
HH-1250 |
Main body speed |
Max 400RPM |
Line speed |
150M/min |
Conductor Section |
10-50mm² |
Rotor speed |
350 rpm |
Motor Power |
55/65/75KW |

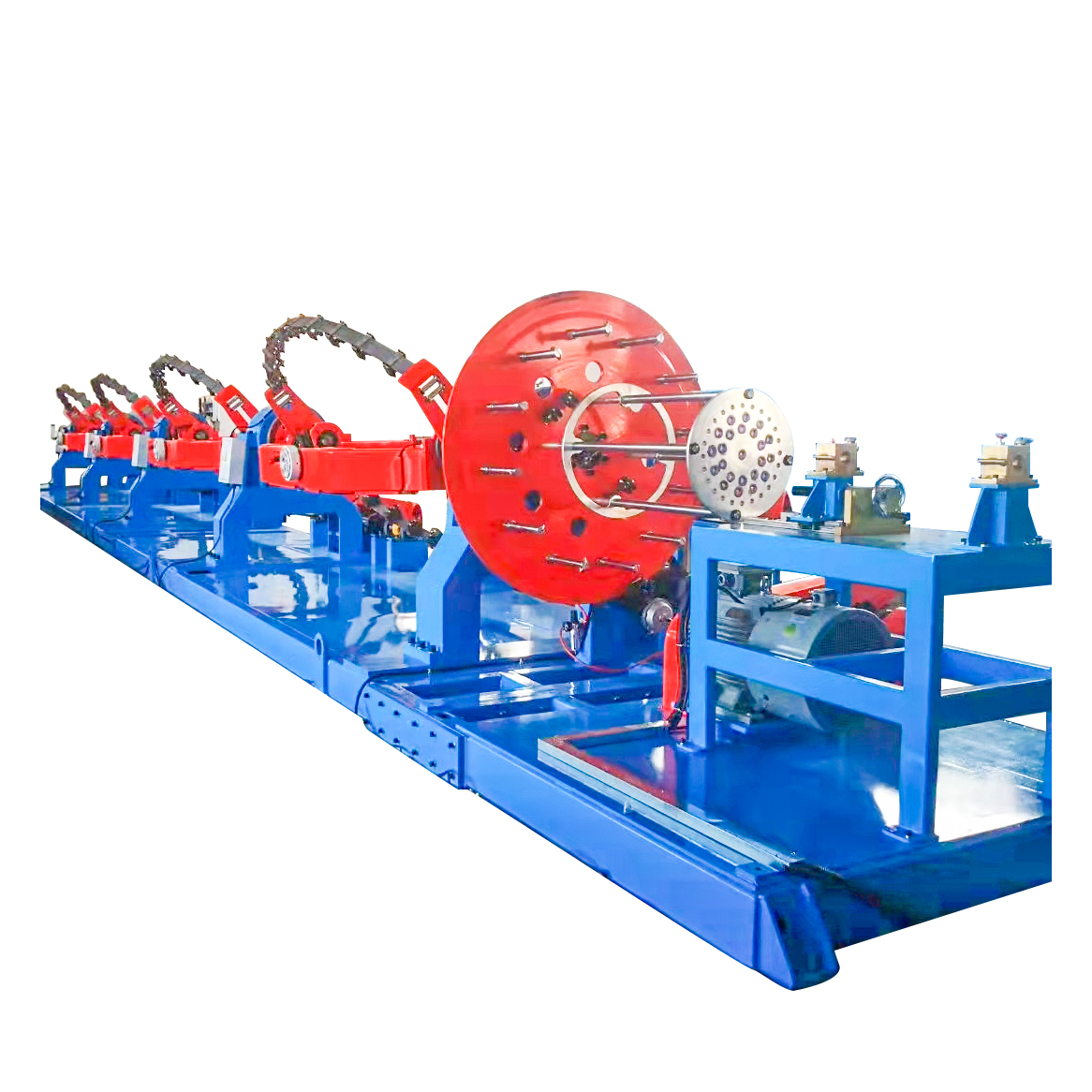

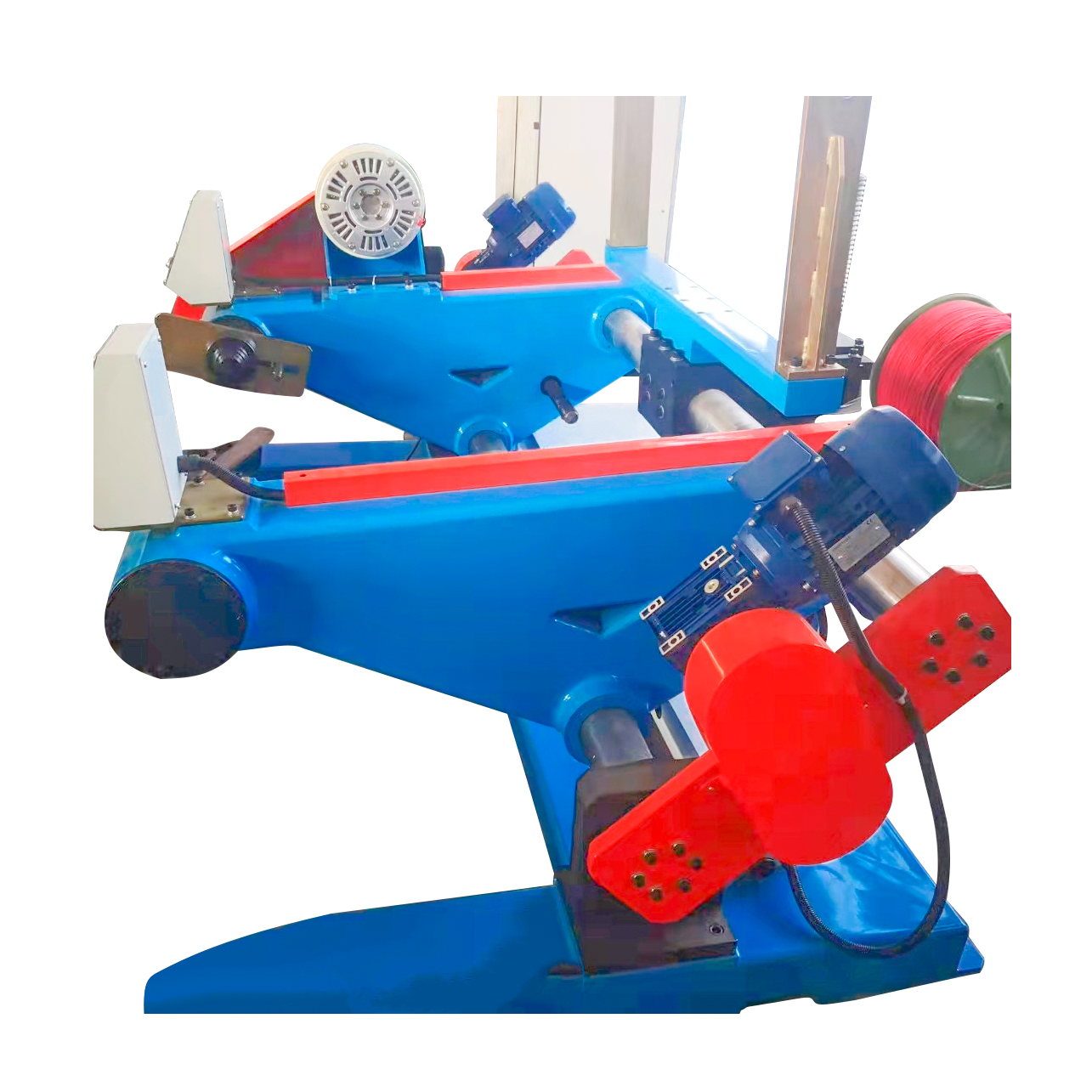

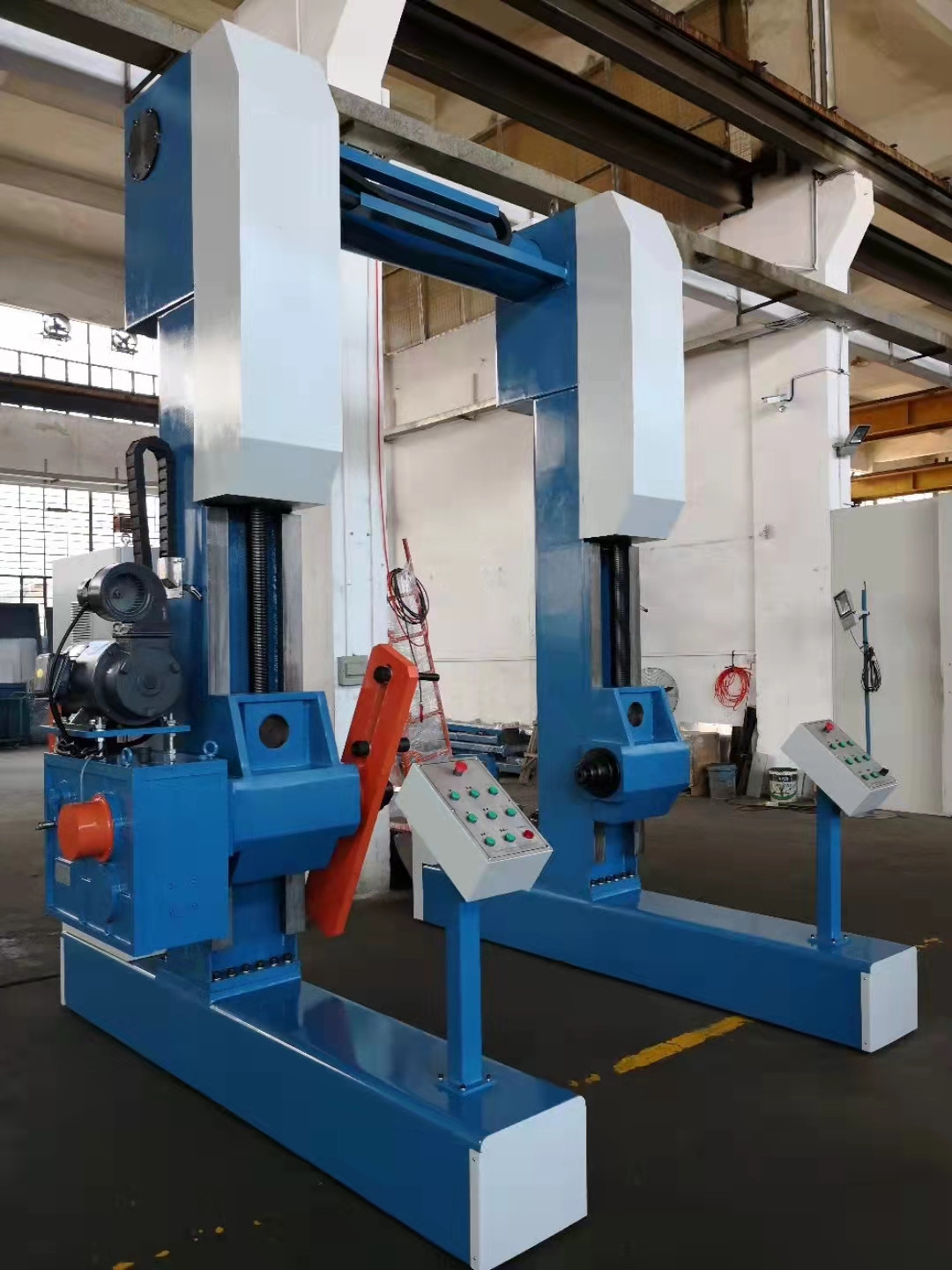

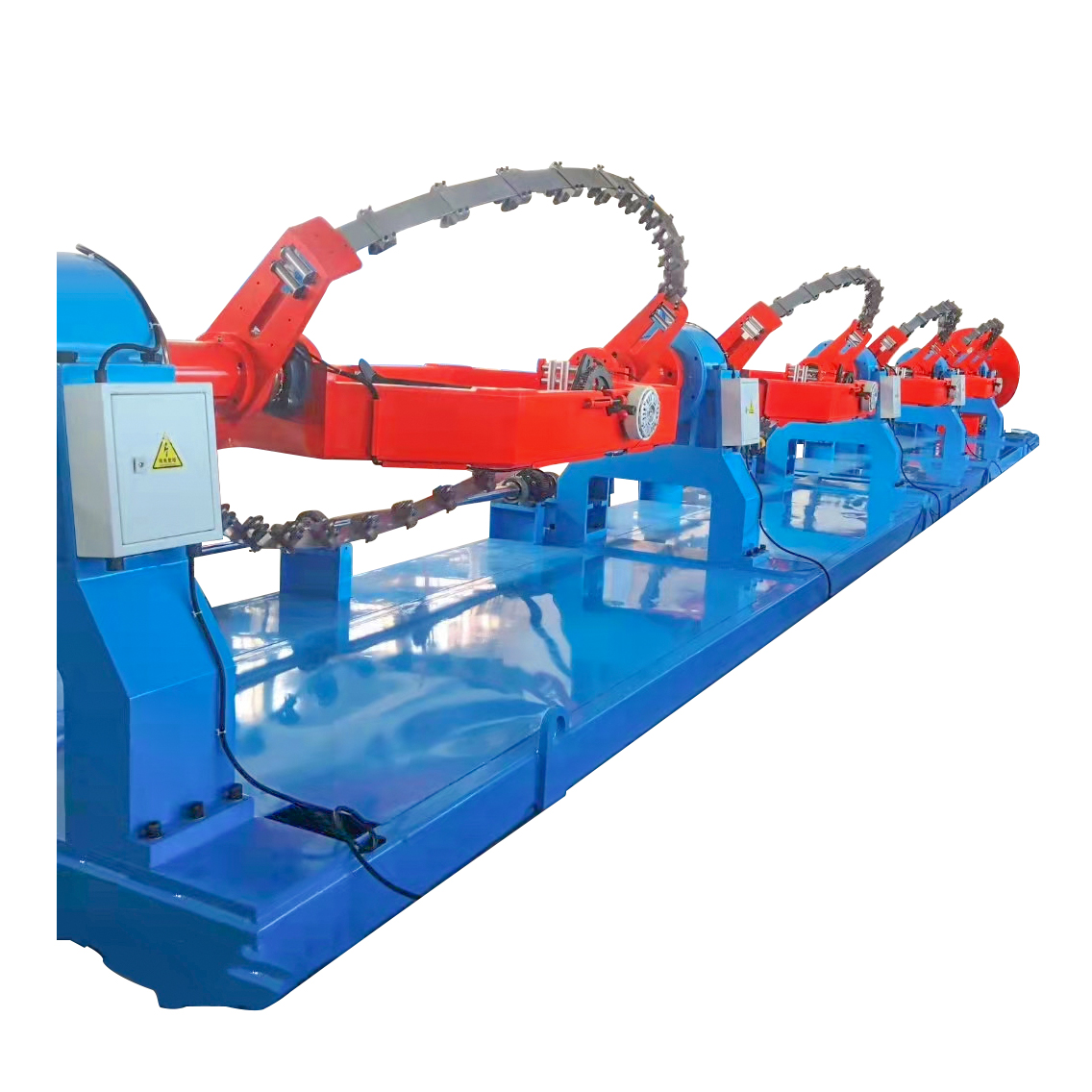

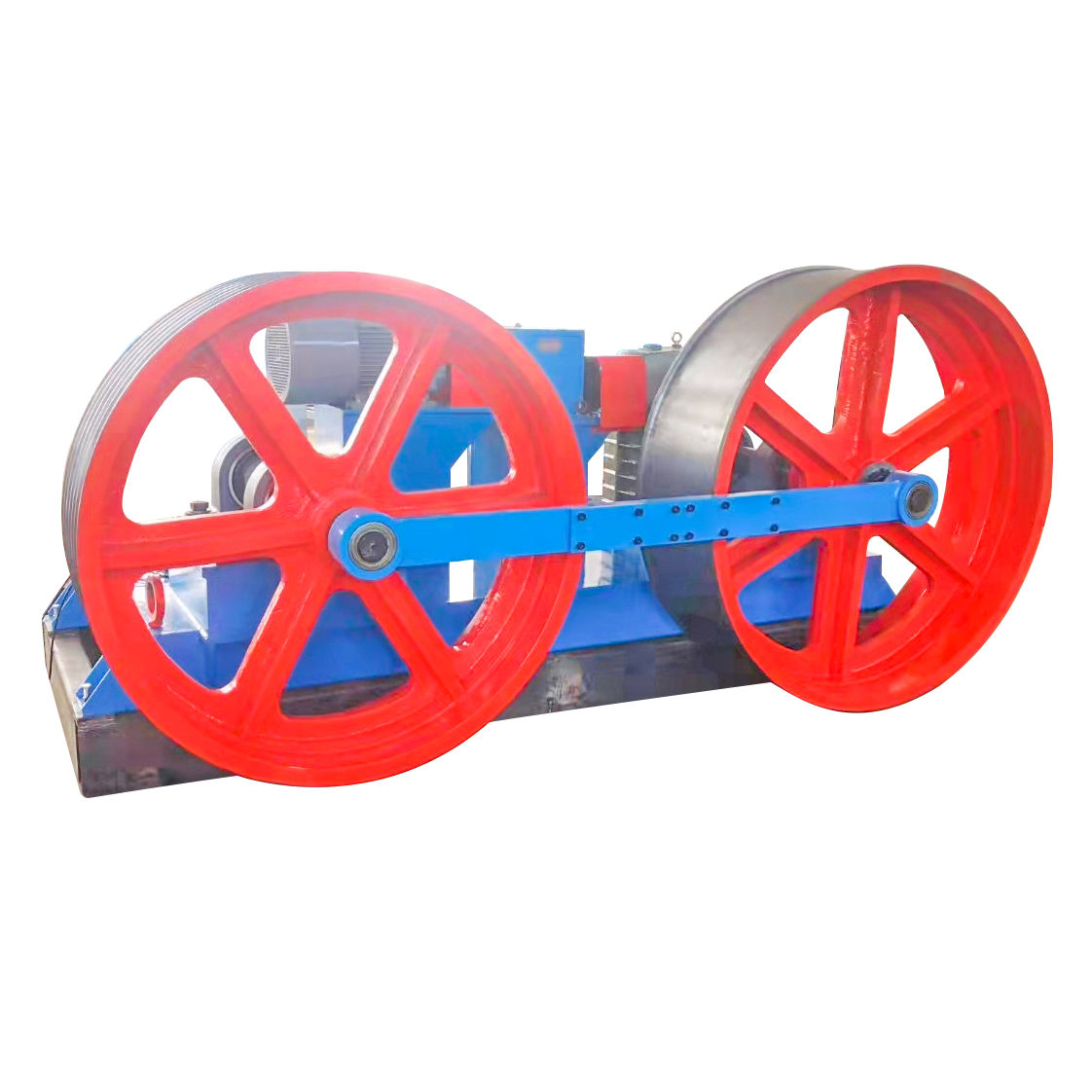

Product Pictrue:
Product Description:
Model |
HH630 |
HH1000 |
HH1250 |
||
Pay off (mm) |
630 |
1000 |
1250 |
||
Line speed (M/min) |
120 |
150 |
150 |
||
Conductor Section (mm²) |
1+3B |
1.5-6 |
4-25 |
10-50 |
|
1+4B |
1.5-6 |
4-25 |
10-50 |
||
1+5B |
1.5-6 |
4-25 |
10-50 |
||
Max.Core (mm) |
6 |
8 |
12 |
||
Rotor speed (rpm) |
650 |
450 |
350 |
||
1+3B |
35 |
45 |
55 |
||
1+4B |
45 |
55 |
65 |
||
1+5B |
55 |
65 |
75 |
1.Bow twister is the important equipment for wire and cable cabling, it is mainly used for control cables, low voltage cables, rubber sheathed cables, mining cables, overhead insulated cables and other products.
2.With the continuous decrease of wire and cable products’ profit, it is imperative to reduce the production cost for the manufacturers. And improving production efficiency is one of the effective ways to reduce production cost. With the unique structure, the production efficiency of bow twister is more than twice as much as the tubular stranding, and more than five times of cage stranding machine. Due to the advantages of high production efficiency, bow twister has been used more and more widely.
