ADSS Cable Is A Type Of Optical Fiber Cable That Is Used In Communication Networks. It Is Made Up Of A Central Core, Surrounded By A Cladding Material.

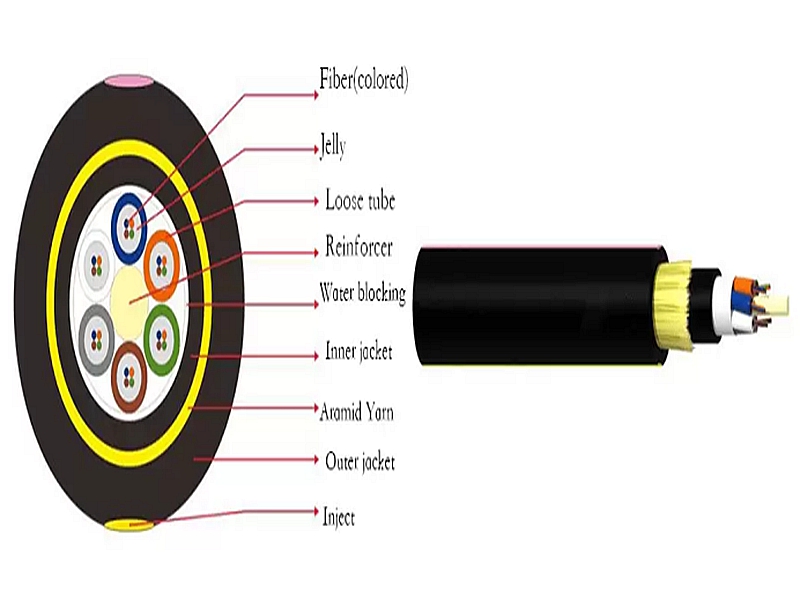

Structurally The ADSS Cable Consists Of The Following Components.
1.1-12 Cores Coloured Fiber Core
2.Loose Tube * 12 Cores
3.Reinforce Wire(FRP/Steel Wire)
4.Aramid Yarn
5.Rip Cord/PE Jacket

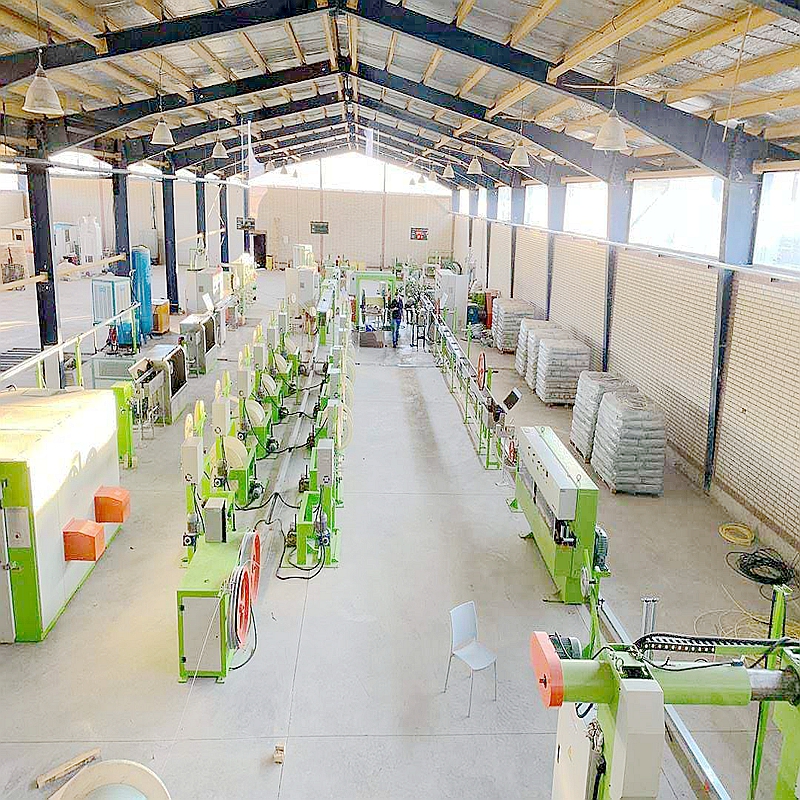

So These Production Lines Are Needed In The Equipment To Complete:

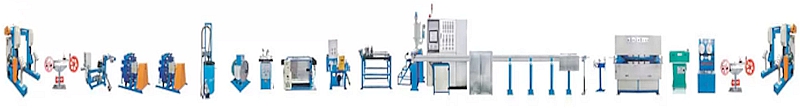

1.235 Coloring And Rewinding Machine To Coloring The 1-12 Cores Fiber Core

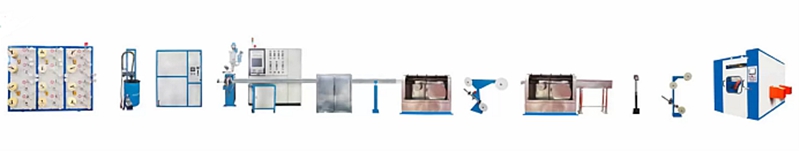

2.50 IPC+PLC Control Loose Tube Cable Production Line To Finish The PBT Tube And Filling The Jelly Inside It,How Many Times Need To Be Produced As Many Tubes As There Are

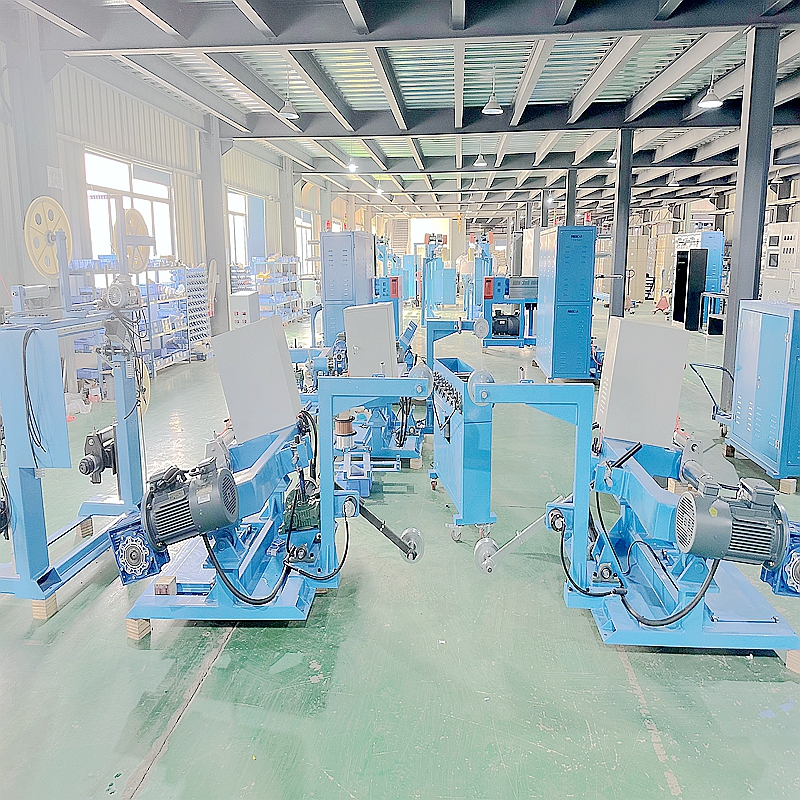

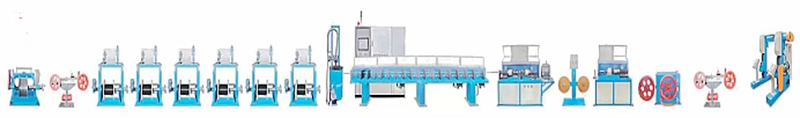

3.SZ Loose Tube Bunched Production Line To Bunched Each Loose Tube Around The Reinforce Wire(FRP/Steel Wire)
4.90 IPC+PLC Control Sheathing Production Line To Do The Aramid Yarn Strand/Rip Cord/PE Jacket Both.
