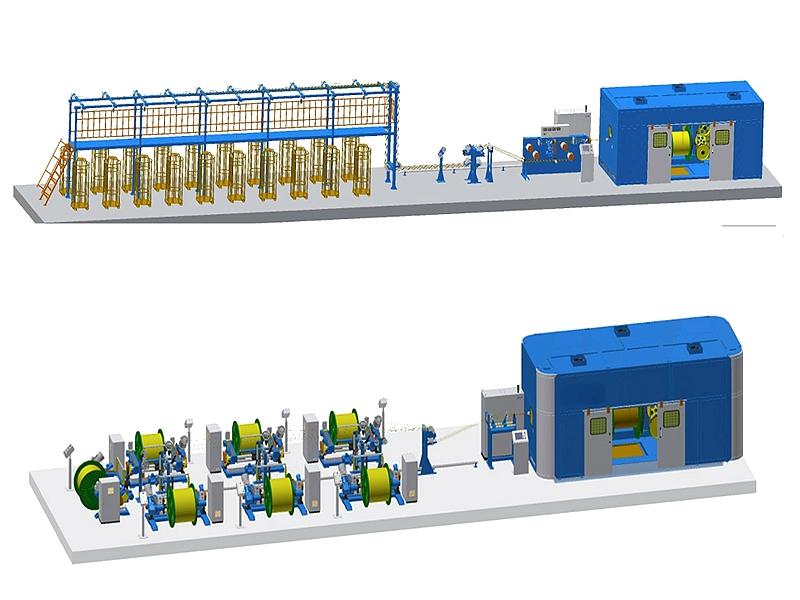

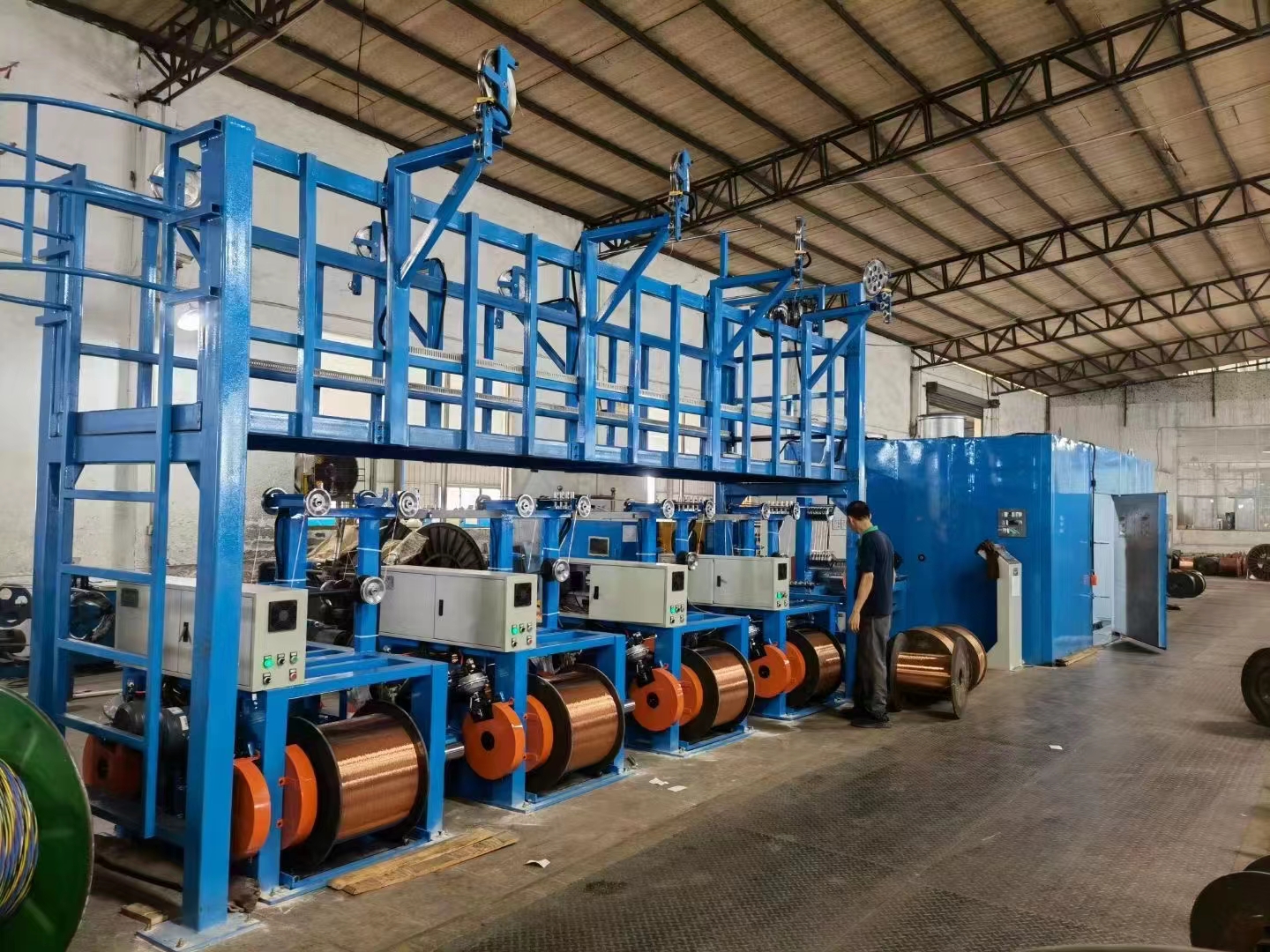

1250/1600 Double twist stranding machine

1250/1600 Double twist stranding machine

Application:

Double twist stranding machine suitable for stranding and compaction of all 7 wires formations, 19 wires "unilay" as well as laying up of 2/3/4 cores of insulated conductors.

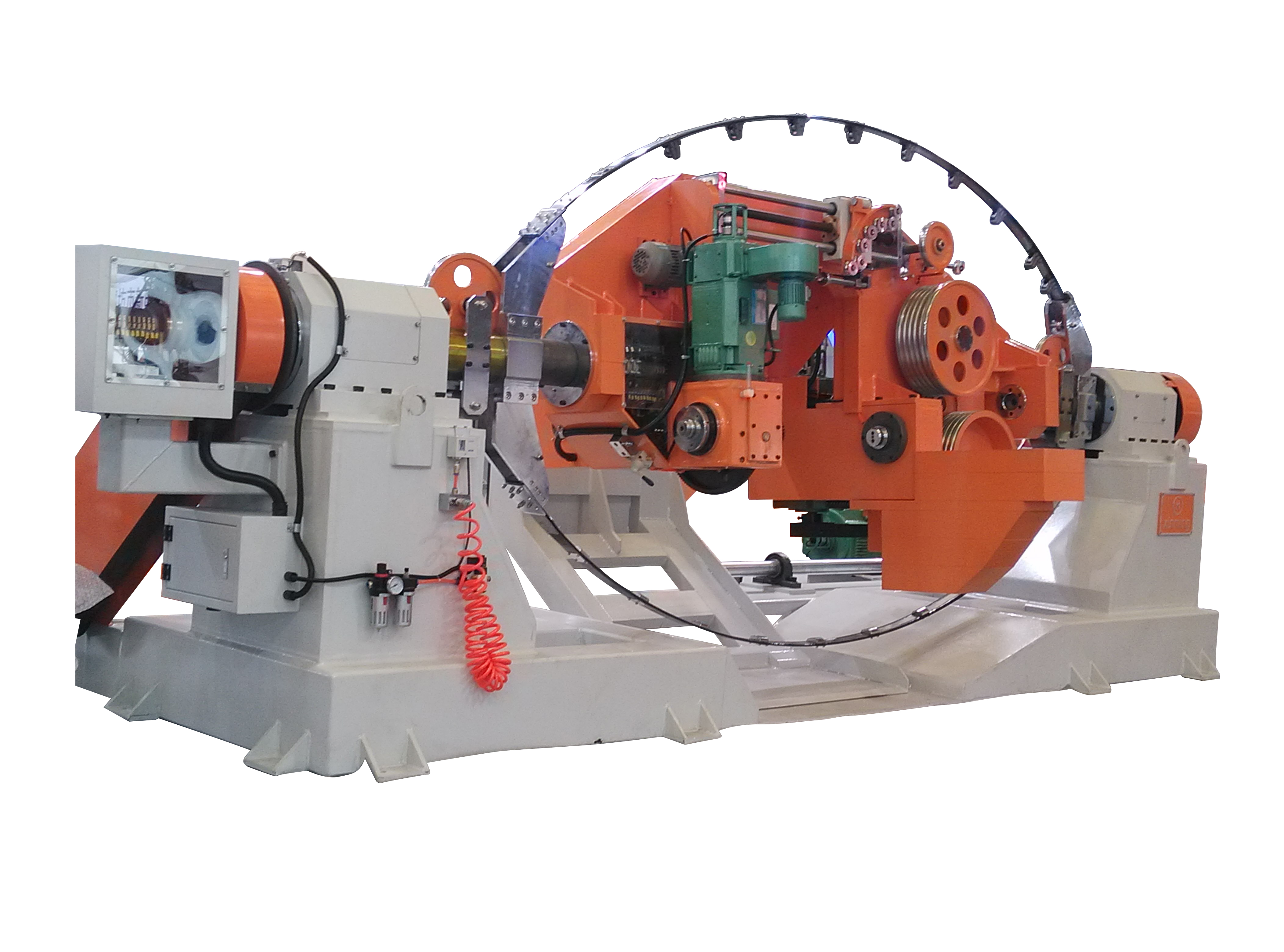

Carbon fiber bows with exchangeable sliding steel band allowing high rotating speeds with heavy loads,Underground hydraulic lifter platform allowing an easy loading/unloading operation,HMl+PLC control system for pre-setting stranding pitch,twist direction and speed synchronization.

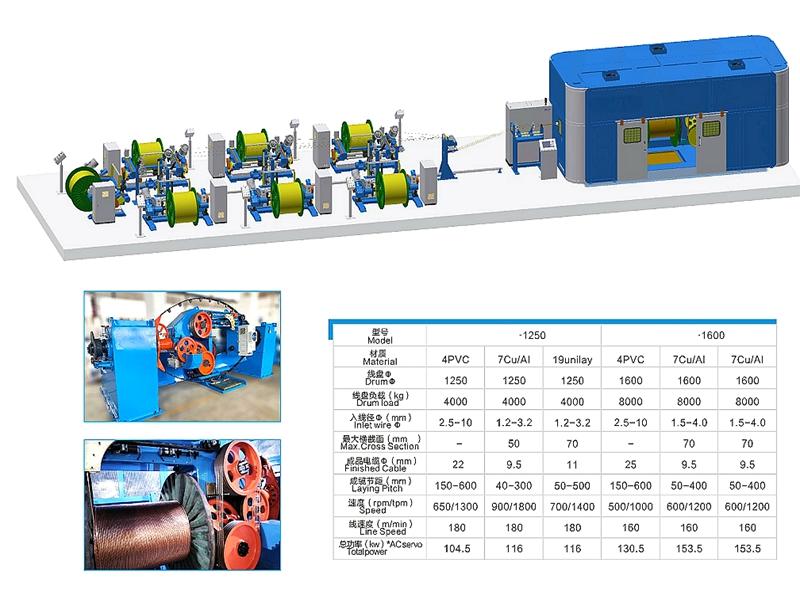

1250 double twist stranding

PVC insulated wire : 4 cores ( 2.5mm2-10mm2 )

Copper : 25mm2 - 50mm2

Al : 25mm2 - 70mm2

1600 double twist stranding

PVC insulated wire : 4 cores (2.5mm2-10mm2 )

Copper : 25mm2 - 70mm2

Al : 25mm2 - 120mm2
