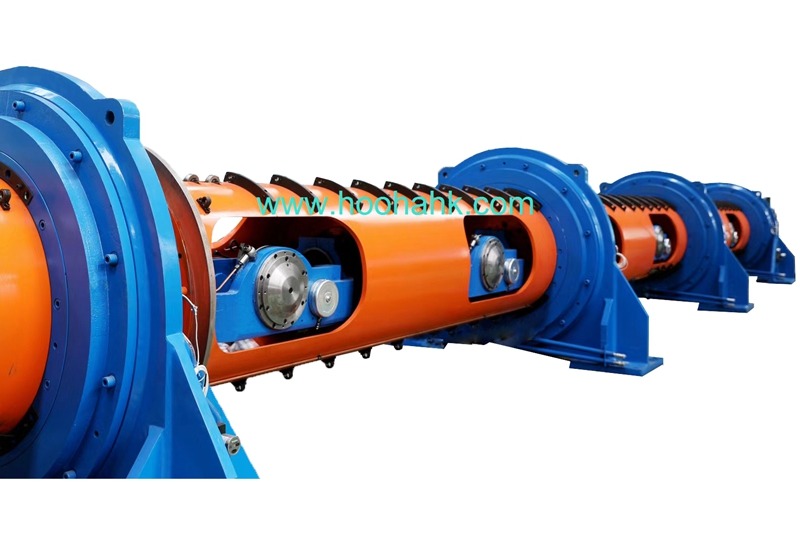

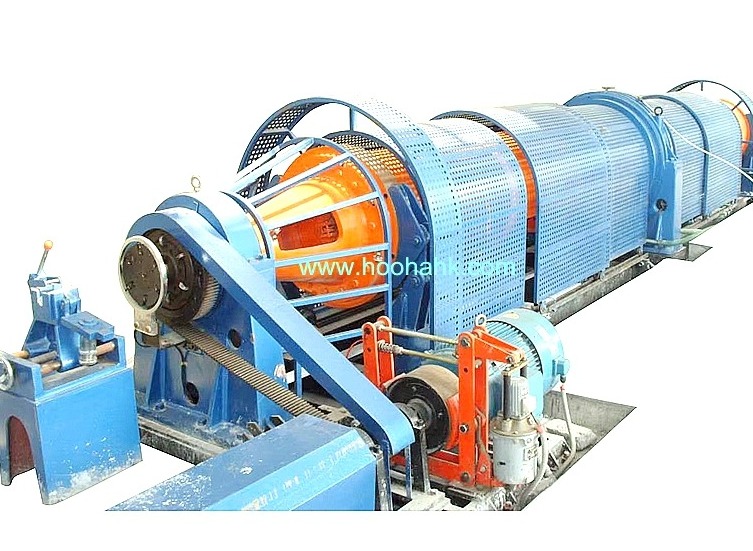

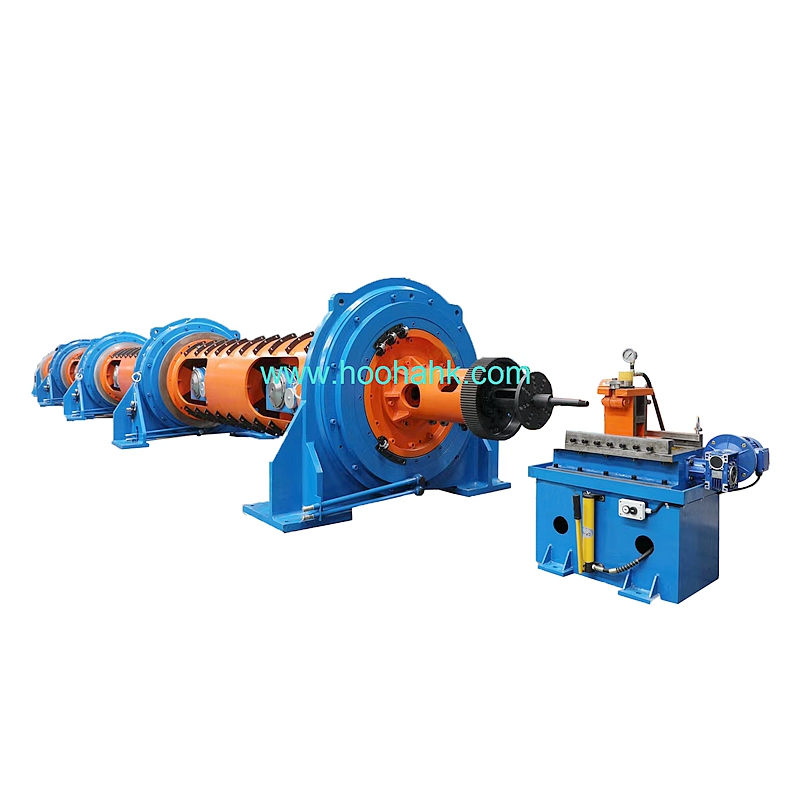

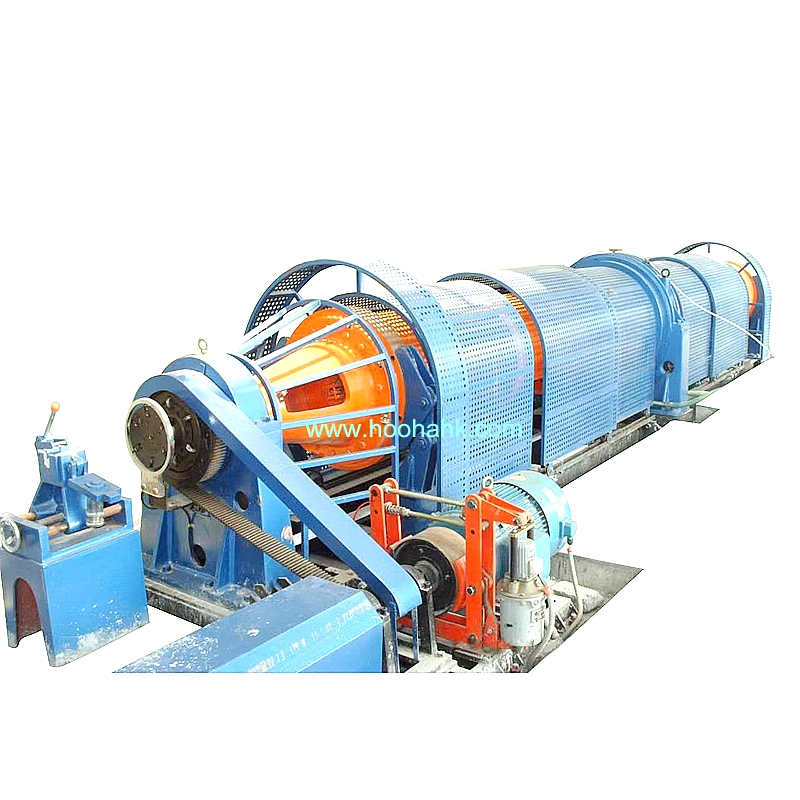

1. We have developed a special high-speed back-up bearing for the tubular strander.
2. Some models run more stable when using cast bottom plate.
3. This pneumatic manufacturing machine uses a spool loader that is pneumatically loosened but automatically clamped. Loading and unloading the spool is easier and more convenient.
4. The optimized design of large bearing lubrication and sealing mechanism helps to control the leakage of lubricating oil well.
5. Optimized the loading window on the tube to increase the rotation speed.
| No. | Items | Quantity |
| 1 |
Φ 630mm Manual pay-off stand |
1 Set |
| 2 |
Φ 630/6 Bobbins cage |
1 Set |
| 3 |
Wire-stranded mould stand |
1 Set |
| 4 |
Meter counter |
1 Set |
| 5 |
Φ 1300mm Double capstan wheels |
1 Set |
| 6 |
Φ 1600mm Column type take-up with traverse |
1 Set |
| 7 |
Transmission system |
1 Set |
| 8 |
Electric control system |
1 Set |
| 9 |
Safe cover |
1 Set |
|
No. |
Items |
Features |
|
1 |
Single wire Diameter |
Copper wire : Φ1.2 - Φ5.0mm Aluminum wire: Φ1.8 - Φ5.0mm |
|
2 |
Max stranded Diameter |
Φ 15mm |
|
3 |
Max cage rotate speed |
500r/min |
|
4 |
Capstan wheel diameter |
Φ1300mm |
|
5 |
Central pay-off bobbin |
Φ 630mm |
|
6 |
Pay-off bobbin in cage |
Φ 630mm |
|
7 |
Take-up bobbin |
Φ 800mm - Φ 1600mm |
|
8 |
Main motor power |
45KW, AC motor |
2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.
3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.
4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
