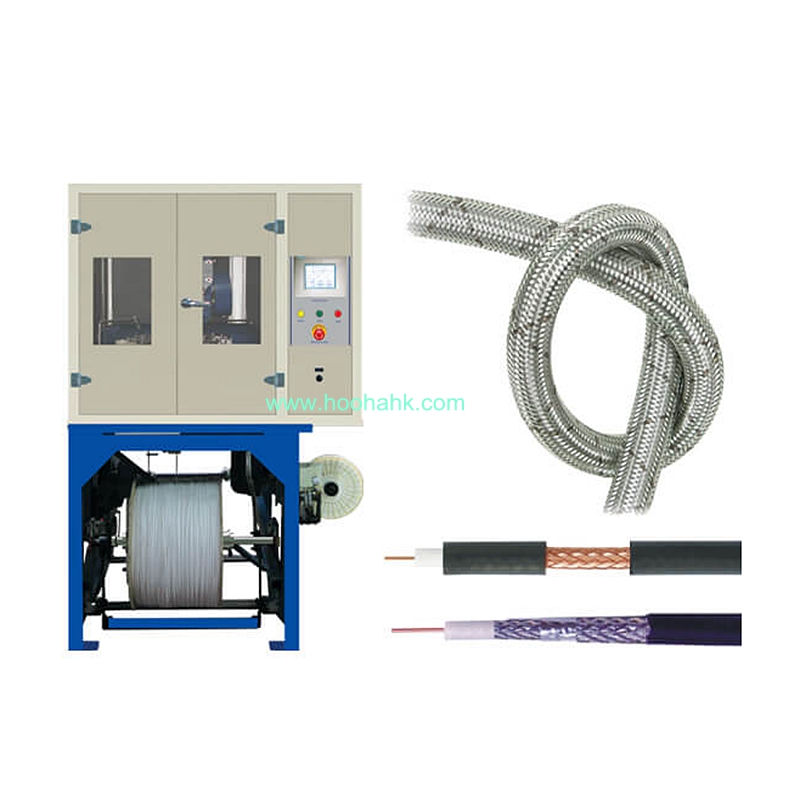

A. 16 Spindle Braiding Machine: It is suitable for the shielding or braiding of all kinds of high quality electric wire , computer wire etc.

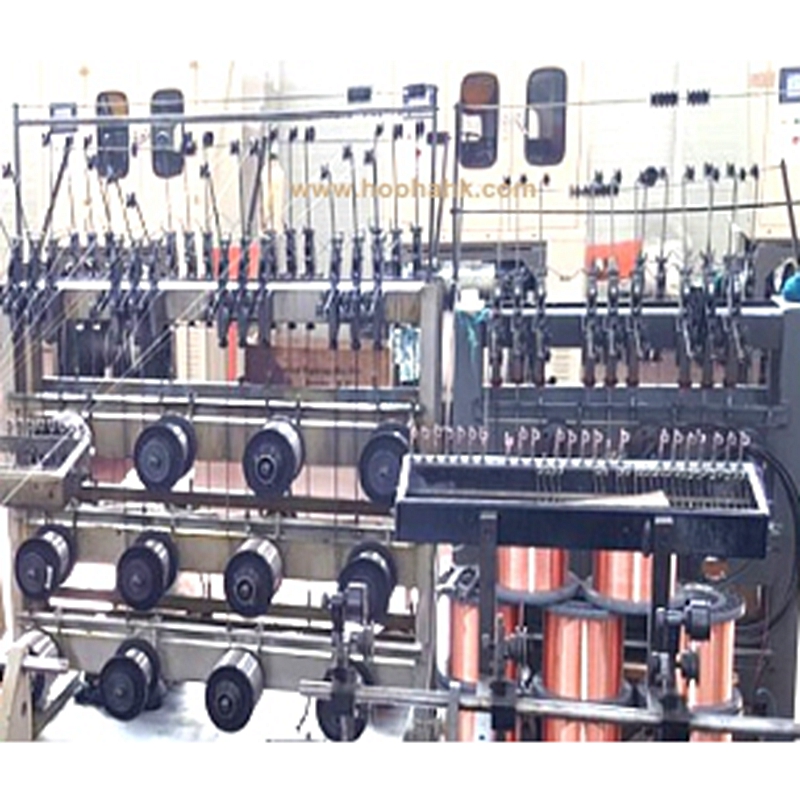

B. Wire Combining Machine: Apply to combine several single copper wire or other alloy wires orderly on the small plastic reel
1. After the aging treatment, the basic castings are processed in the machining center to ensure flatness.
2. The panel is made of ductile iron 800, which is machined in the machining center after aging treatment to ensure its accuracy and wear resistance.
3. The core shaft rotor (impeller) is made of ductile iron 600, which is first processed in a machining center, and the surface is processed with high frequency to improve its hardness, and then processed by a precision grinder.
4. Motor uses the frequency converter to freely change the speed.
5. Standard accessory kit and perfect after-sales service.
|
No. |
Items |
Quantity |
Picture |
|
1 |
16 spindle braiding machine |
1 set |
|
|
2 |
Wire combing machine |
1 set |
|
|

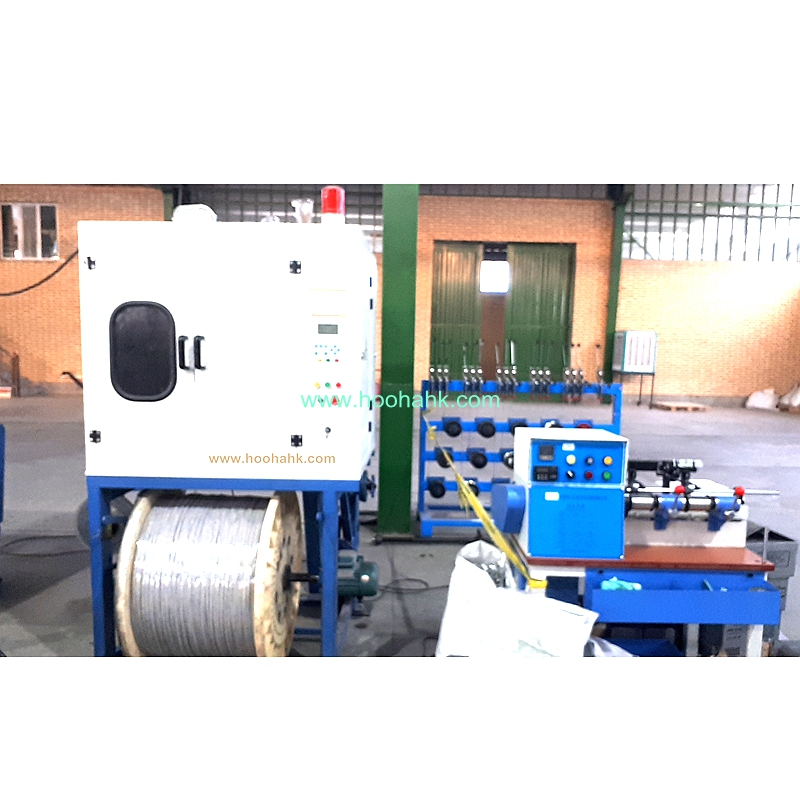

3 |
Vertical pay off stand |
1 set |
|

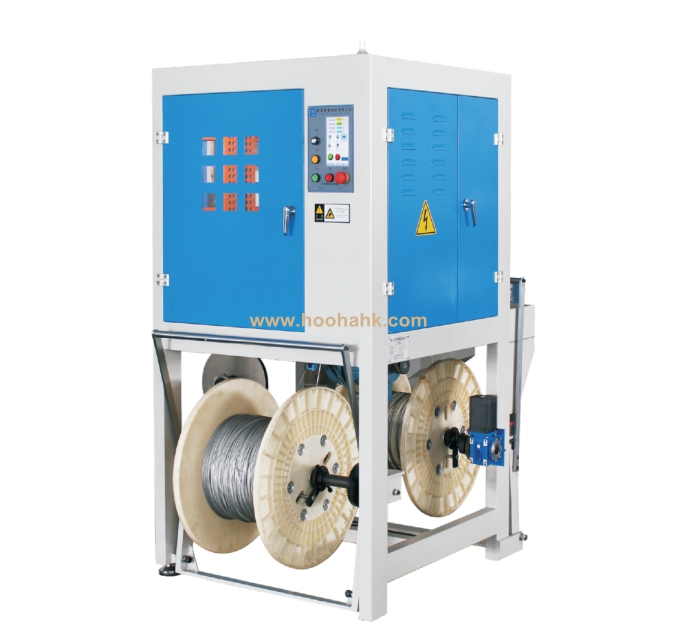

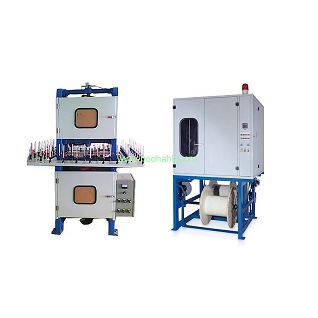

A: 16 Spindle Braiding Machine
|
No. |
Items |
Features |
|
1 |
Braiding Direction |
Vertical |
|
2 |
Bobbin Number |
24 ( 12 is inside , 12 is outside ) |
|
3 |
Bobbin Size |
75mmx22mmx70mm |
|
4 |
Bobbin Speed |
30-100rpm |
|
5 |
Braiding Pitch |
13.3-134.5mm |
|
6 |
Braiding Cable Diameter |
Max.24mm |
|
7 |
Production Speed |
Max.800 m/hour |
|
8 |
Braiding Wire Material |
0.1-0.2mm , Al, Mg wire , copper wire |
|
9 |
Reel Diameter |
MAX. 800mm |
|
10 |
Main Motor Power |
3 kw |
|
11 |
Product Weight |
1258 Kg |
|
12 |
Dimension |
1500x1800x2650mm |
B. Wire Combining Machine
|
No. |
Items |
Features |
|
1 |
Combine wire diameter range |
0.08mm-0.4mm |
|
2 |
Speed |
0-5000 RPM |
|
3 |
Control |
Automatic stop when reel is full , or copper wire broken |
|
4 |
Motor |
0.75 KW Inverter motor , stepless speed adjustable |
Our engineer team has over 5-year experience working overseas for customer on-site service. Therefore, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.
