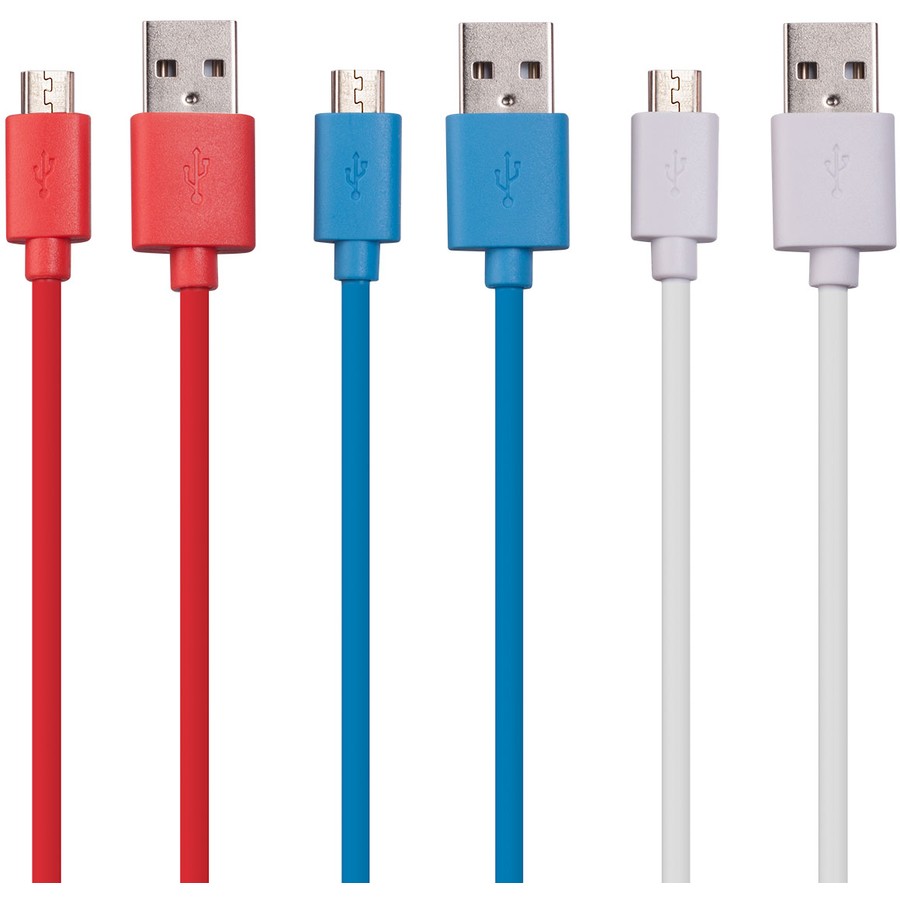

USB电缆的介绍和应用



USB是PC领域中使用最广泛的外部总线标准。 它用于调节计算机与外部设备之间的连接和通信。 USB接口支持设备的即插即用和热插拔功能。 随着计算机硬件的飞速发展,USB的应用提高了外部设备之间数据传输的速度。 用户速度提高的最大好处是用户可以使用更高效的外部设备,例如USB 2.0扫描仪和扫描仪。 4M图片仅需0.1秒左右,大大提高了工作效率。



应用 :

USB数据线用于计算机和外部设备之间的连接和通信,也可以用于手机的充电以及与外部的连接。 用外行的术语来说,它用于传输数据和收费。 USB根据不同的接口和数据线支持设备:鼠标,键盘,打印机,扫描仪,照相机,闪存盘,MP3播放器,手机,数码相机,移动硬盘,外部光驱,USB网卡,ADSL调制解调器,电缆 调制解调器等电子产品。





生产过程及相关机器



1. 导体绞合 →

HH-B-500 高速绞线机





2. 导体绝缘

HH-E-PLC 50 押出机



3. 芯线绞合 →

630 悬臂单绞机



4. 绞合芯线外护套

HH-E-PLC 70 押出机



组件和参数

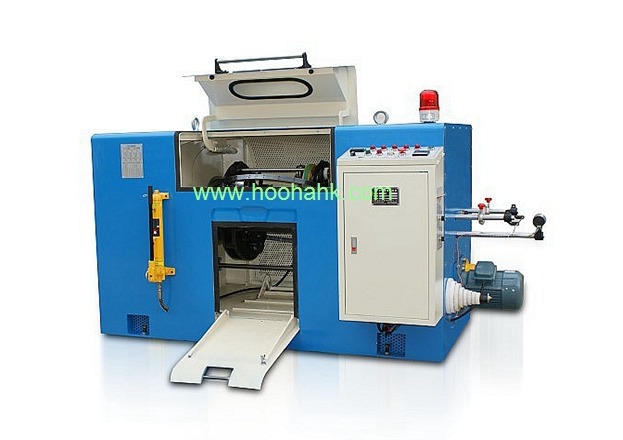

1. HH-B-500 高速绞线机



Application:

It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.



Components:

No.

Items

Quantity

1

500 Bunching machine

1 set

2

Pay off stand multi-core copper wire

1 set



Parameters:

No.

Items

Value

1

Single wire diameter

Ø0.08mm-Ø0.30mm

2

Stranding area

0.3mm2-2.5 mm2

3

Stranded wire length calculation

How many meters per minute = twisting distance *2/1000* twisting bow speed per minute

4

Twisting pitch

5.66 - 39.37mm

5

Rotation speed of arched band

Max: 2200RPM.

6

Spindle lubrication

Use manual grease gun to inject oil

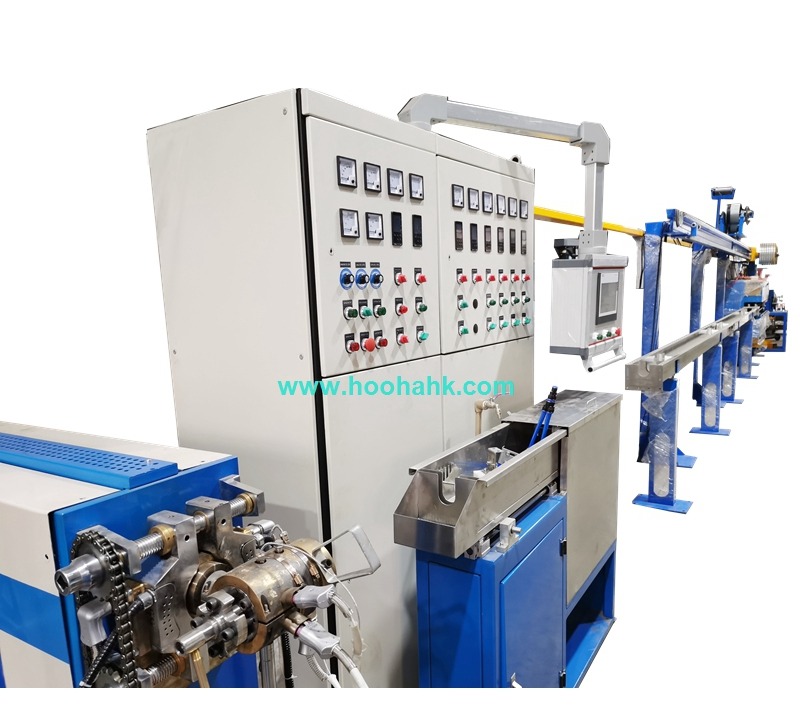

2. HH-E-PLC 50 押出机



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:

No.

Items

Features

1

400-630 motorized pay-off stand

1 set

2

5-wheel Straightening device

1 set

3

50 Host extruder

1 set

4

50 Adjustable extrusion head

1 set

5

Automatic drying and feeding machine

1 set

6

PLC electric control box

1 set

7

1.5m Movable water tank with cover

1 set

8

Diameter tester

1 set

9

8m Fixed water tank with cover and leak-proof

1 set

10

10 m Slide rail type + anode guide wheel storage rack

1 set

11

410mm tractor

1 set

12

Meter counter

1 set

13

High frequency spark tester

1 set

14

400-630 Double-head shaftless motorized take-up stand

1 set

15

Display board

1 set

16

Accessories

1 set



Parameters:



No.

Items

Features

1

Inlet Wire Diameter

0.5~3 mm

2

Finished Wire Diameter

1~5 mm

3

Cross Sectional Area

0.5~2.5 square mm

4

Extrusion Speed

Max 500 m/min

5

Extrusion Capacity

80 kg/h

6

Installed Capacity

45 kva

7

Voltage

380KV, can be customized

8

Weight

3500 kg

9

Measurement (L*W*H)

20*3*3 m

10

Workers recommendation

3 workers





3. 630 悬臂单绞机



Application:

It is suitable for the twisting and synchronous winding of insulated core wires such as USB cable,  electrical cable, communication cable and data cable etc. This single twisting machine is widely used in various types of wires and cables production process.



Components:

No. Items Quantity
1 8 Heads Horizontal tension pay off stand 1 Set
2 PLC Siemens electric control box 1 Set
3 Wire collection device 1 Set
4 Wrapping machine 1 Set
5 630 Cantilever single twisting main machine 1 Set



Parameters:

Motor

Drive (Main machine) motor: AC 380V 10 HP

Capstan motor: AC 380V 5 HP

Linkage wrapping machine motor: AC 380V 2 HP



Inverter

Drive (Main machine):10 HP

Capstan: 5 HP

Linkage wrapping machine:2 HP



Electric control box

PLC Systems: SIEMENS brand, Man-machine interface complete computer control

Tickle touch screen: Easy to operate

Human Interface: SIEMENS





4. HH-E- PLC 70 押出机



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:





Parameters:

No.

Items

Features

1

Inlet Wire Diameter

1~4mm

2

Finished Wire Diameter

2~8 mm

3

Cross Sectional Area

1~6 square mm

4

Extrusion Speed

Max 400 m/min

5

Extrusion Capacity

140 kg/h

6

Installed Capacity

55 kva

7

Voltage

380KV, can be customized

8

Weight

4000 kg

9

Measurement (L*W*H)

24*3.5*3.5 m
