有线电视电缆的介绍和特点



介绍：

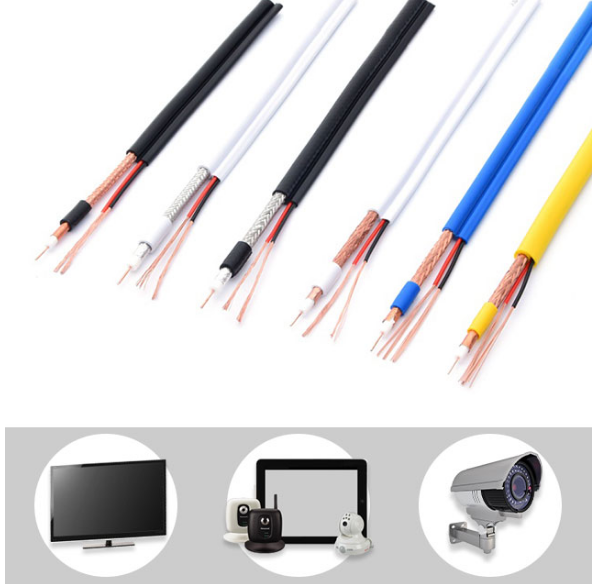

CATV的全名是“社区天线电视”。 有线电视电缆用于宽带传输。 它不同于其他以太网物理层使用的基带传输。 宽带布线系统可以将频带划分为不同的频谱，然后通过不同的频带提供不同的服务。 这种技术已广泛用于有线电视广播中，由于每个频道占用不同的频带，因此不能在同一条电缆上同时提供多个电视频道，因此它们不会相互干扰。









特性 ：

CATV的特点是多重通信和双向通信。 将来，CATV系统可能会使用光纤而不是同轴电缆来传输信号。 由于光的波长短于高频波的波长，因此使用光传输信号可以增加很多传输容量，并可以实现高传真率的效果。 由于光纤的出现，CATV的性能将进一步发挥。







生产过程及相关机器



1.  铜线绞合 (外径0.81mm)→

HH-B-500 高速绞线机

2.  铜线PVC绝缘 →

HH-E- PLC 80 押出机

3. 铜线PE绝缘→

HH-E-PLC 70 押出机

4. 铜线编织 →

HH-BR-16锭高速编织机





5. PVC 外护套 →

HH-E- PLC 80 押出机

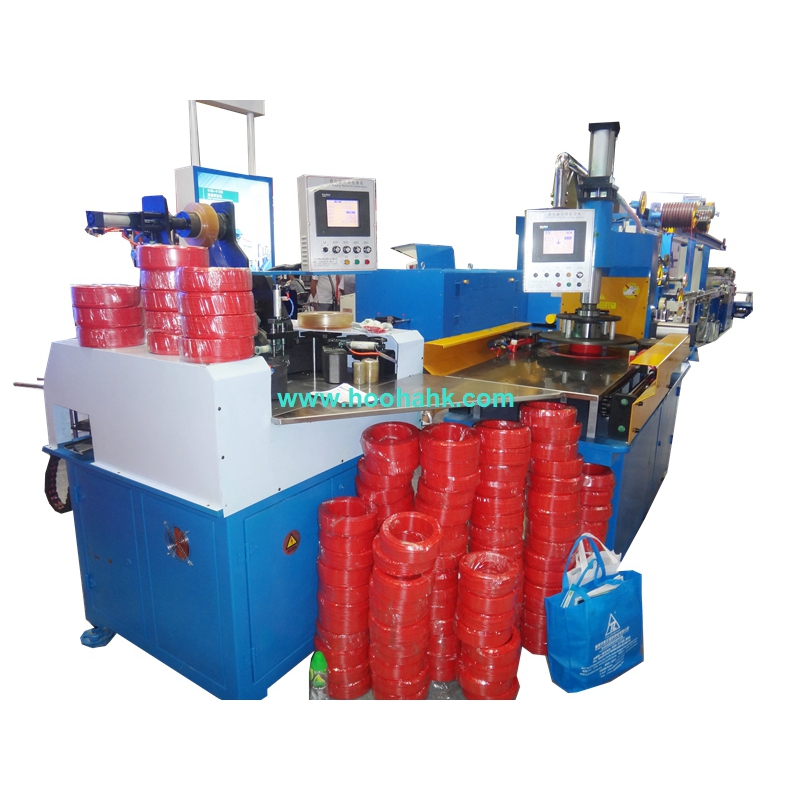

6. 包装→

100m/Roll, 1000m/Spool



（1）成圈包装



（2）线盘包装



组件和参数

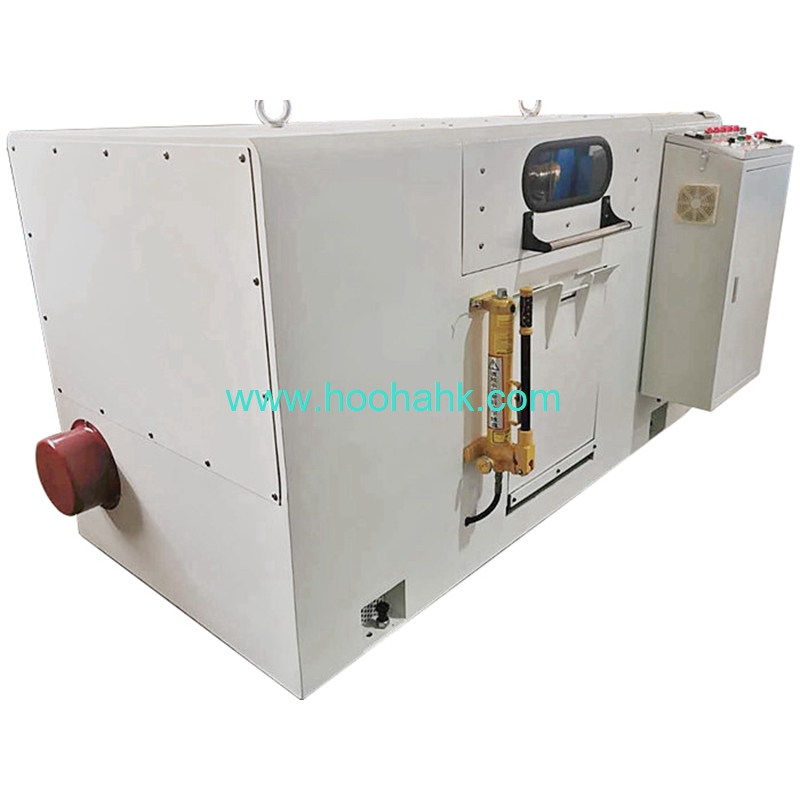

1. HH-B-500 High Speed Bunching Machine



Application:

It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.



Components:

No.	Items	Quantity
1	500 Bunching machine	1 set
2	Pay off stand multi-core copper wire	1 set



Parameters:

No.	Items	Value
1	Single wire diameter	Ø0.08mm-Ø0.30mm
2	Stranding area	0.3mm2-2.5 mm2
3	Stranded wire length calculation	How many meters per minute = twisting distance *2/1000* twisting bow speed per minute
4	Twisting pitch	5.66 - 39.37mm
5	Rotation speed of arched band	Max: 2200RPM.
6	Spindle lubrication	Use manual grease gun to inject oil

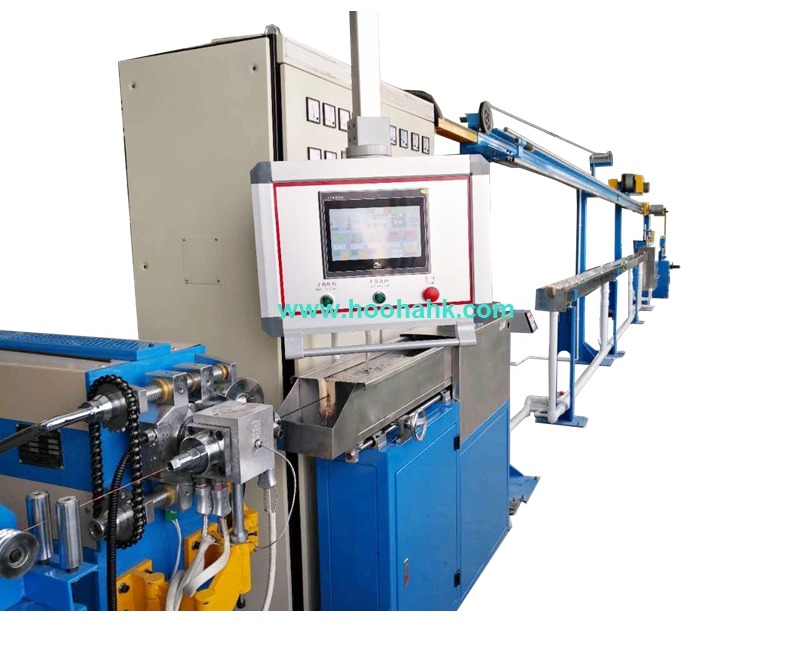

2. HH-E- PLC 80 Extrusion Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:



3. HH-E-PLC 70 Extrusion Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:



Parameters:

No.	Items	Features
1	Inlet Wire Diameter	1～4mm
2	Finished Wire Diameter	2～8 mm
3	Cross Sectional Area	1～6 square mm
4	Extrusion Speed	Max 400 m/min
5	Extrusion Capacity	140 kg/h
6	Installed Capacity	55 kva
7	Voltage	380KV, can be customized
8	Weight	4000 kg
9	Measurement (L*W*H)	24*3.5*3.5 m



4. HH-BR-High Speed 16 Spindle Braiding Machine



Application:

It is suitable for the shielding or braiding of all kinds of high quality electric wire , computer wire etc.



Components:

No.	Items	Features
1	16 Spindle Braiding Machine	1 set
2	Wire Combining Machine	1 set



Parameters:

A. 16 Spindle Braiding Machine

No.	Items	Features
1	Braiding Direction	Vertical
2	Bobbin Number	16 ( 8 is inside , 8 is outside )
3	Bobbin Size	80mmx22mmx80mm
4	Bobbin Speed	50-150rpm
5	Braiding Pitch	3.2-35.5mm or 6.4-65mm
6	Braiding Cable Diameter	Max.14mm
7	Production Speed	Max.485 m/hour
8	Braiding Wire Material	0.1-0.2mm , Al, Mg wire , copper wire
9	Reel Diameter	630mm-800mm
10	Main Motor Power	1.1kw
11	Product Weight	854 Kg
12	Dimension	1200x1390x2350mm

B. Wire Combining Machine

No.	Items	Features
1	Combine wire diameter range	0.08mm-0.4mm
2	Speed	0-5000 RPM
3	Control	Automatic stop when reel is full , or copper wire broken
4	Motor	0.75 KW Inverter motor , stepless speed adjustable



5. HH-E- PLC 80 Extrusion Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:
