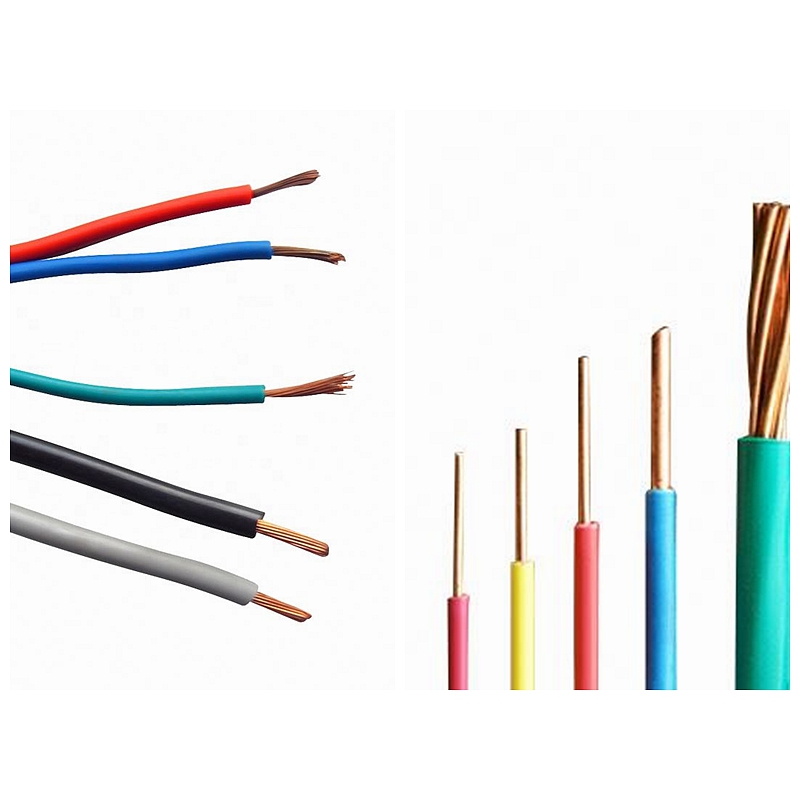

0.5-6 mm2电源线的介绍和特点
电源线用作交流电源线和直流DC电源线。 通常，交流电源线是通过高压交流电源的电线。 直流电源线的类型基本上是直流电压序列。 因此，在安全要求上没有交流线路。 严格，但出于安全原因，各国仍需要统一的安全认证。
电源线的结构主要包括外部护套，内部护套和导体。 常见的传输导体包括铜和铝金属线。
生产过程及相关机器
1. 导体绞合 →
HH-B-650 高速绞线机
2. 绞合导体绝缘→
HH-E-PLC 70+35 押出机
机器组件和参数
1. HH-B-650 High Speed Bunching machine
Application:
It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.
Components:
|
No. |
Items |
Quantity |
|
1 |
650 Bunching machine |
1 set |
|
2 |
Pay off stand multi-core copper wire |
1 set |
Parameters:
|
Model |
Right-hand model. The operator faces its front and the wires enter it from its right side |
|
Rotation speed of arched band |
Max: 1800RPM. The bow strap is a guide wheel bow strap |
|
Twisting pitch |
15-60.24mm (can be adjusted appropriately according to customer needs), manual gear change twisting pitch |
|
Stranded wire length calculation |
How many meters per minute = twisting distance *2/1000* twisting bow speed per minute |
|
Twisting direction |
Arbitrary selection of left and right twisting direction |
|
Single wire diameter |
Ø0.16mm-Ø1.0mm |
|
Stranding area |
0.4 mm2-5.5 mm2 |
2. HH-E-PLC 70 Extrusion Machine
Application:
This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.
Components:
Parameters:
|
No. |
Items |
Features |
|
1 |
Inlet Wire Diameter |
1～4mm |
|
2 |
Finished Wire Diameter |
2～8 mm |
|
3 |
Cross Sectional Area |
1～6 square mm |
|
4 |
Extrusion Speed |
Max 400 m/min |
|
5 |
Extrusion Capacity |
140 kg/h |
|
6 |
Installed Capacity |
55 kva |
|
7 |
Voltage |
380KV, can be customized |
|
8 |
Weight |
4000 kg |
|
9 |
Measurement (L*W*H) |
24*3.5*3.5 m
|
